Overview of Articulating Loader

An articulated loader is a versatile earth moving machine built to work in small areas and under rigorous loads. The articulated pivot joint provides excellent manoeuvrability, stability (gradeability), and tight turning radius making them good for urban development, farming, and material handling. With very efficient hydraulics, high-lift capacity and numerous interchangeable attachments, articulated loaders can provide a great degree of precision, minimize operator fatigue and ensure reliable operation on most terrains and in all weather conditions.
Get A Quote

Articulating Loader

2.2 ton Compact Wheel Loader H180 VIEW DETAILS

2.2 ton Compact Wheel Loader H180

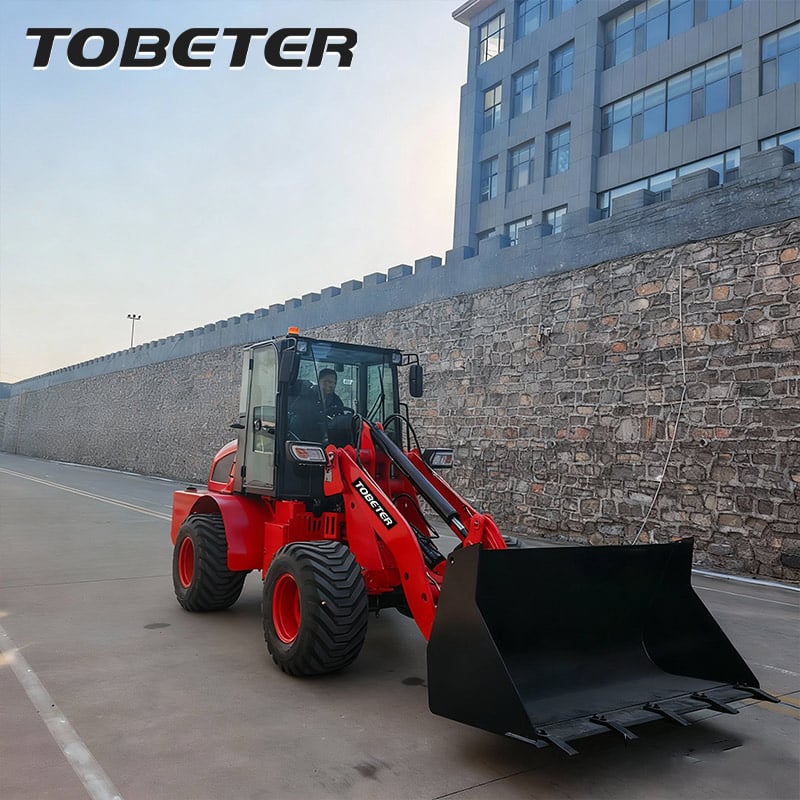

5 ton Construction Wheel Loader H480 VIEW DETAILS

5 ton Construction Wheel Loader H480

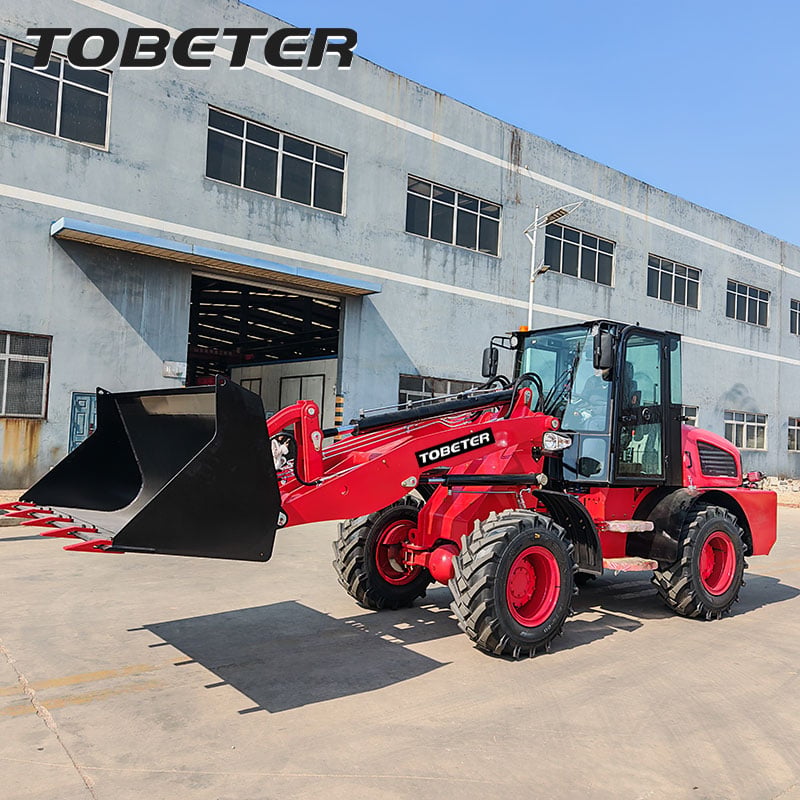

6 ton Articulating Wheel Loader H580 VIEW DETAILS

6 ton Articulating Wheel Loader H580

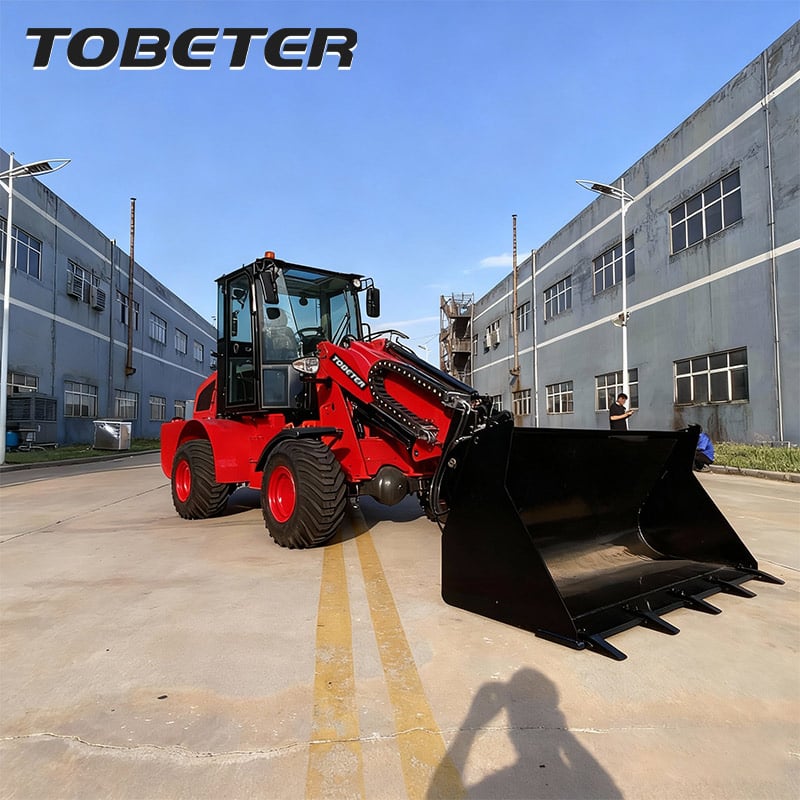

1.8 ton Articulated Telescopic Loader H380T VIEW DETAILS

1.8 ton Articulated Telescopic Loader H380T

The articulating loader is engineered for tough jobs with its tough frame, strong axles, and turbo hydraulic system all delivering constant power where it will be used most. With its articulation joint, the loader has a wider wheelbase envelope without the addition of any length. As a result, when picking large loads on steep or uneven ground, the loader will be more stable than if it had just had a longer wheelbase. The loader's cab is designed for good visibility and the joysticks are arranged in a way that allows for smooth and controlled movement of the loader. There are numerous transmission options to allow the loader to work with low-speed breakout to highway-type speeds. The loader can accommodate many different attachments so that it can perform a wide variety of jobs such as digging, handling materials, removing snow, mulching, or moving dirt. The loader is easy to maintain because of engineered modular panel design and a centralized grease point to reduce downtime. All in all, the articulating loader provides dependable performance, shorter cycle times, and a lower total cost for ownership for fleets regardless of size.

F&Q About Articulating Loader

What makes an articulating loader different from a traditional wheel loader?

When an articulating loader has a pivot joint located between the cab and implement frame, this allows for sharper corners as well as enhanced stability on a slope. This design helps you turn more easily, and gives you greater control of your loads, but also makes it easier to maneuver into tight spaces.
This machine is compatible with a broad selection of quick-attach accessory types such as: buckets; forks; grapples; rakes; and specialized tools. Use of the optional hydraulic circuits provides for optimal performance of the various types of accessories and standard mounting plates will provide for easier attachment exchanges resulting in reduced equipment downtime and increased versatility across all types of construction, agricultural, and municipal applications.
Common safety equipment includes: reverse view cameras, audible alarms, load-sensing stabilization systems, Ropped/Fopped certified cabs. There are also optional safety equipment such as grade control systems and rollover protective devices (when applicable), as well as hydraulic lockouts on machines when working on a job site that would require additional protection for operators and anyone else close to the operator.
Every day's inspections for fluids (including coolant), filters, and tires are performed in accordance with operators' manuals. Periodically (every 250-500 hours), the hydraulic systems and drivetrains undergo periodic service. Conveniently located access panels and modular components reduce both service downtime and total service time for routine maintenance.

Advantages of Articulating Loader

Superior Maneuverability

Due to the tight turning radius and responsive steering that defines this product, we have also engineered an articulating link that minimizes the restriction on the layout of a confined job site. This allows the machine to easily maneuver around obstacles while providing the ability to position loads accurately for loading, grading, and handling materials even when operating on uneven surfaces.

Enhanced Stability

The drive system's weight is distributed equally throughout the entire articulated action, which helps create a stable and strong base for lifting; this will result in improved performance while at an angle or on uneven terrain. The design will also reduce rear-end movement when loading, dumping, or travelling (even in high load/high height applications).

Versatile Attachment Compatibility

Due to having quick-attach couplers, the loader can use various buckets, forks, grapples, and augers. Rapid tool changes increase productivity in all application types, while the hydraulic circuit allows using the specific attachment optimally, which decreases cycle times and makes it easier for the operator.

Efficient Operator Experience

An adjustable seat, clear sight lines, and intuitive controls in an ergonomic cab will decrease fatigue during long work shifts. Reduced vibration, climate control, and smart suspensions increase your comfort levels, enabling you to work longer hours with consistent accuracy when loading, lifting, and moving materials.
