1. Equipped with a powerful and reliable drivetrain designed for heavy-duty construction applications.
2. Excellent complex scene adaptation, performing efficiently in construction sites, mines, and uneven terrain.
3. High operating efficiency with optimized bucket capacity.
1. Outstanding cost performance with low operating and maintenance costs.
2. Better flexibility, allowing smooth operation in tight spaces and diverse working conditions.
3. Built with durable components to ensure long service life and stable performance.
Performance
Model |
H480 |
Rated load |
2000kg |
Operation weight |
5000kg |
Rated bucket capacity |
1m³ |
Max. grade ability |
30° |
Min. ground clearance |
260mm |
Wheelbase |
2200mm |
Steering angle |
40° |
Max. dump height |
2700mm |
Overall dimension (L*W*H) |
5210x1880x2610mm |
Min. turning radius |
4510mm |
Track base |
1510mm |
Dumping angle |
45° |
Function of leveling automatic |
Yes |
Engine
Brand/Model |
YUNNEI/YN33GBZ |
Type |
Vertical, in-line, water cooling, 4-cylinder, turbo type |
Rated power |
65KW |
Optional brand |
EU5 engine:CHANGCHAI EPA4 engine:KOLHER or CUMMINS |
Transmission system
Torque converter |
265 |
Gearbox mode |
Counter shaft, power-shift |
Gear shift |
4 forward,4 reverse |
Max. speed |
35km/h |
Drive axle
Main reducing spiral |
Circular Arc Bevel gear, single stage |
Decelerating mode |
Single stage planetary type |
Hydraulic system
System working pressure |
16Mpa |
System flow |
63L/min |
Brake system
Service brake |
Hydraulic disc brake on 4 wheels |
Parking brake |
Flexible shaft operated external drum |
Tyre
Tyre model |
500/50-17(Tubeless tire) |
Width |
501mm |
Diameter |
935mm |
Filling capacity
Diesel fuel tank |
80L |
Hydraulic tank |
80L |

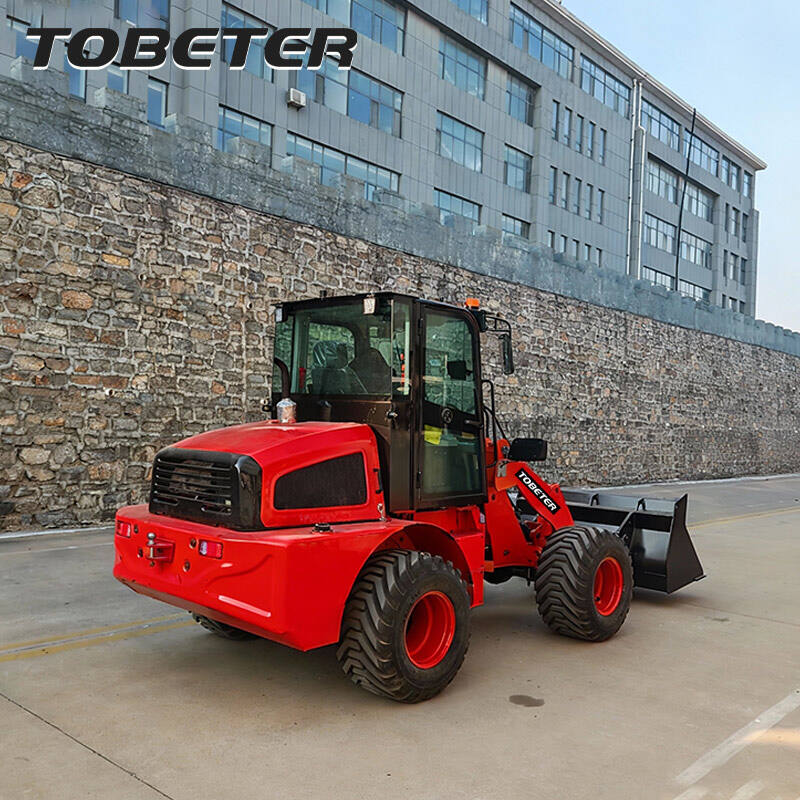

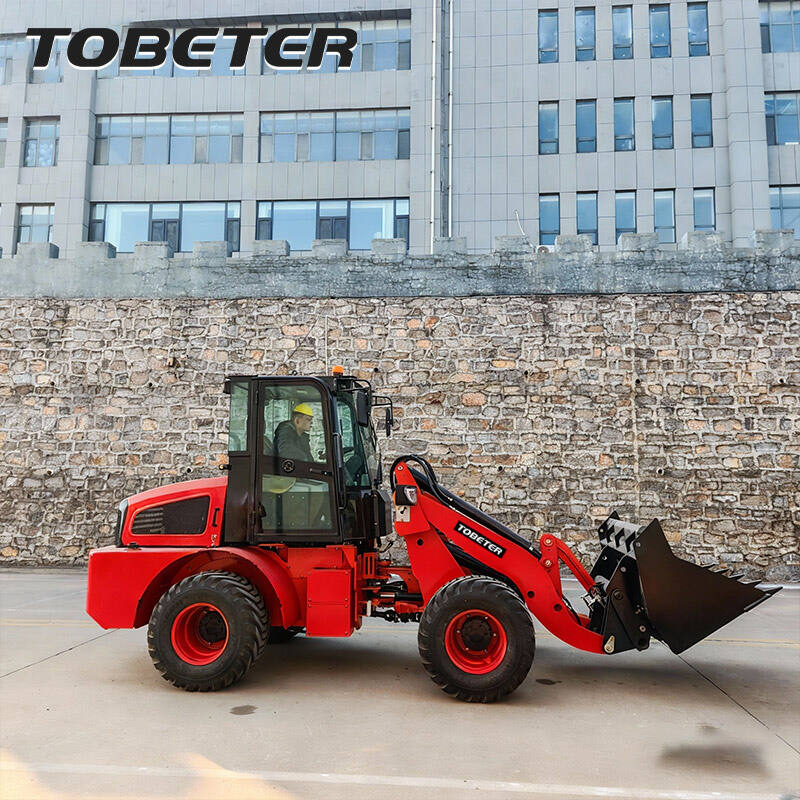

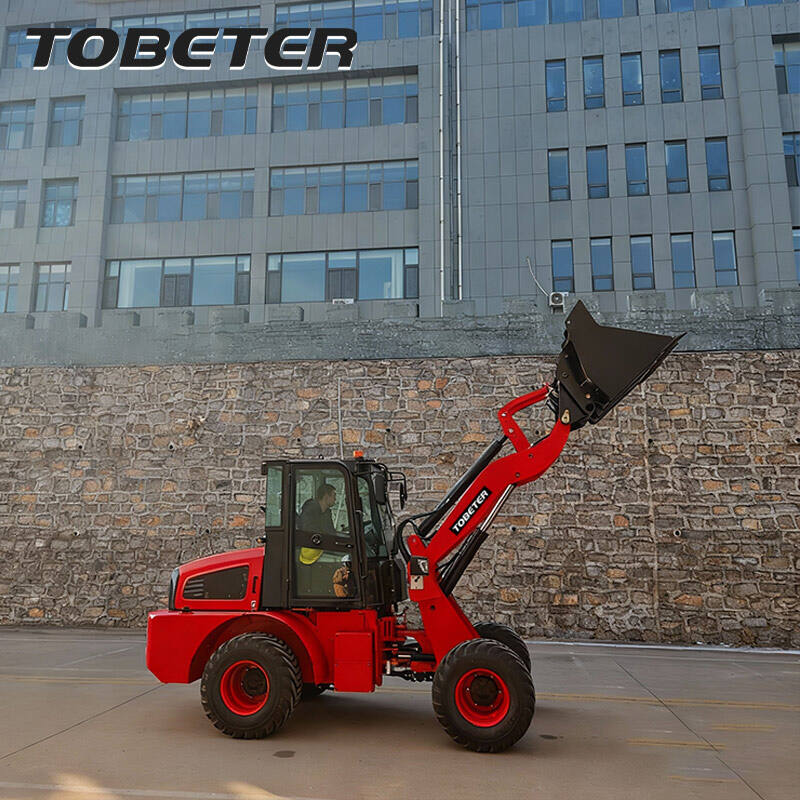

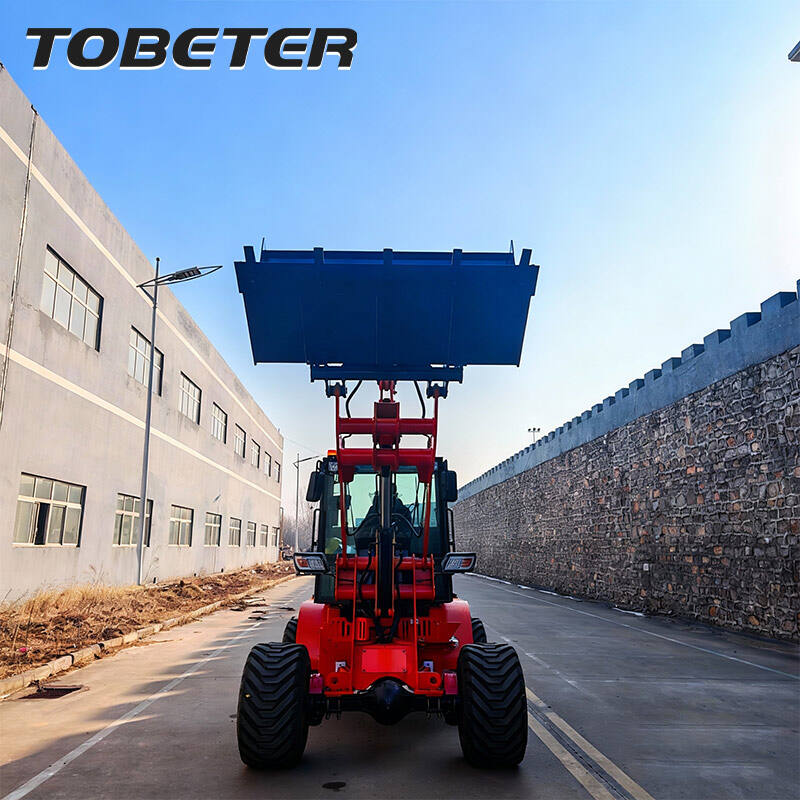

This wheel loader is equipped with a high-performance power system, featuring a mature and reliable engine and an efficient transmission system. The overall power output is abundant and stable, making it suitable for complex operation environments such as mines, construction sites, ports, and material yards.
Its maximum climbing angle can reach 30°. Combined with the four-wheel drive system, it can maintain excellent traction and passability even in complex terrains such as muddy, sandy, and sloping areas, ensuring the stable operation of the equipment during high-intensity continuous operations.
The construction wheel loader also focuses on the economic and durable design of the entire machine. Key components are made of high-quality materials, and maintenance is simple with low cost for replacing wear parts. With excellent fuel economy, stable operation performance and reasonable purchase cost, the loader becomes the ideal choice for users seeking high value for money.
