1. High load capacity with efficient performance.
2. Excellent adaptability to complex terrain.
3. Compact design with flexible maneuverability.
1. Strong stability and reliable structure.
2. Better terrain adaptability than traditional models.
3. Easier and more convenient operation.
Performance
Model |
H380T |
Rated loading |
1800kg(Include bucket or accessories) |
Operation weight |
5300kg |
Rated bucket capacity |
0.75m³ |
Max. grade ability |
30° |
Min. ground clearance |
330mm |
Wheelbase |
2273mm |
Steering angle |
45° |
Max. dump height |
4100mm |
Dump distance |
930mm |
Overall dimension (L*W*H) |
5930x1900x2560mm |
Min. turning radius |
3281mm |
Track base |
1447mm |
Dumping angle |
40° |
Function of leveling automatic |
Yes |
Engine
Brand/Model |
YUNNEI/YN27GBZ |
Type |
Vertical, in-line, water cooling, 4-cylinder, turbo type |
Rated power |
58KW |
Optional engine |
EURO5 engine: CHANGCHAI/YUNNEI EURO5/EPA4 engine: KOLHER EPA4 engine: CUMMINS |
Transmission system
Torque converter |
265 |
Gearbox mode |
Counter shaft, Power-shift |
Gear shift |
4 forward,4 reverse |
Max. speed |
28km/h |
Drive axle
Main reducing spiral |
Circular Arc Bevel gear, single stage |
Decelerating mode |
Single stage planetary type |
Hydraulic system
System working pressure |
16Mpa |
System flow |
45ml/r |
Brake system
Service brake |
Hydraulic disc brake on 4 wheels |
Parking brake |
Flexible shaft operated external drum |
Tyre
Tyre model |
400/65-15.5 tubeless tire(16PR) |
Width |
402mm |
Diameter |
870mm |
Filling capacity
Diesel fuel tank |
80L |
Hydraulic tank |
80L |
Packing quantity： 2Units（1*40HC）

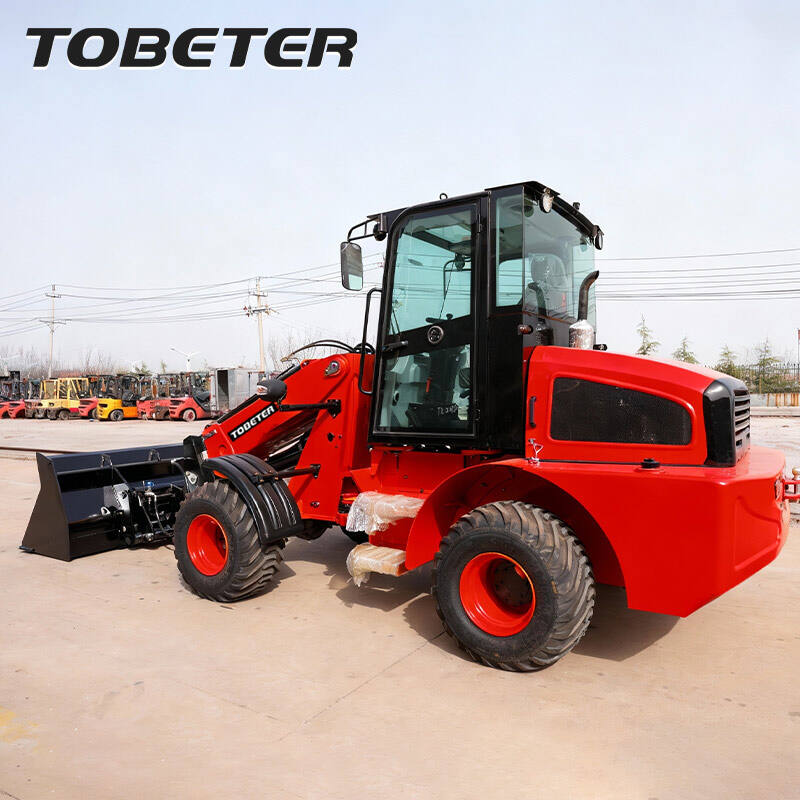

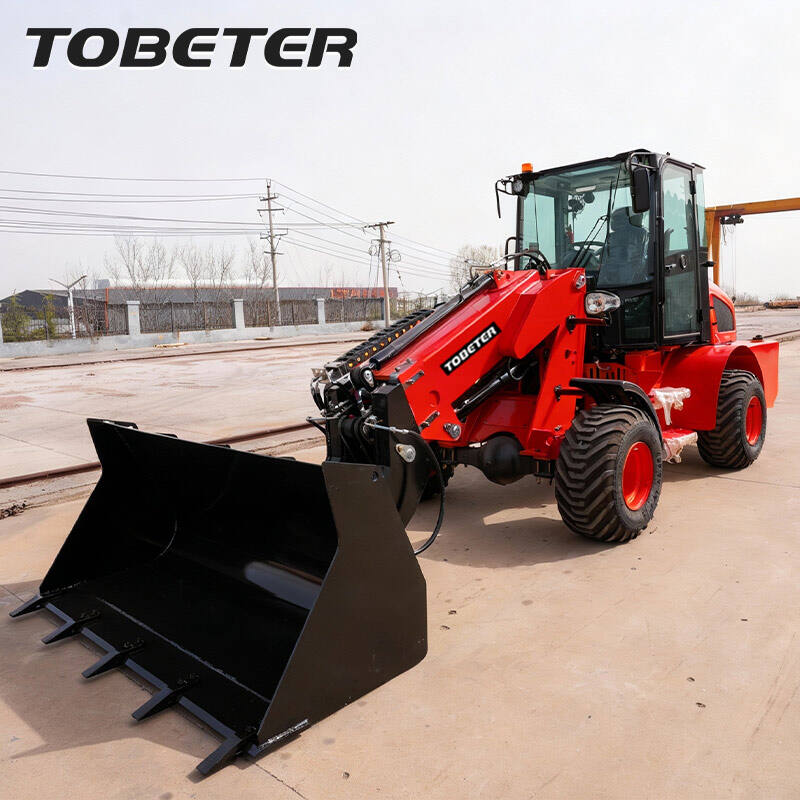

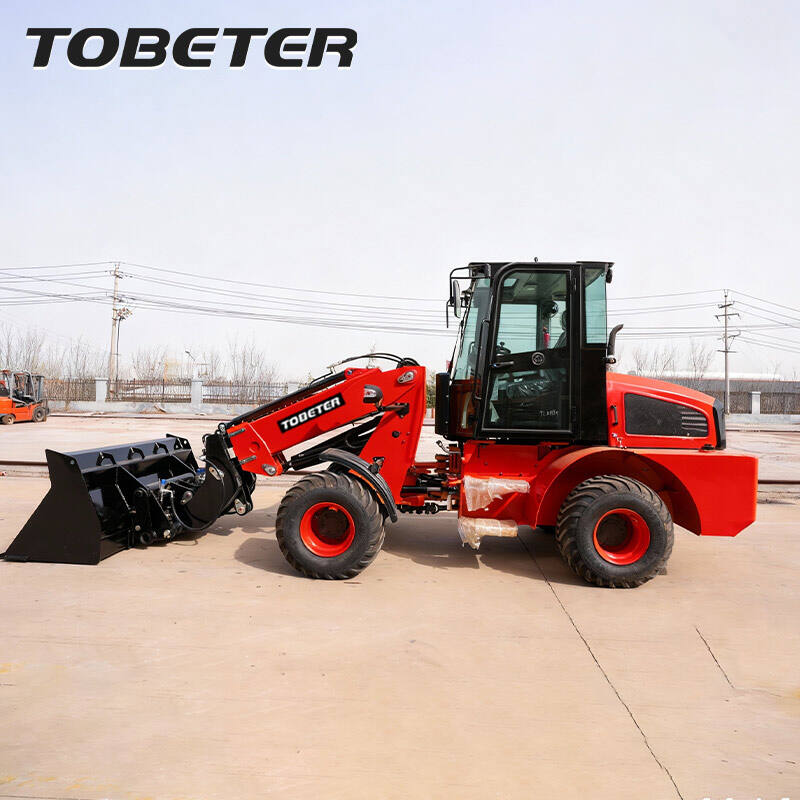

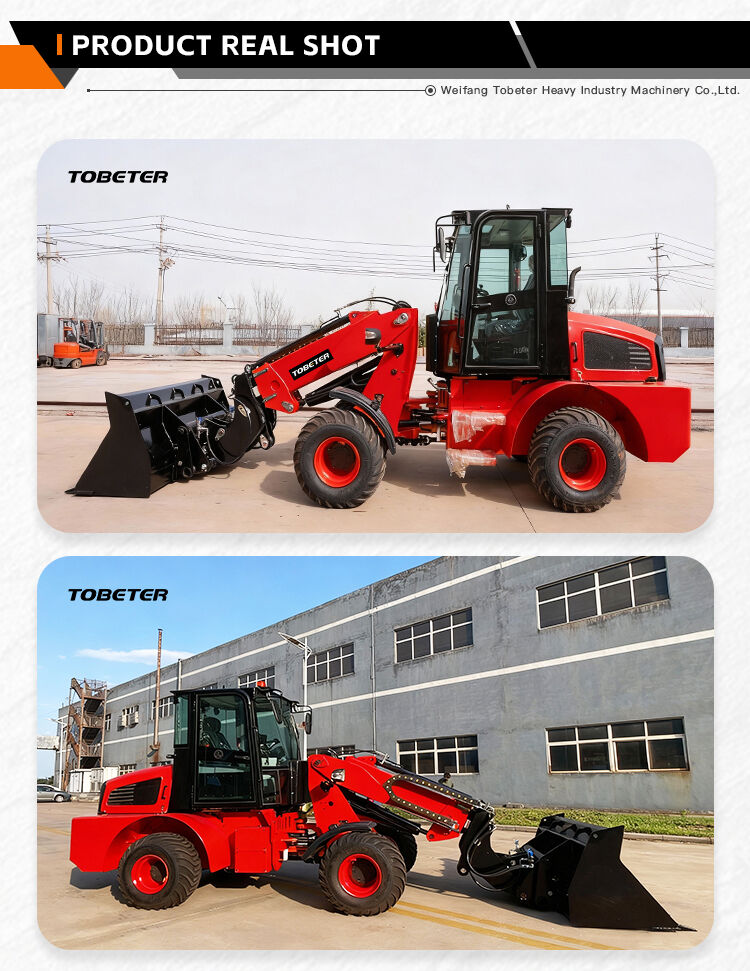

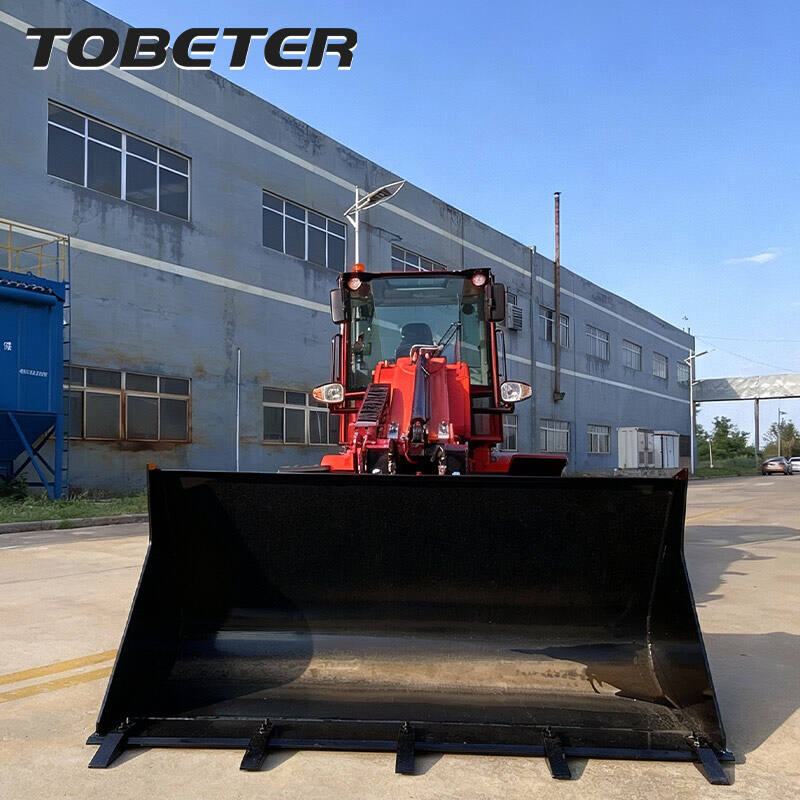

The H380T is a compact telescopic wheel loader, specially designed for efficient material handling in small and medium-sized work environments. It is widely applicable in construction sites, municipal projects, agricultural breeding, warehousing logistics, and factory operations, etc.

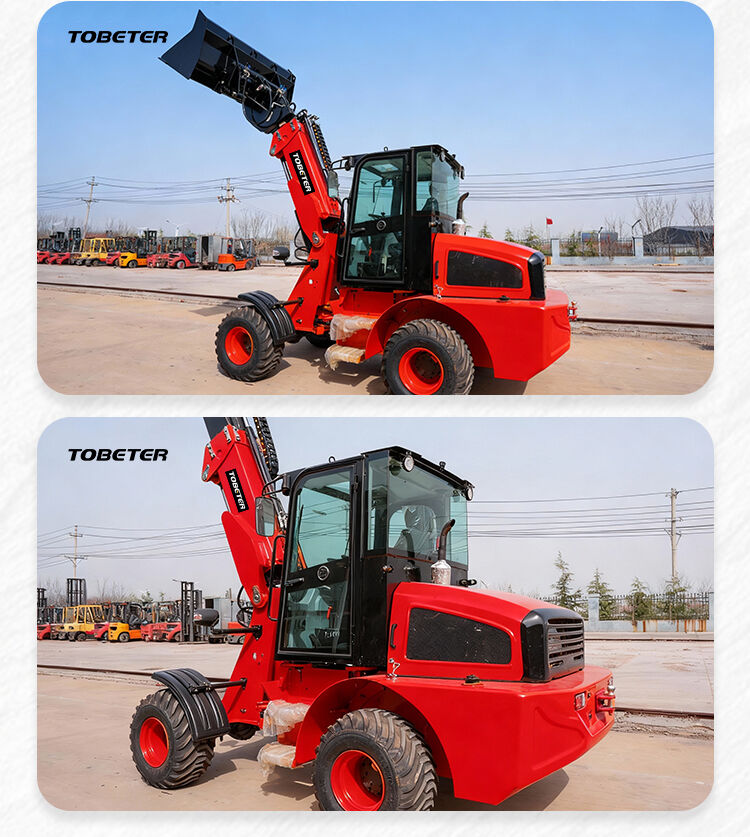

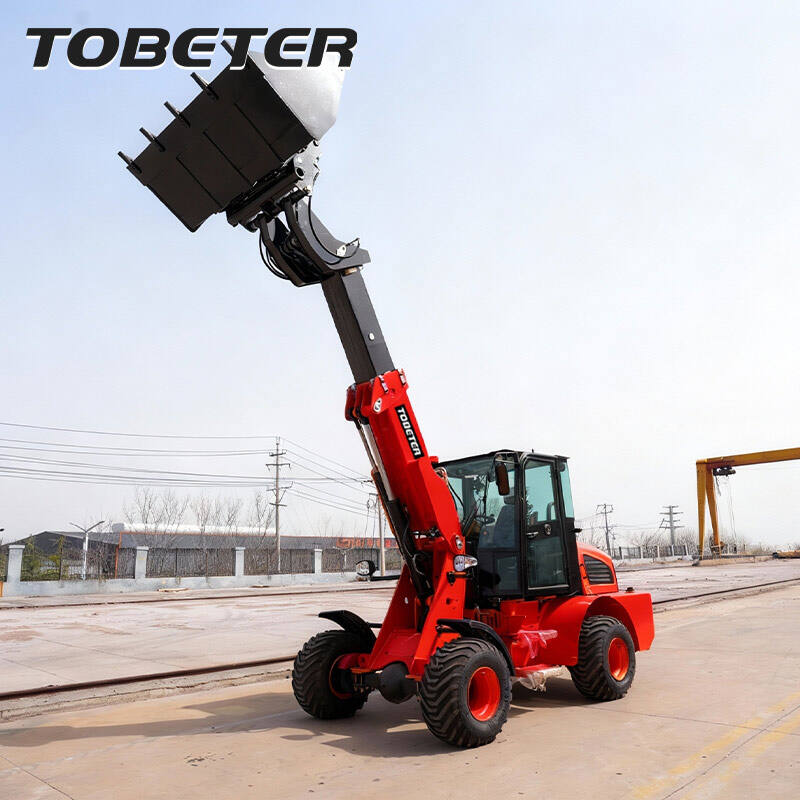

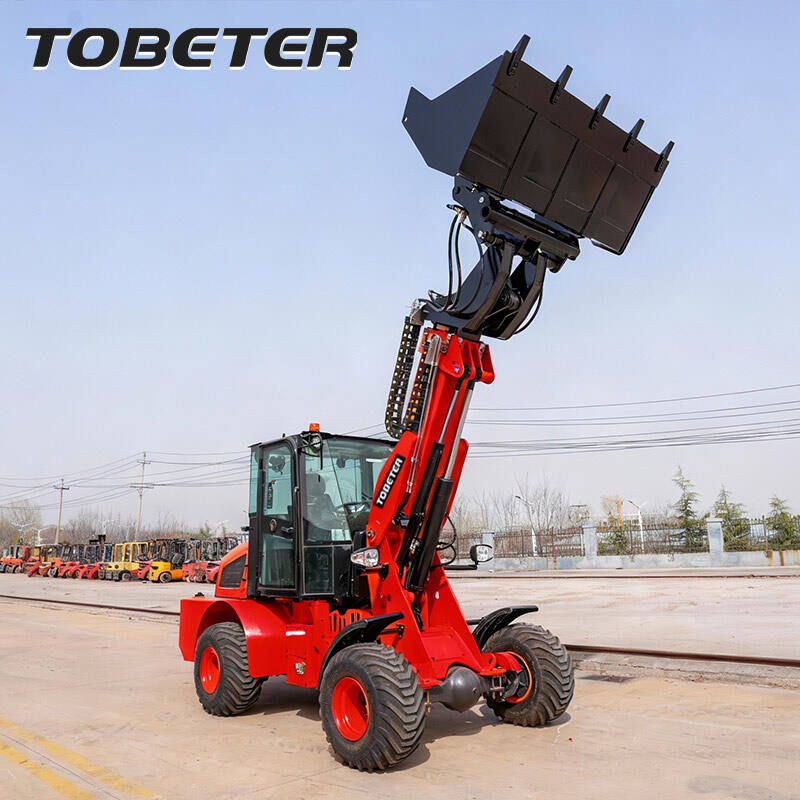

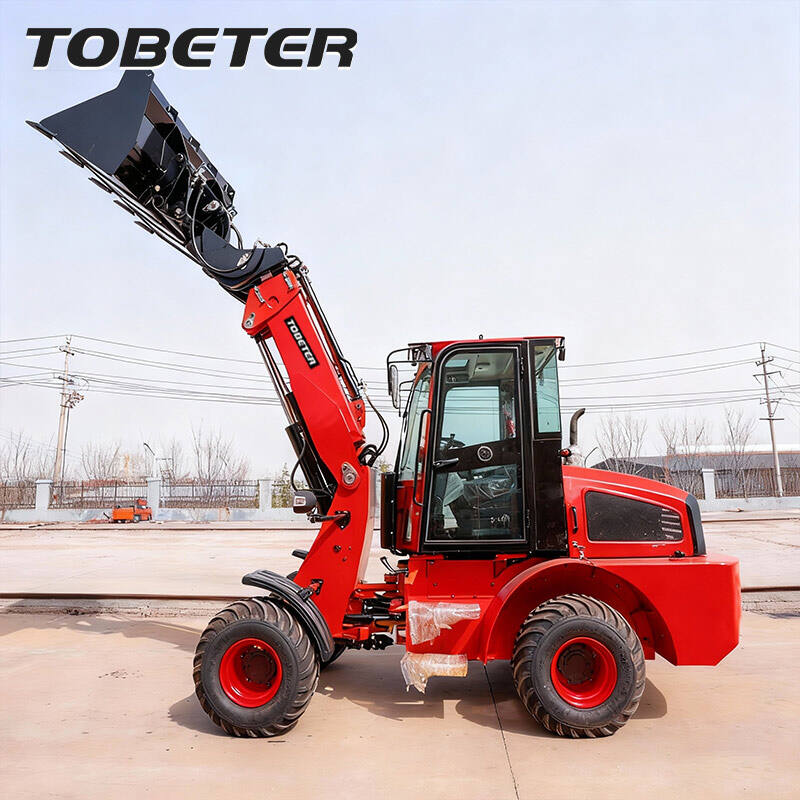

With its telescopic arm structure, it not only possesses the loading capacity of traditional loaders, but also can achieve a longer working radius and a higher unloading height, effectively solving the problems of limited space or high-altitude operations.

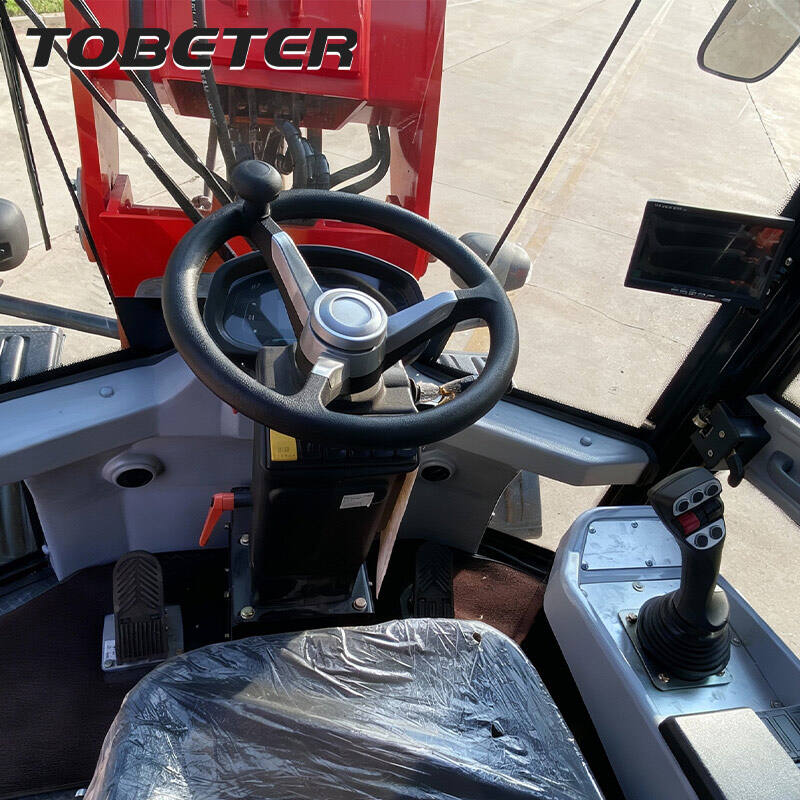

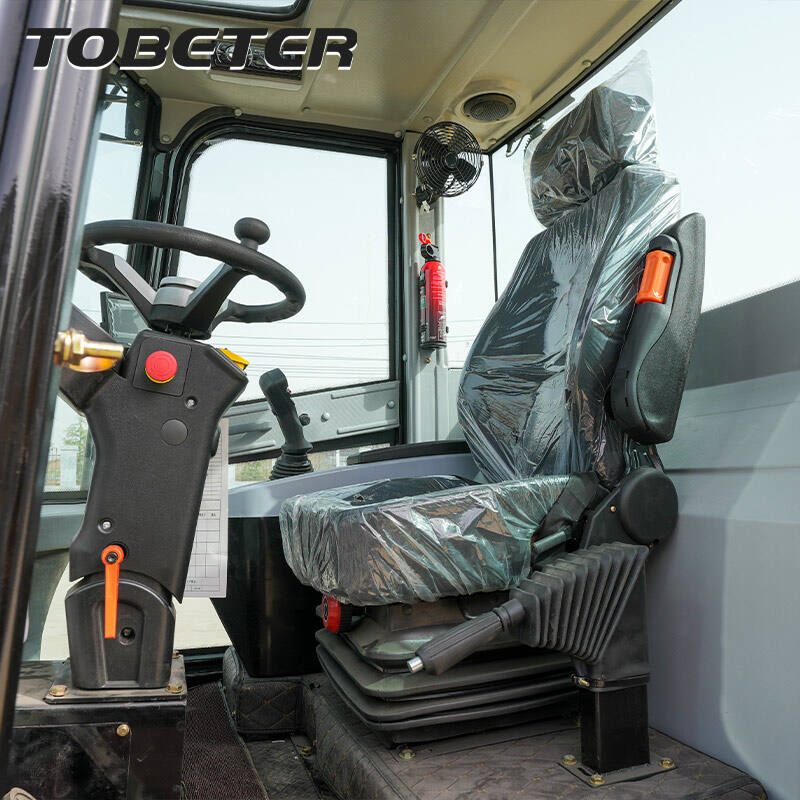

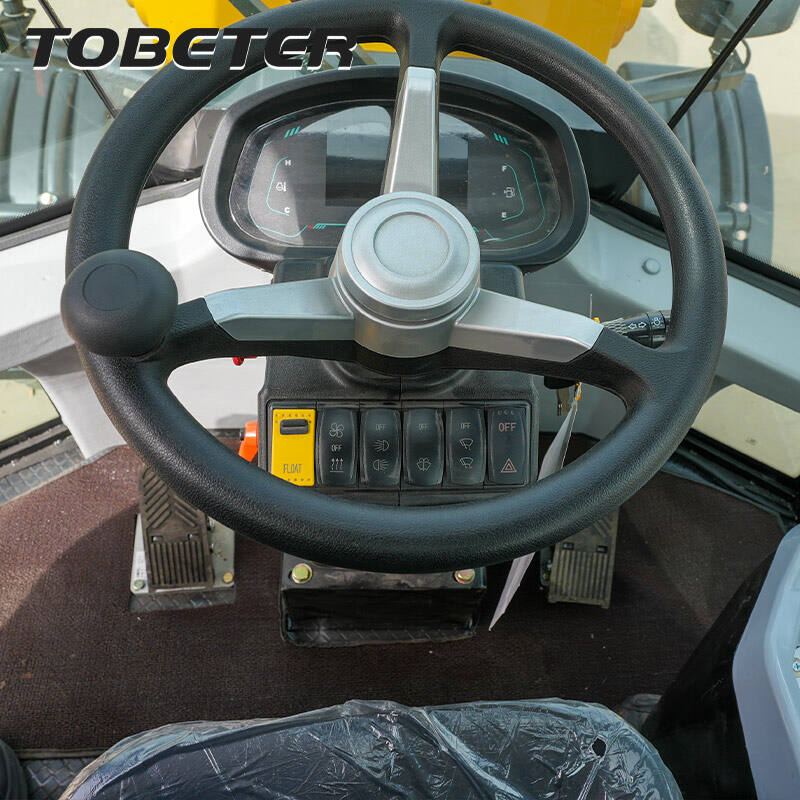

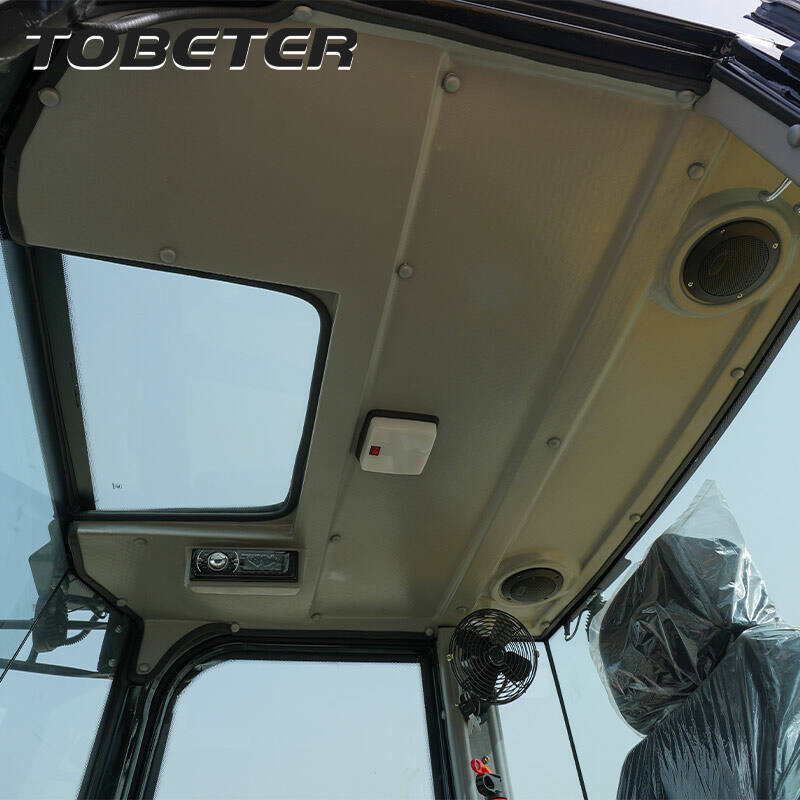

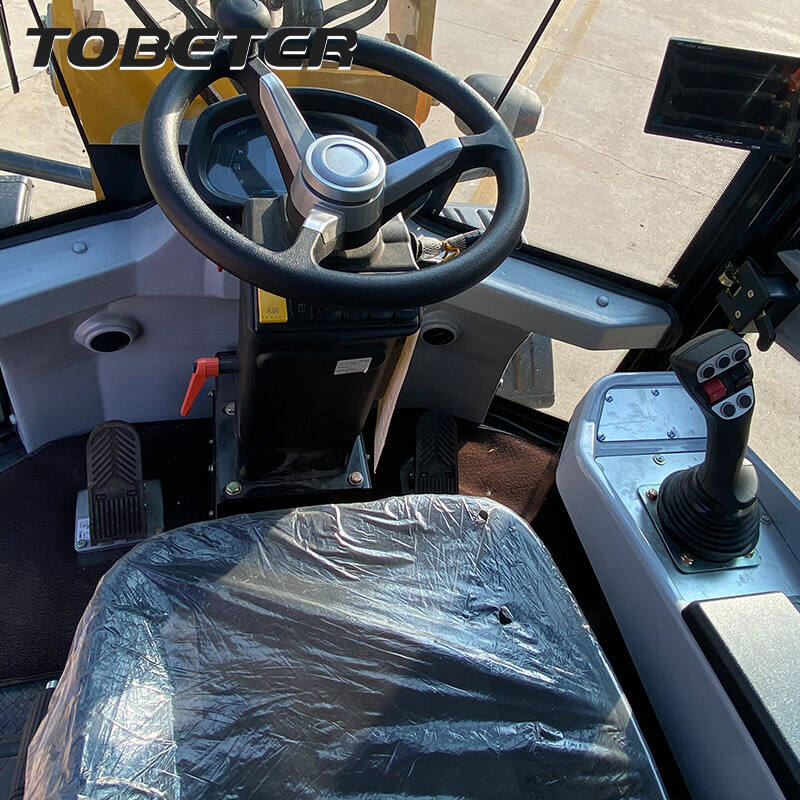

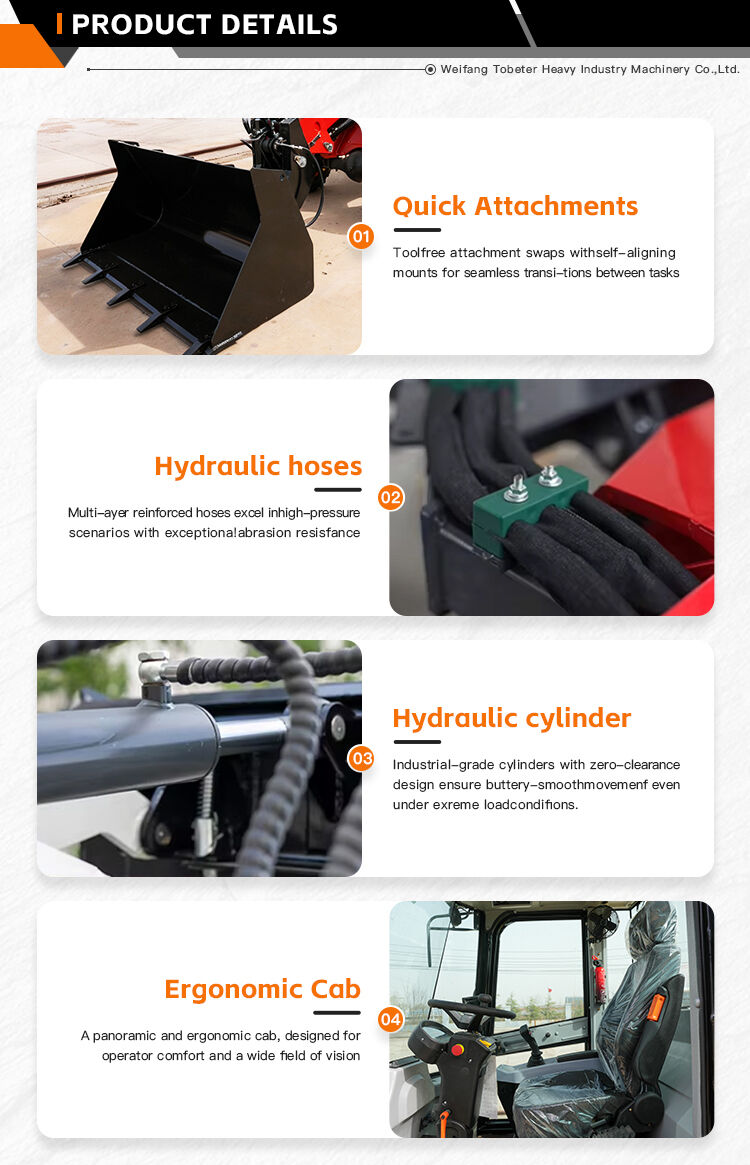

This articulated telescopic loader features a cab designed with ergonomics in mind, offering a wide field of vision and a simple, intuitive operation interface, thereby reducing the labor intensity of the driver. Additionally, the multi-functional quick-change device enables the rapid replacement of buckets, forks, and other attachments, significantly enhancing the equipment's versatility and adaptability.
