1. Compact and Agile: 0.8 t rated load with a 0.3 m³ bucket, ideal for light-duty and precise material handling.
2. Ultra-Narrow Fit: 2257mm min turning radius + 49° steering angle, perfect for narrow alleys and warehouses.
3. Powerful and Efficient Performance: Equipped with a reliable high-performance engine, enabling fast and efficient loading and material handling.
1. Flexible Engine Options: EPA4/EURO5 Perkins, Kubota, or Yanmar engine.
2. Professional Drivetrain: Closed hydrostatic system with independent wheel motors for smooth, powerful performance.
| Operation weight | 2200kg | Rated Power | 18.8kw |
| Rated load | 800kg | Rated Speed | 2600r/min |
| Max. load | 1000kg | Number of cylinders | 3 |
| Max. Shovel width | 1150mm | Emission standard | EURO5 |
| Bucket capacity | 0.3cbm | Optional engine | EPA4/EURO5 Perkins or Kubota or Yanmar engine |
| Max. grade ability | 30° | Type | Closed hydrostatic |
| Min. ground clearance | 200mm | Pump type | Piston pump |
| Wheelbase | 1540mm | Drive type | Independent wheel motors |
| Steering angle | 49° | Classic angle oscillation | 7.5 each way |
| Max. dump height | 2167mm | Max. speed | 20km/h |
| Load over height | 2634mm | Pump type | Gear |
| Hinge pin height | 2900mm | Pump maximum flow | 42L/min |
| Dump distance | 920mm | Pump maximum pressure | 200bar |
| Overall dimension (L*W*H) | 4300x1160x2150mm | System voltage | 12V |
| Min. turning radius over shovel | 2691mm | Starter type | Electric |
| Min. turning radius over tyre | 2257mm | Battery brand | Varta |
| Track base | 872mm | Tyre model | 10.0/75-15.3 |
| Dumping angle | 45° | Optional model | 31*15.5-15 |
| Function of leveling automatic | Yes | Hydraulic tank | 45L |
| Engine brand/model | LAIDONG LL385BT | Fuel tank | 45L |
| Type | Water cooled | Packing quantity | 3Units（1*20HQ） 7Units（1*40HC） |

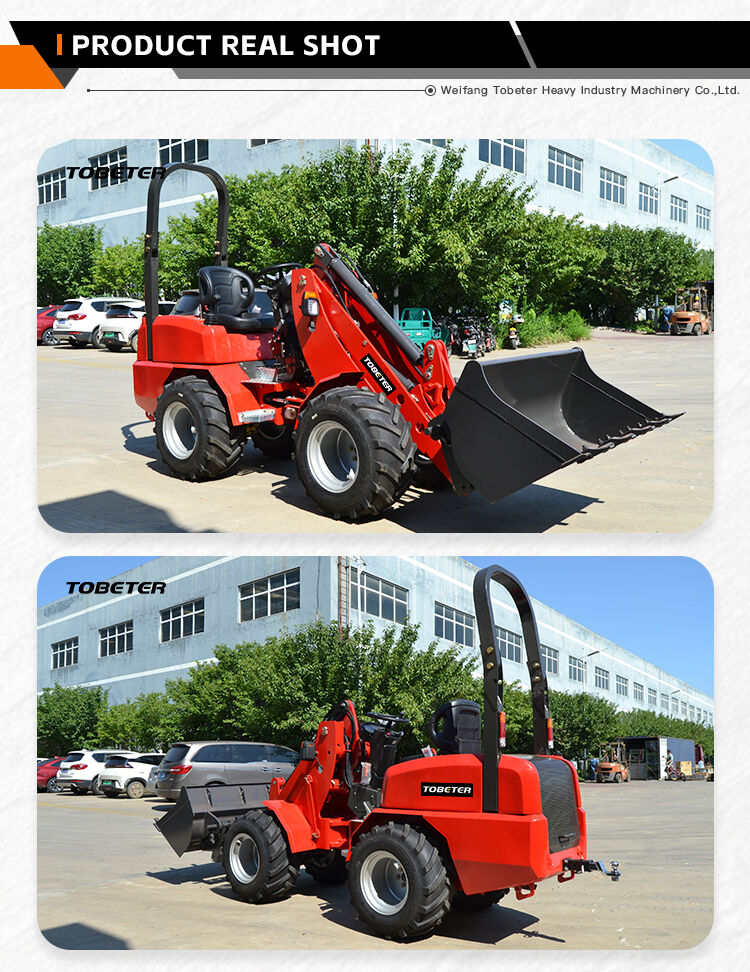

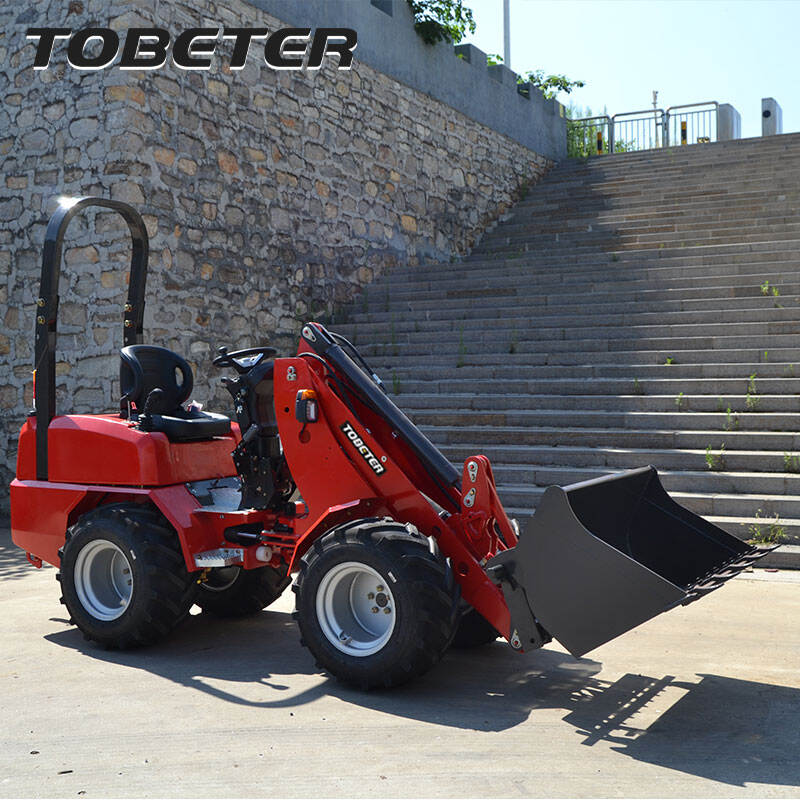

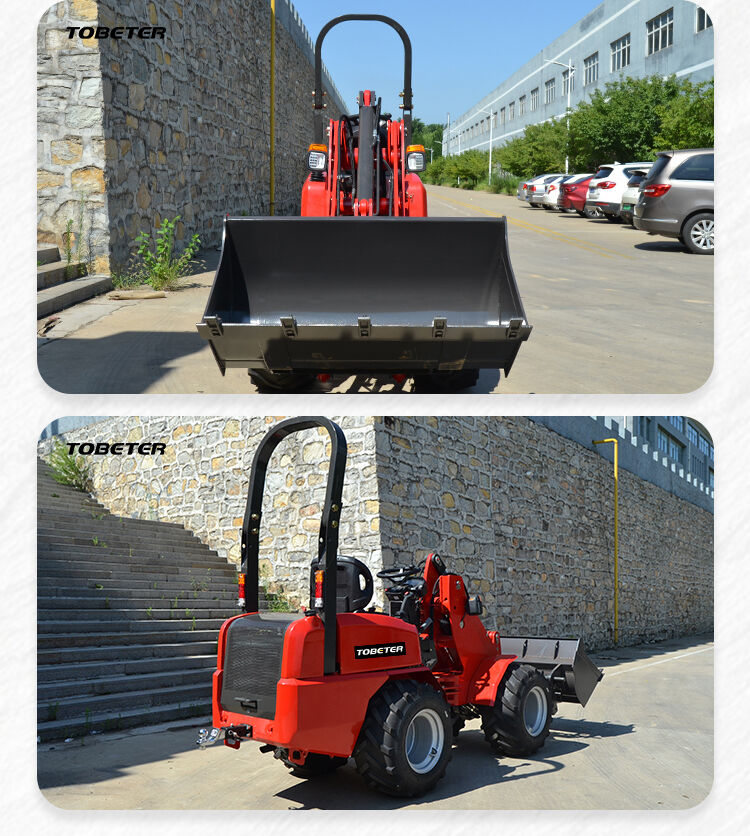

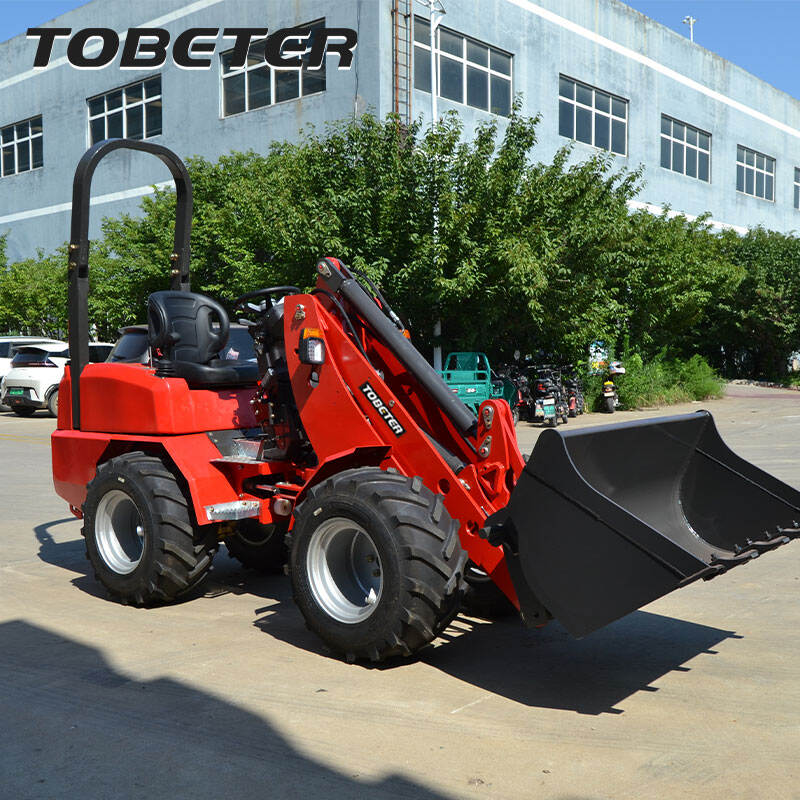

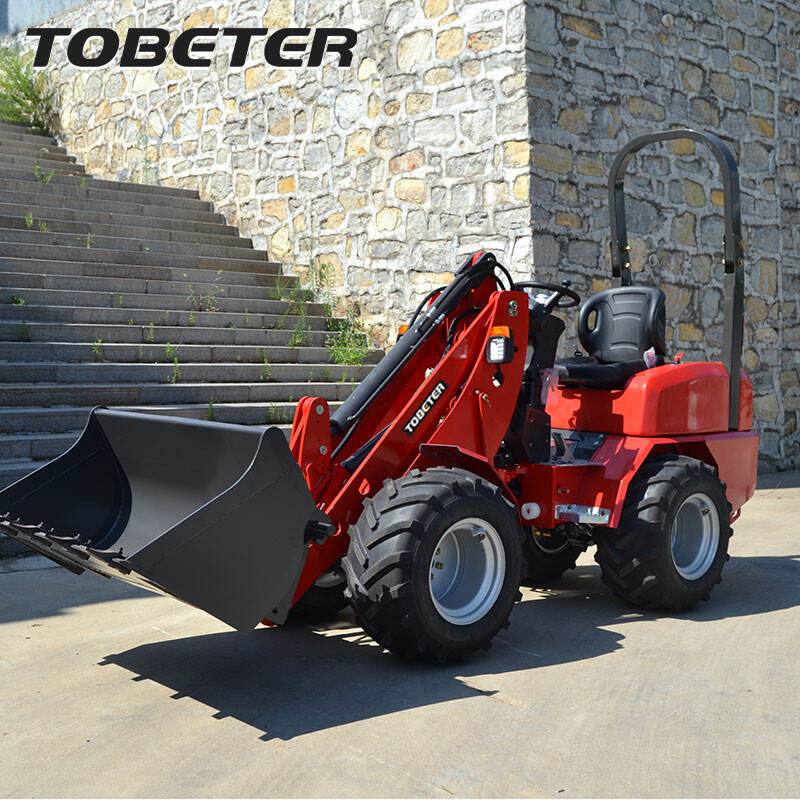

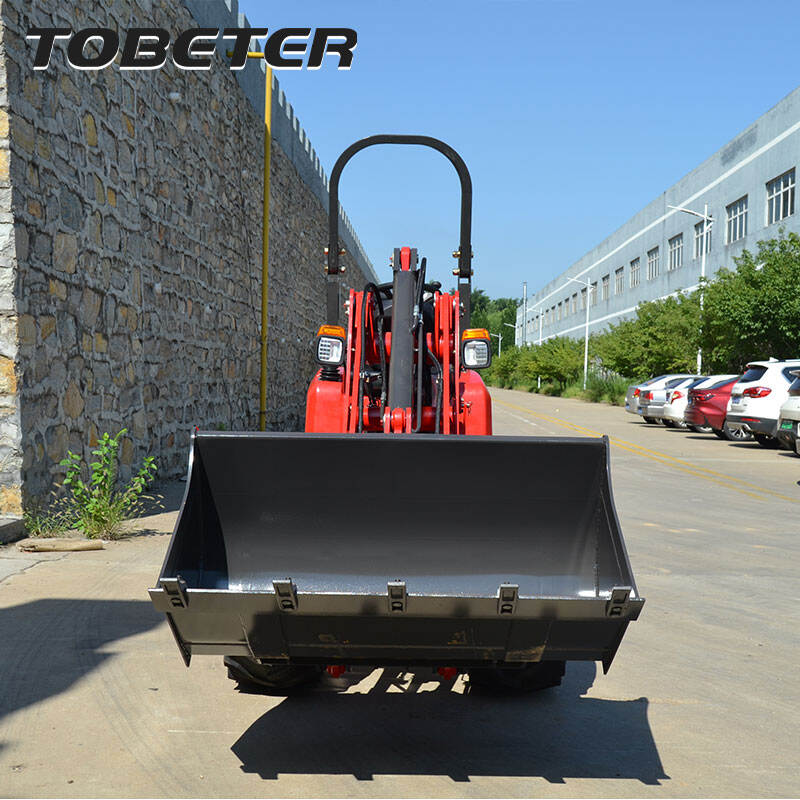

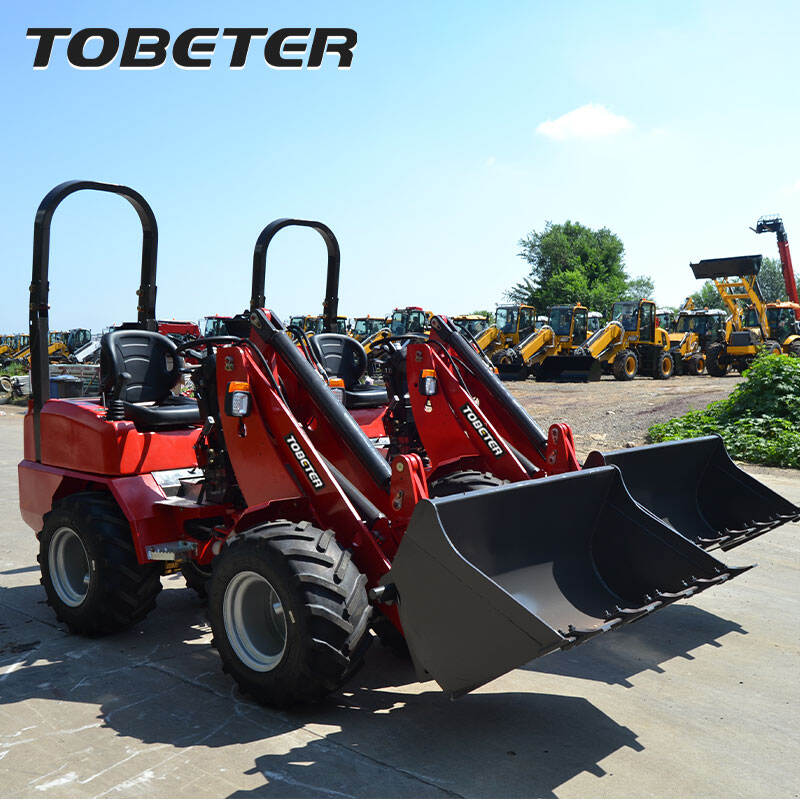

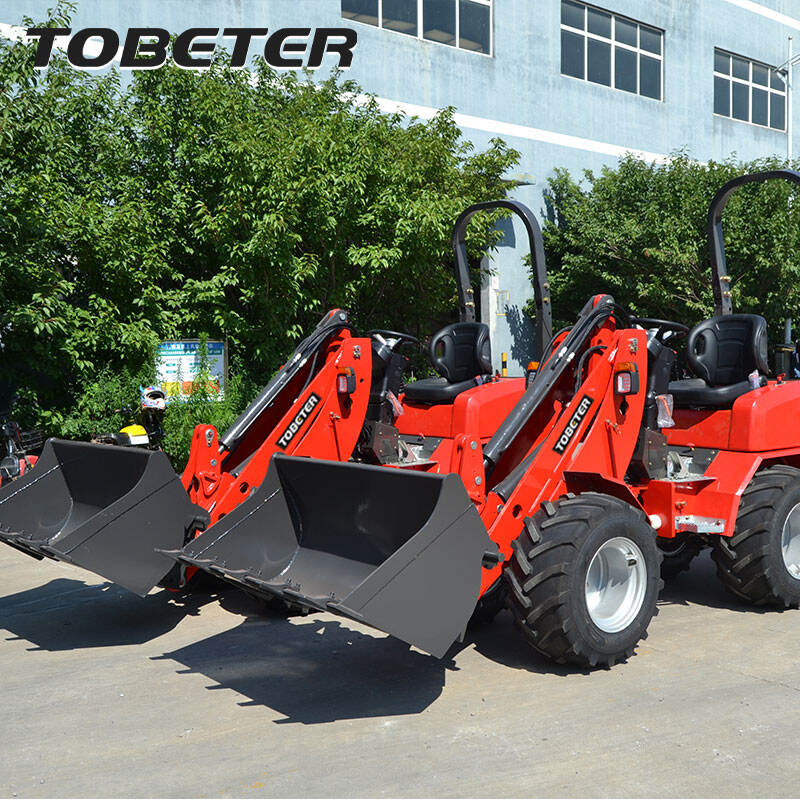

H180 is a versatile and highly efficient loading equipment, suitable for various applications such as construction sites, agriculture, landscaping, and material handling. With its compact size and excellent maneuverability, this wheel loader can operate efficiently even in narrow spaces.
It is equipped with a reliable and fuel-efficient engine, which can provide powerful and stable power output, enabling it to handle various heavy tasks such as loading, transporting, and stacking materials with ease. The optimized hydraulic system ensures quick response, precise control and high operational efficiency, helping operators complete their work more quickly while reducing fuel consumption.
This compact wheel loader is designed with a focus on stability, efficiency, and long service life. It features a reinforced chassis and high-strength components, enabling it to withstand harsh working conditions.
