1. Powerful Performance: High-output engine delivers strong digging and lifting capacity.
2. Versatile Functionality: Integrated loader and backhoe design allows efficient loading, trenching, and material handling with one machine.
3. Operator Comfort: Ergonomic cab with wide visibility and intuitive controls.
1. High Cost Efficiency: One machine replaces multiple equipment types, reducing purchase, maintenance, and operating costs.
2. Reliable Structure: Reinforced chassis and durable components ensure stable performance and long service life in tough job sites.

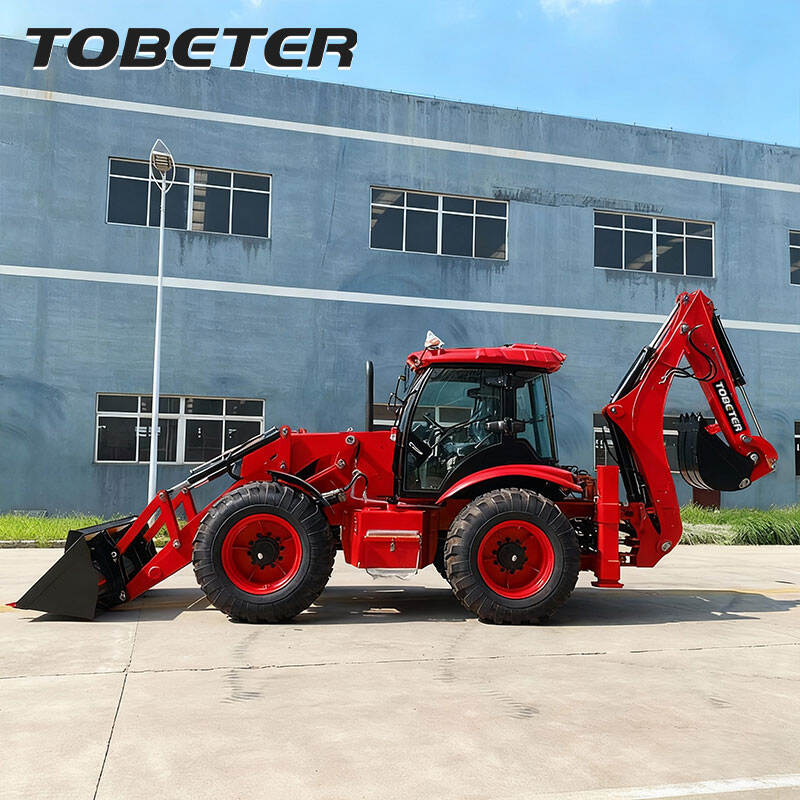

Overall Dimension
| Length(with bucket on ground) | 6450mm | ||||
| Overall width（at stabilizer ） | 2500mm | ||||
| Load Bucket width | 2300mm | ||||
| Height(To the top of the cab) | 3120mm | ||||
| Height(To the top of the digging pole) | 3940mm | ||||
| Wheel base | 2335mm | ||||
| Back wheel Tread | 2139mm | ||||

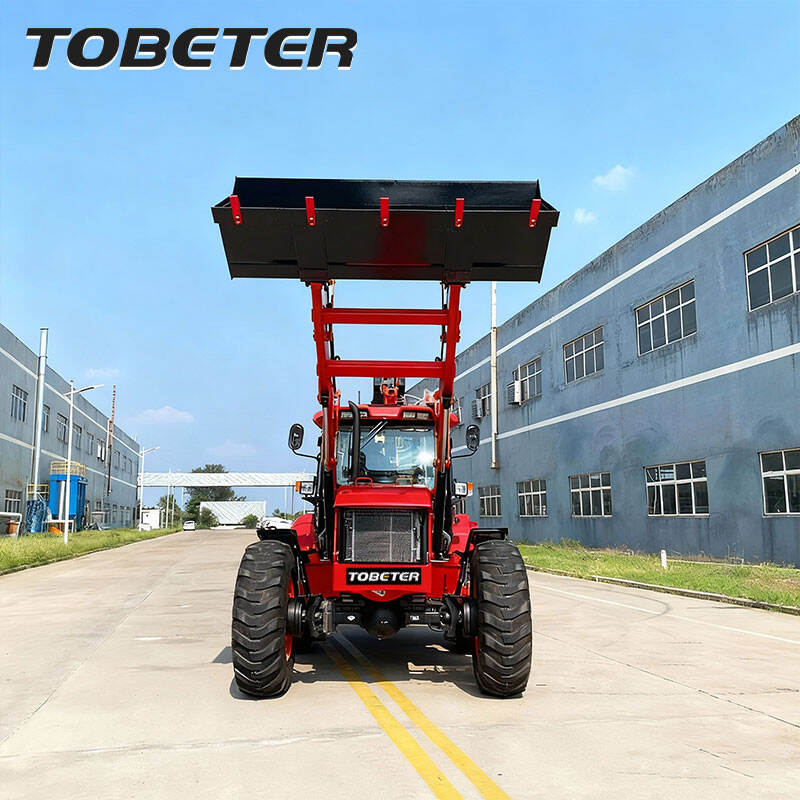

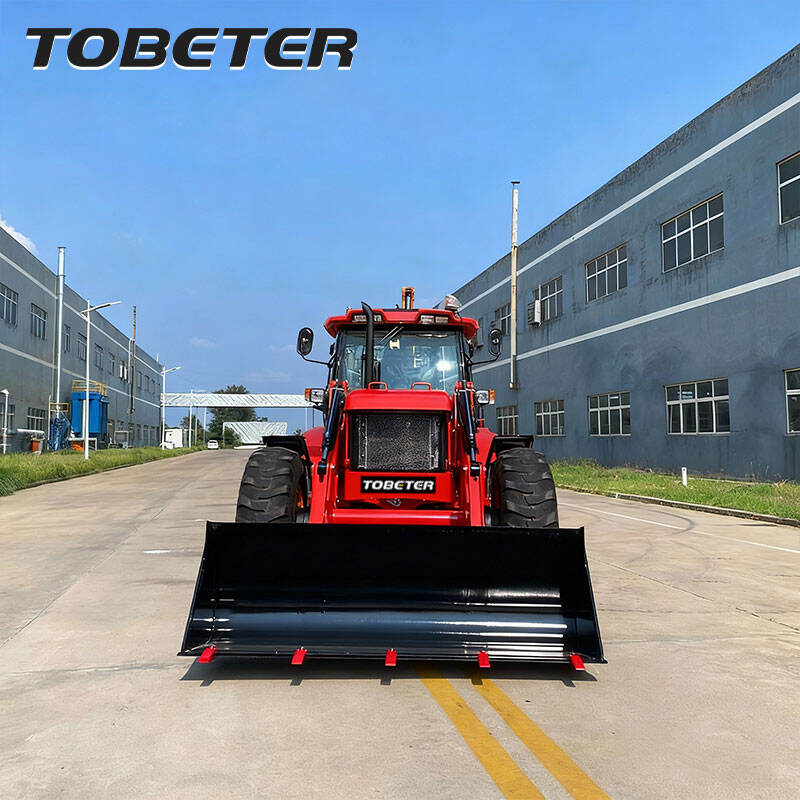

Main Loading Technical Specification
| Rated load | 2800KG | ||||
| Operating weight | 9600KG | ||||
| Rated bucket capacity | 1.5m³ | ||||
| Max. dump clearance | 2800mm | ||||
| Optional Max. dump clearance | 3100mm | ||||
| Dump reach | 870mm | ||||
| Radius of turn（Outside of bucket） | 5750mm | ||||

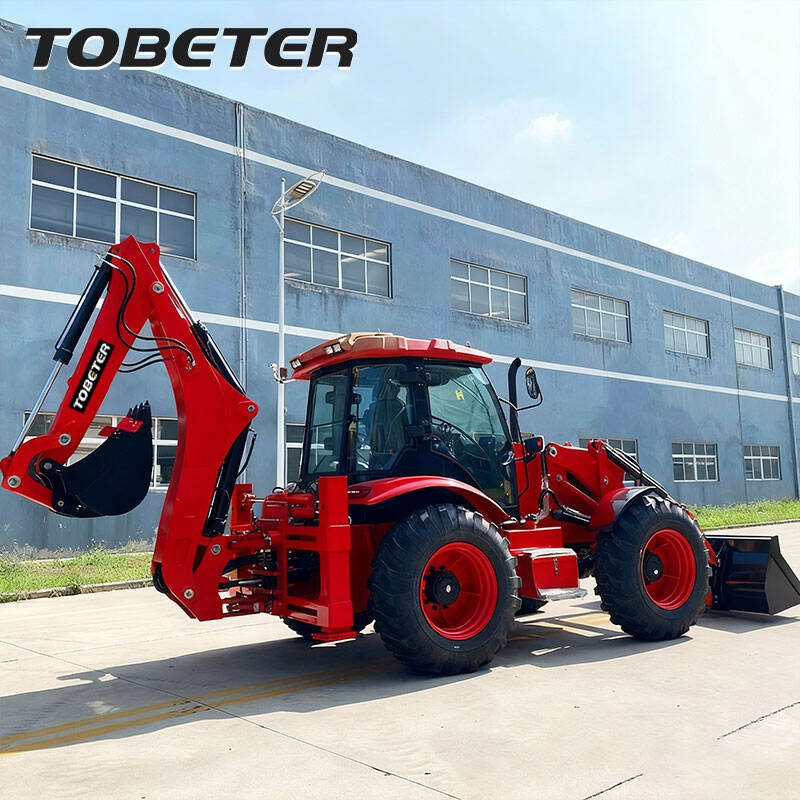

Main Digging Technical Specification
| Rated digging bucket capacity | 0.35m³ | ||||
| Max. digging depth | 4000mm | ||||
| Optional digging depth(telescopic digging boom) | 5000mm-5500mm | ||||
| Max. digging radius | 5345mm | ||||
| Max. dumping height | 3740mm | ||||
| Max. Digging Height | 5470mm | ||||
| Lifting force at Max. digging radius | 1220kg | ||||
Diesel Engine
| Brand/Model | YUCHAI YCD4J22T-125 | ||||
| Type | In Line, Direct injection, Four-Stroke, Water Cooling | ||||
| Rated output | 91(KW) | ||||
| Optional engine | 4BT3.9-C125(91KW) | ||||
| YCF36125-S500 92KW | |||||
| EPA4/F36（FPT）90KW | |||||
| EPA4 QSF3.8 | |||||
Transmission System
| Torque Converter | Model | 320 | |||
| Cooling type | Pressure oil circulating | ||||
| Gearbox | Type | Synchromesh mechanical shift | |||
| Drive axle | Type | Four wheel drive | |||
| Four wheel steering | |||||
| Crab walk | |||||
| Gear shift position | 4 F、 4 R | ||||
| （F/R）km/h | F1，5km/h；F2，10km/h； | ||||
| F3，18km/h；F4，40km/h； | |||||
| R1，5km/h；R2，10km/h； | |||||
| R3，18km/h；R4，32km/h； | |||||
| Size of tire | 16.9-28 | ||||
The Hydraulic System
| Working pump discharge | 63ml/r | ||||
| Working pump pressure | 22Mpa |
Oil Capacity
| The hydraulic oil tank | 125L | ||||
| Diesel fuel tank | 125L |
| Packing Quantity（1*45HC） | 2Units | |||||
| The parameters or configuration are subject to change without notice. | ||||||

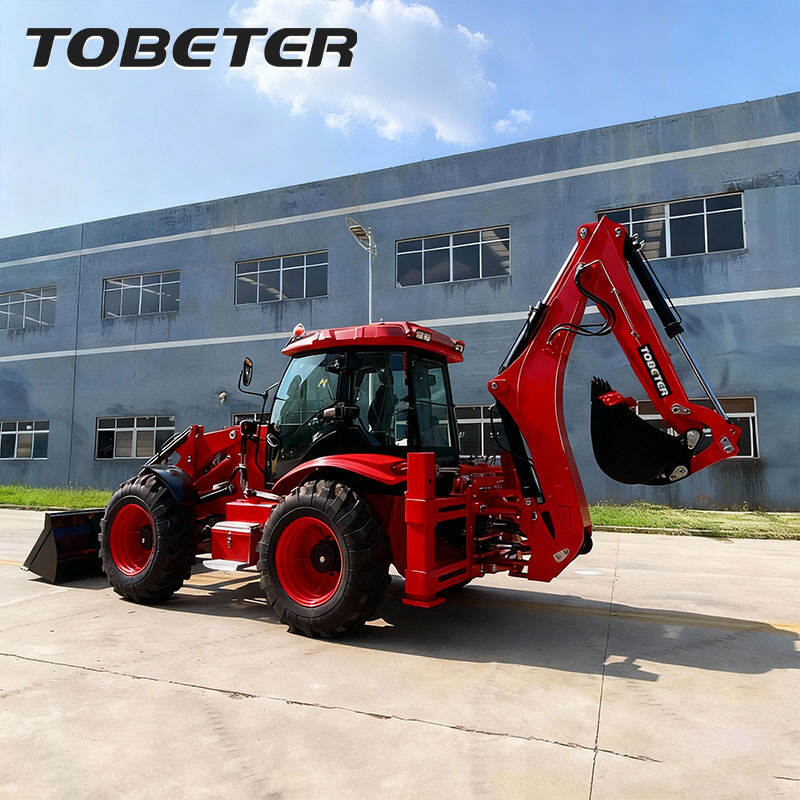

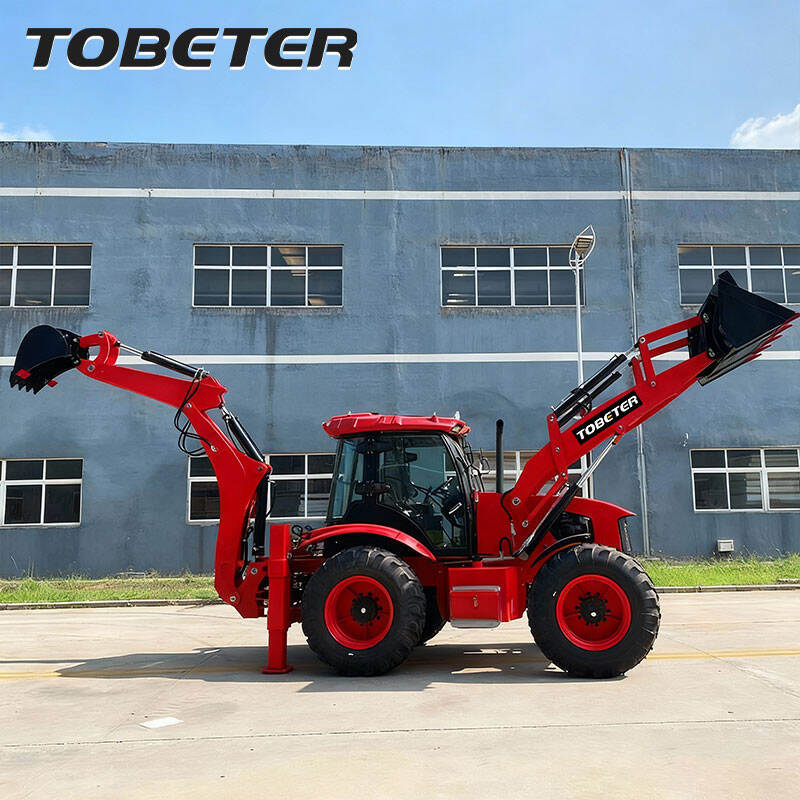

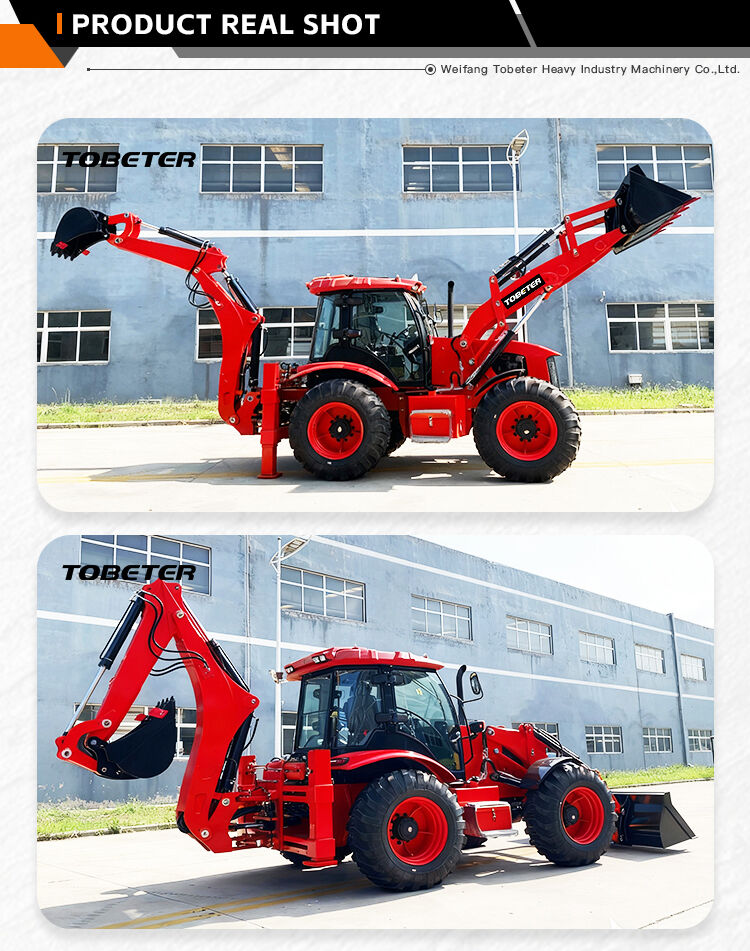

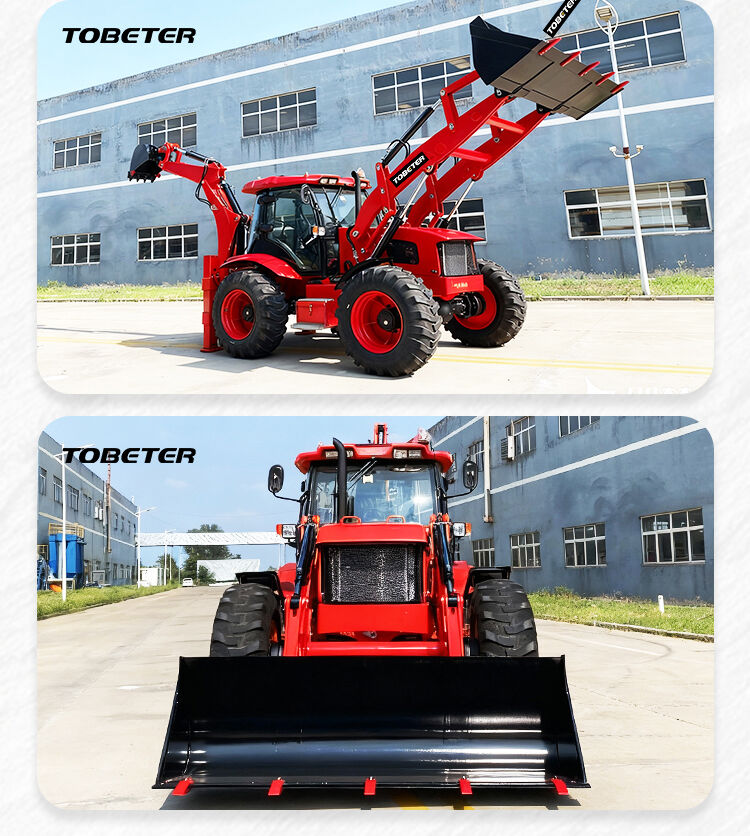

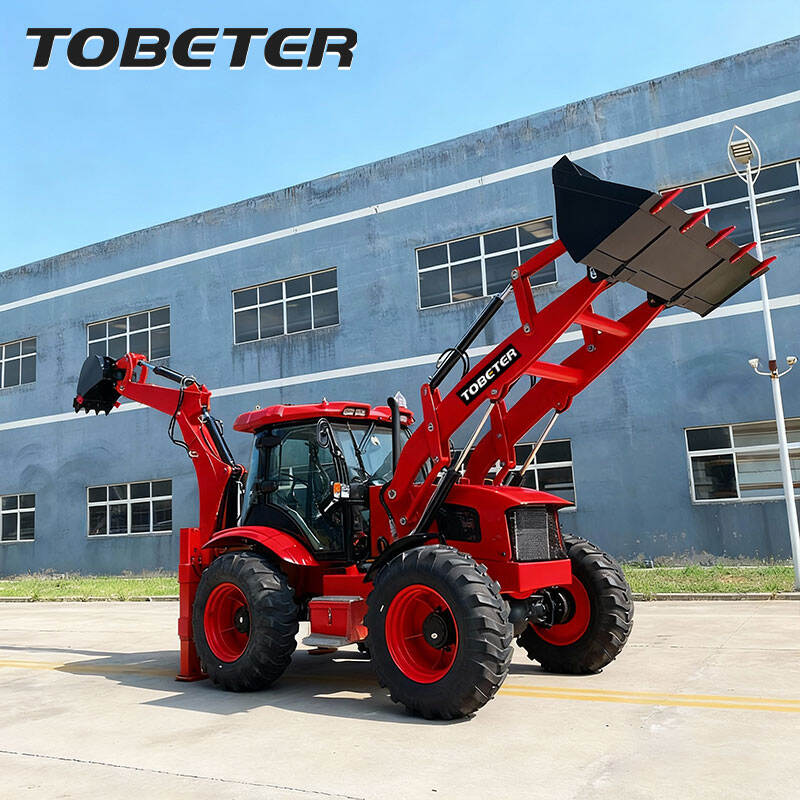

This backhoe loader is a multi-functional construction machine specially designed for medium and large-scale engineering scenarios. It integrates loading, excavation, and transportation functions, and is capable of efficiently meeting various operational demands such as municipal construction, road construction, farmland irrigation, and pipeline laying.
The 9.6-ton overall weight of the equipment makes it more stable during heavy-load operations. Whether it is deep excavation, loading large volumes of materials, or continuous high-intensity operations, it can maintain a smooth and stable working state, effectively improving construction efficiency.
The backhoe loader not only ensures powerful performance, reliable quality, and comfortable operation experience, but also offers an extremely competitive price. With just one unit, it can complete various tasks such as loading and excavation, providing users with a higher long-term investment return and truly achieving the best balance between performance and cost.
