1. Strong loading capacity with efficient digging performance.
2. The 8.8-ton operating weight ensures excellent stability and durability, even under heavy-duty working conditions.
3. The luxury cab features a 360-degree rotating seat for all-round visibility and operator comfort.
1. Integrated loader and excavator functions reduce equipment investment and improve overall jobsite efficiency.
2. Robust structure and high-quality components ensure long service life, low maintenance costs, and reliable performance.
Technical Parameter
Overall Operating Weight |
8800KG |
Transport Dimension | |
L*W*H |
7600×2260×2890mm |
Wheel base |
2250mm |
Min. Ground Clearance |
300mm |
Bucket Capacity |
1.3m3 |
Breakout Force |
38KN |
Loading Lifting Capacity |
2500KG |
Bucket Dumping Height |
2800mm |
Bucket Dumping Distance |
1062mm |
Backhoe Capacity |
0.3m3 |
Max. Digging Depth |
4000mm |
Optional Digging Depth |
5000mm-5500mm（Digging boom telescopic） |
Swing Angle of backhoe |
190o |
Max. Pulling Force |
39KN |
Engine
Brand/Model |
YUCHAI YCD4J22T-115 Turbo engine |
Type |
In Line, Direct injection, Four-Stroke, Water Cooling |
Rated Power |
85KW |
Optional Engine |
YCF36110-S50081KW 4BT3.9-C10075KW 4BT3.9-C12592KW EPA4/F36（FPT）75KW EPA4QSF3.8 |
Steering System
Steering Angle |
±36 o |
Min. turning radius |
6581mm |
Pressure of the system |
12Mpa |
Axle
Brand |
FEICHENG YUNYU |
Main Transmission Type |
Double Reduction |
Final Reducer |
Single Stage Final Reducer |
Rated Loader of Axle |
4/18.5t |
Transmission System
Torque Converter | |
Model |
280 |
Type |
Single-stage Three Elements |
Cooling Method |
Oil-cooling Pressure Circulation |
Gearbox | |
Type |
Fixed Shaft Power Transmission |
Gears |
Four Gears Ahead, Four Gears Astern |
Max.Speed |
36KM/H |
Tyre
Model |
（F）14-17.5 Front wheel （R）19.5L-24 Back Wheel |
Pressure of Front wheel |
0.22 Mpa |
Pressure of Back Wheel |
0.22 Mpa |
Brake System | |
Service Brake |
Air Over Oil Caliper Brake |
|
External Type |
|
Self-regulation |
|
Self-balance |
Emergency Brake |
Operation Power Implementing brake |
|
Manual Operation Power Terminating Brake |
Hydraulic System | |
Pressure of Hydraulic System |
22Mpa |
Digging Power of Excavator Grab |
46.5KN |
Digging Power of Dipper |
31KN |
The parameters or configuration are subject to change without notice. | |

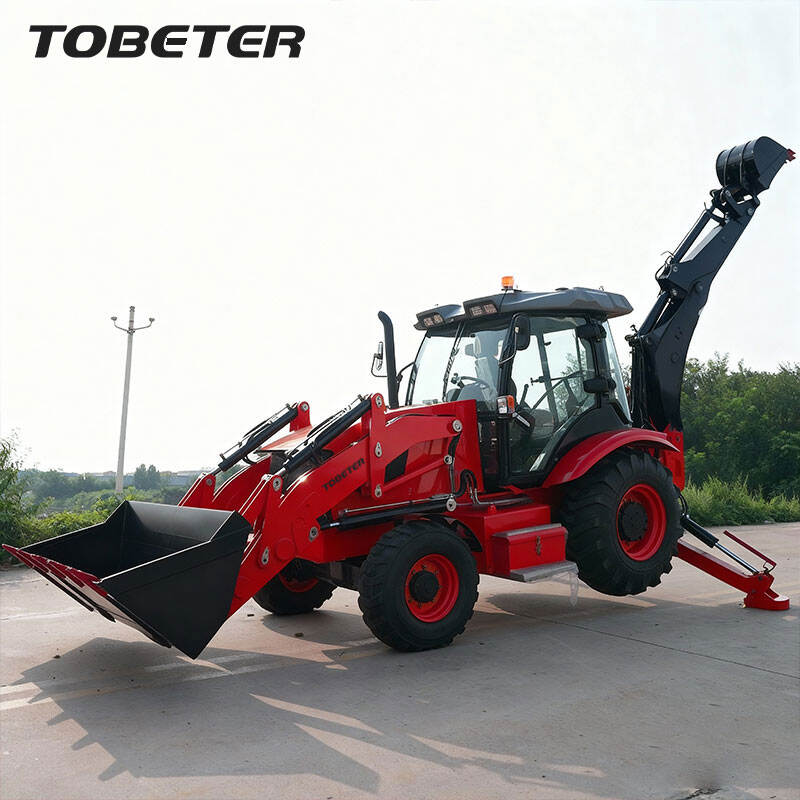

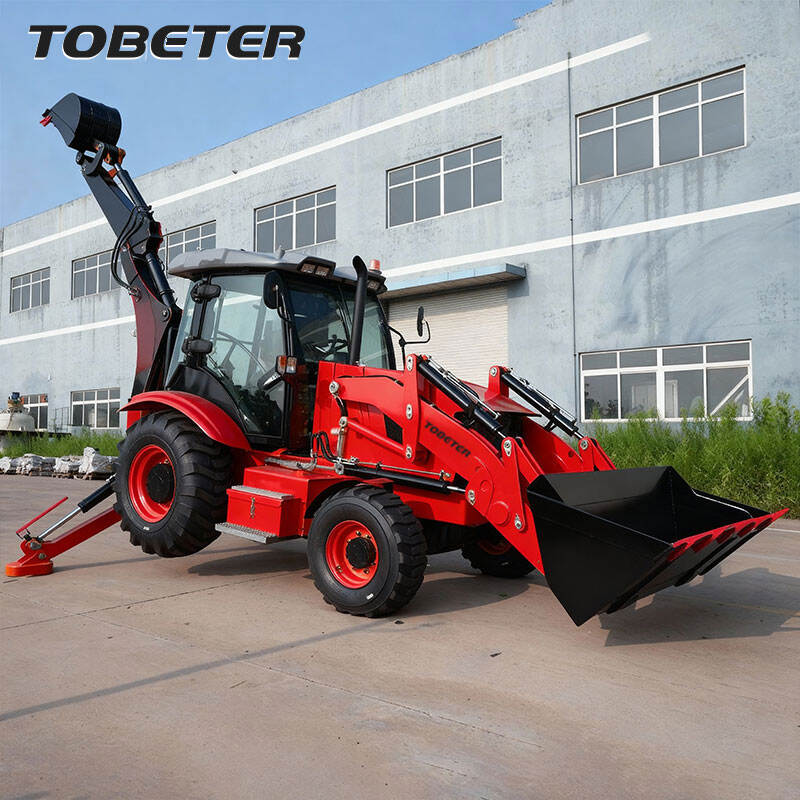

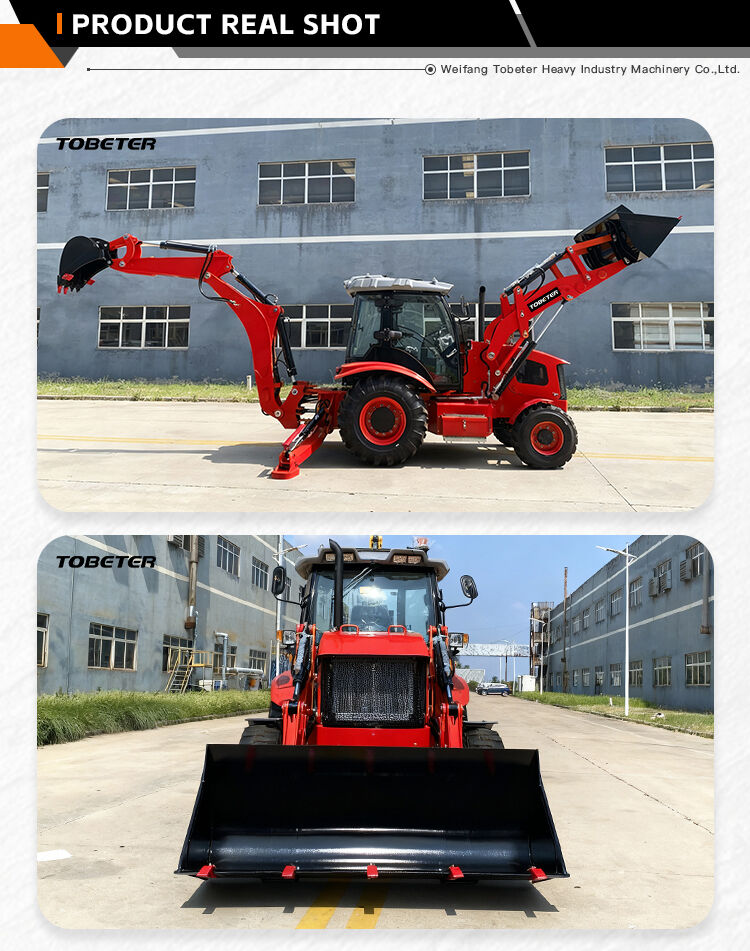

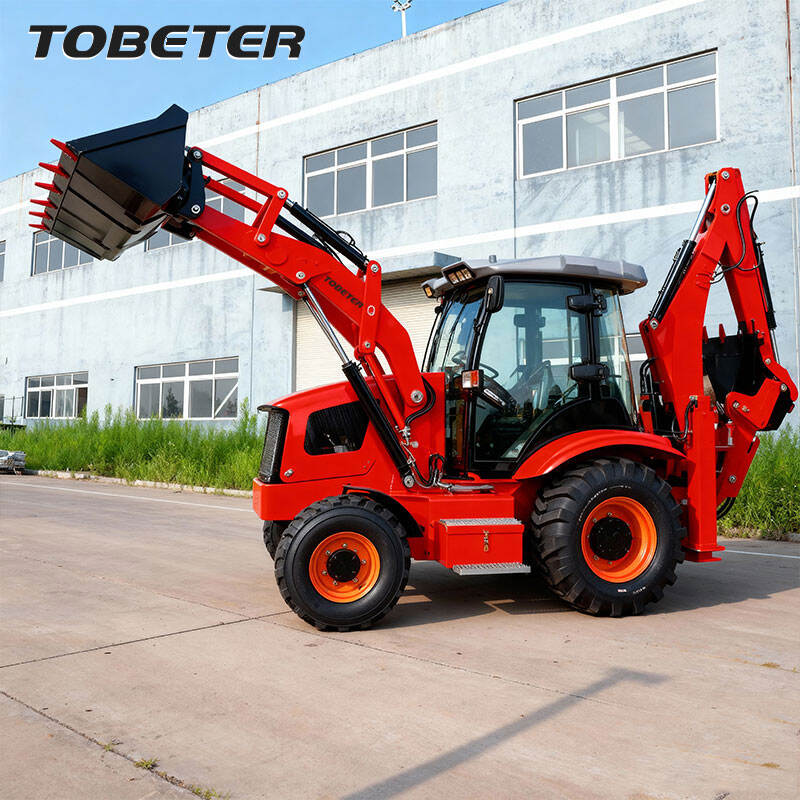

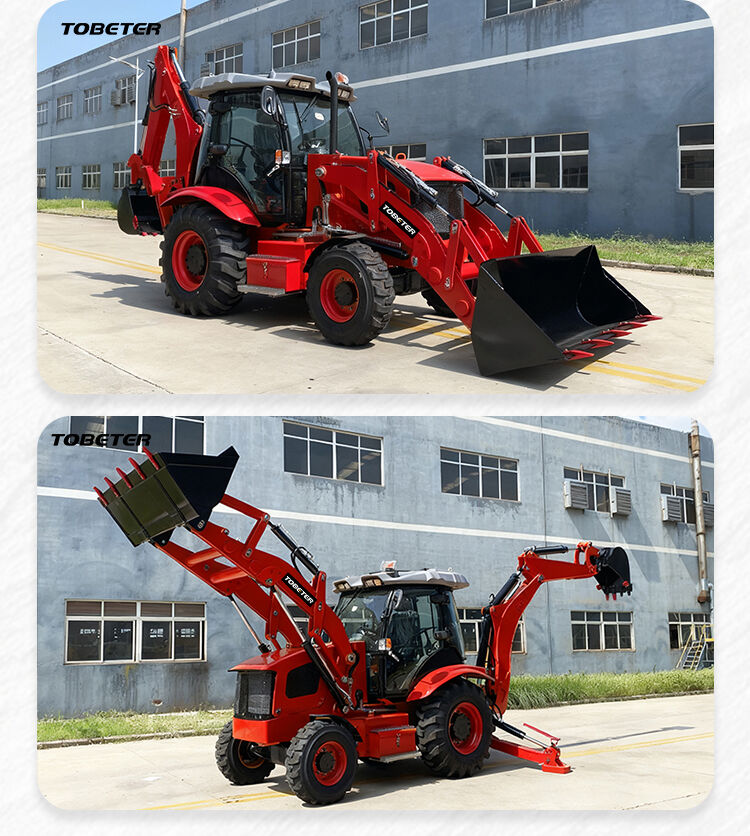

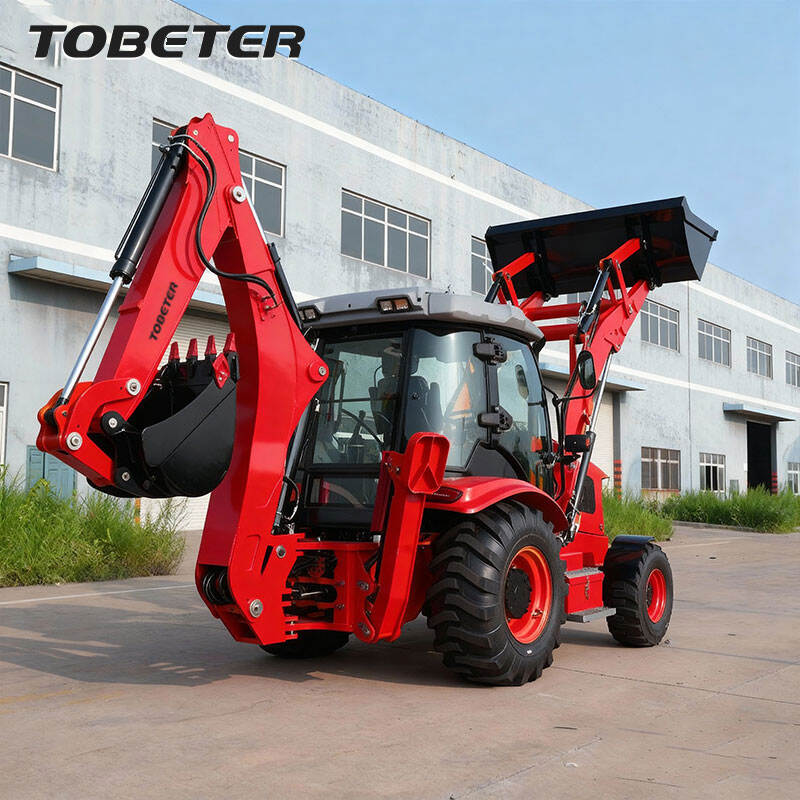

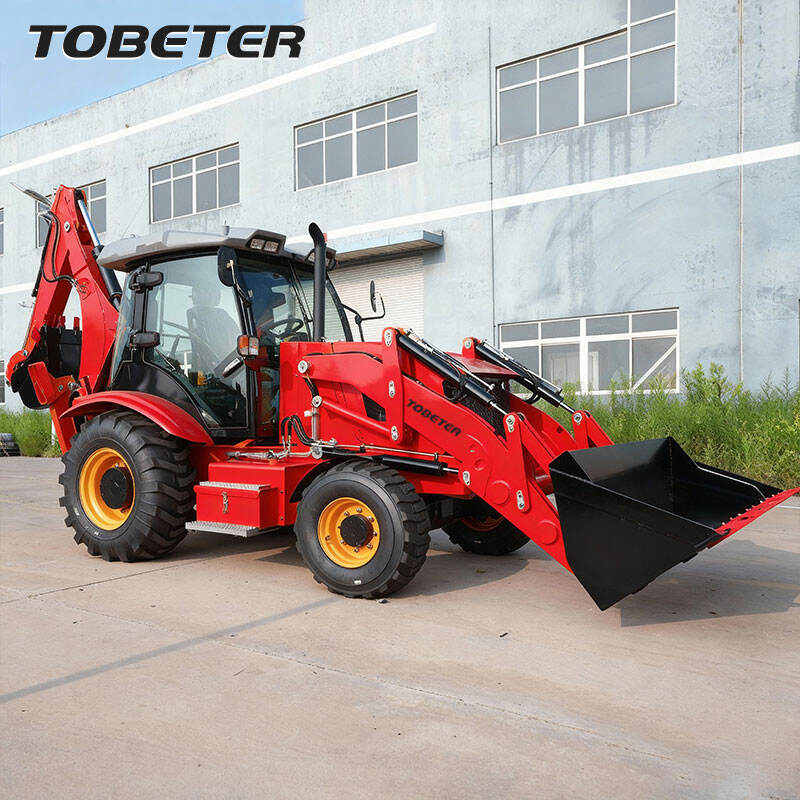

The TLS3CX(A) is an 8.8-ton backhoe loader that integrates loading and excavation functions. It can meet various operational requirements such as material handling, trench excavation, and foundation construction, and is particularly suitable for use in municipal engineering, road construction, farmland irrigation, and small-scale construction sites.
The machine adopts a high-strength structural design, featuring excellent operational stability and torsional resistance. It maintains reliable performance even under complex working conditions and heavy loads. The front loader system has a strong lifting capacity and loading efficiency. The rear digging device has sufficient digging force and smooth operation, enabling efficient deep digging and precise operations.

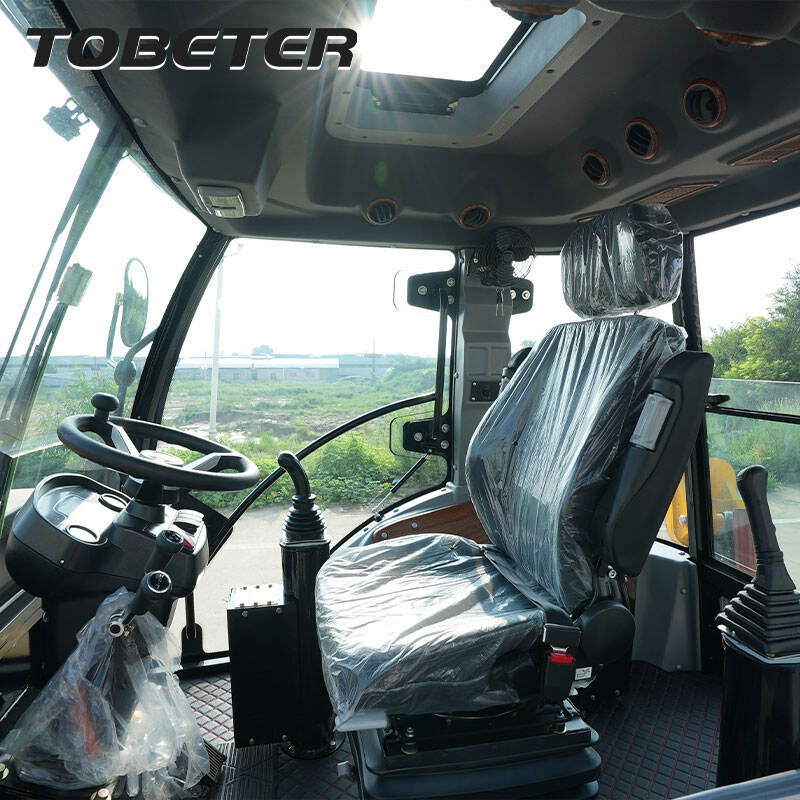

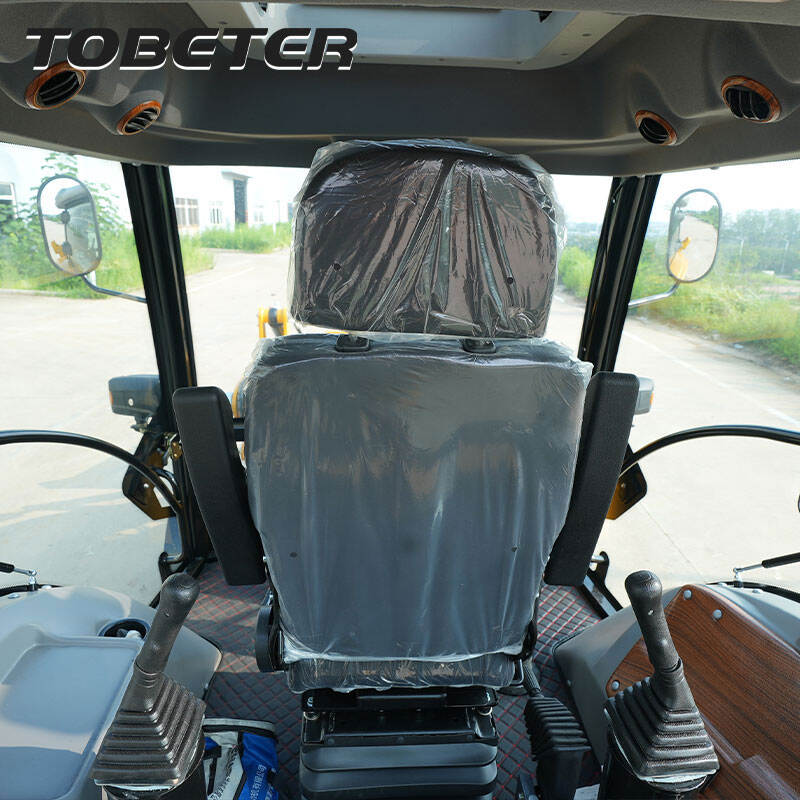

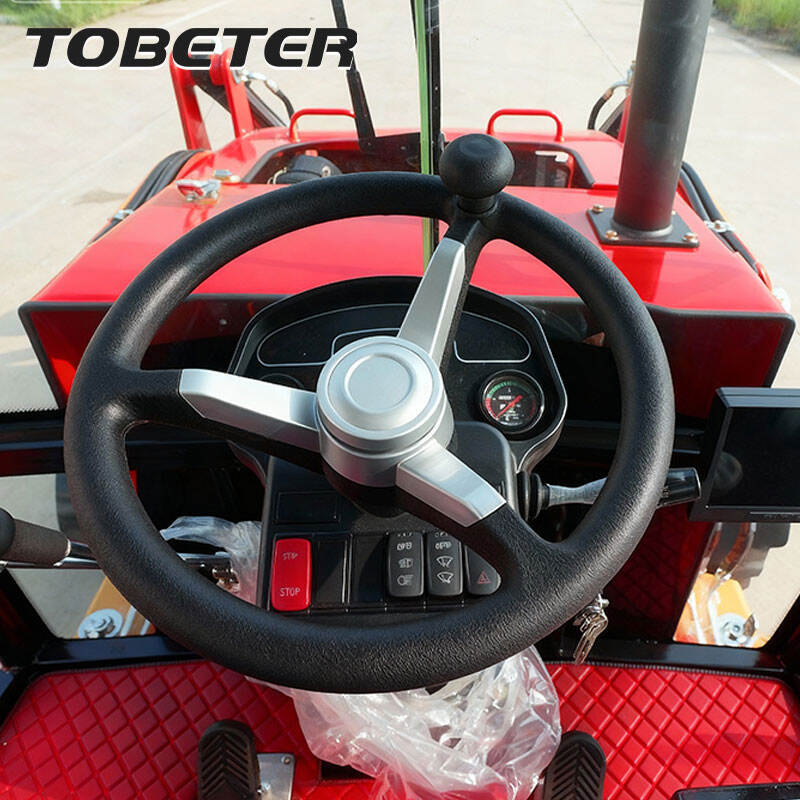

The cab is designed in a luxurious style, equipped with a comfortable and shock-absorbing 360-degree rotating seat as well as a simple and intuitive control panel, significantly enhancing operational flexibility and field of vision. Excellent sound insulation and shock absorption effectively reduce operational fatigue, providing an efficient, safe, and comfortable working environment for the operator.
