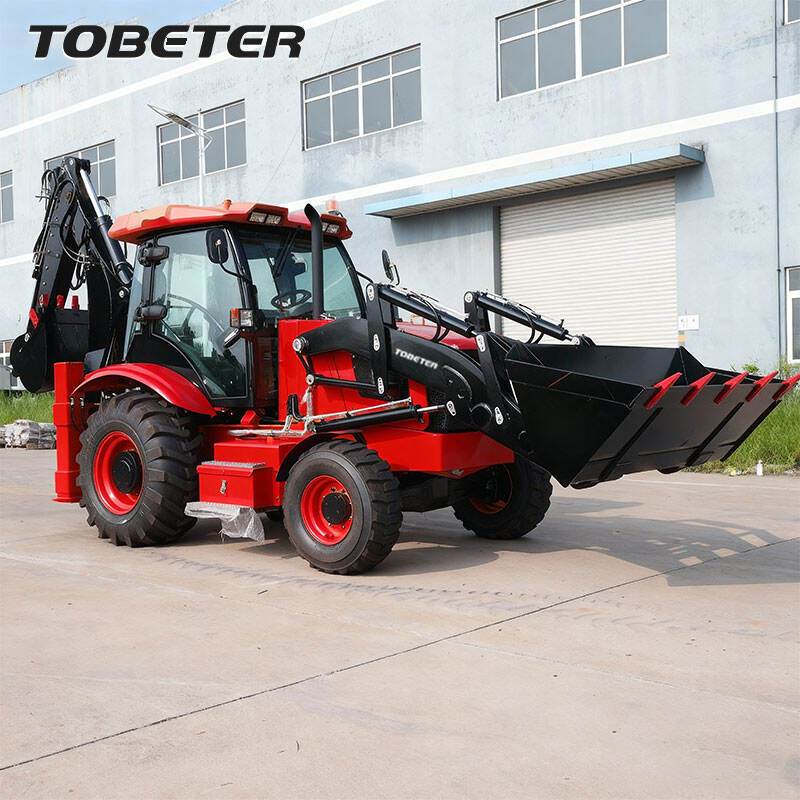

1. Strong 7.8-ton structure delivers stable performance under heavy loads.

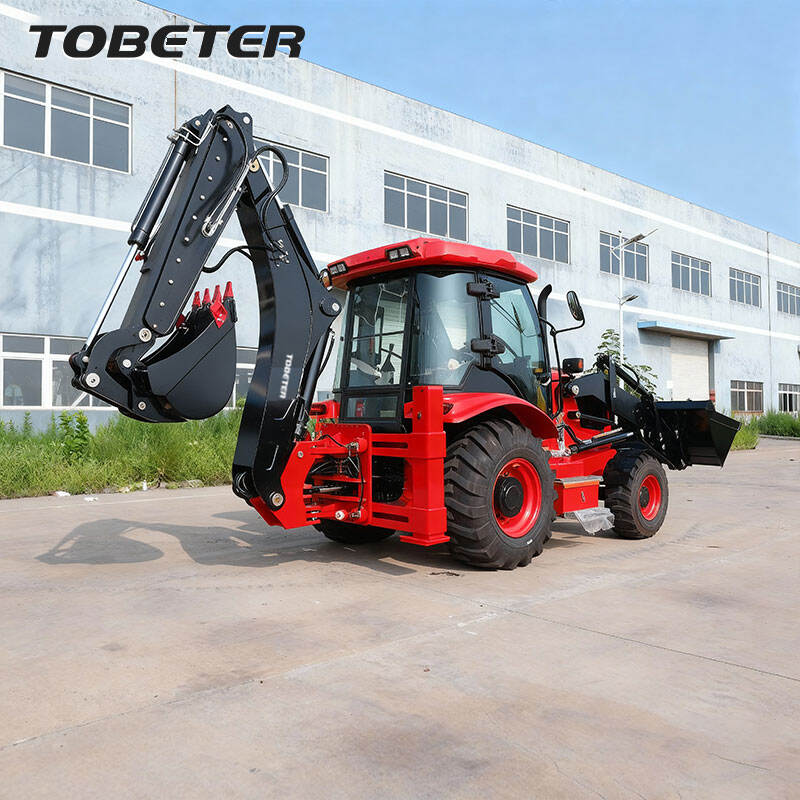

2. Dual-function 1.3 m³ loader and 0.3 m³ backhoe enhances operational efficiency.
3. The telescopic boom extends reach and digging depth for versatile applications.
1. Durable chassis and components ensure long-term reliability.
2. More flexible digging depth than fixed-boom competitors allows greater adaptability on site.
Technical Parameter
Overall Operating Weight |
7800KG |
Transport Dimension | |
L*W*H |
7600×2260×2890mm |
Wheel base |
2250mm |
Min. Ground Clearance |
300mm |
Bucket Capacity |
1.3m3（2200mm width） |
Breakout Force |
38KN |
Loading Lifting Capacity |
2500KG |
Bucket Dumping Height |
2800mm |
Bucket Dumping Distance |
1062mm |
Backhoe Capacity |
0.3m3（620mm width） |
Max. Digging Depth |
4000mm |
Optional Digging Depth |
5000mm-5500mm（Digging boom telescopic） |
Swing Angle of backhoe |
190o |
Max. Pulling Force |
39KN |
Engine
Brand/Model |
YUCHAI YCD4J22T-115 Turbo engine |
Type |
In Line，Direct injection，Four-Stroke，Water Cooling |
Rated Power |
85KW |
Optional Engine |
YCF36110-S500 81KW |
4BT3.9-C100 75KW | |
4BT3.9-C125 92KW | |
EPA4/F36（FPT）75KW | |
EPA4 QSF3.8 |
Steering System
Steering Angle |
±36° |
Min. turning radius |
6581mm |
Pressure of the system |
12Mpa |
Axle
Brand |
FEICHENG YUNYU |
Main Transmission Type |
Double Reduction |
Final Reducer |
Single Stage Final Reducer |
Rated Loader of Axle |
4/18.5t |
Transmission System
Torque Converter | |
Model |
280 |
Type |
Single-stage Three Elements |
Cooling Method |
Oil-cooling Pressure Circulation |
Gearbox | |
Type |
Fixed Shaft Power Transmission |
Gears |
Four Gears Ahead, Four Gears Astern |
Max.Speed |
36KM/H |
Tyre
Model |
（F）14-17.5 Front wheel （R）19.5L-24 Back Wheel |
Pressure of Front wheel |
0.22 Mpa |
Pressure of Back Wheel |
0.22 Mpa |
Brake System
Service Brake |
Air Over Oil Caliper Brake |
External Type | |
Self-regulation | |
Self-balance | |
Emergency Brake |
Operation Power Implementing brake |
Manual Operation Power Terminating Brake |
Hydraulic System
Pressure of Hydraulic System |
22Mpa |
Digging Power of Excavator Grab |
46.5KN |
Digging Power of Dipper |
31KN |
The parameters or configuration are subject to change without notice. | |

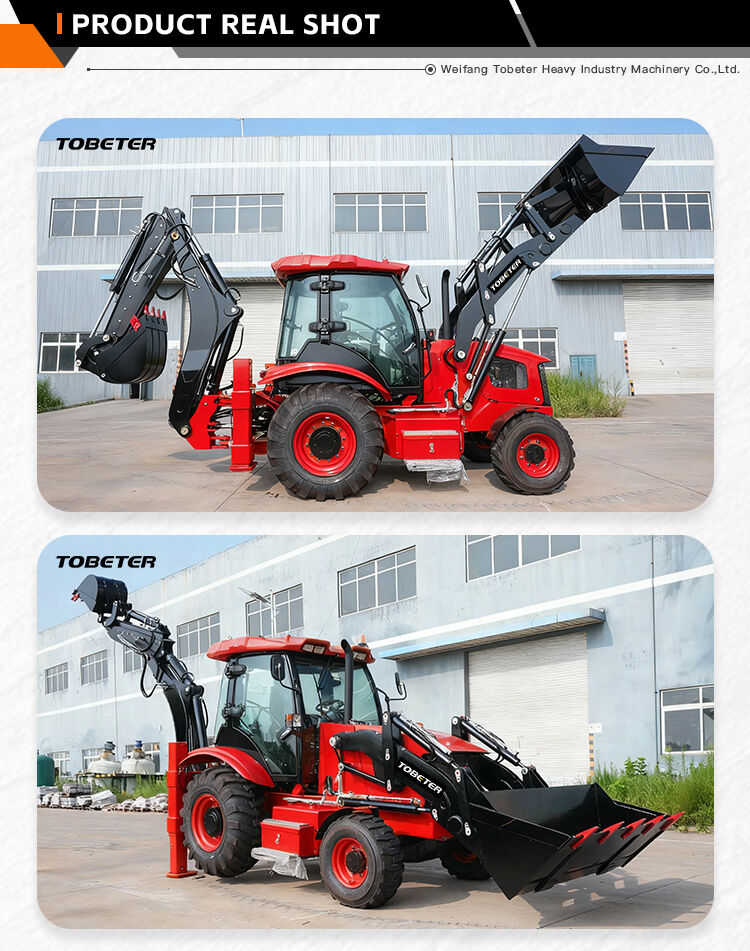

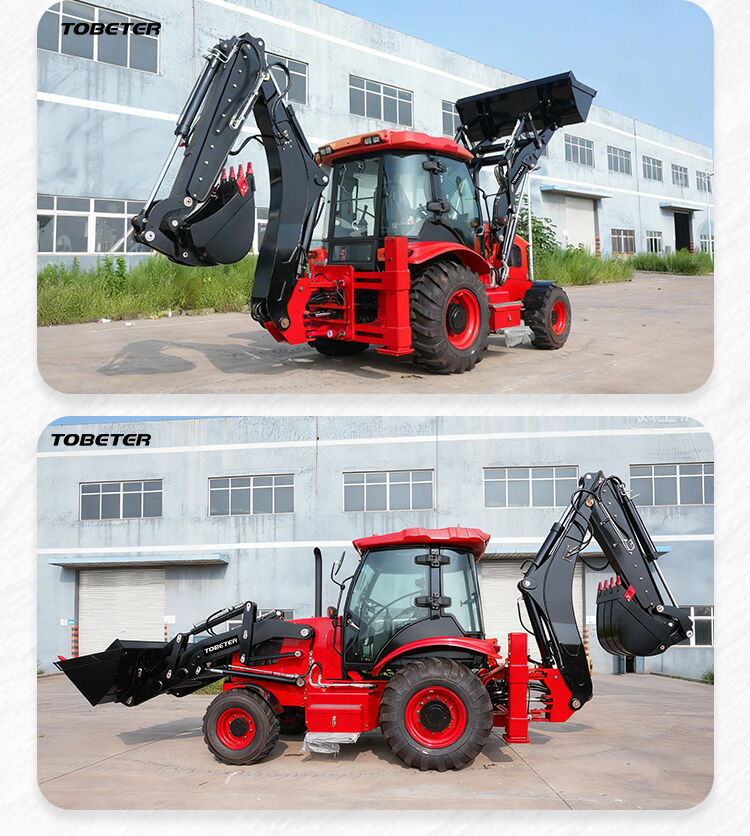

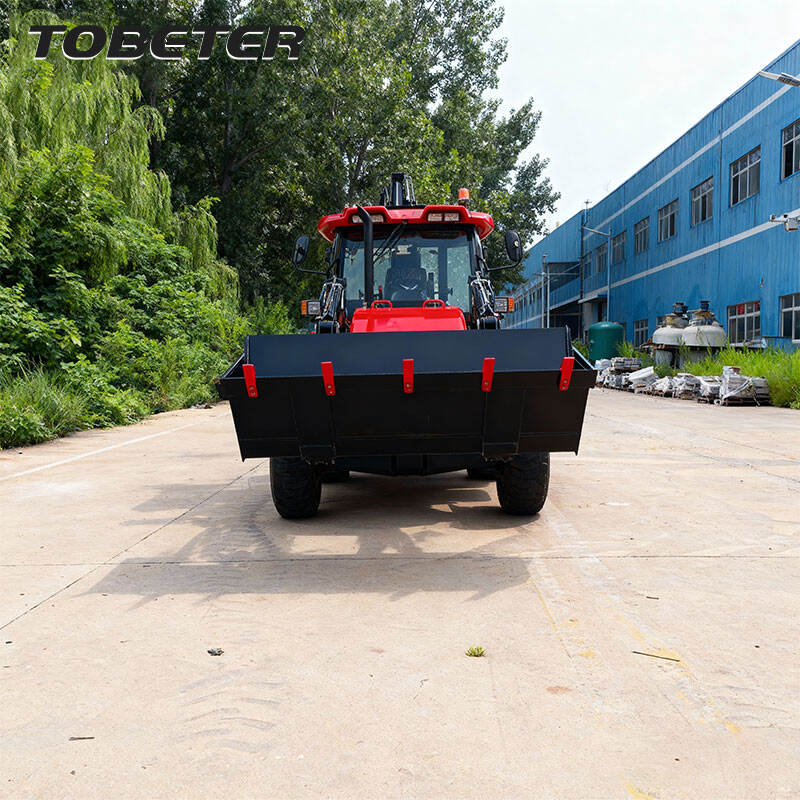

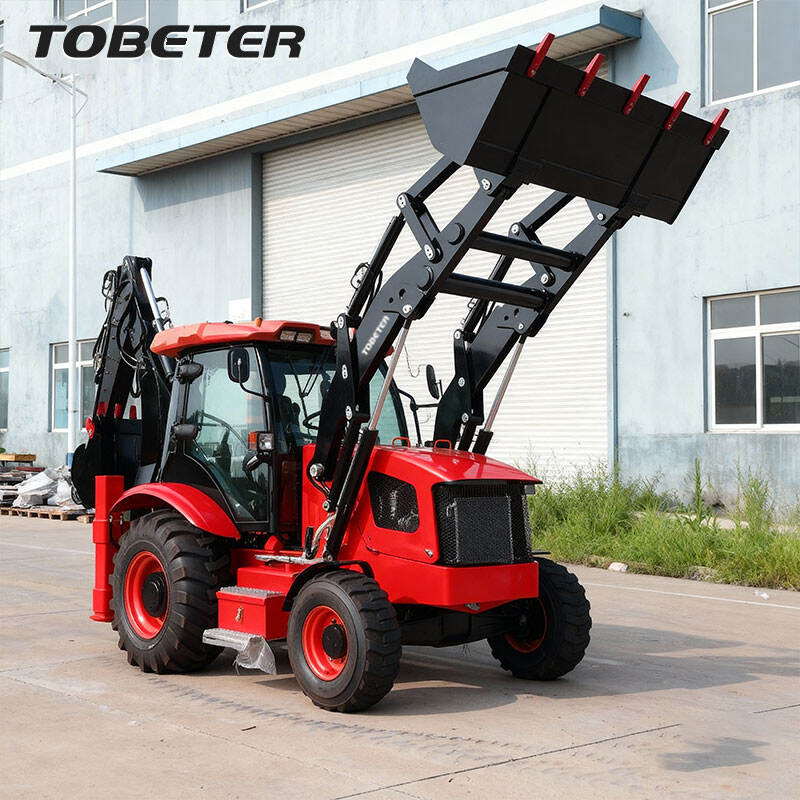

The backhoe loader is a dual-function construction machine that combines front loading and rear digging. The 1.3 cubic meter loading bucket at the front end can quickly complete loading, transportation, and stacking operations; the 0.3 cubic meter digging bucket at the rear end is suitable for ditch excavation, foundation construction, and earthwork operations. The dual-purpose design enables the same machine to meet various construction needs.
It is equipped with a high-performance engine and a reliable transmission system, providing stable output and abundant power. Whether on muddy, sandy, or uneven ground, the backhoe loader can maintain high traction and operational stability. The combination of front and rear dual functions with four-wheel drive and strong power enables seamless switching between loading and excavation, and it can adapt to various complex construction environments.
