1. 1.2m³ bucket, paired with a 35km/h max speed.
2. Designed for complex and rugged terrain.

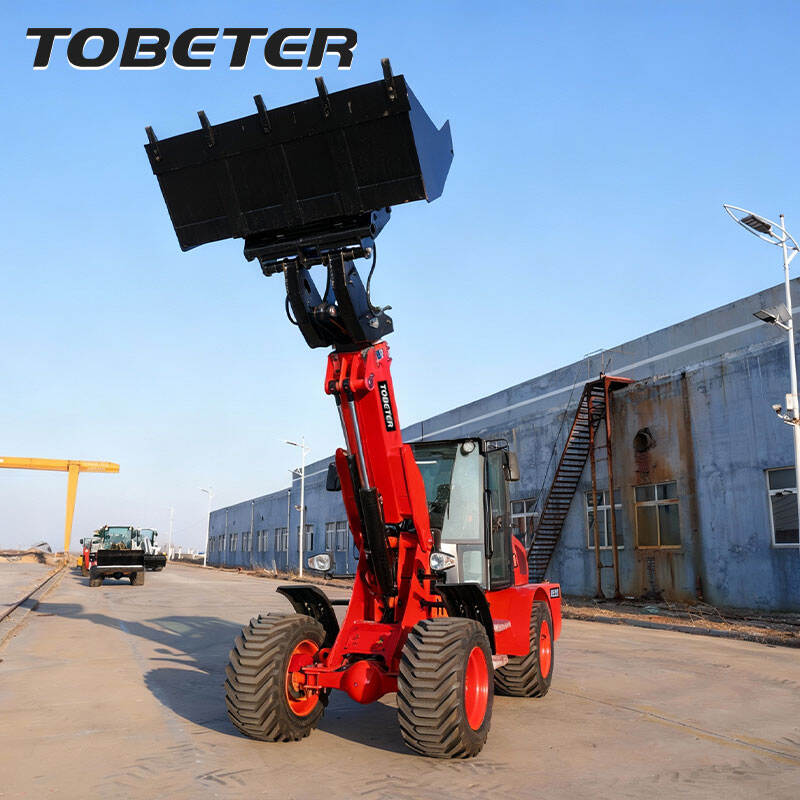

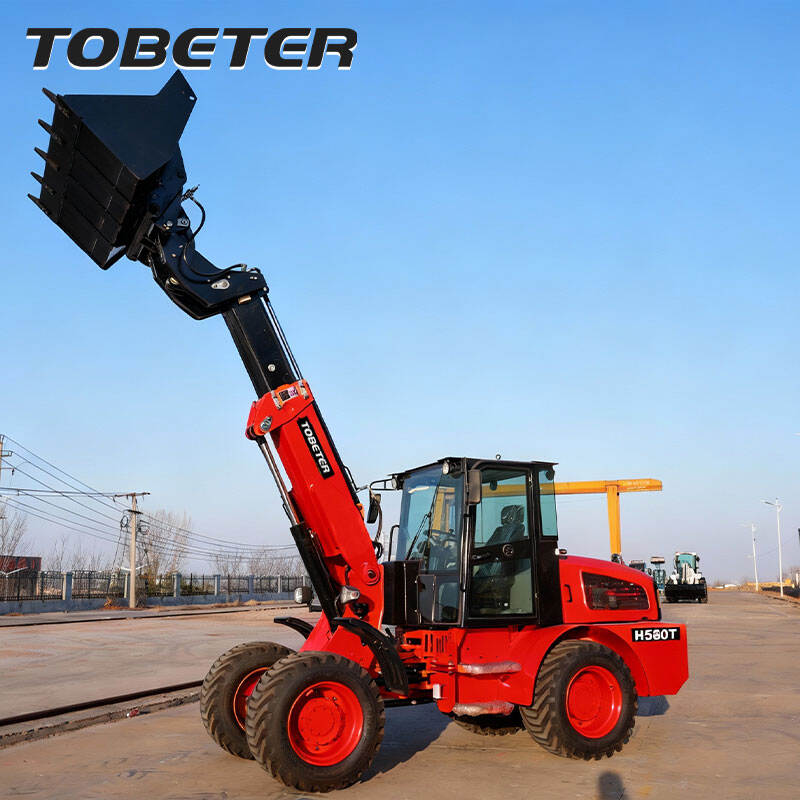

3. Telescopic boom for extended reach and versatility.
1. High efficiency with strong lifting performance.
2. Stable operation and easy maneuverability.
3. Durable structure with low maintenance cost.
Performance
Model |
H580T |
Rated loading |
2500kg(Include bucket or accessories) |
Operation weight |
6000kg |
Rated bucket capacity |
1.2m³ |
Max. grade ability |
30° |
Min. ground clearance |
360mm |
Wheelbase |
2470mm |
Steering angle |
45° |
Max. dump height |
4100mm |
Dump distance |
930mm |
Overall dimension (L*W*H) |
6100x2130x2680mm |
Min. turning radius |
3361mm |
Track base |
1600mm |
Dumping angle |
40° |
Function of leveling automatic |
Yes |
Engine
Brand |
YUNNEI |
Type |
Vertical, in-line, water cooling, 4-cylinder, turbo type |
Rated power |
76KW |
Optional engine |
EURO5 engine: CHANGCHAI/YUNNEI/YUCHAI EURO5/EPA4 engine: KOLHER or FPT EPA4 engine: CUMMINS |
Transmission system
Torque converter |
265 |
Gearbox mode |
Counter shaft, Power-shift |
Gear shift |
4 forward,4 reverse |
Max. speed |
35km/h |
Drive axle
Main reducing spiral |
Circular Arc Bevel gear, single stage |
Decelerating mode |
Single stage planetary type |
Hydraulic system
System working pressure |
16Mpa |
System flow |
63ml/r |
Brake system
Service brake |
Hydraulic disc brake on 4 wheels |
Parking brake |
Flexible shaft operated external drum |
Tyre
Tyre model |
500/45-22.5 tubeless tire(16PR) |
Width |
500mm |
Diameter |
1030mm |
Filling capacity
Diesel fuel tank |
100L |
Hydraulic tank |
100L |
Packing quantity: 2Units（1*40HC）

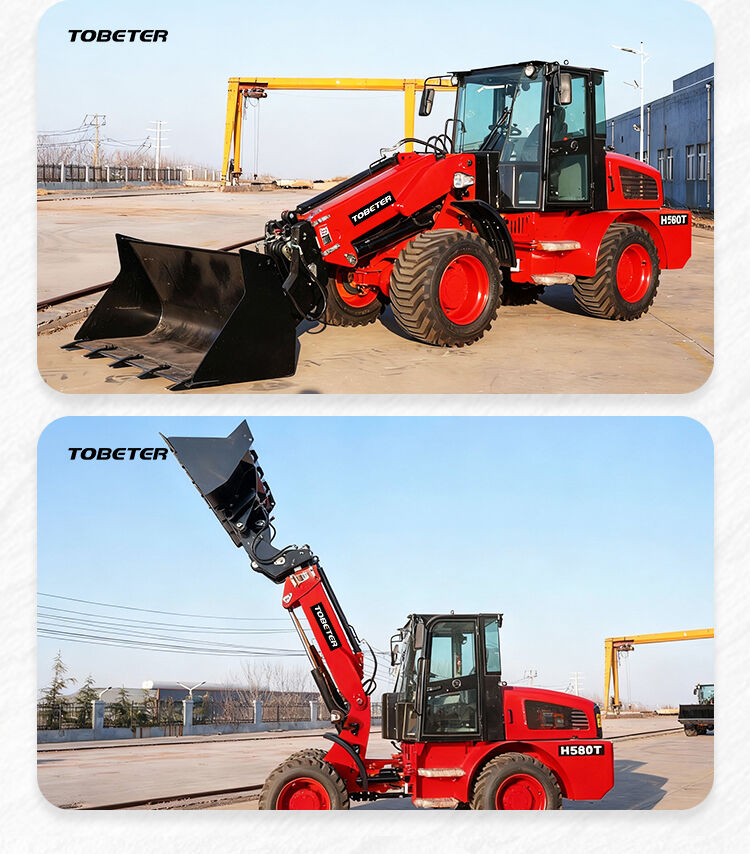

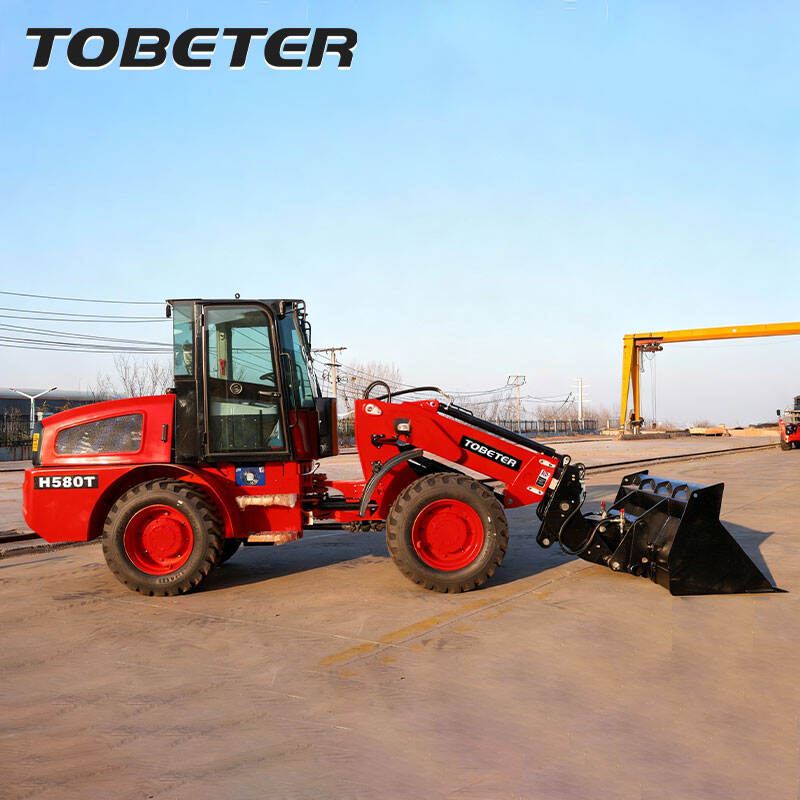

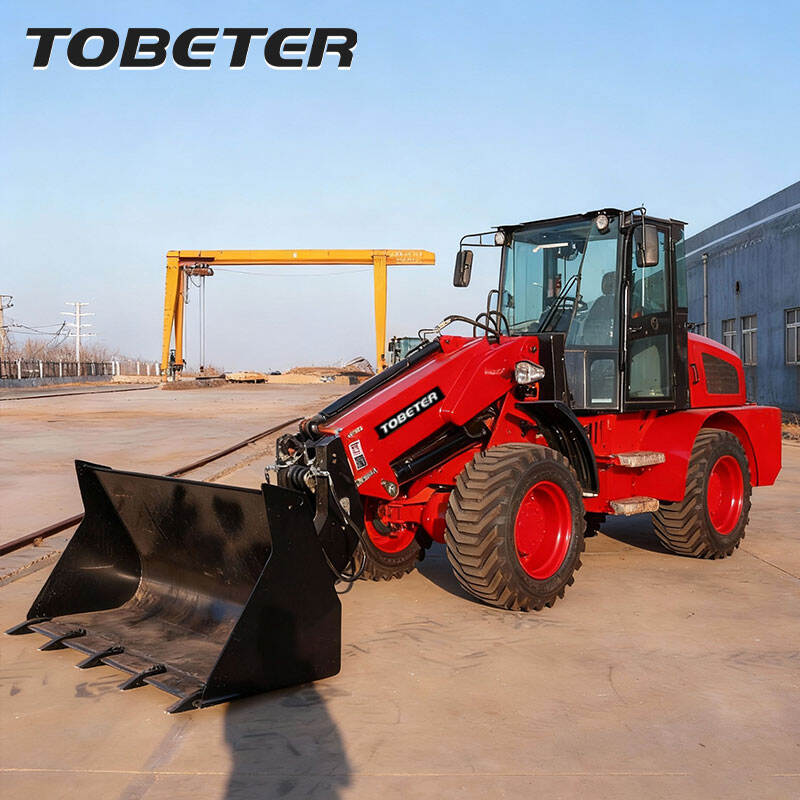

This telescopic tractor loader is specially designed for high-intensity application scenarios such as construction projects, mining operations, and bulk material transportation. The overall structure is robust and reliable, balancing high load capacity with operational stability, enabling continuous and efficient operation in complex and demanding working conditions.

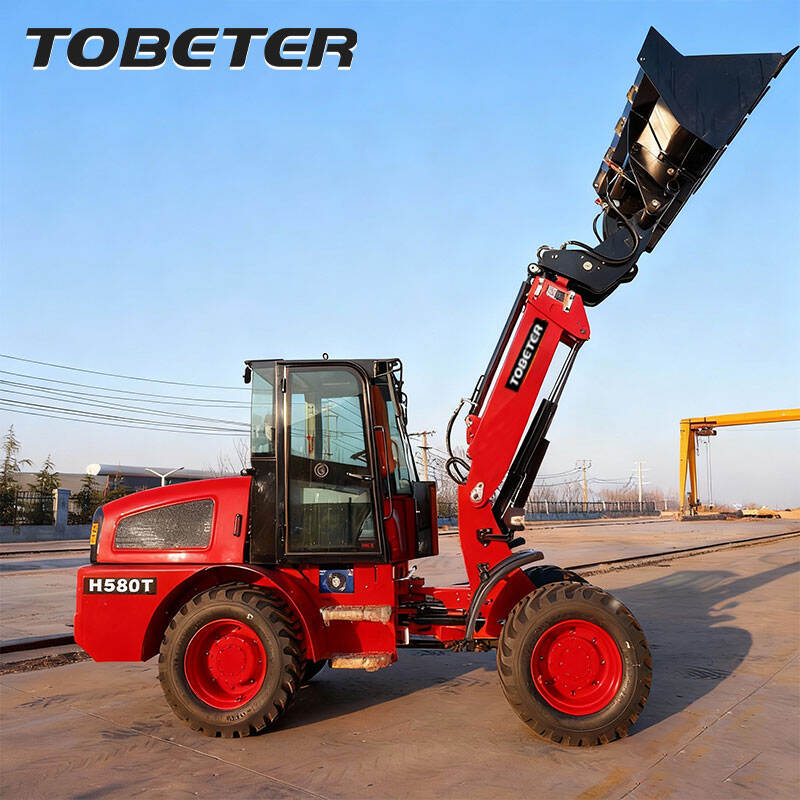

It is equipped with a 1.2m³ large-capacity bucket, with a maximum unloading height of up to 4100mm. It can easily meet the requirements of high-stacking and high-loading/unloading positions, significantly improving the efficiency of a single operation. The telescopic arm design effectively expands the working range and reduces the number of equipment movements, performing particularly well in loading, stacking, and material transfer processes.
In addition, this telescopic loader is equipped with an automatic leveling system, which effectively ensures the stability and safety of the bucket operation and reduces the operational difficulty.
