1. Efficient operation with optimized power and hydraulics.
2. All-scenario terrain compatibility for construction and industrial sites.
3. Flexible and safe handling with precise control.
1. Reliable performance with low operating cost.
2. Better task and transfer efficiency for faster job cycles.
3. Stronger terrain adaptability in complex working conditions.
Performance
Model |
H480T |
Rated loading |
2000kg(Include bucket or accessories) |
Operation weight |
5500kg |
Rated bucket capacity |
1m³ |
Max. grade ability |
30° |
Min. ground clearance |
360mm |
Wheelbase |
2273mm |
Steering angle |
45° |
Max. dump height |
4100mm |
Dump distance |
930mm |
Overall dimension (L*W*H) |
6100x2130x2680mm |
Min. turning radius |
3281mm |
Track base |
1447mm |
Dumping angle |
40° |
Function of leveling automatic |
Yes |
Engine
Brand |
YUNNEI |
Type |
Vertical, in-line, water cooling, 4-cylinder, turbo type |
Rated power |
65KW |
Optional engine |
EURO5 engine: CHANGCHAI/YUNNEI EURO5/EPA4 engine: KOLHER EPA4 engine: CUMMINS |
Transmission system
Torque converter |
265 |
Gearbox mode |
Counter shaft, Power-shift |
Gear shift |
4 forward,4 reverse |
Max. speed |
30km/h |
Drive axle
Main reducing spiral |
Circular Arc Bevel gear, single stage |
Decelerating mode |
Single stage planetary type |
Hydraulic system
System working pressure |
16Mpa |
System flow |
50ml/r |
Brake system
Service brake |
Hydraulic disc brake on 4 wheels |
Parking brake |
Flexible shaft operated external drum |
Tyre
Tyre model |
500/50-17 tubeless tire(16PR) |
Width |
501mm |
Diameter |
935mm |
Filling capacity
Diesel fuel tank |
80L |
Hydraulic tank |
80L |
Packing quantity: 2Units（1*40HC）

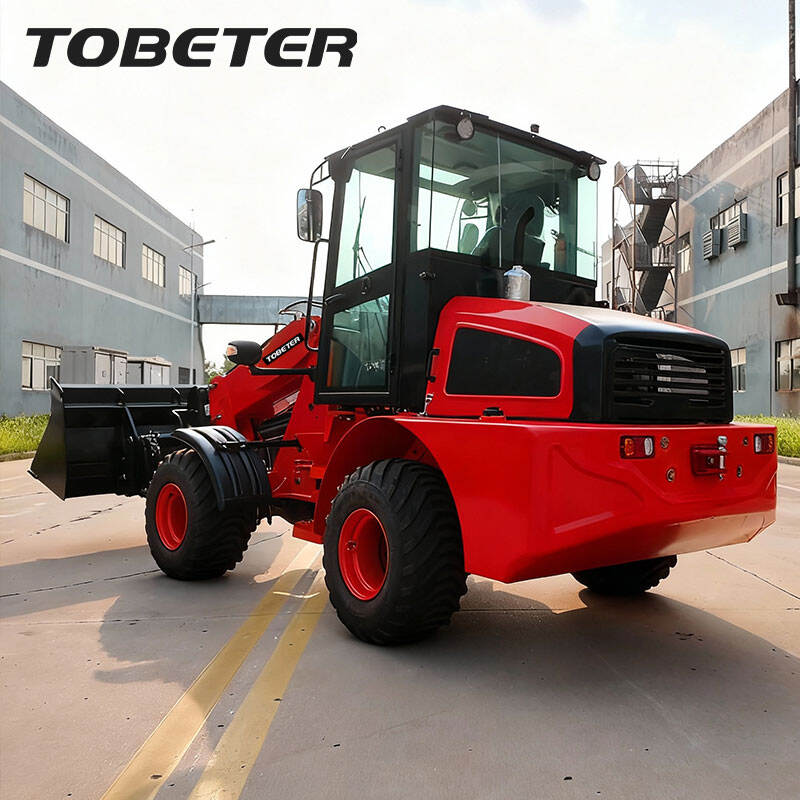

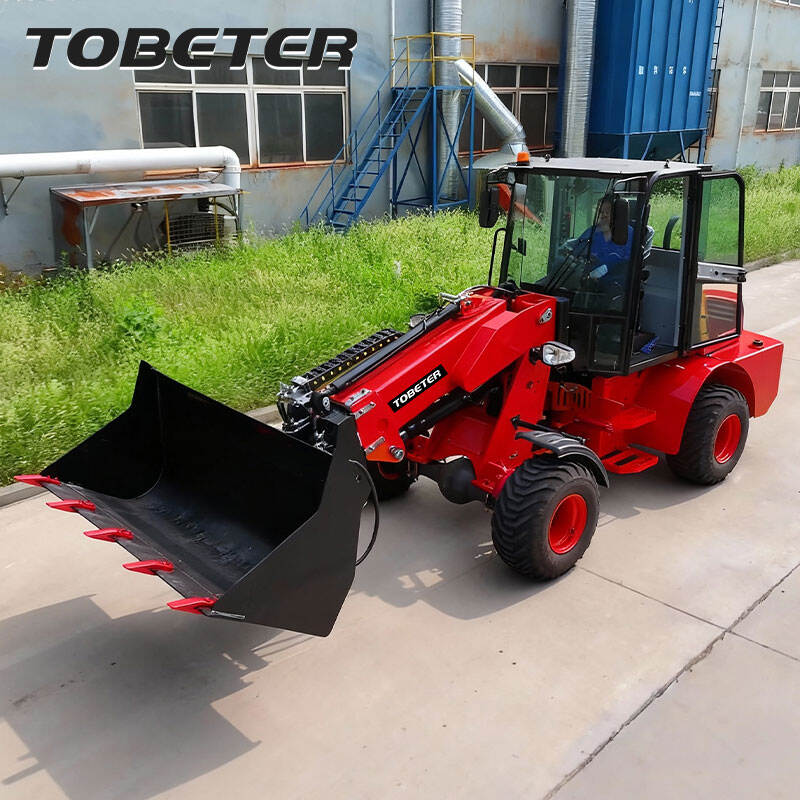

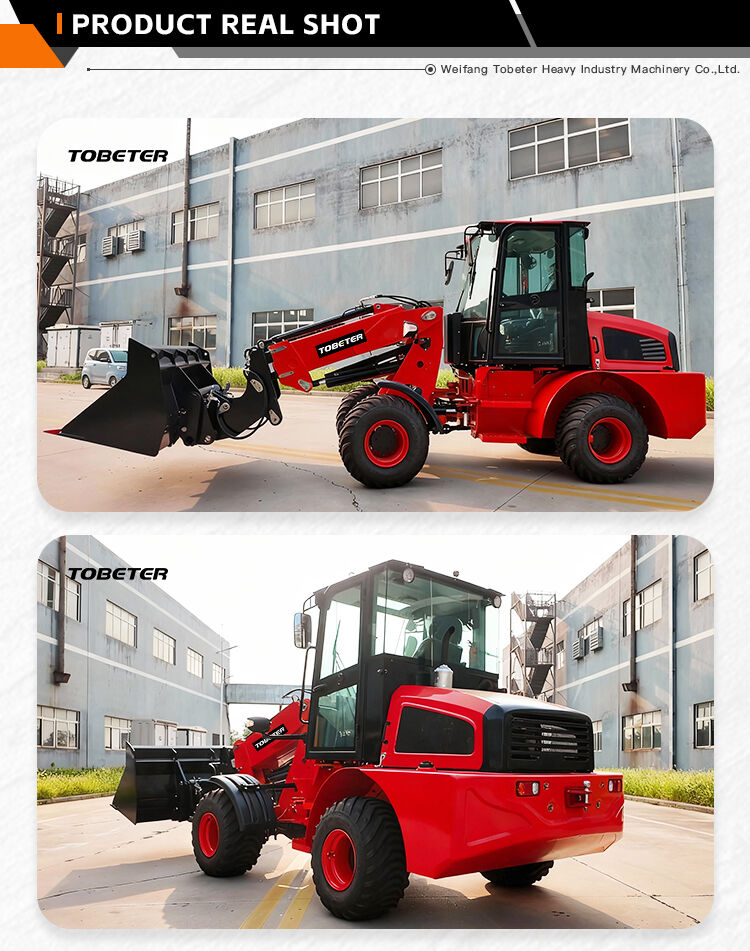

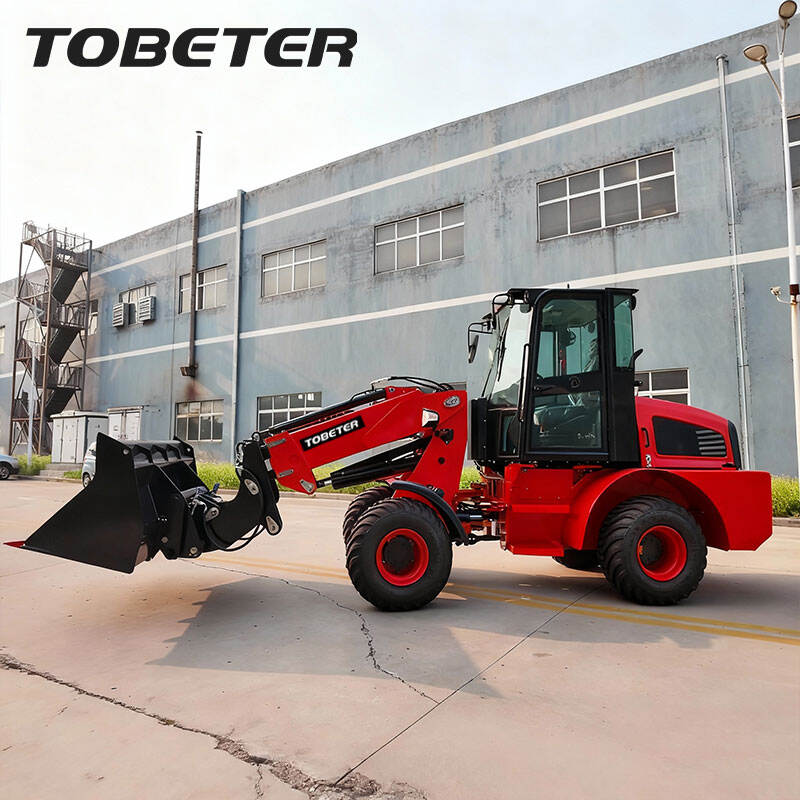

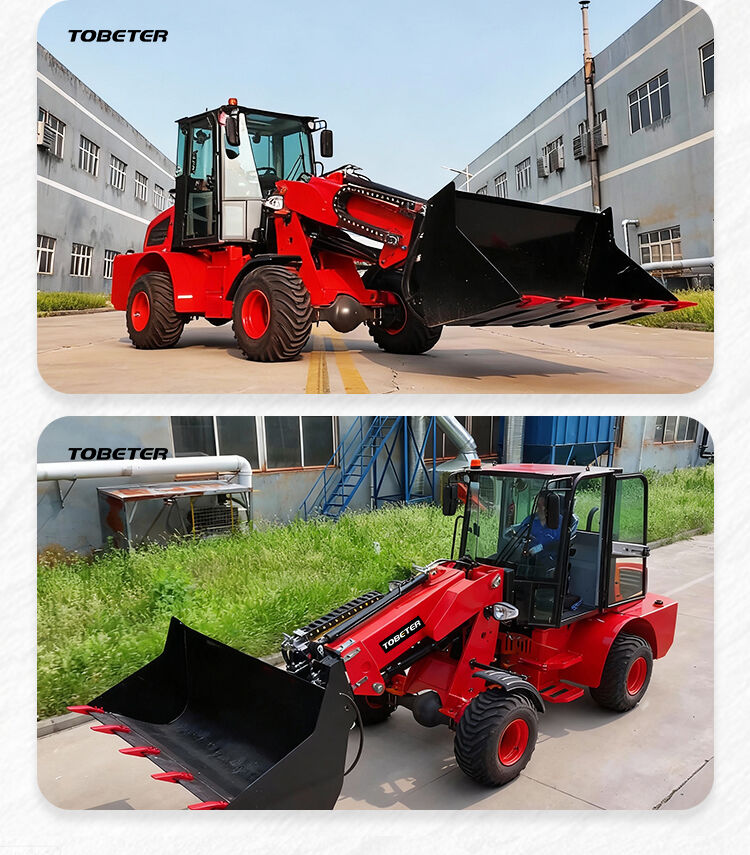

This 5.5-ton telescopic loader is designed for engineering construction, material handling, warehouse transportation, and various industrial applications. While ensuring strong operational capabilities, it also places greater emphasis on the balance between efficiency and flexibility, making it suitable for working conditions that require frequent loading and unloading, relocation, and continuous operations.

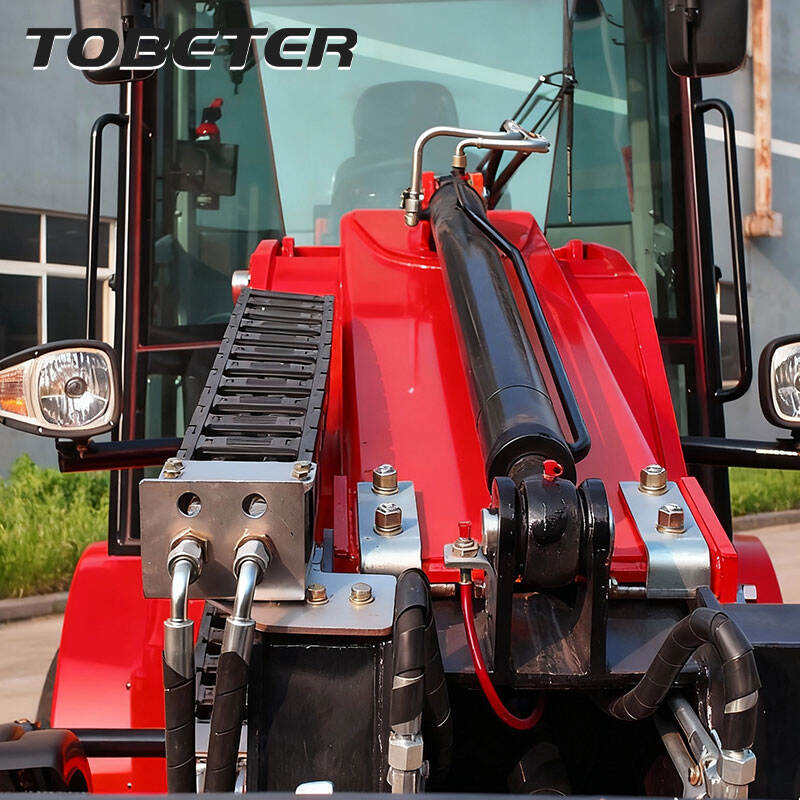

It adopts an efficient power system and optimizes the hydraulic system for a perfect match, providing rapid response and smooth operation. This enables it to significantly shorten the single operation cycle and enhance the overall operational efficiency. The telescopic arm structure allows the equipment to maintain a compact body while achieving a larger working range, especially suitable for loading, stacking, and high-position material handling operations.
