1. Three-section telescopic boom
2. Closed hydrostatic system
3. 16.9-24 vacuum tire
4. 4-wheel drive
5. Three steering modes (front-wheel steering + four-wheel steering + crab steering)
1. High load capacity and stability
2. Supports multiple steering modes and attachments
3. High reliability and low maintenance
| Max. load | 5000kg | Optional transmission type | Gearbox + Hydraulic converter + Drive shaft + Drive axle | ||
| Maximum lift height | 14000mm | Service brake | Oil-immersed multi-disc hydraulic brake[Disc Brake] | ||
| Maximum reach | 9580mm | ||||
| Maximum traction force | ≥70kn | Parking brake | Negative braking | ||
| Minimum ground clearance | 420mm | Weight (with forks) | 12300kg | ||
| Overall dimensions(L×W×H) | 6970×2430×2550mm | Engine | Brand/model | YUCHAI/YCD4J22T-125 | |

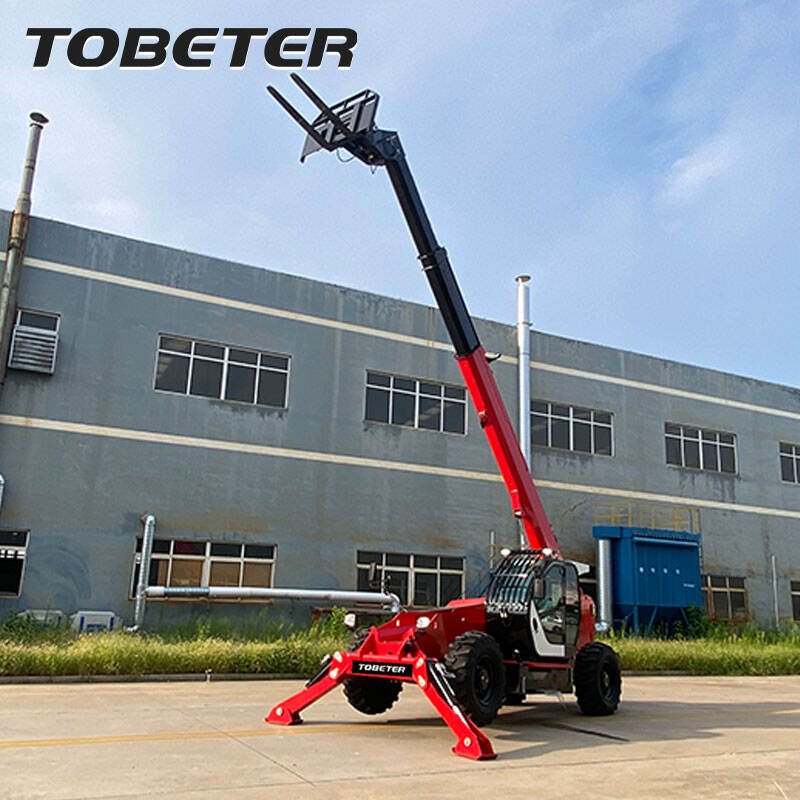

| Minimum width (hydraulic outriggers fully open) | 3800mm | ||||
| Wheelbase | 3670mm | Power | 91kw | ||
| Axle track | 1990mm | Optional engine | China II standard: Cummins 4BT3.9-C125(92KW) | ||
| Rear wheel center to rear | 1240mm | EURO3 standard: Cummins QSB3.9-C125(92KW) | |||
| Turning radius (outer wheel) | ≤4500mm | EURO5 standard:YUCHAI(92KW) | |||
| Pallet fork length | 1220mm | EPA4/EURO5 standard:FPT F36(90KW) | |||
| Tire model | 16.9-24 | EPA4 standard:Cummins QSF3.8 | |||
| Drive type | 4 wheel drive | Gear Control | Electronic control | ||
| Steering type | Front Wheel Steering | Hydraulic control system | Multifunctional centralized handle | ||
| Crab Steering | Frame leveling | +/- 9° | |||
| Four Wheel Steering | Warranty time | 1 year or 1200 working hours whichever comes first | |||
| Transmission type | Closed piston pump + walking pump/ motor + gearbox + drive axle | Package(1*40HQ) | 1 unit | ||

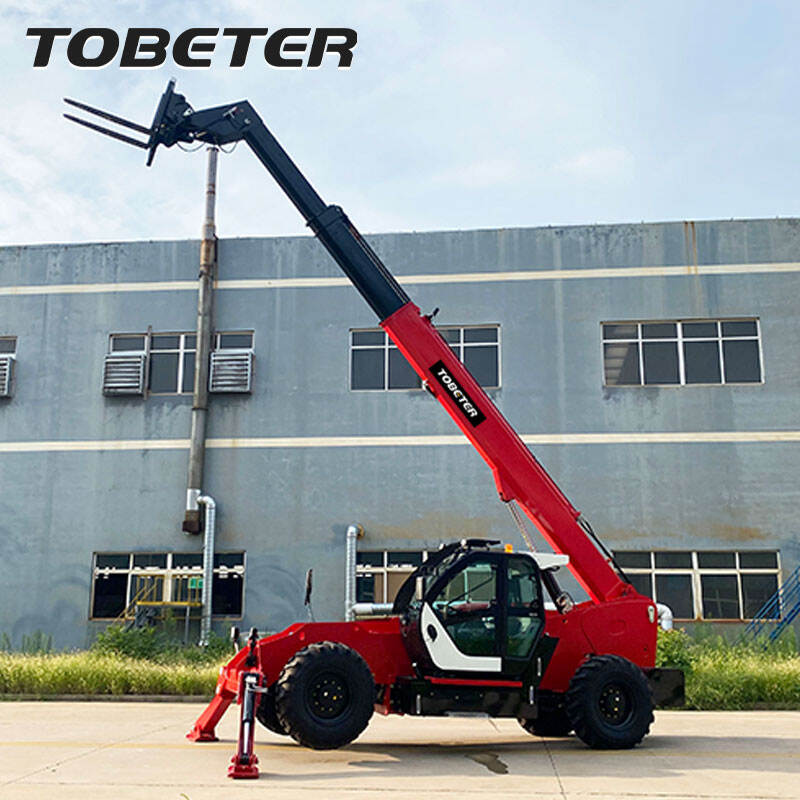

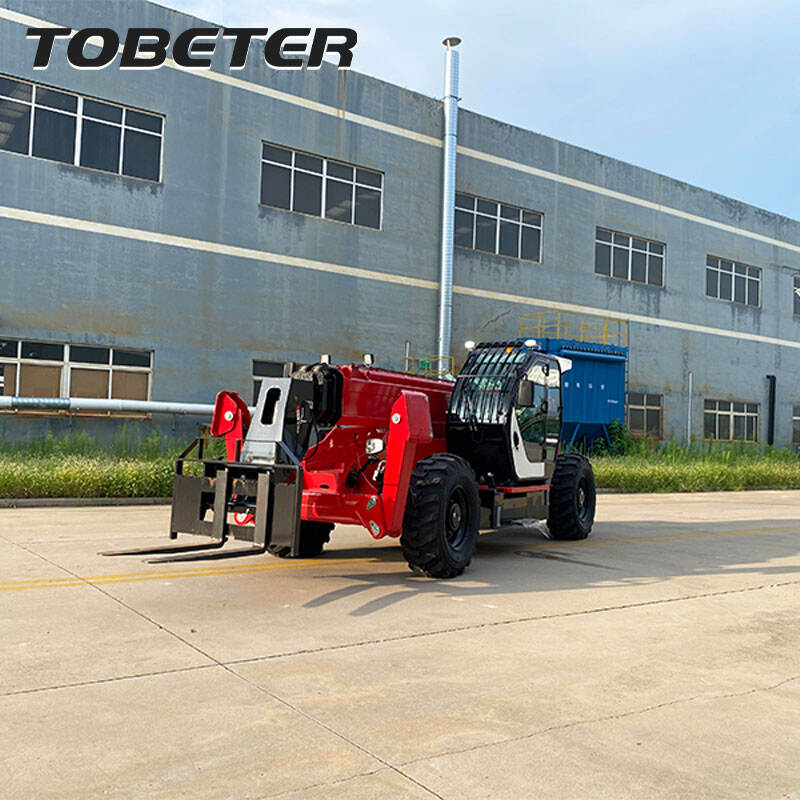

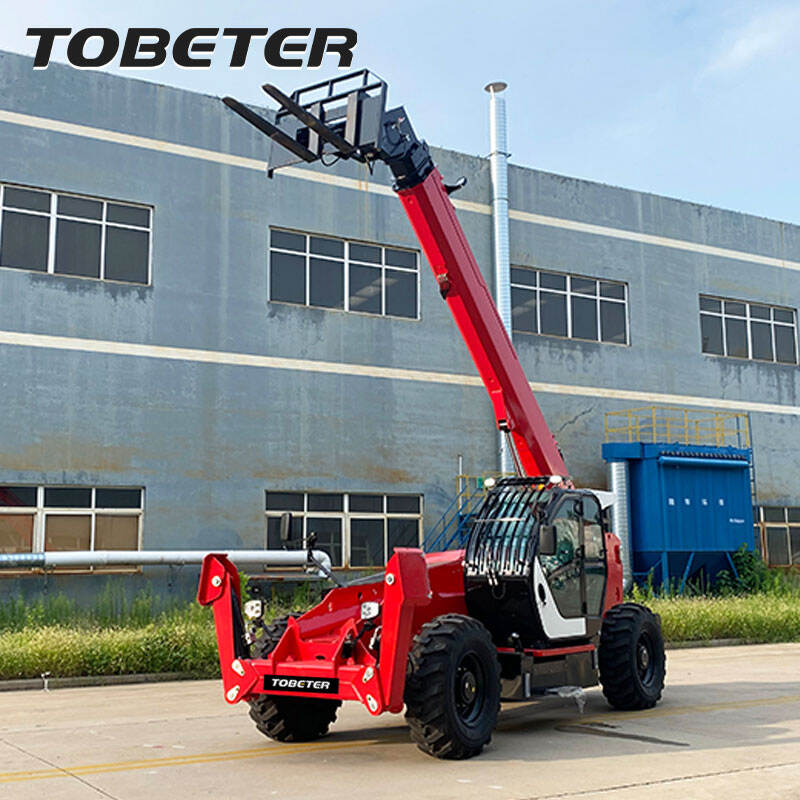

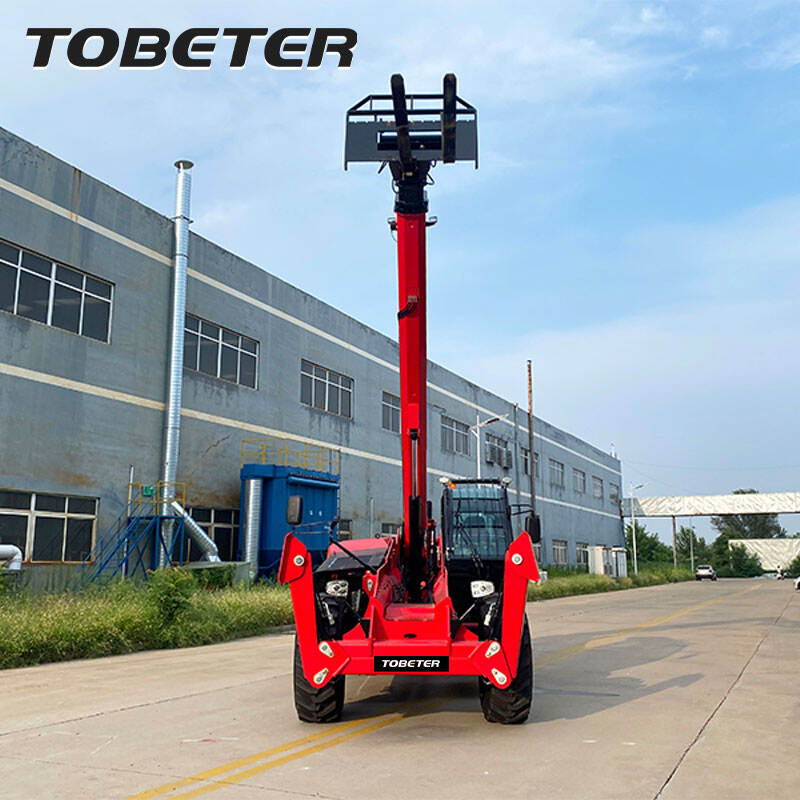

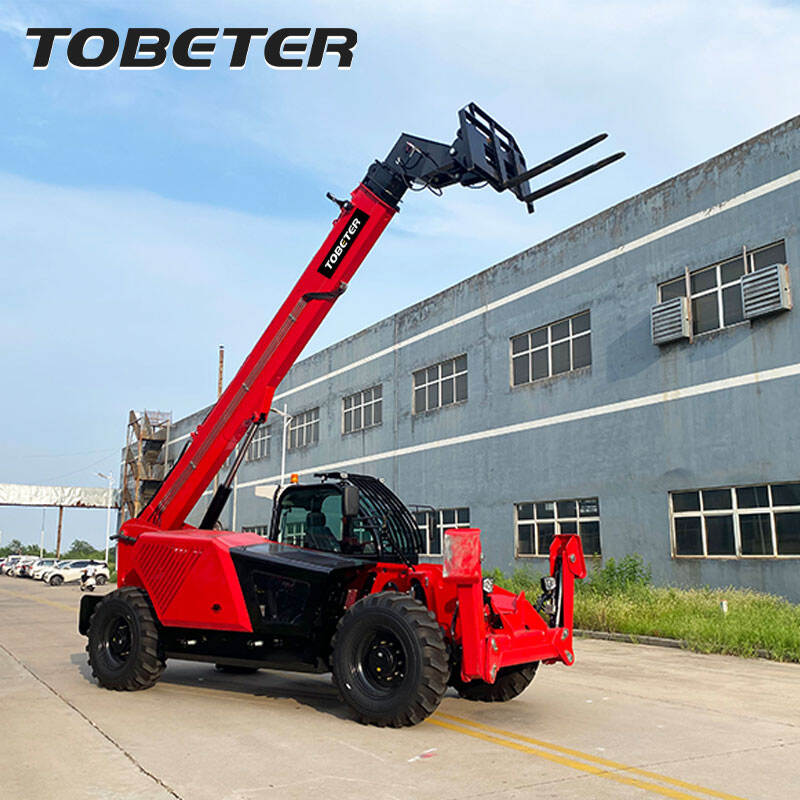

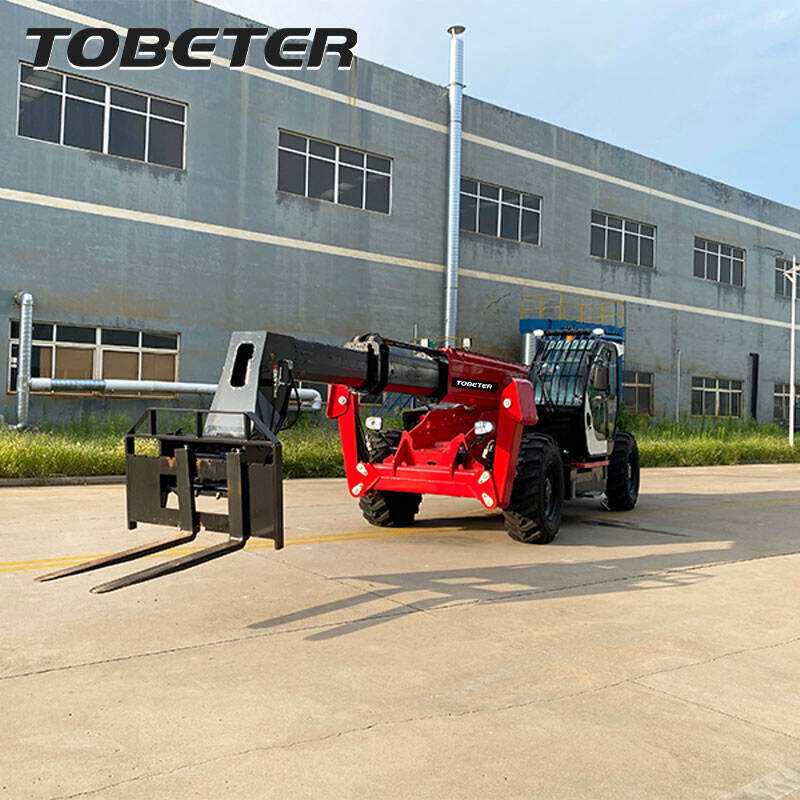

This 5-ton large telehandler is specially designed for heavy material handling scenarios and is widely applicable in construction sites, logistics parks, storage centers and industrial locations. Its high-strength structure ensures that the equipment can maintain stable operation even under heavy load conditions.
It supports three steering modes: front-wheel steering, four-wheel steering, and crab-like steering, which can be easily selected depending on specific work requirements. These capabilities greatly enhance the machine's ability to adapt to changing conditions and make it possible to complete various types of tasks in highly varying and complicated work areas.
This telehandler places great emphasis on stability in its design. Through a low center of gravity chassis structure, a reasonable distribution of counterweights, and a stable chassis system, it ensures that the equipment maintains excellent balance performance even when fully loaded and operating at high altitudes.
