1. High load capacity (5000kg) for heavy-duty tasks.
2. 16.9-24 vacuum tires with strong grip and wear resistance, ensuring long-term durability.
3. Powerful 91kW engine ensures stable and reliable operation under heavy loads.
1. Vacuum tires are more durable and resistant to harsh working conditions than traditional bias tires.
2. Better power redundancy than light-duty telehandlers for continuous, high-demand operations.
| Max. load | 5000kg | Pallet fork length | 1220mm |
| Max. lift height | 7000mm | Engine brand/model | YUCHAI YCD4J22T-125 |
| Reach at max. lift height | 450mm | Engine rate power | 91KW |
| Max. forward reach | 3600mm | Optional engine | China II standard: Cummins 4BT3.9-C125(92KW) |
| Weight unload | 10000kg | EURO3 standard: Cummins QSB3.9-C125(92KW) | |
| Tyre | 16.9-24 | EURO5 standard:YUCHAI(92KW) | |
| Outside turn radius(over tyre) | 4250mm | EPA4/EURO5 standard:FPT F36(90KW) | |
| Carriage roll back angle(degrees) | 42.6 | EPA4 standard:Cummins QSF3.8 | |
| Carriage dump angle(degrees) | 37.5 | Drive type | 4 wheel drive |
| Overall height | 2500mm | Steering type | Front Wheel Steering |
| Overall width(over tyres) | 2200mm | Crab Steering | |
| Inside width of cab | 800mm | Four Wheel Steering | |
| Front track | 1750mm | Transmission type | Gearbox+hydraulic converter+drive shaft+drive axle |
| Wheelbase | 2850mm | ||
| Overall length to front tyres | 4200mm | Warranty time | 1 year or 1200 working hours whichever comes first |
| Ground clearance | 350mm | Package(1*40HQ) | 2 units |

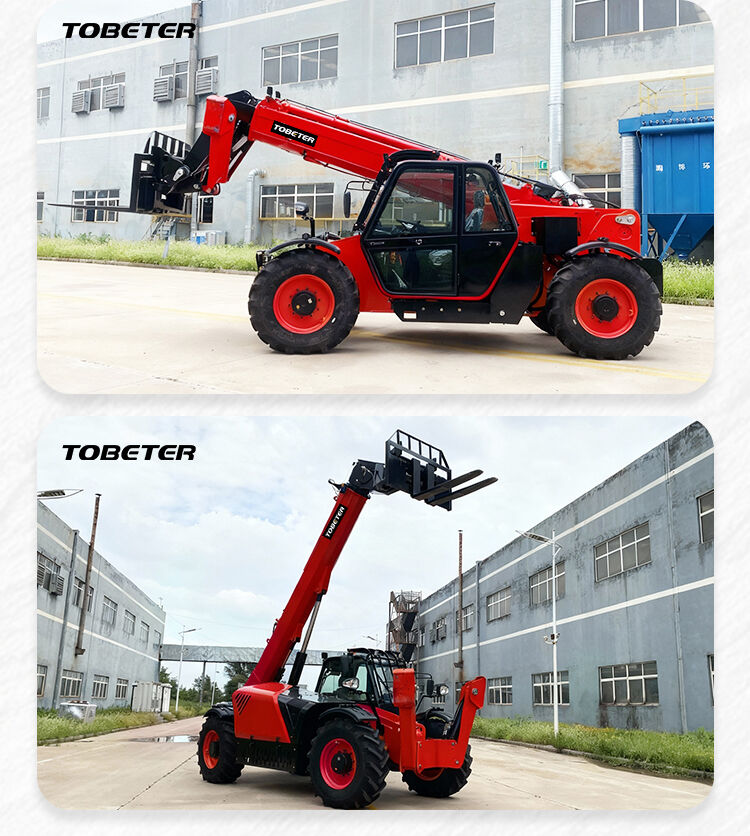

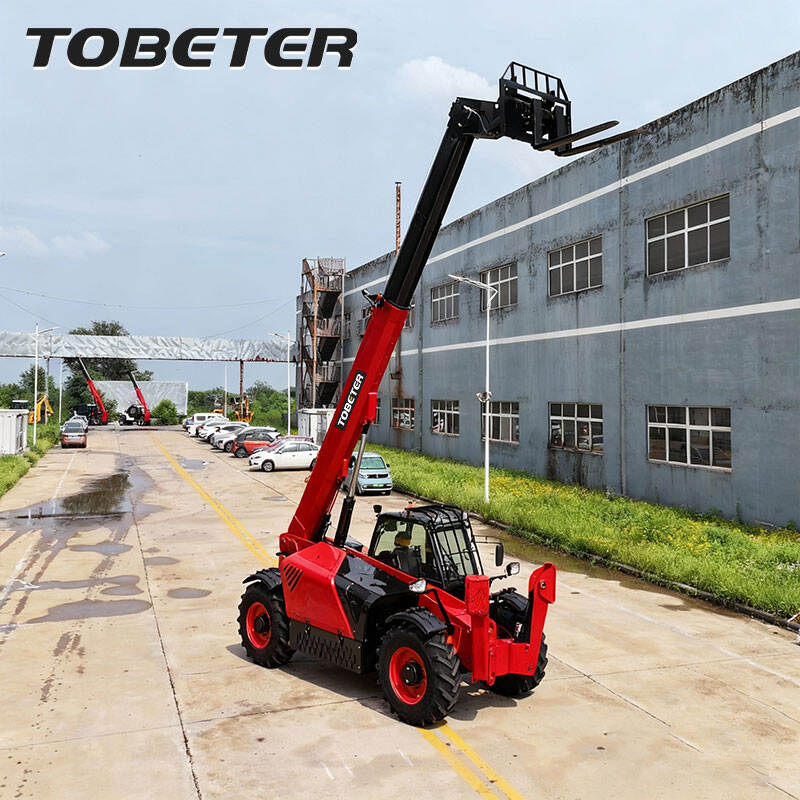

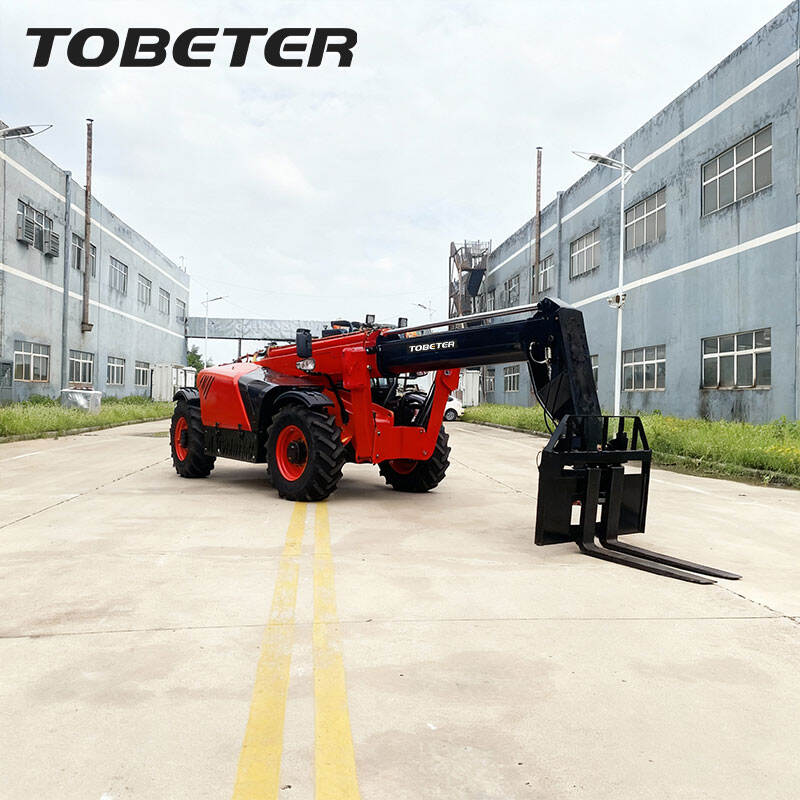

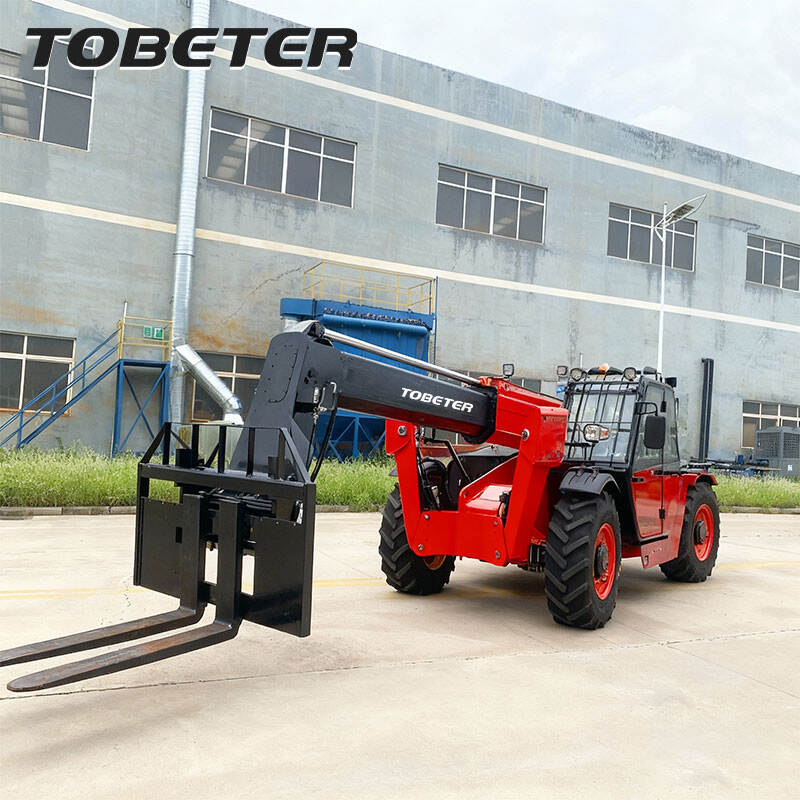

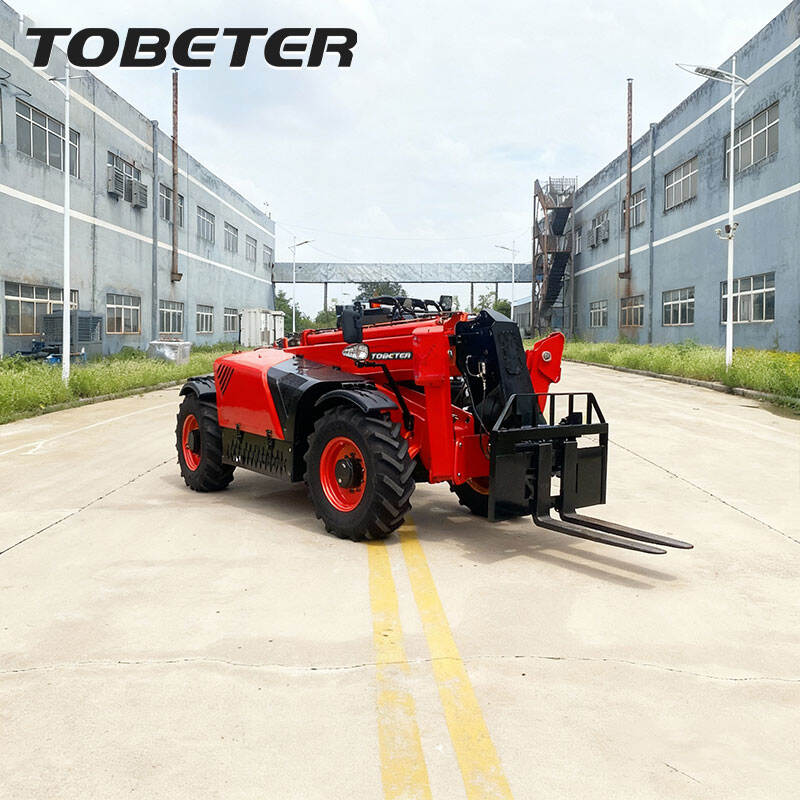

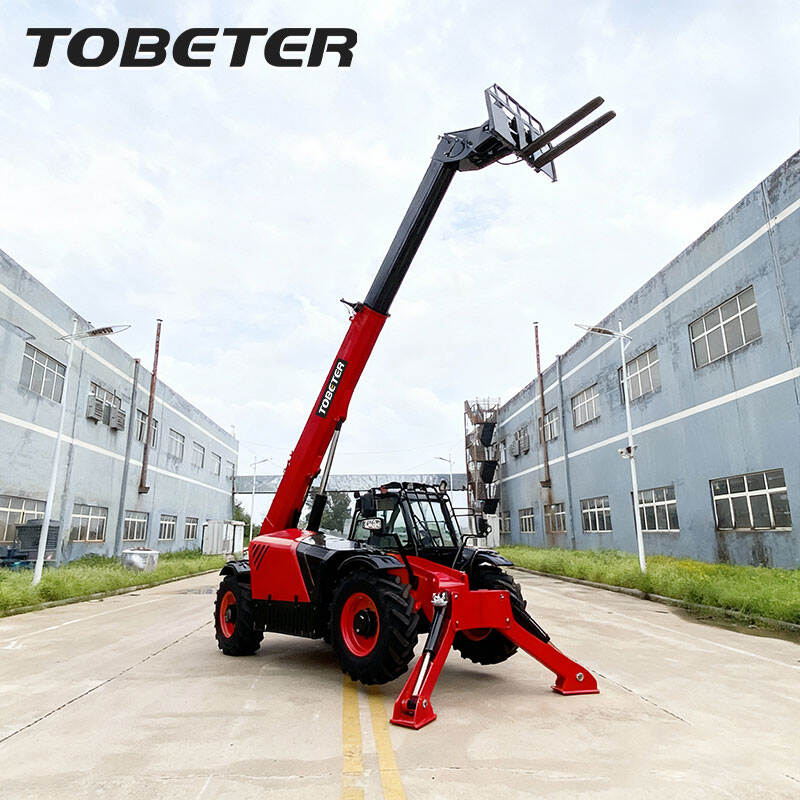

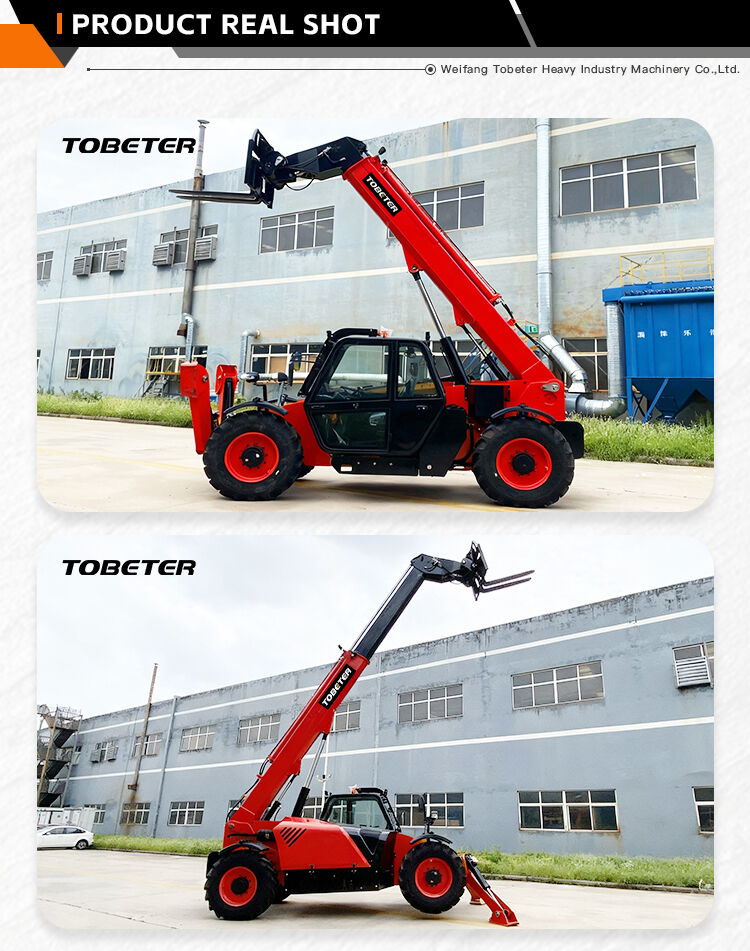

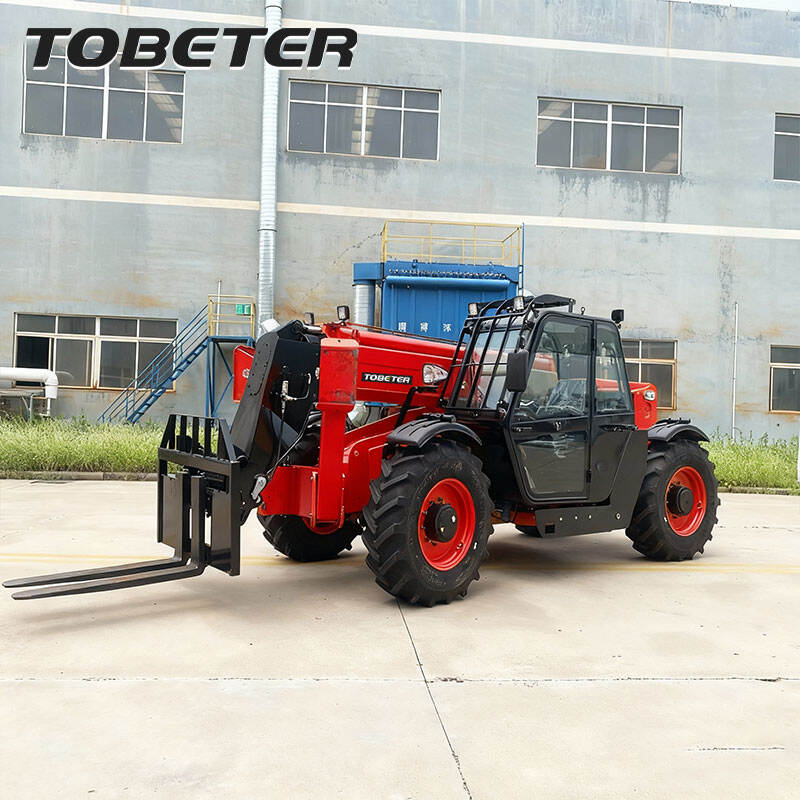

This telehandler is highly versatile and durable, specially designed for modern agricultural operations. With a powerful engine and a compact footprint, it offers an exceptional extension and a lift capacity that allows the operator to safely and efficiently handle heavy loads.
It is equipped with a high-performance engine, which can provide continuous and reliable power for the lifting, transportation and precise placement of materials. Its hydraulic system has been optimized, featuring smooth operation, rapid response, and high efficiency, ensuring that heavy-duty operations can be completed continuously and efficiently, minimizing downtime to the greatest extent.
Furthermore, this farm telehandler is sturdy and durable, with low maintenance costs. It features a reinforced chassis, high-strength components, and an easy-to-maintain design. With its strong structure and ability to perform in extreme agricultural environments, the telehandler provides maximum performance with minimal downtime.
