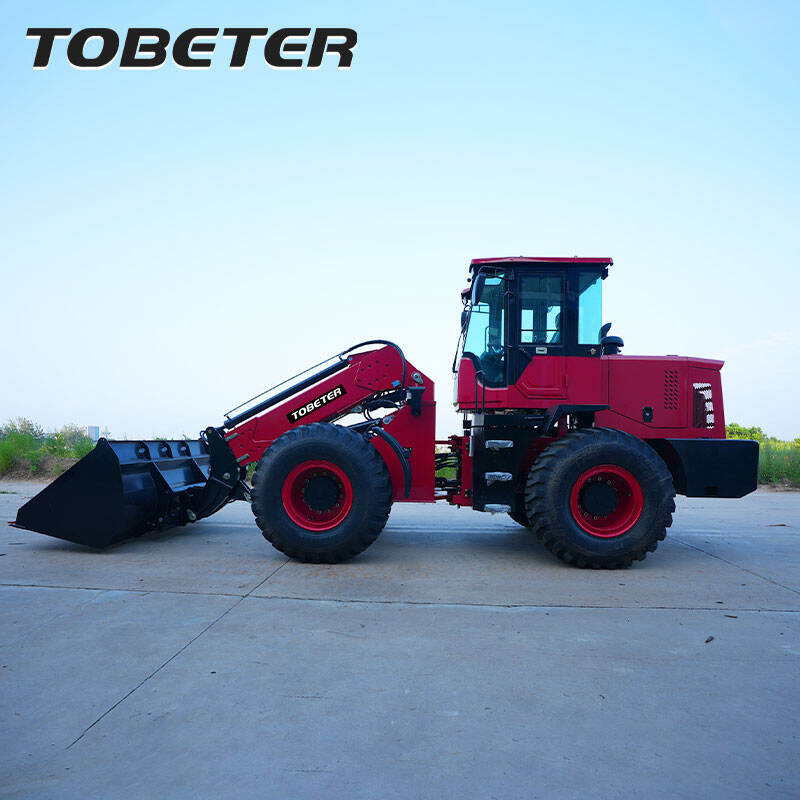

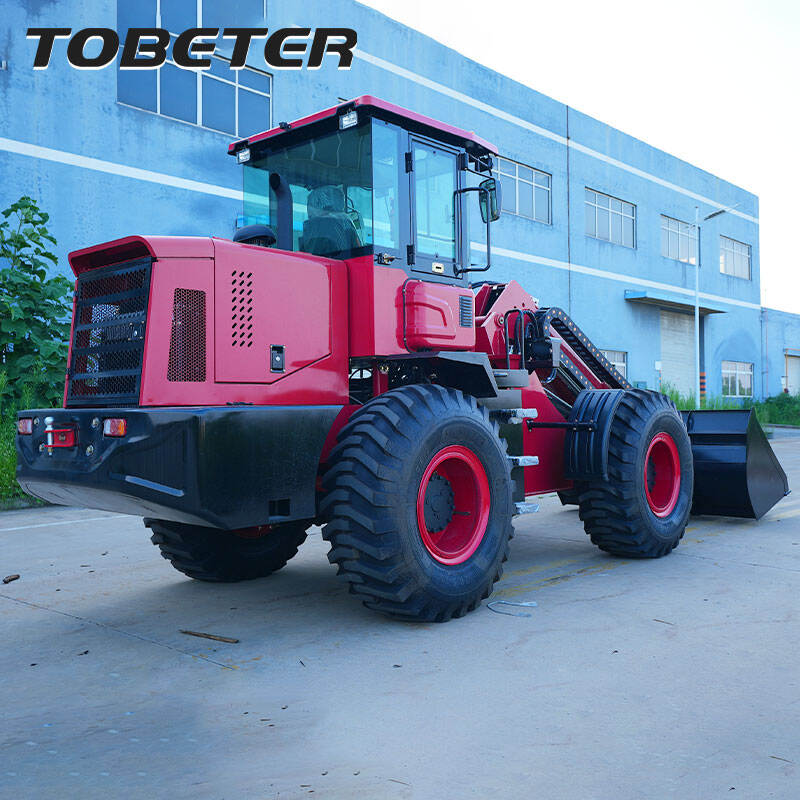

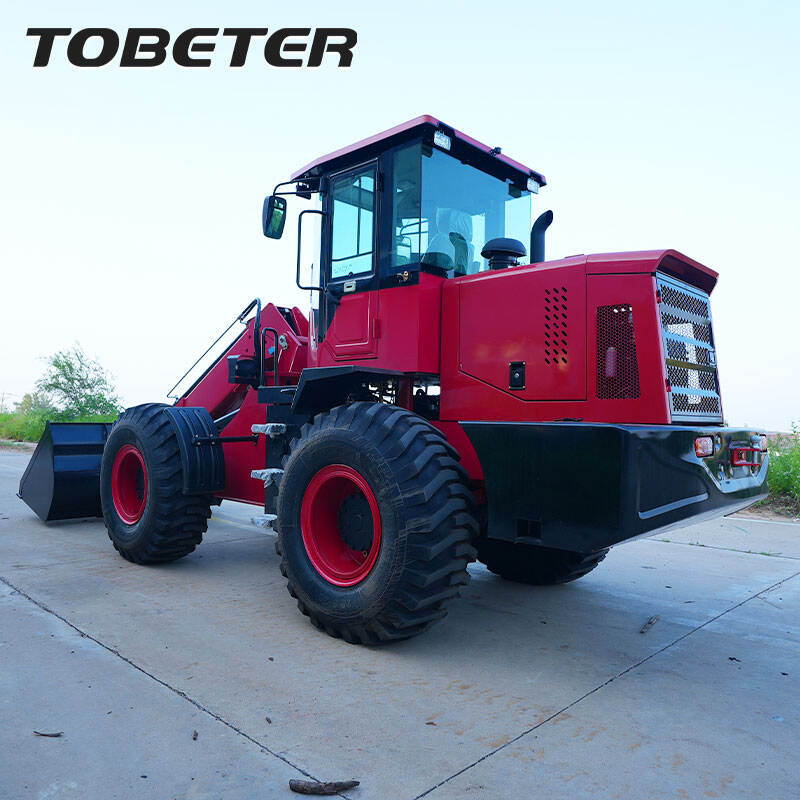

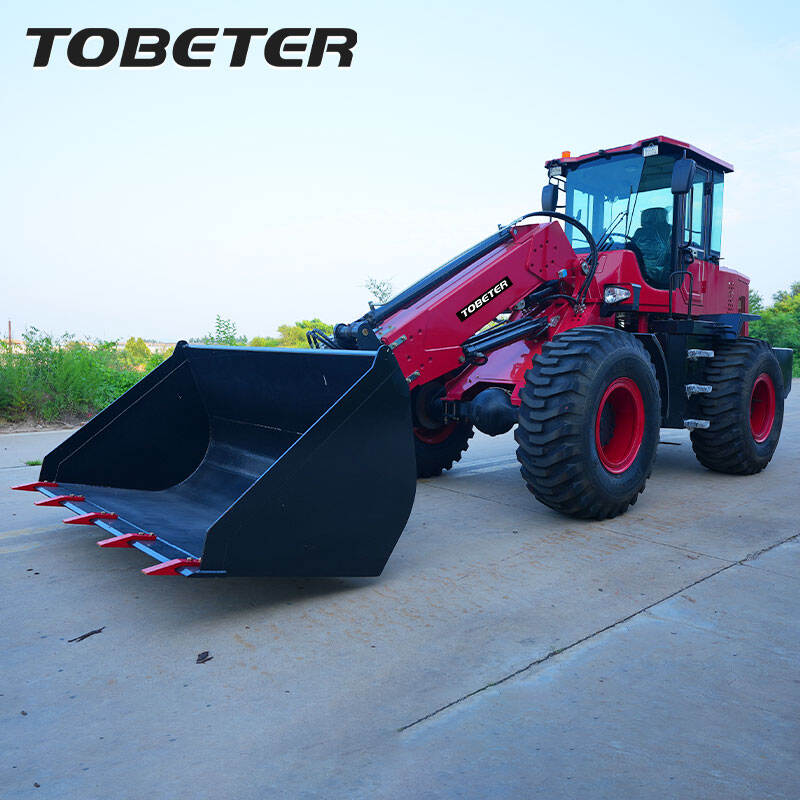

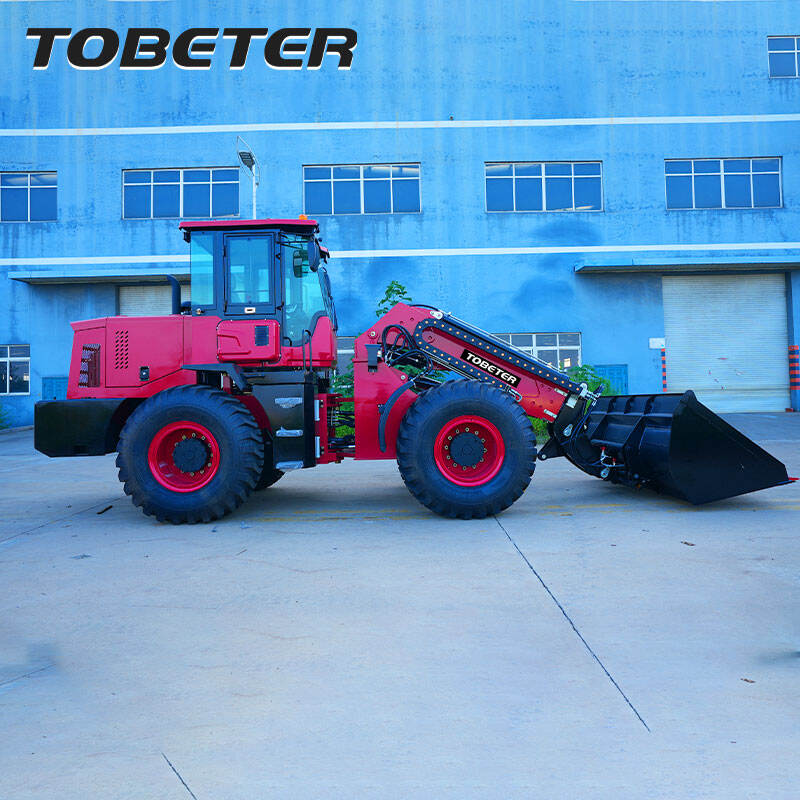

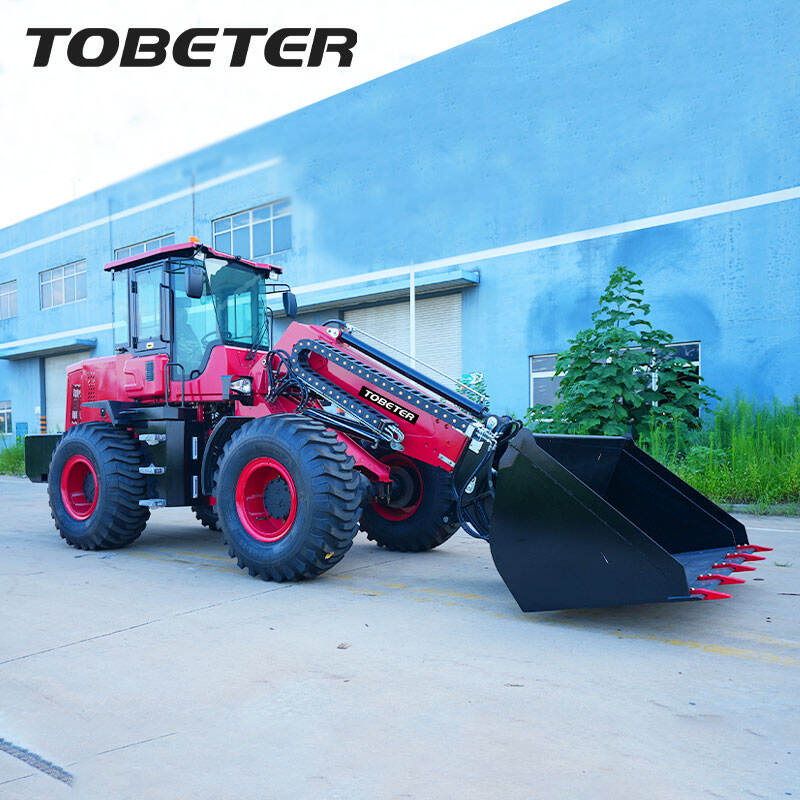

1. Strong 4-ton lifting capacity for heavy-duty handling.

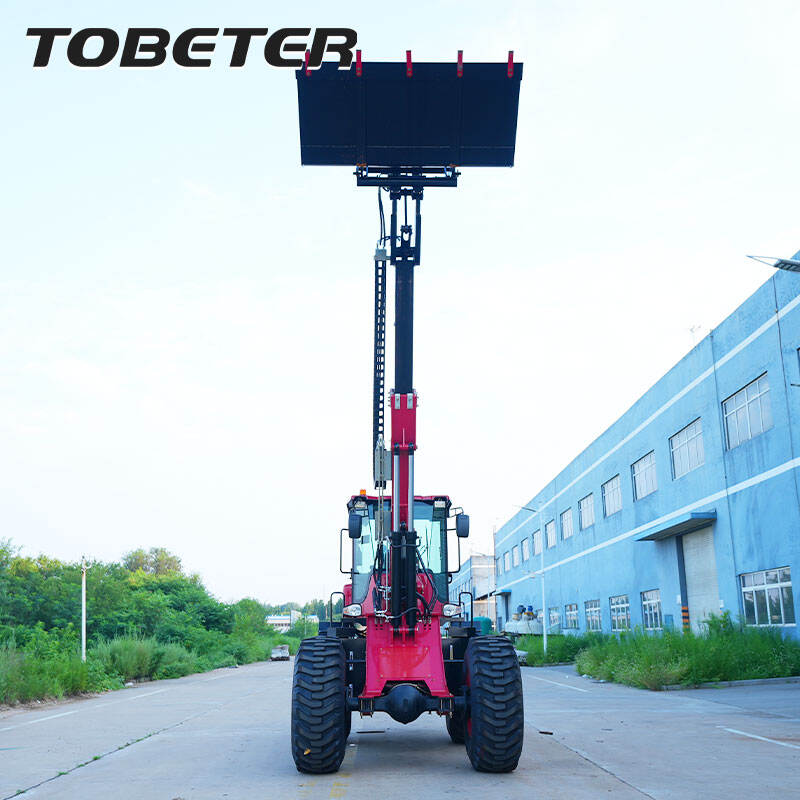

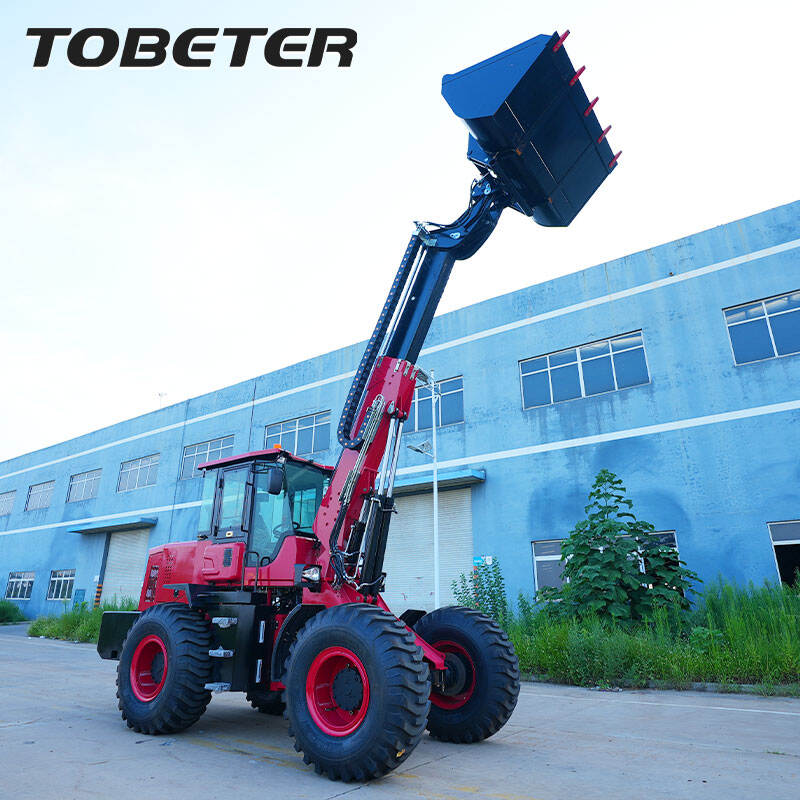

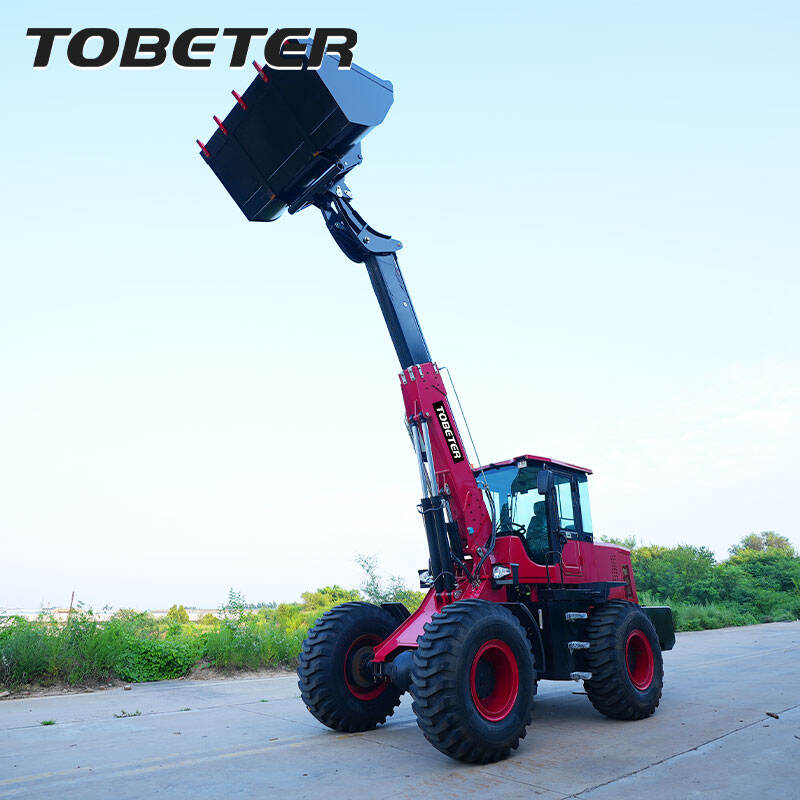

2. Telescopic boom for extended reach and flexible operation.
3. Stable performance with reinforced chassis and wide tires.
1. Exclusive 129KW high-power configuration in the same class, 30% higher efficiency than 92KW models.
2. Versatile for construction, logistics, and industrial applications.
| Engine Details | Engine Brand/Model | WEICHAI/ WP6G175E22 |
| Engine power | 129KW | |
| Number of cylinders | 6 | |
| Cooling way | Water cooling | |
| Engine type | Electronic Unit Injector Engine | |
| Optional engine | 6BT5.9-C150 CUMMINS 110KW | |
| EPA4/EURO5 FPT | ||
| EPA4 CUMMINS | ||
| Bucket | Bucket Capacity | 1.7m³ |
| Bucket width | 2300mm | |
| Bucket type | Heavy-duty teeth | |
| Overall Dimensions | Overall Length | 7800mm |
| Overall Height | 3230mm | |
| Overall Width | 2300mm | |
| Max. Discharge height: | 5400mm | |
| Min. Discharge height: | 4000mm | |
| Optional Max. discharge height: | 7000mm | |
| 9100mm | ||
| Tyre | Model | G2 pattern 20.5-25 Tyre |
| Size | Width: 520mm | |
| Diameter:1490mm | ||
| Transmission System | Hydraulic converter + gearbox + drive shaft + hub reduction axles | |
| Brake System | Service Brake | Four Wheel Disk brake |
| Parking Brake | Hand operated | |
| Braking Type | Air Brake | |
| Steering System | Articulated hydraulic steering | |
| Driving System | Four wheel drive | |
| Hydraulic quick release | Yes | |
| Hydraulic pilot joystick | Yes | |
| Steady rise | Yes | |
| Max. Load | 4000kg including bucket or attachment | |
| Wheelbase | 2845mm | |
| Track | 1825mm | |
| Speed | 0-38km/H | |
| Weight | 10000kg(with bucket) | |
| System Pressure | 19Mpa | |
| Hydraulic Output | 184L/min | |
| Fuel Tank Capacity | 175L | |
| Hydraulic Tank Capacity | 175L | |

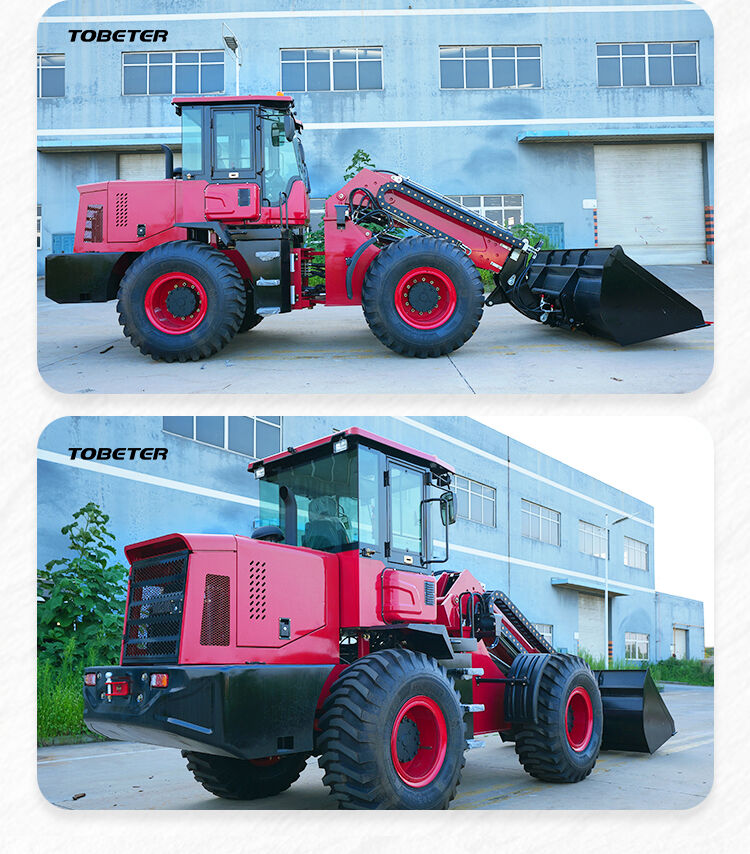

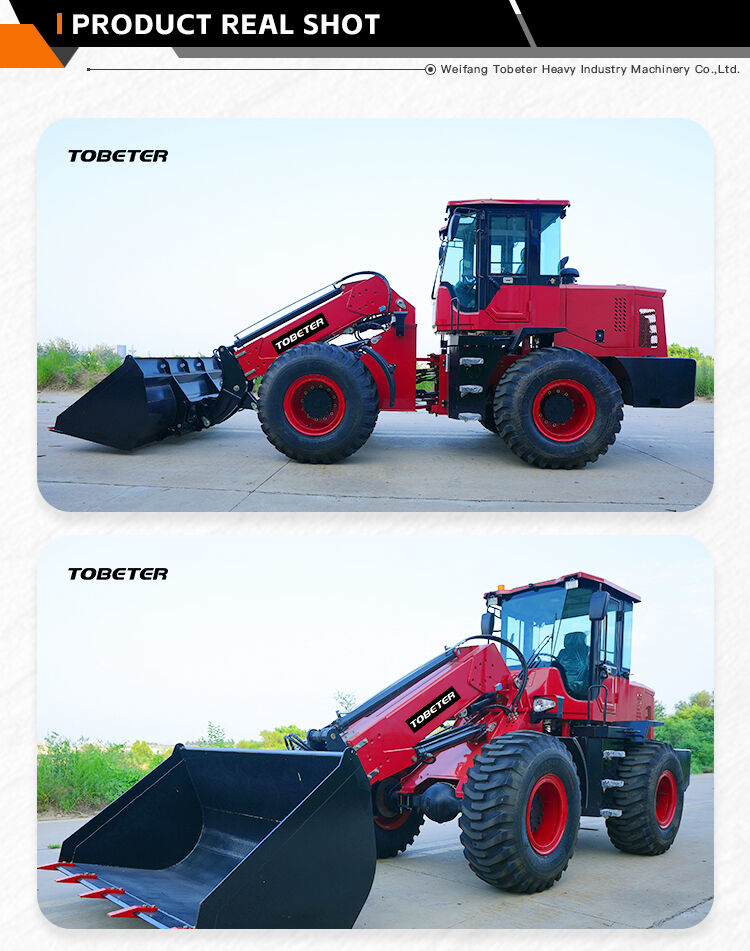

This telescopic boom loader boasts powerful loading capacity and excellent operational flexibility, and is suitable for various working scenarios such as construction sites, sand and gravel yards, port logistics, and industrial parks.
It adopts a high-performance power system with abundant power output, capable of easily meeting the requirements of continuous operation under heavy loads. The overall transmission is well-matched, ensuring both strong loading and unloading capabilities while also maintaining good driving efficiency. This effectively enhances the overall operational efficiency of processes such as loading, unloading, and transportation.
The telescopic wheel loader is designed with a focus on stability and safety. The reinforced frame and optimized weight distribution structure ensure that the equipment maintains good stability during telescopic operations and high-position lifting. The wide track spacing and large-sized tires enhance the equipment's passability and grip in complex road conditions, making it suitable for operations on uneven ground such as mining areas and construction sites.
