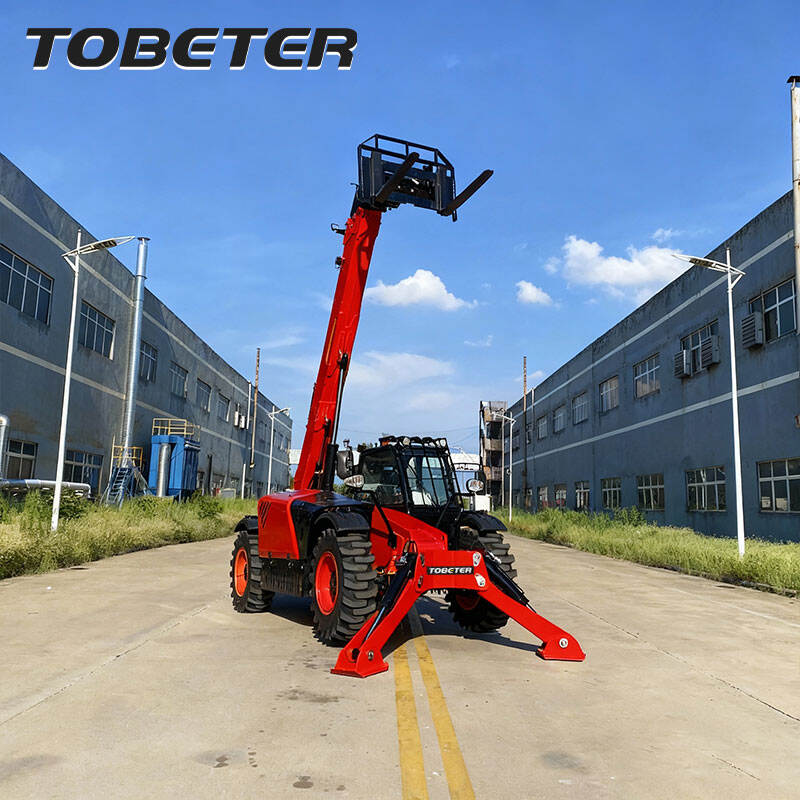

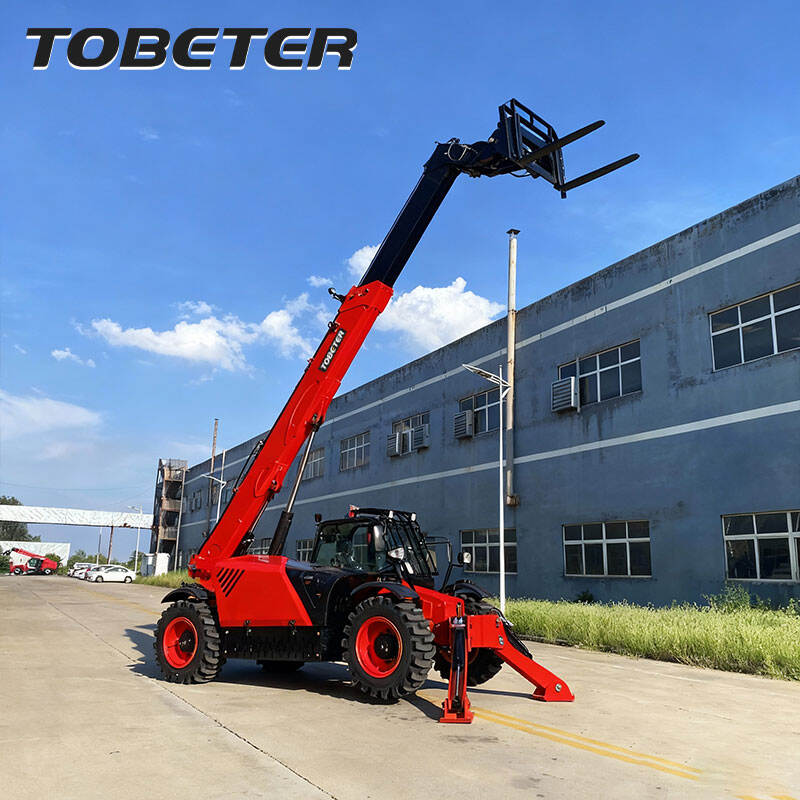

1. 4,000 kg load capacity with 7,000 mm lift height for flexible material handling.
2. Three steering modes (front, crab, four-wheel) for agile maneuvering.
3. Engineering tires for stable operation on rough and uneven terrain.
1. More maneuverable in narrow spaces than fixed-steering models.

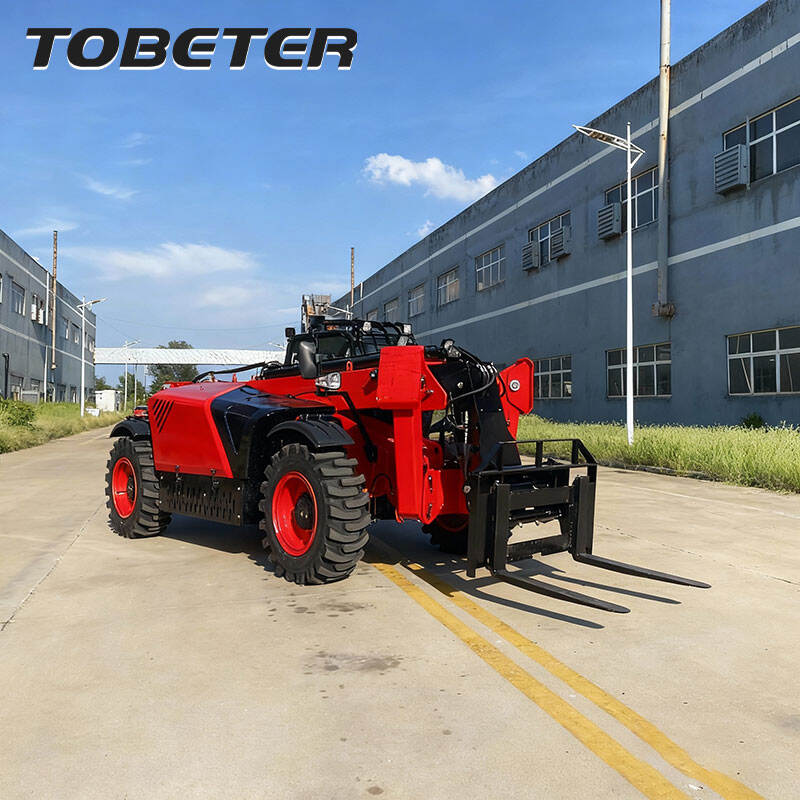

2. Supports multiple attachments, such as pallet forks and buckets, for versatile applications.
| Max. load | 4000kg | Pallet fork length | 1220mm |
| Max. lift height | 7000mm | Steering type | Front Wheel Steering |
| Reach at max. lift height | 450mm | Crab Steering | |
| Max. forward reach | 3600mm | Four Wheel Steering | |
| Weight unload | 7800kg | Transmission type | Gearbox + Hydraulic converter + Drive shaft + Drive axle |
| Tyre | 400/70R24(width:404mm,diameter:1170mm) | ||
| Outside turn radius(over tyre) | 4250mm | Drive type | 4 wheel drive |
| Carriage roll back angle(degrees) | 42.6 | Engine brand/model | YUCHAI/YCD4J22T-115 |
| Carriage dump angle(degrees) | 37.5 | Engine rate power | 85KW |
| Overall height | 2450mm | Optional engine | China II standard: Cummins 4BT3.9-C100(74KW) |
| Overall width(over tyres) | 2150mm | EURO3 standard: Cummins QSB3.9-C100(74KW) | |
| Inside width of cab | 800mm | EURO5 standard:YUCHAI(81KW)/PERKINS(74.5KW) | |
| Front track | 1750mm | EPA4/EURO5 standard:FPT F36(75KW) | |
| Wheelbase | 2850mm | EPA4 standard:Cummins QSF3.8(74.5KW) | |
| Overall length to front carriage | 5092mm | Warranty time | 1 year or 1200 working hours whichever comes first |
| Ground clearance | 350mm | Package(1*40HQ) | 2 units |

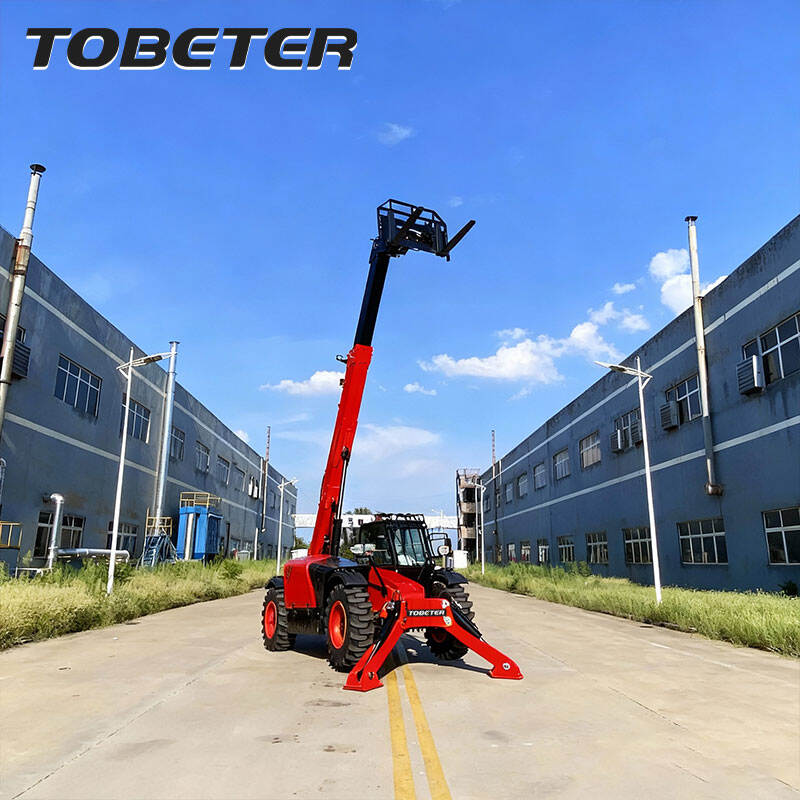

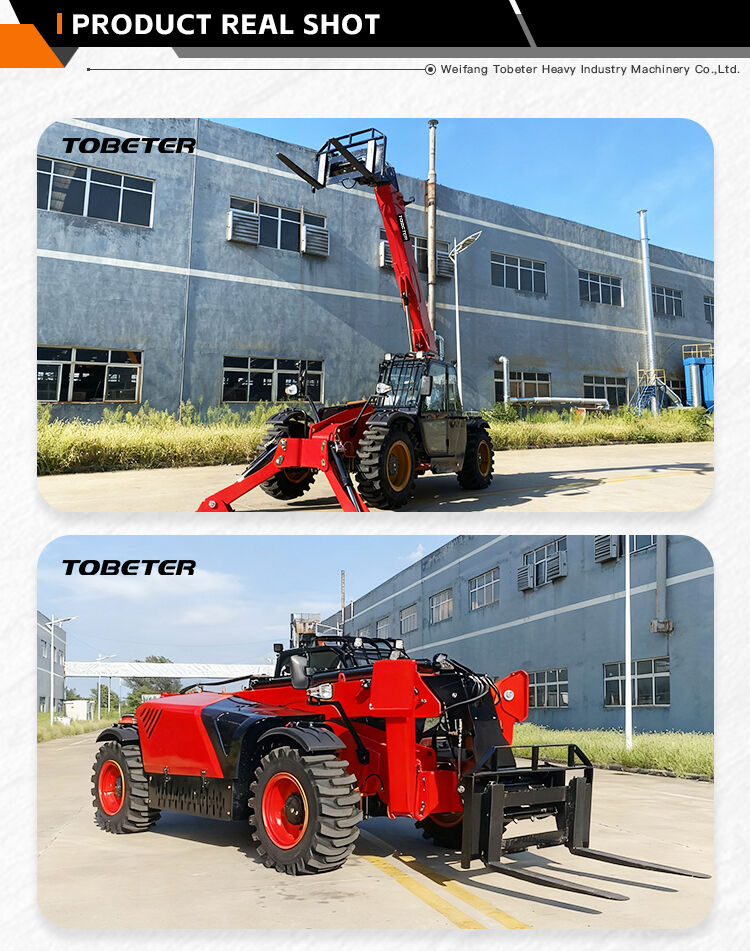

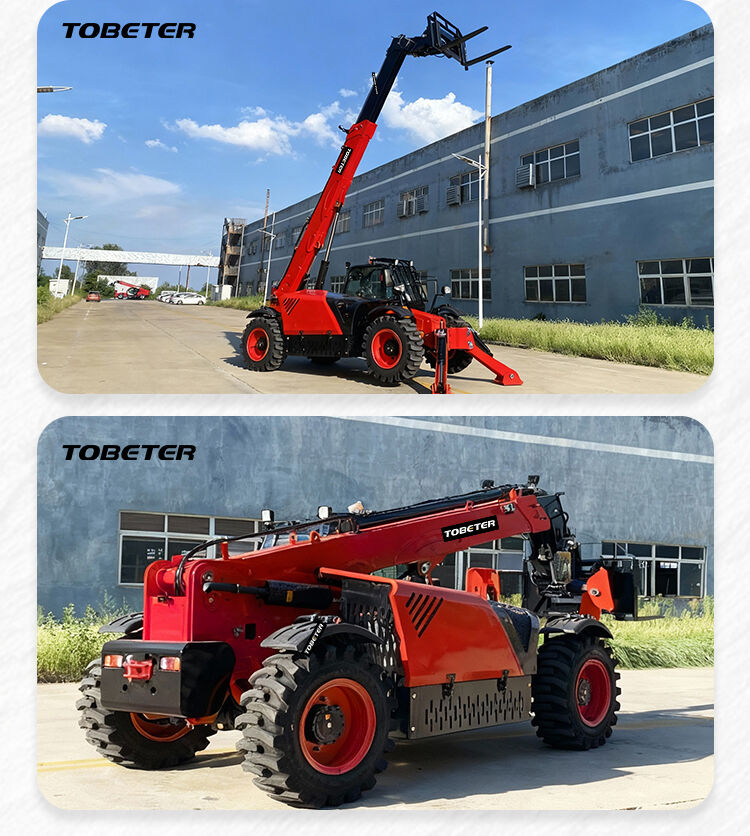

This telescopic boom forklift is an efficient and versatile material handling equipment, widely applicable to various scenarios such as loading and unloading, stacking, and off-road operations.
Its maximum rated load is 4,000 kg, and the maximum lifting height reaches 7,000 mm. Combined with an external turning radius of 4,250 mm, the telehandler ensures both high lifting capacity and good maneuverability.

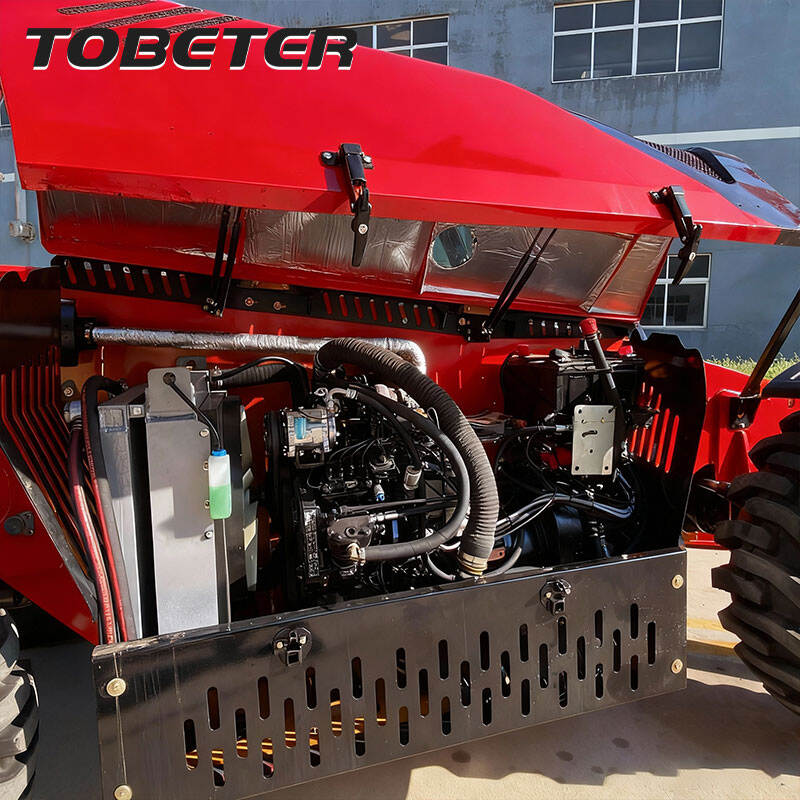

The telehandler is equipped with Yuchai YCD4J22T-115 engine, with a rated power of 85 kW. The power output is stable and reliable, and it supports optional higher power configurations to meet different working conditions. It is equipped with three steering modes (front wheel steering, crab steering, and four-wheel steering), enabling flexible operation even in narrow spaces and complex terrains.
