1. Powerful & Efficient: High-performance engine delivers strong handling capacity with low fuel consumption.

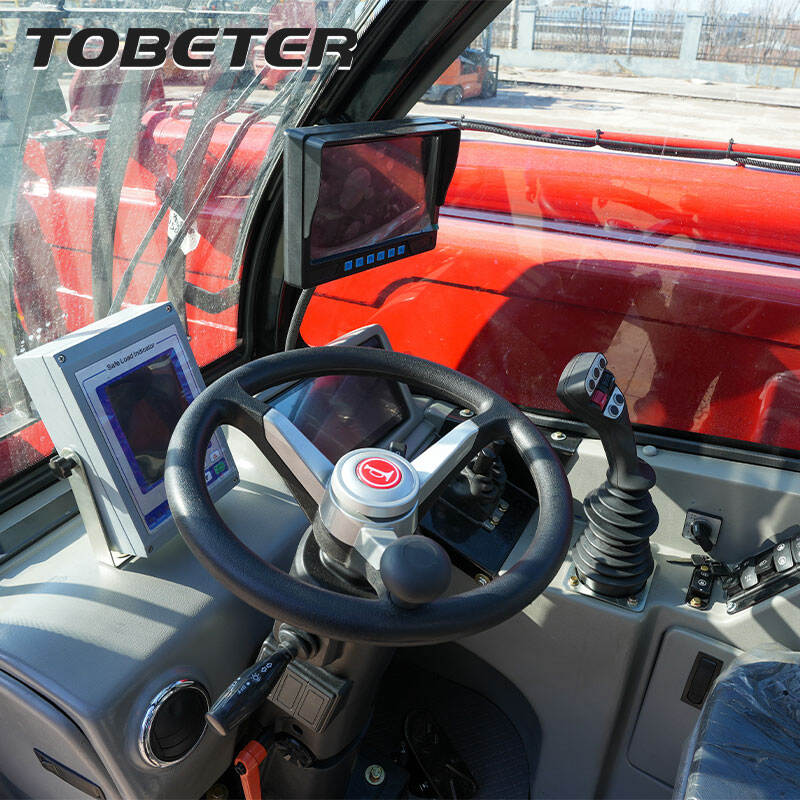

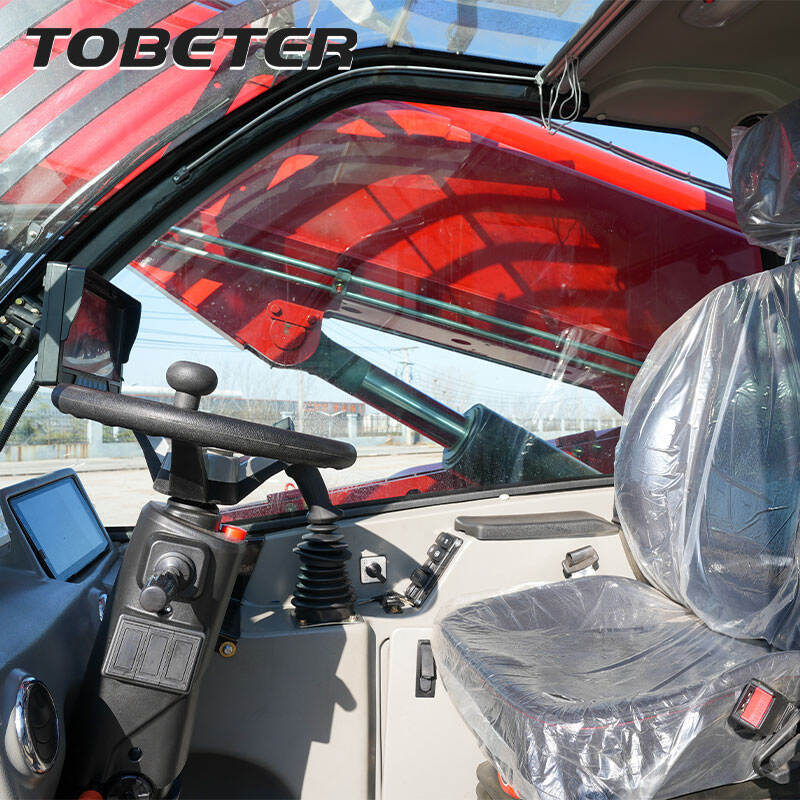

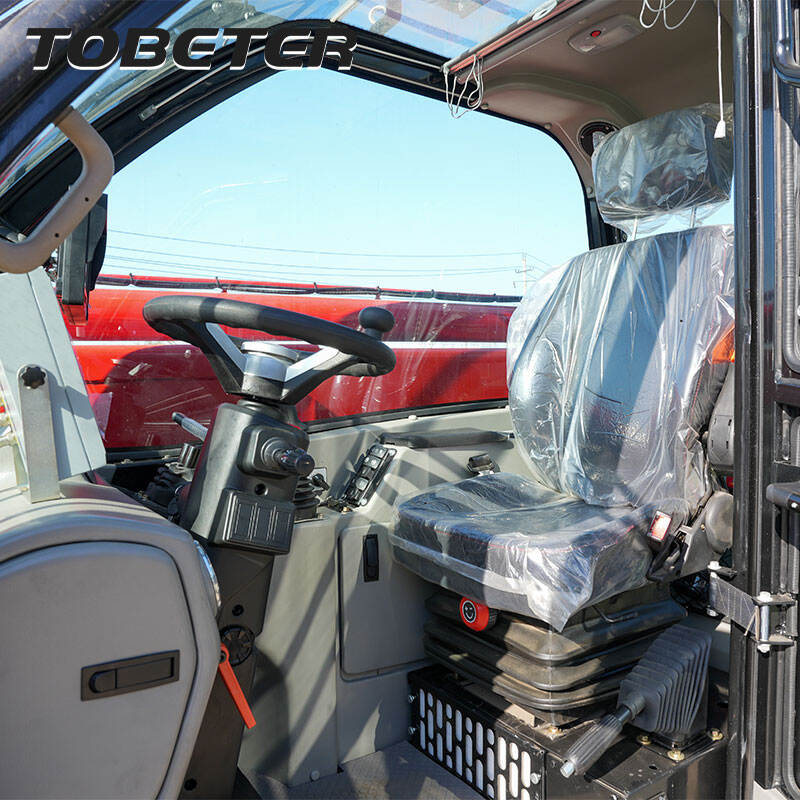

2. Ergonomic Cab: Panoramic cab design ensures comfort and excellent visibility.
3. Precise Control: Fully proportional mono-lever joystick enables fast, accurate operation.
4. Versatile Attachments: Quick-change system supports forks, buckets, hooks, platforms, and clamps for multi-purpose use.
1. Yuchai YCD4J22T-125 Stage II engine with 85KW power.
2. Proven engine ensures stable performance, fuel efficiency, and low maintenance costs.
3. The designed load capacity is up to 4.5 tons, making it an ideal choice for construction sites and material handling applications.
| Max. load | 4500kg | Engine rate power | 91KW |
| Lift height | 10000mm | Optional engine | China II standard: Cummins 4BT3.9-C125 |
| Weight unload | 10300kg | EURO3 standard: Cummins QSB3.9-C125 | |
| Tyre | 16.9-24 | EURO5 standard:YUCHAI(92KW) | |
| Outside turn radius(over tyre) | 4250mm | EPA4/EURO5 standard:FPT F36(90KW) | |
| Carriage roll back angle(degree) | 42.6 | EPA4 standard:Cummins QSF3.8 | |
| Carriage dump angle(degrees) | 37.5 | Steering type | Front Wheel Steering |
| Overall height | 2300mm | Crab Steering | |
| Overall width(over tyre) | 2150mm | Four Wheel Steering | |
| Inside width of cab | 800mm | Transmission type | Gearbox + Hydraulic converter + Drive shaft + Drive axle |
| Overall length to front tyre | 4600mm | ||
| Front track | 1750mm | Number of gears | F4/R4 |
| Wheelbase | 2850mm | Drive type | 4 wheel drive |
| Ground clearance | 350mm | Warranty time | 1 year or 1200 working hours |
| Pallet fork length | 1220mm | Delivery time | Within 60 working days after receipt of deposit |
| Engine brand | YUCHAI YCD4J22T-125 | Package(1*40HQ) | 2 units |

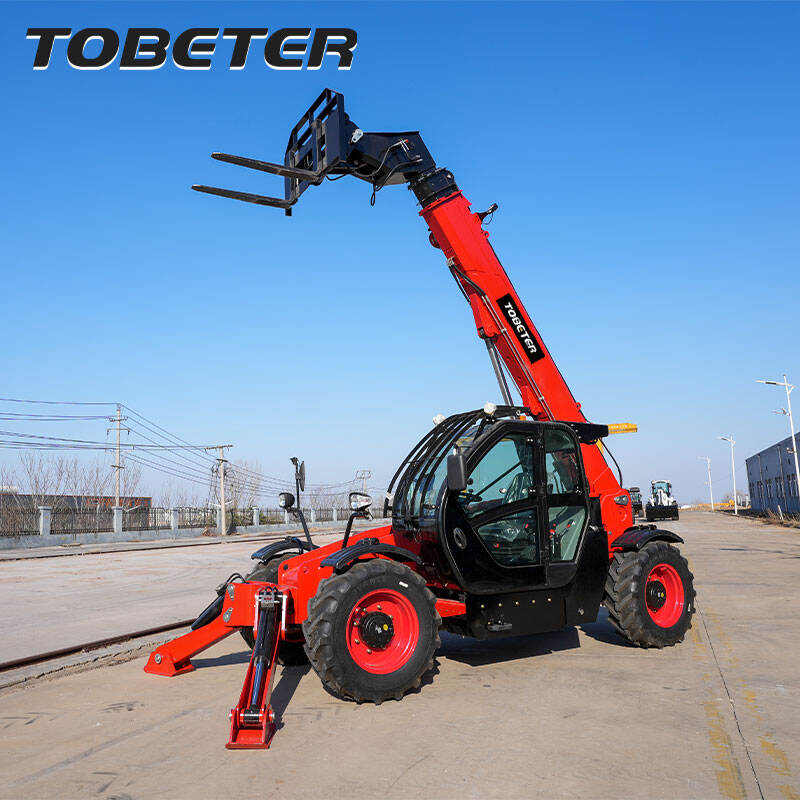

The telehandler is equipped with the Yuchai YCD4J22T-125 Stage II engine, which is powerful and responsive, and can maintain stable output even under heavy-load conditions.
The rated load of the telehandler is 4.5 tons. It features a high-strength structural design and a reinforced telescopic arm, offering excellent load-bearing capacity and operational stability. The machine can easily handle complex working conditions such as construction sites, ports, logistics storage areas, and industrial material handling.
It supports rapid replacement of various attachments, such as forks, buckets, hooks, aerial work platforms, and fixtures, enabling multi-purpose use of a single machine and meeting different working conditions. Whether it is material handling, loading and unloading, hoisting or aerial work, the heavy-duty telehandler can efficiently complete the tasks and is the ideal choice for heavy material handling.
