1: Four-section telescopic boom
2: Closed hydrostatic system
3: Detachable outriggers
4: China II standard YUCHAI YCD4J22T-125 engine (91KW)
5: Adjustable deluxe seat
1. Parking shift gearbox
2. Domestic piston pump/motor/counterbalance valve
3. Load moment indicator with overload alarm
4. Electric control travel, electric control telescoping, electric control quick coupler
5. 16.9-24 vacuum tire
| Max. load | 4500kg | Transmission type | Closed piston pump + walking pump/ motor + gearbox + drive axle | ||
| Max. lift height | 18000mm | Optional transmission type | Gearbox + Hydraulic converter + Drive shaft + Drive axle | ||
| Max. reach | 13080mm | Service brake | Oil-immersed multi-disc hydraulic brake[Disc Brake] | ||
| Max. traction force | ≥70kn | Parking brake | Negative braking | ||
| Min. ground clearance | 420mm | Weight (with forks) | 13000kg | ||
| Overall dimensions(L×W×H) | 6970×2430×2550mm | Engine | Brand/model | YUCHAI/YCD4J22T-125 | |
| Min. width (hydraulic outriggers fully open) | 3800mm | ||||
| Width of cab | 820mm | Power | 91kw | ||
| Wheelbase | 3670mm | Optional engine | China II standard: Cummins 4BT3.9-C125(92KW) | ||
| Axle track | 1990mm | EURO3 standard: Cummins QSB3.9-C125(92KW) | |||
| Rear wheel center to rear | 1240mm | EURO5 standard:YUCHAI(92KW) | |||
| Turning radius (outer wheel) | ≤4500mm | EPA4/EURO5 standard:FPT F36(90KW) | |||
| Pallet fork length | 1220mm | EPA4 standard:Cummins QSF3.8 | |||
| Tire model | 16.9-24 | Number of gears (forward/reverse,high/low speed) | 4/4 | ||
| Drive type | 4 wheel drive | Gear Control | Electronic control | ||
| Steering type | Front Wheel Steering | Hydraulic control system | Multifunctional centralized handle | ||
| Crab Steering | Frame leveling | +/- 9° | |||
| Four Wheel Steering | Package(1*40HQ) | 1 unit | |||

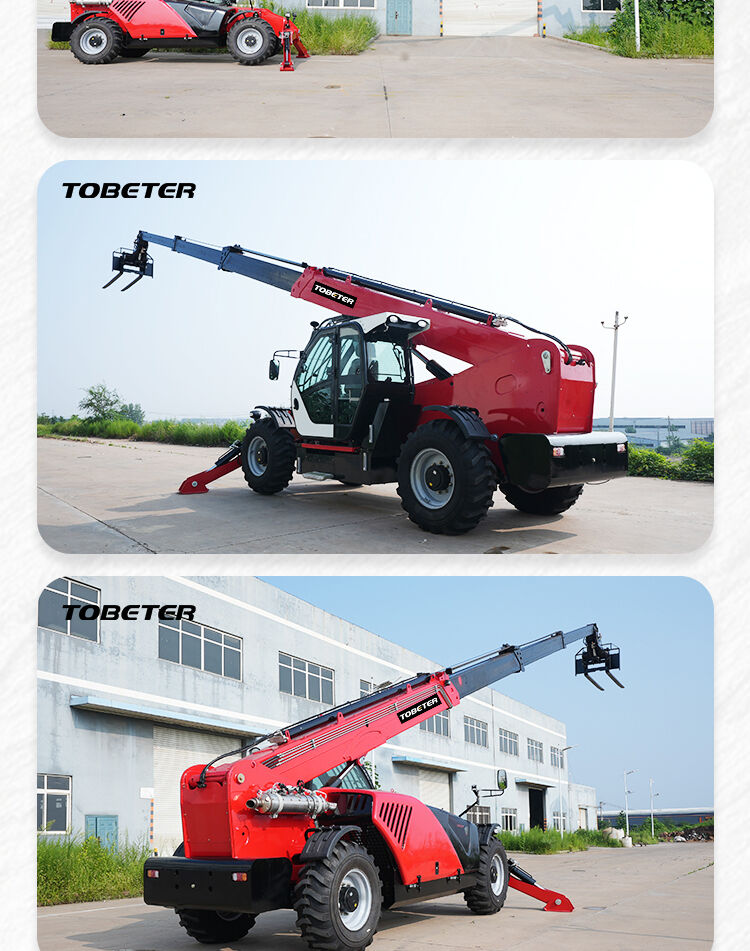

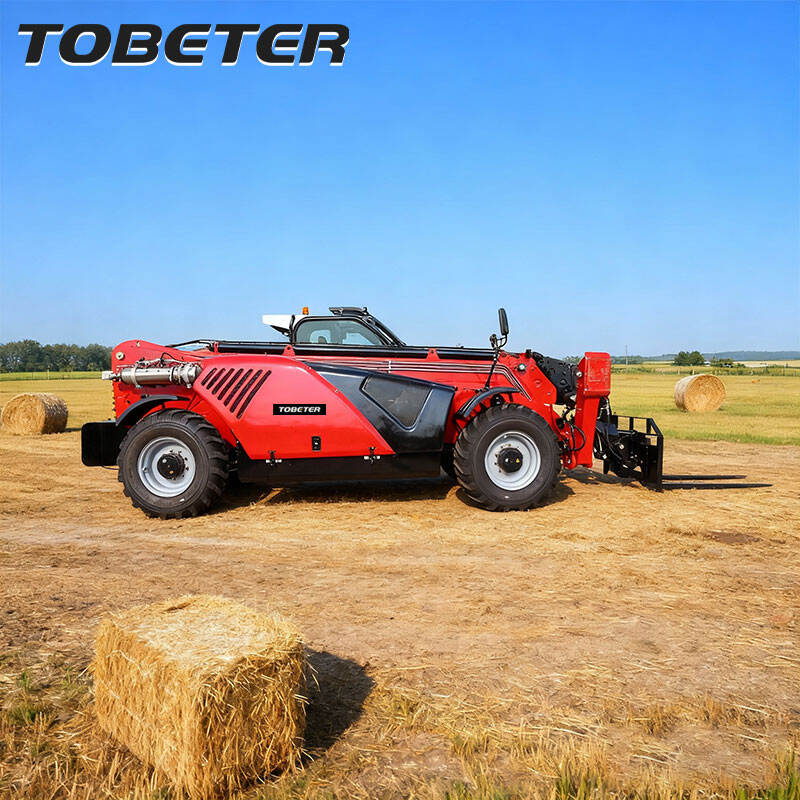

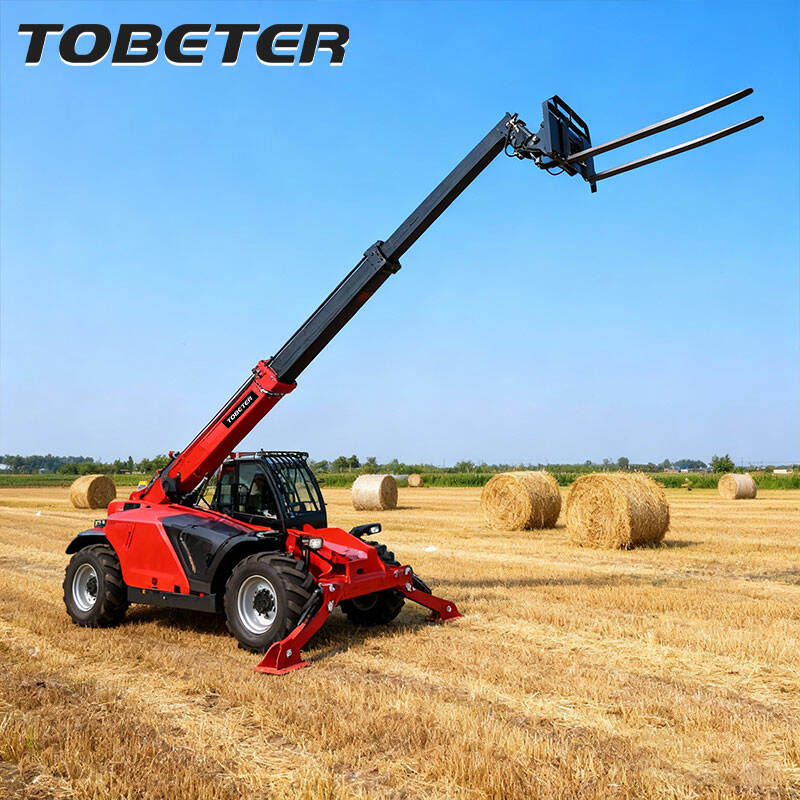

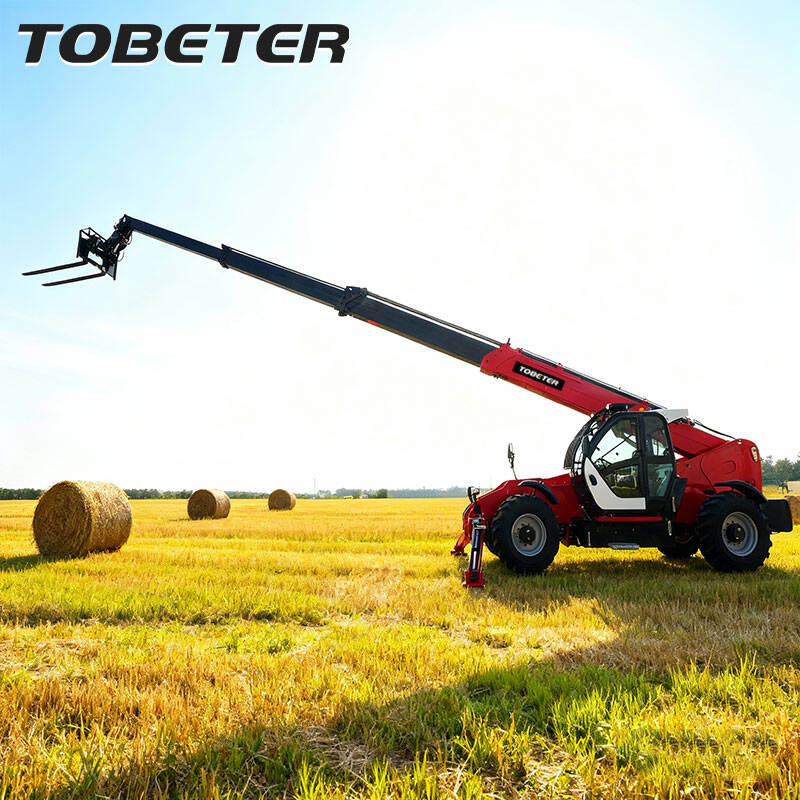

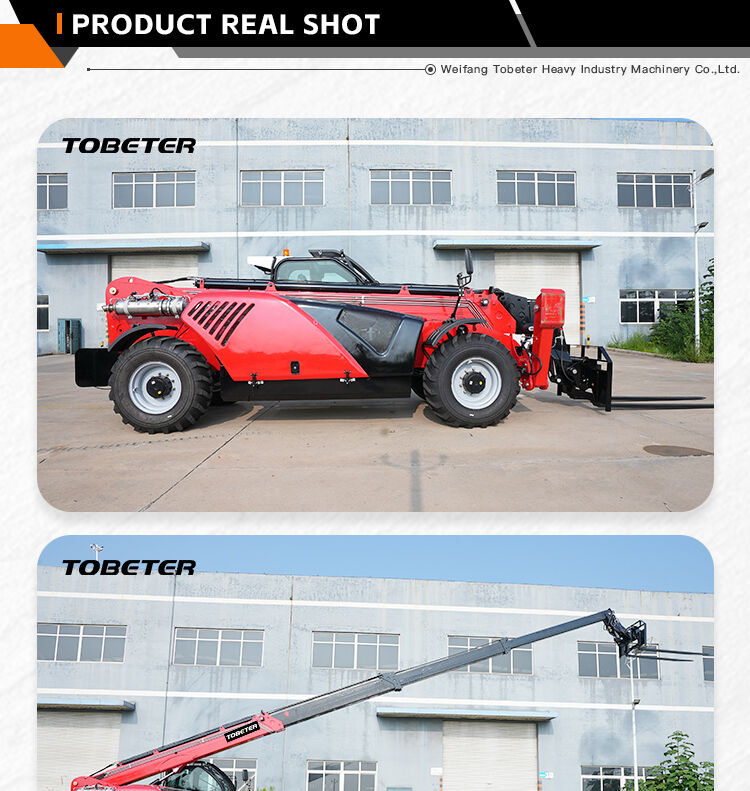

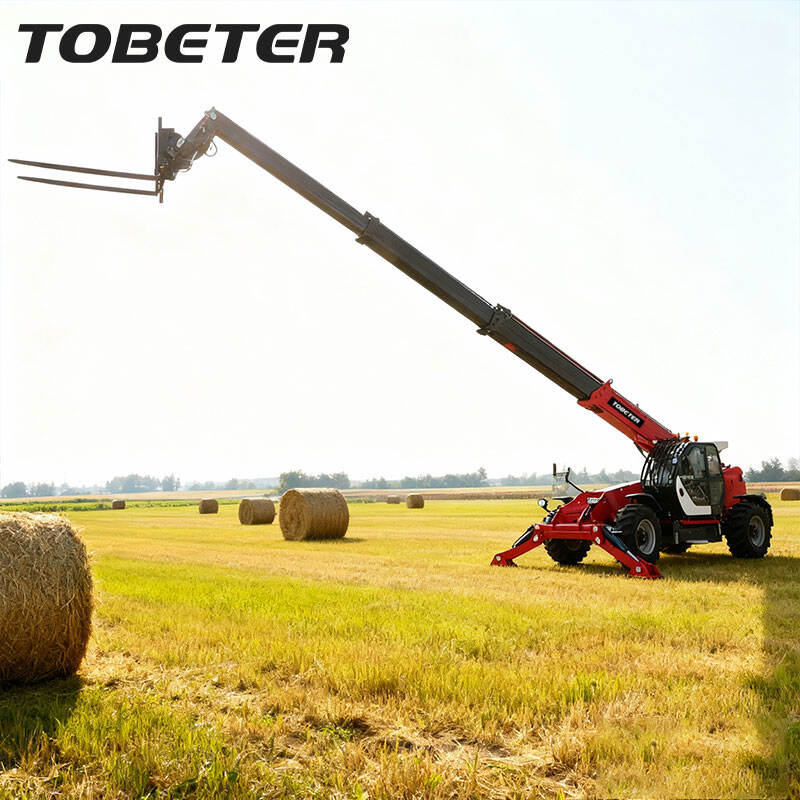

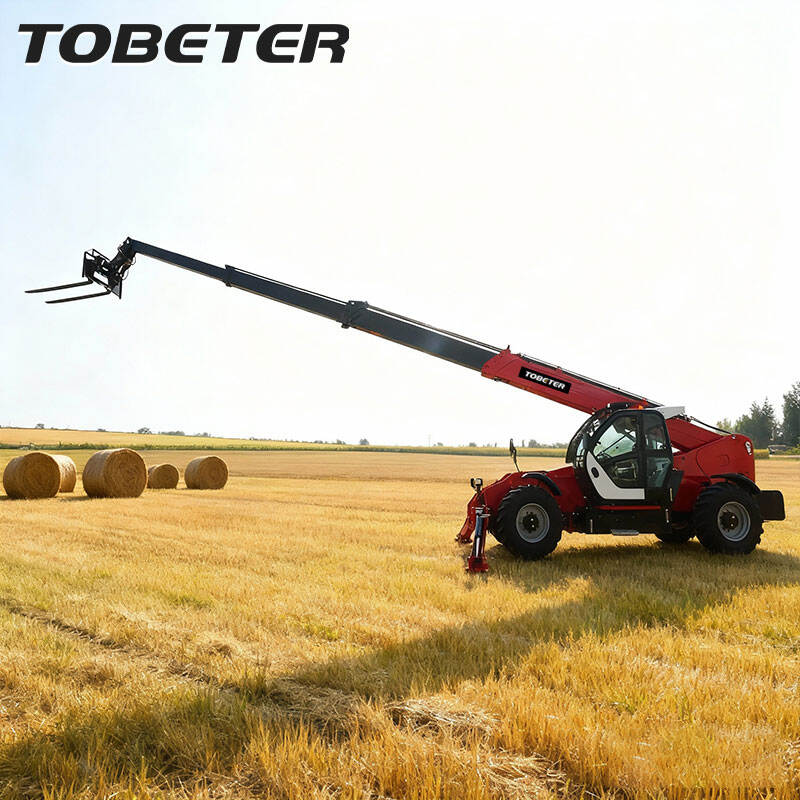

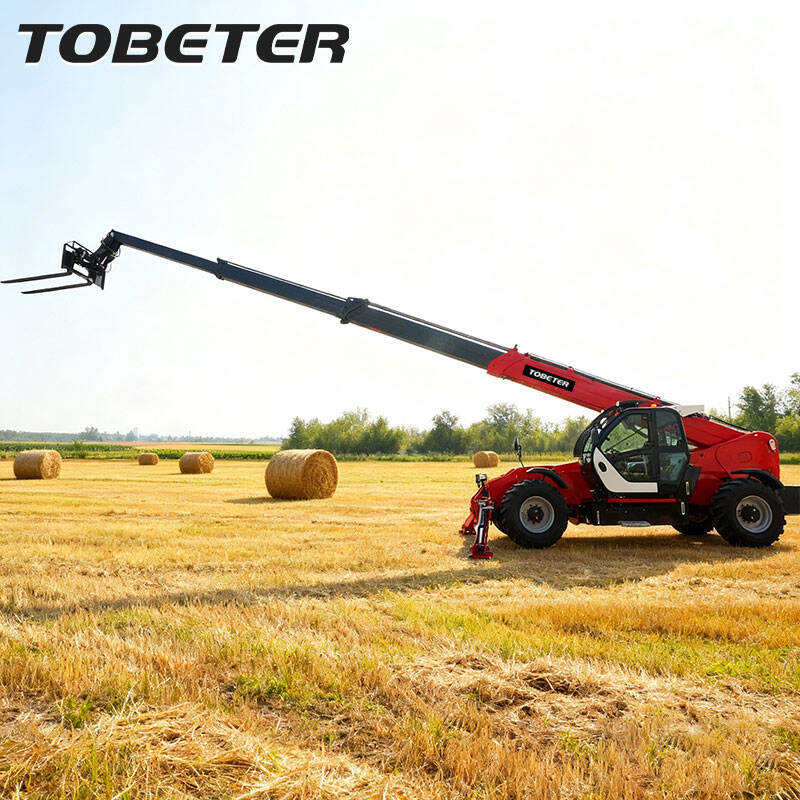

TR1840 is a telescopic boom material handling vehicle specifically designed for heavy-duty applications. It is widely applicable in logistics parks, construction sites, and large storage environments. The telehandler has a maximum lifting height of 18000 millimeters and a maximum forward extension distance of 13000 millimeters. It can easily complete mid-to-high-rise material stacking, equipment installation, and long-distance loading operations.

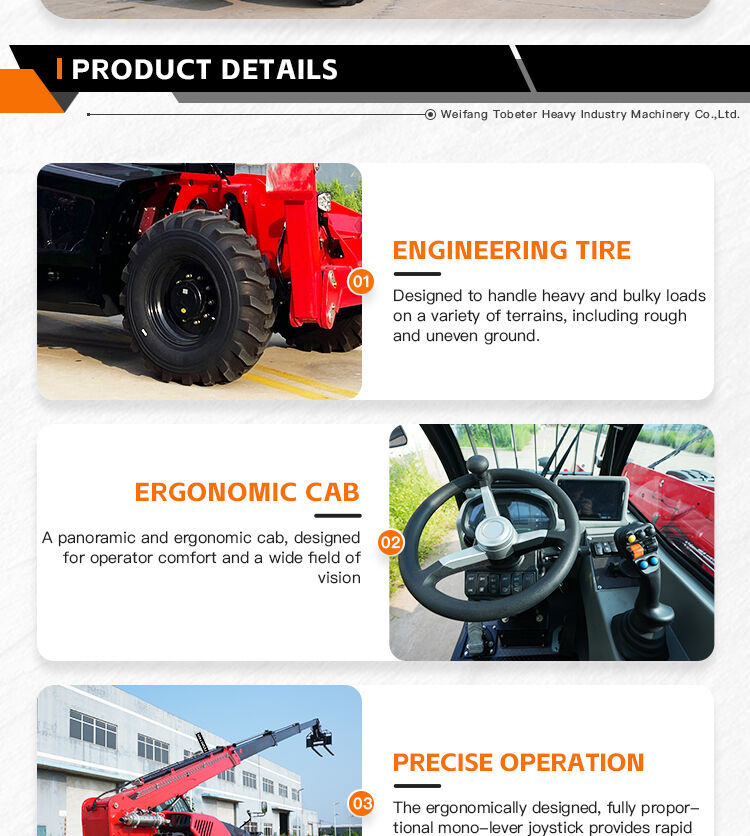

This construction telehandler is designed to enhance the operator's experience. It is equipped with a spacious and comfortable ergonomic cab, with a well-organized interior layout and excellent visibility. Moreover, the full-scale single-pull joystick is designed in a way that is ergonomic and integrates multiple action controls, enabling quick and precise responses for extension, lifting, and tilting, making the operation more effortless and reducing operator fatigue.

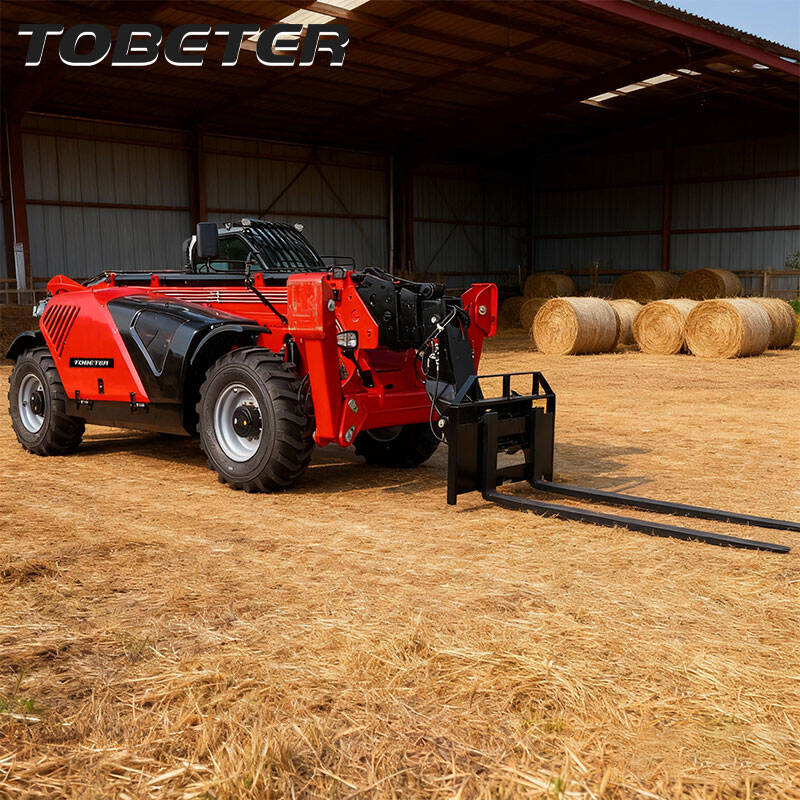

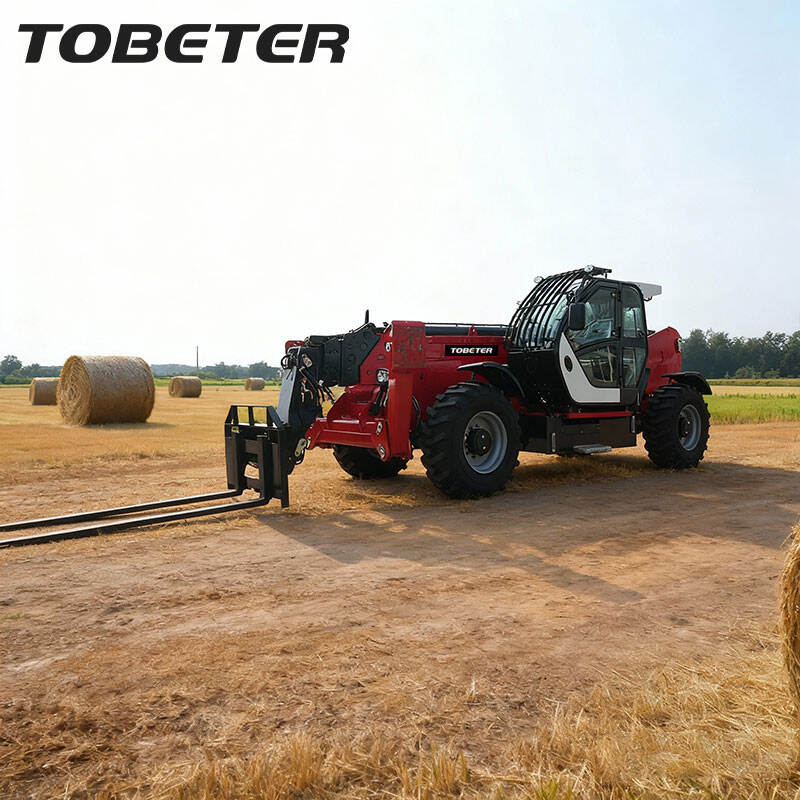

To meet the diverse construction and transportation needs, this telehandler supports a quick attachment change system, allowing for flexible configuration of forks, buckets, hooks, personnel platforms, and various clamps according to different working conditions. The multi-purpose design enables it to not only complete standard material handling tasks, but also undertake loading, hoisting, high-altitude operations, and special material gripping tasks, significantly enhancing equipment utilization.
