1. High-performance engine for efficient operation.
2. Versatile multi-function capabilities.
3. Boom shock absorption and bucket angle adjustment for precise control.
1. First-tier brand core components reduce failure and maintenance costs.
2. Ultra-durable design.
Engine:
| (1) Brand/Model: | YUCHAI YCD4J22T-115 |
| (2) Type: | In-line arrangement, water-cooled, four cylinder, turbocharged diesel engine |
| (3) Rated Power: | 85KW |
| (4) Optional Model: | CUMMINS 4BT3.9-C100/4BT3.9-C125 |
| EURO5 YUCHAI/YUNNEI | |
| EPA4/EURO5 FPT | |
| EPA4 CUMMINS |
Overall Dimensions:
| (1) Overall Length: | 7200mm |
| (2) Overall Width: | 2200mm |
| (3) Overall Height: | 3000mm |

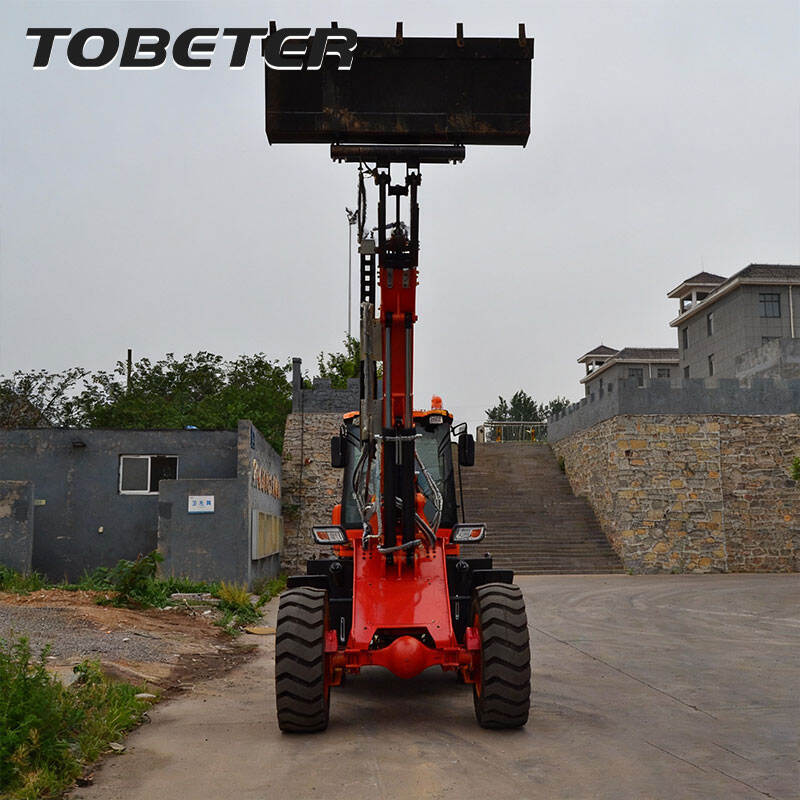

| (4) Max. Discharge height: | 5000mm |
| (5) Min. Discharge height: | 3800mm |
| (6)Optional Max. discharge height: | 7000mm |
| 9000mm |
Transmission System：Gearbox + Hydraulic converter + Drive shaft + Hub reduction axle
Bucket：
| (1) Capacity: | 1.5m³ |
| (2) Width: | 2200mm |
| (3) Type: | Heavy-duty bolt on teeth |
| (4) Max. Load: | 3000kg including bucket or attachment |
Operating Specifications
| (1) Steering System: | Articulated hydraulic steering |
| (2) Driving System: | Four wheel drive |
| (3) Hydraulic quick release | Yes |
| (4) Hydraulic pilot joystick | Yes |
| (5) Steady rise | Yes |
| Brake System | |
| (1) Service Brake: | Four wheel disc brake |
| (2) Parking Brake: | Disc brake |
| Tyre | |
| (1) Model: | 16/70-24 tire |
| (2) Size: | Width: 410mm Diameter: 1175mm |
| (3) Optional Tire: | G2 pattern17.5-25 tire |
| Width: 440mm Diameter: 1280mm | |
| Wheel base: 2800mm | |
| Track: 1750mm | |
| System pressure: | 20Mpa |
| Weight: | 7000KG |

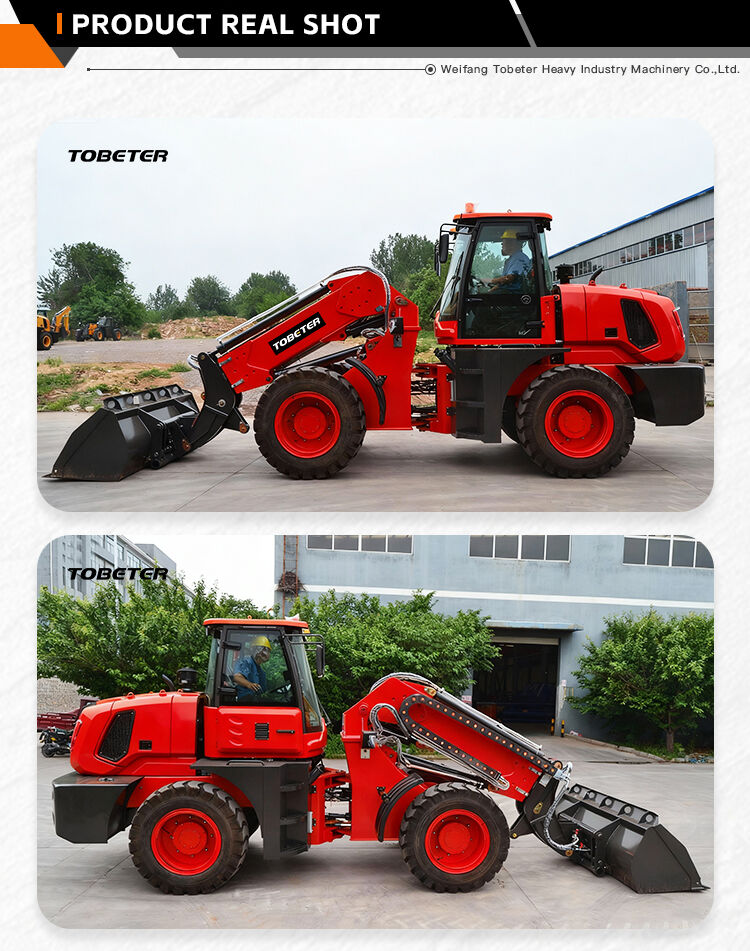

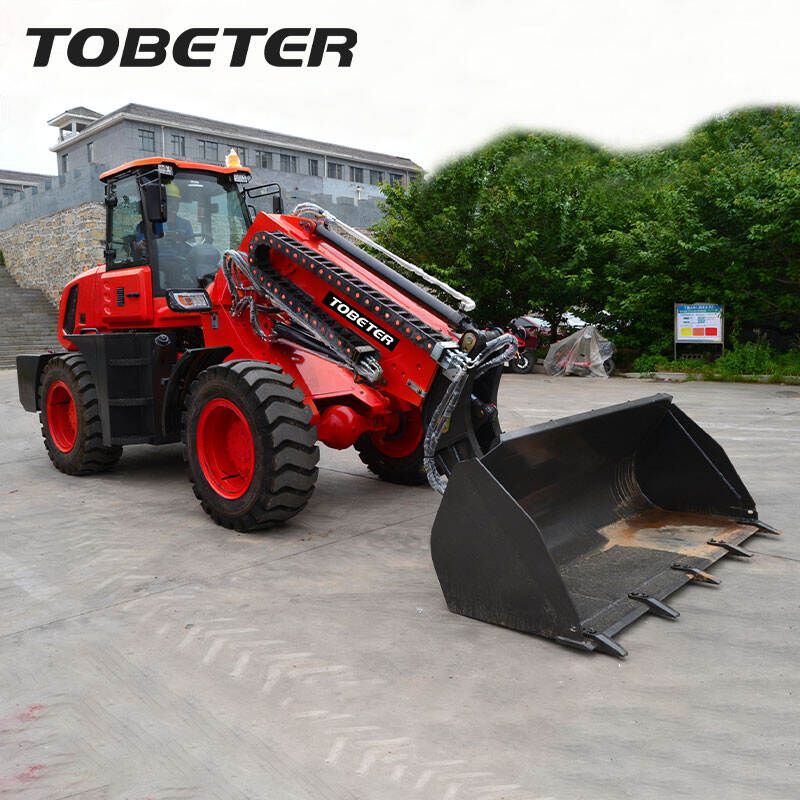

The TL3000 is equipped with a high-performance engine, providing abundant power and low fuel consumption. It can easily meet the demands of medium to heavy-duty operations. Whether it's on construction sites, in landscaping, or for logistics and loading/unloading, this telescopic wheel loader can operate efficiently and save operation time.

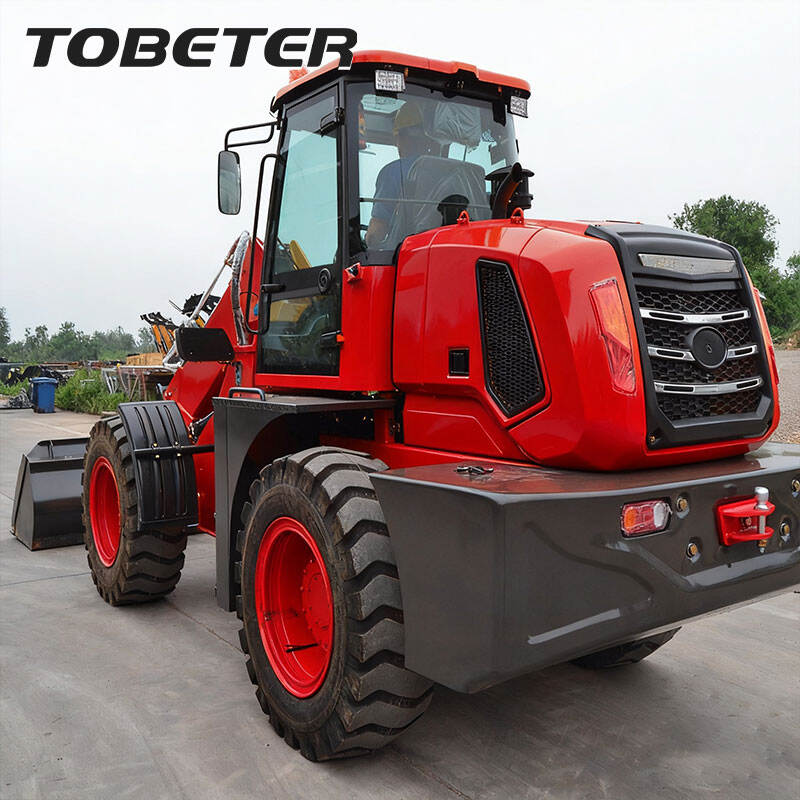

The cab adopts a brand-new shock absorption design and is equipped with large off-road tires, which minimize bumps and vibrations and enhance the comfort of the operator. At the same time, the telescopic arm is equipped with a buffering system, making loading, unloading and high-altitude operations more stable and safe.
This telescopic loader has a sturdy and durable structure. Its key components are made of high-strength materials, ensuring long-term high-load operation. At the same time, the maintenance design is reasonable, making it easy for daily inspections and component replacements, thereby reducing maintenance costs and extending the equipment's service life.
