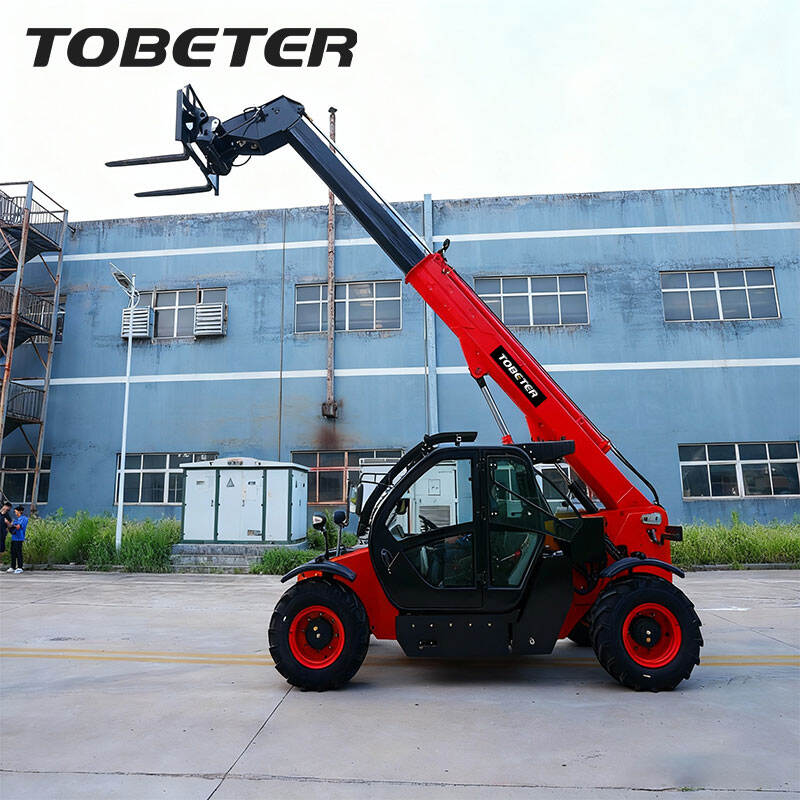

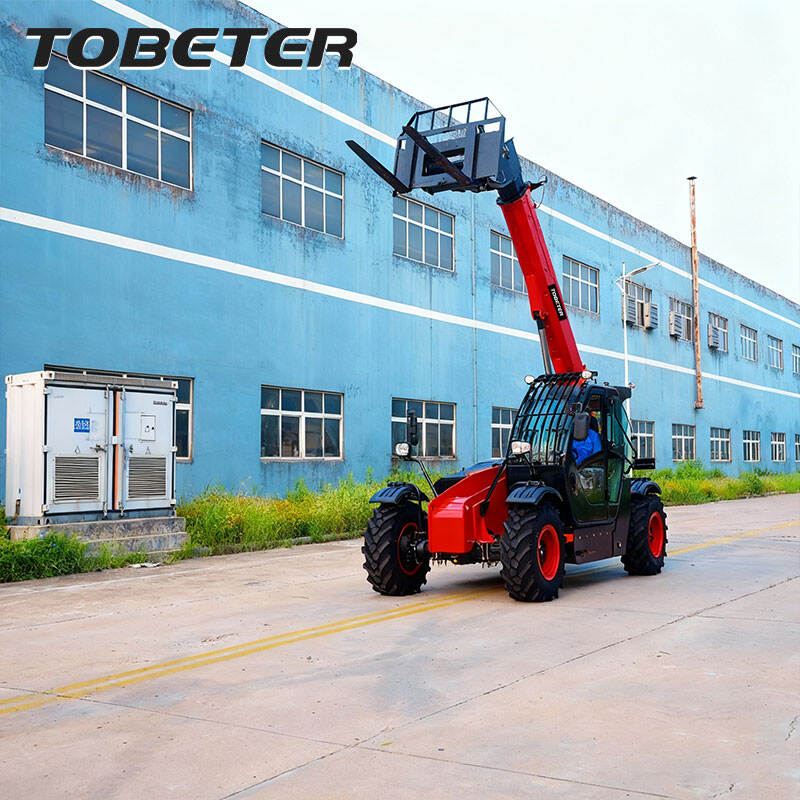

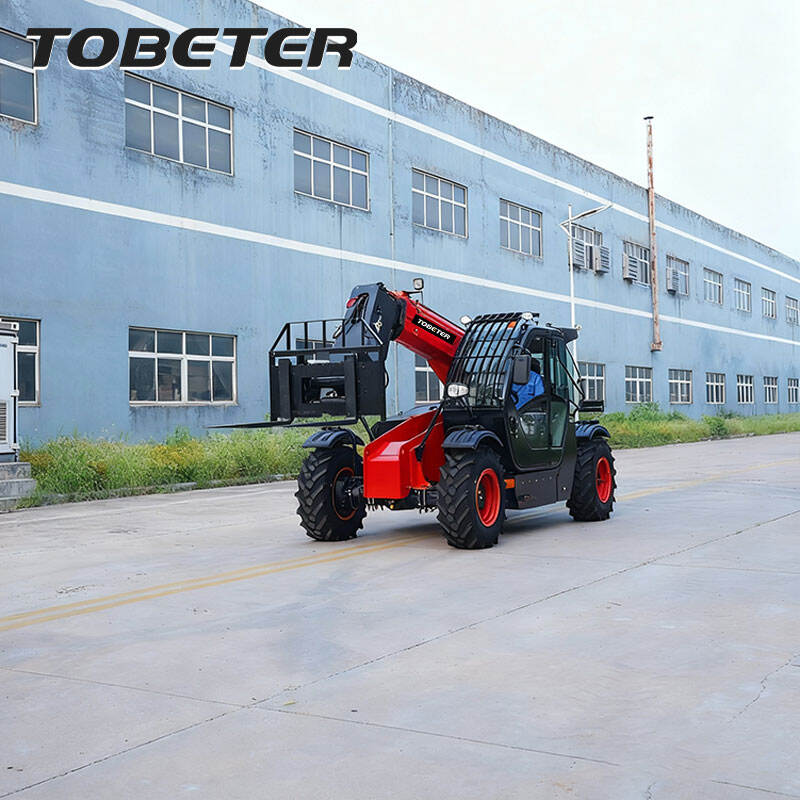

1. Maximum load capacity 3 tons with 7-meter lift height, ideal for heavy-duty and high-altitude tasks.
2. Four-wheel drive with multiple steering modes (front-wheel / crawl / four-wheel) for excellent off-road performance.
3. Optional engines meeting various emission standards.
1. High load and lift capacity for versatile applications.
2. Strong terrain adaptability, flexible operation, and easy maintenance.
| Max. load | 3000kg | Pallet fork length | 1220mm |
| Max. lift height | 7000mm | Engine brand/model | YUNNEI/YN38GBZ |
| Reach at max. lift height | 450mm | Engine rate power | 76KW |
| Max. forward reach | 3600mm | Optional engine | China II standard: Cummins 4BT3.9-C100 |
| Weight unload | 7000kg | EURO3 standard: Cummins QSB3.9-C100 | |
| Tyre | 16/70-20 | EURO5 standard: CHANGCHAI (55KW) | |
| Outside turn radius(over tyre) | 4250mm | EPA4/EURO5 standard:KOHLER KDI2504TCR(55KW) | |
| Carriage roll back angle(degrees) | 42.6 | EPA4 standard: Cummins QSF2.8(55KW) | |
| Carriage dump angle(degrees) | 37.5 | EPA4/EURO5 standard:FPT F36（75KW） | |
| Overall height | 2300mm | Drive type | 4 wheel drive |
| Overall width(over tyres) | 2150mm | Steering type | Front Wheel Steering |
| Inside width of cab | 800mm | Crab Steering | |
| Front track | 1750mm | Four Wheel Steering | |
| Wheelbase | 2850mm | Transmission type | Gearbox + Hydraulic converter + Drive shaft + Drive axle |
| Overall length to front tyres | 4200mm | ||
| Overall length to front carriage | 4650mm | Warranty time | 1 year or 1200 working hours whichever comes first |
| Ground clearance | 350mm | Package(1*20GP) | 1 unit |

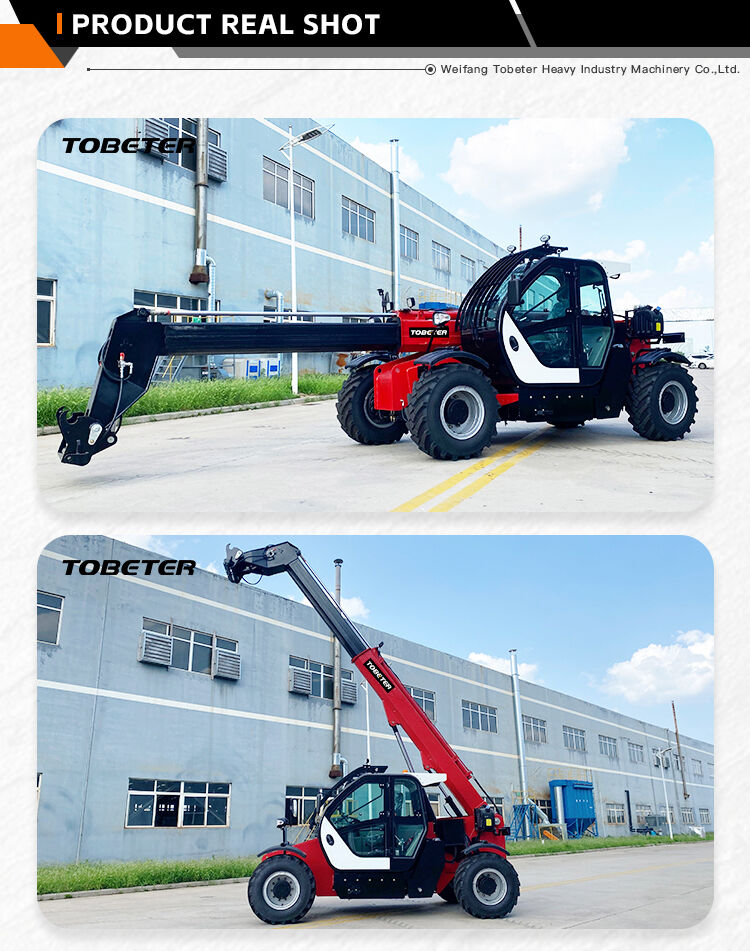

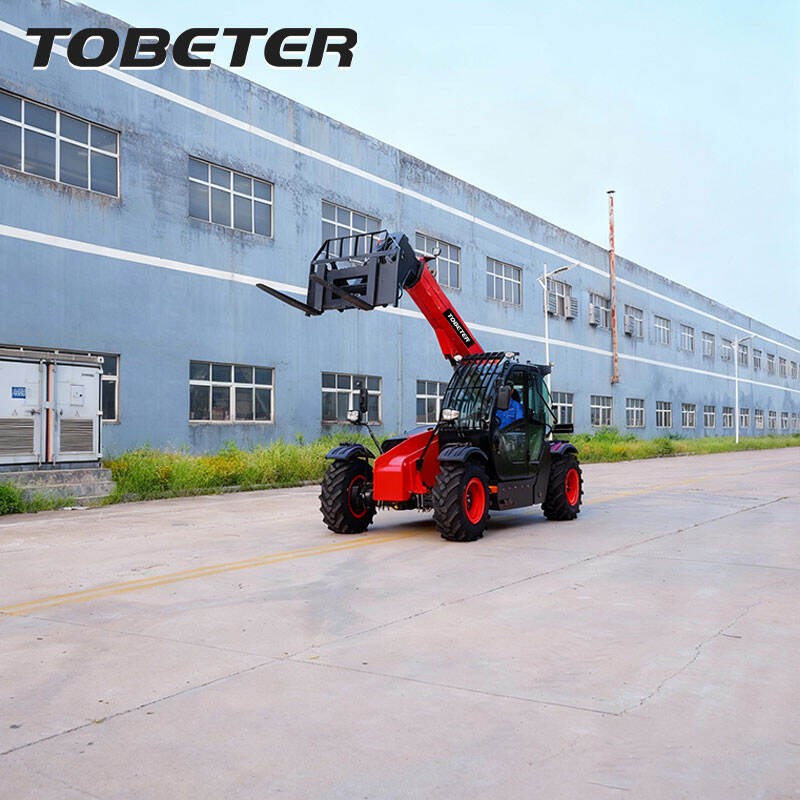

The telehandler has a maximum carrying capacity of up to 3 tons. Whether it is transporting construction materials on a construction site or handling heavy goods in a warehouse environment, it can handle the tasks with ease. The strong load capacity makes high-intensity operations efficient, safe, and stable.

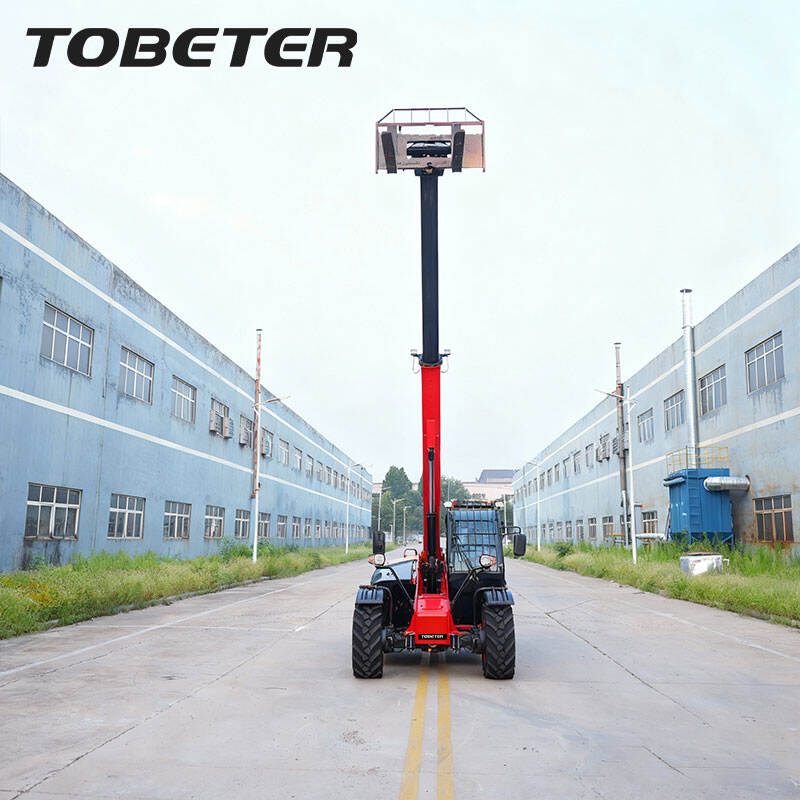

At the same time, its maximum lifting height can reach 7 meters, and the maximum extension distance is 3600 millimeters, which can meet the needs of handling multi-layer shelves or carrying out high-altitude construction operations.

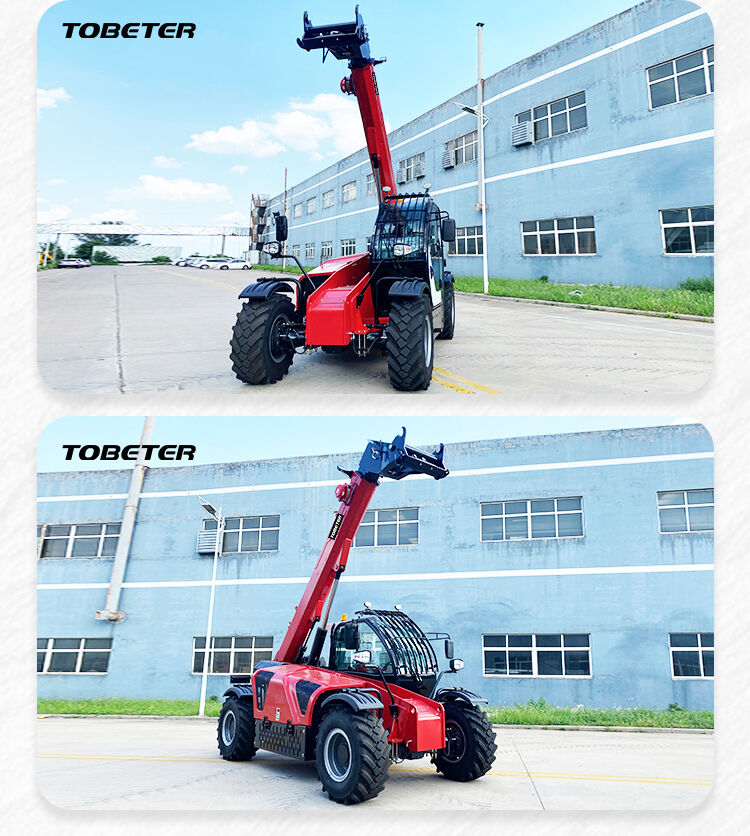

The small telehandler is equipped with four-wheel drive and supports multiple steering modes (front-wheel steering, crawling mode, and four-wheel steering), enabling it to handle complex terrains and operate in narrow spaces with ease. Its durable design and reliable power system ensure that the vehicle performs well even under long-term and high-intensity usage.
