1. Powerful Hydraulic Performance: Equipped with a reliable hydraulic system that delivers strong digging and lifting force.
2. Compact Design: The 3.8-ton compact structure allows easy maneuvering in narrow job sites.
3. Operator-Focused Comfort: An ergonomic cab with intuitive controls reduces operator fatigue.
1. High Cost-Effectiveness: Offer outstanding performance and durability at an extremely competitive price.
2. Wide Application Range: Ideal for construction, agriculture, landscaping, and municipal projects.
Technical Parameter
Overall Operating Weight |
3800KG |
Transport Dimension | |
L*W*H |
6800x1900x2800mm |
Min. Ground Clearance |
300mm |

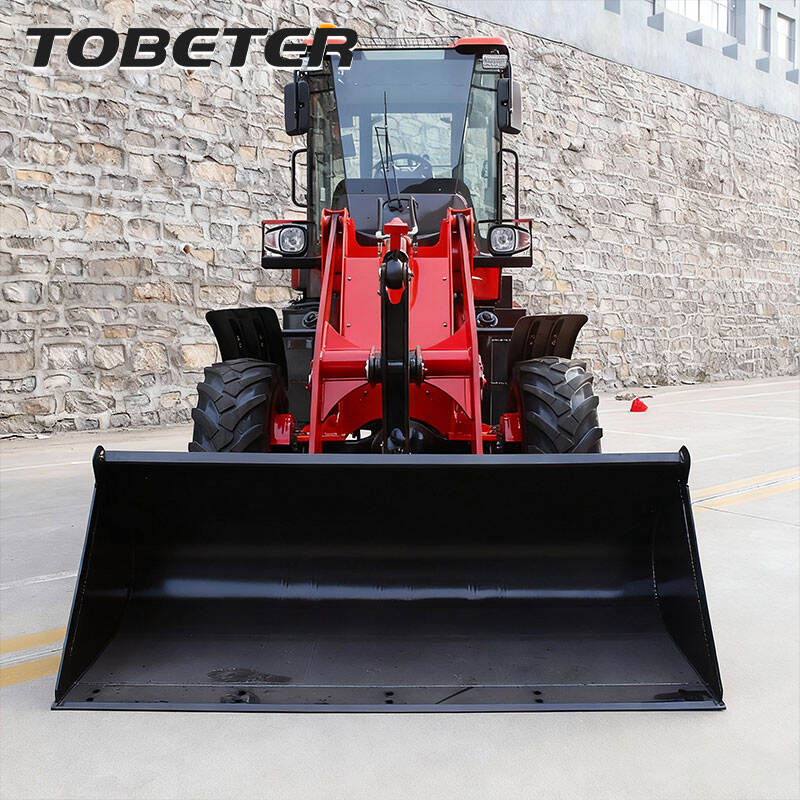

Bucket Capacity |
0.8m³ |
Loading Lifting Capacity |
1800KG |
Bucket Dumping Height |
2900mm |
Backhoe Capacity |
0.18m³ |
Max. Digging Depth |
2500mm |
Axle track |
2000mm |
Wheelbase |
1550mm |
Engine
Model |
YUNNEI YN27GB |
Type |
In Line，Direct injection，Four-Stroke，Water Cooling |
Rated Power |
42KW |
Optional engine |
4G33TC-60L 44.1KW |
EPA4/KDI1903TCR 42KW | |
EPA4 QSF2.8 45KW |
Steering System
Steering Angle |
±35° |
Min. turning radius |
4600mm |
Pressure of the system |
12Mpa |
Axle
Model |
Wheel hub reducer drive axle |
Drive type |
Four wheel drive |
Transmission System
Torque Converter | |
Model |
265 |
Cooling Method |
Oil-cooling Pressure Circulation |
Gearbox | |
Type |
Power Transmission |
Gears |
Four Gears Ahead, Four Gears Astern |
Max.Speed |
28Km/h |

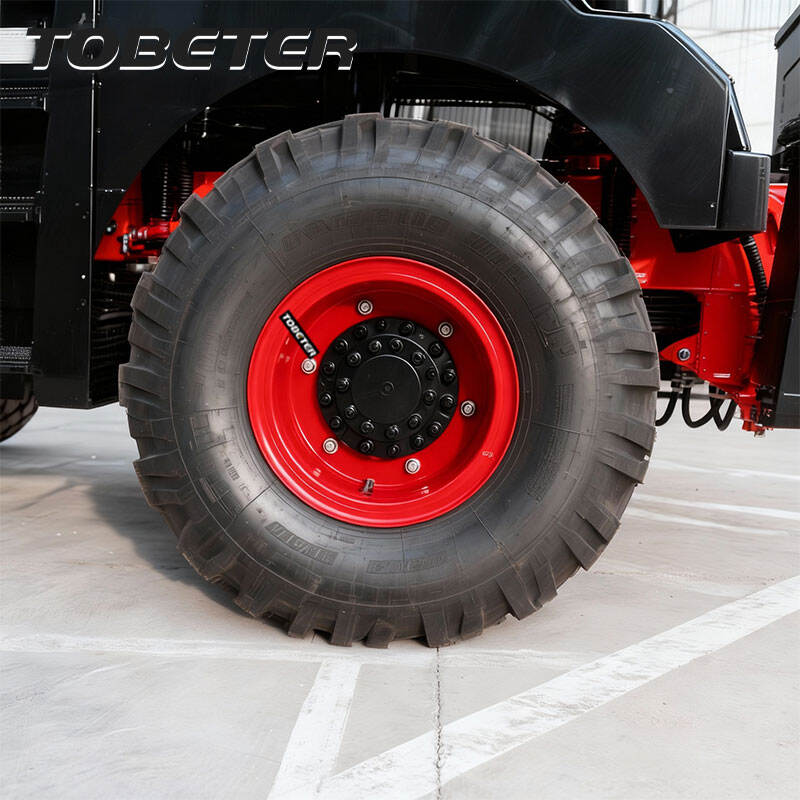

Tyre
Model |
23.5/70-16 |
Brake System | |
Service Brake |
Air Over Oil Caliper Brake |
External Type | |
Self-regulation | |
Self-balance | |
Emergency Brake |
Operation Power Implementing brake |
Manual Operation Power Terminating Brake | |
Hydraulic System
Pressure of Hydraulic System: 22Mpa
Note: The parameters or configuration are subject to change without notice.

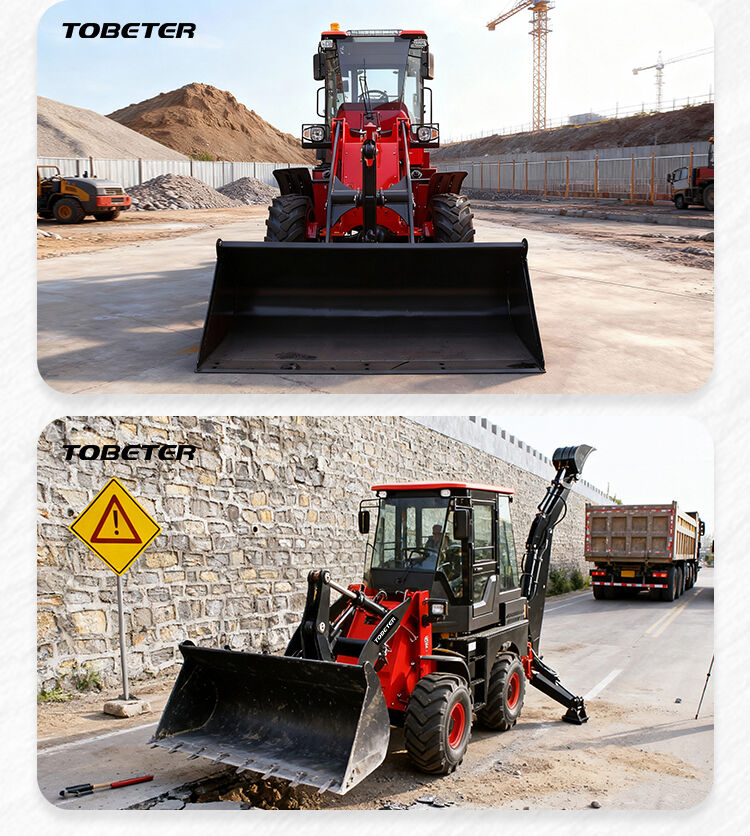

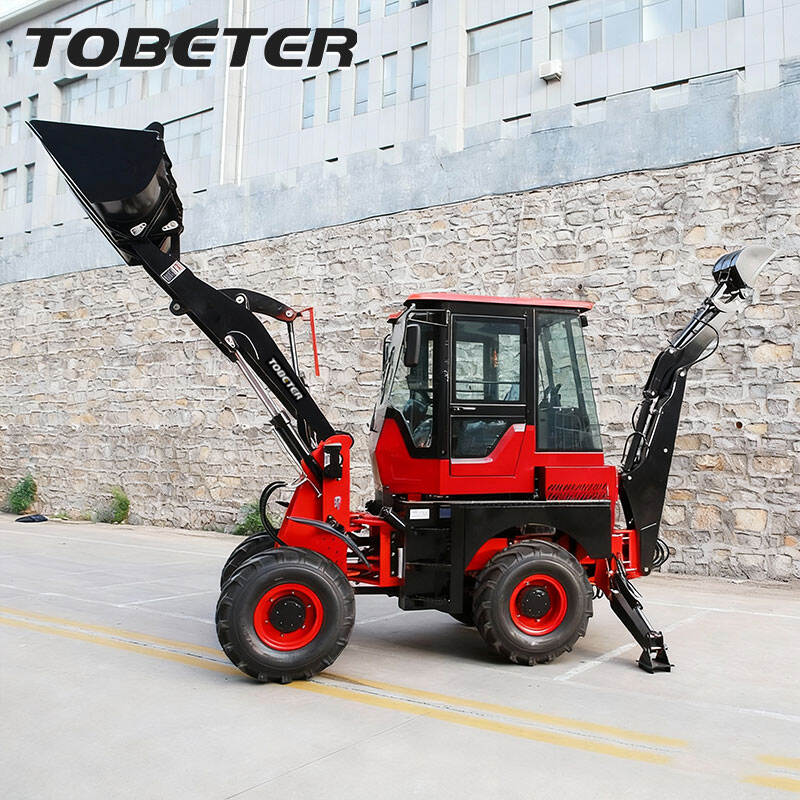

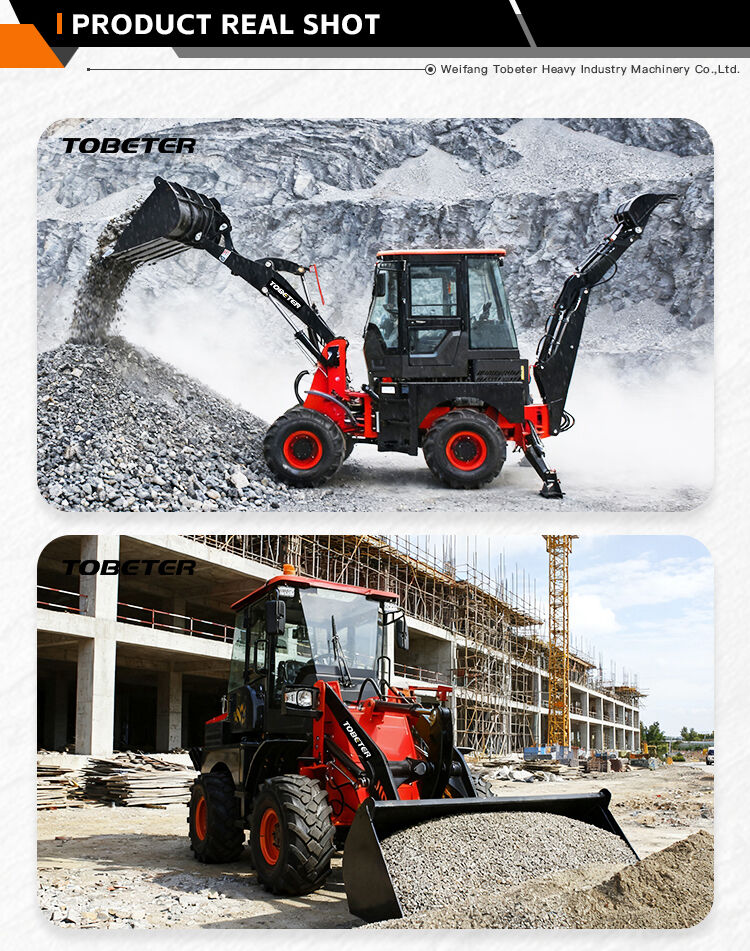

This hydraulic backhoe loader is a construction equipment that integrates functions such as loading, digging, backfilling, and leveling. It has a compact structure and stable performance, and is suitable for various complex working conditions.
It adopts a reasonable overall layout and optimized structural design, ensuring strength and durability while enhancing operational efficiency and flexibility. It is particularly suitable for small and medium-sized projects as well as construction environments with restricted sites.

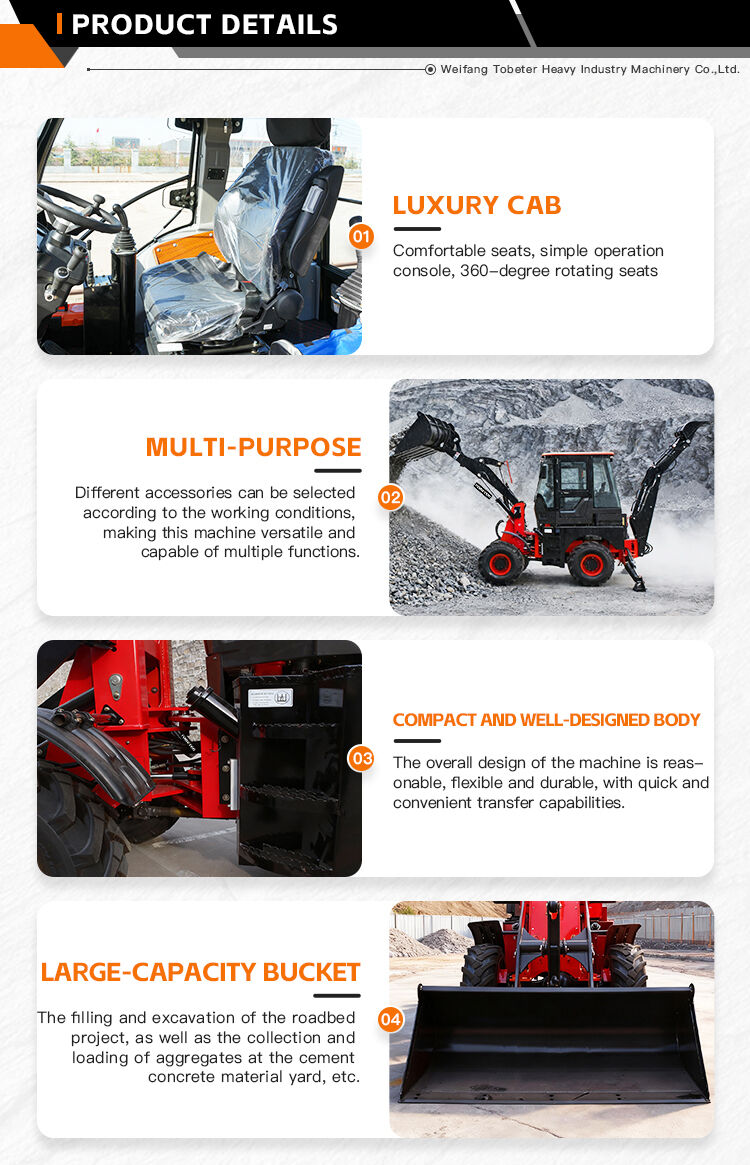

Moreover, the backhoe loader features a user-friendly design. The cab offers a wide field of vision, the control system is well-arranged, and the operation is simple and intuitive, effectively reducing the labor intensity of the operator.
