1. Powerful lifting capacity with telescopic boom.
2. Stable performance for heavy-duty applications.
3. Easy operation and high efficiency.
1. Stronger reach and versatility than standard wheel loaders.
2. 92KW 6-cylinder power outperforms 4-cylinder models of the same level, with 20% higher continuous operation stability.
Technical Parameter
Engine
(1) Brand/Model: |
WEICHAI / WP6G125E22 |
(2) Type: |
In-line arrangement, water-cooled, six cylinder，turbocharged diesel engine |
(3) Rated power: |
92KW |
|
(4) Optional model: |
6BT5.9-C130 CUMMINS EURO5 YUCHAI/YUNNEI EPA4/EURO5 FPT EPA4 CUMMINS |
Overall Dimensions
(1) Overall length: |
7500mm |
(2) Overall width: |
2280mm |
(3) Overall height: |
3200mm |
(4) Max. Discharge height: |
5300mm |
(5) Min. Discharge height: |
3900mm |
（6）Max. Lifting height： |
7000mm |
(7)Optional Max. discharge height: |
7000mm 9000mm |
Transmission System：
Gearbox + hydraulic converter + drive shaft +hub reduction axle

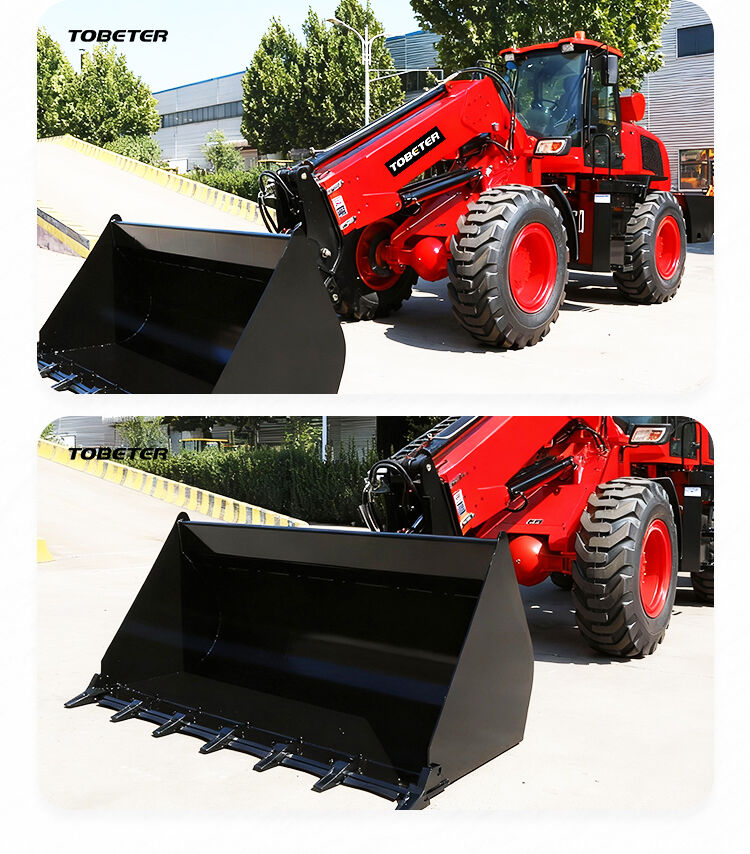

Bucket：
(1) Capacity: |
1.5m³ |
(2) Width: |
2300mm |
(3) Type: |
Heavy-duty bolt on teeth |
（4）Max. Load: |
3500kg including bucket or attachment |
Operating Specifications
(1) Steering System |
Articulated hydraulic steering |
(2) Driving System |
Four wheel drive |
(3) Hydraulic quick release |
Yes |
（4） Hydraulic pilot joystick |
Yes |
（5） Steady rise |
Yes |
Brake System
(1) Service Brake: |
Four wheel disc brake |
(2) Parking Brake: |
Disc brake |
Tyre
(1) Model: |
G2 pattern 17.5-25 Tyre |
(2) Size: |
Width: 440mm Diameter: 1280mm |
Wheel base: 2800mm
Track: 1750mm
System pressure: 20Mpa
Weight: 8000KG

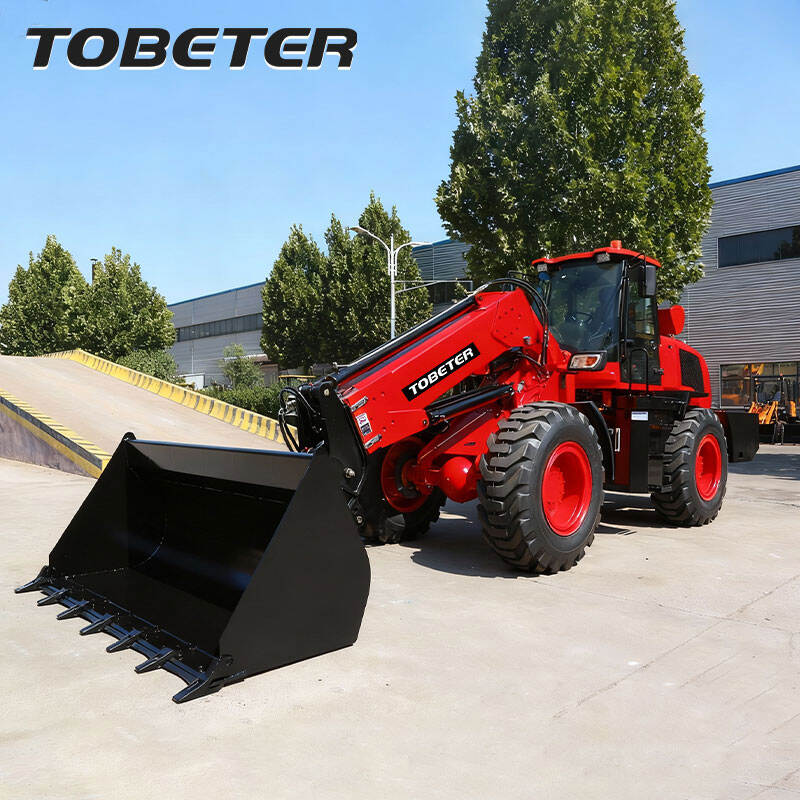

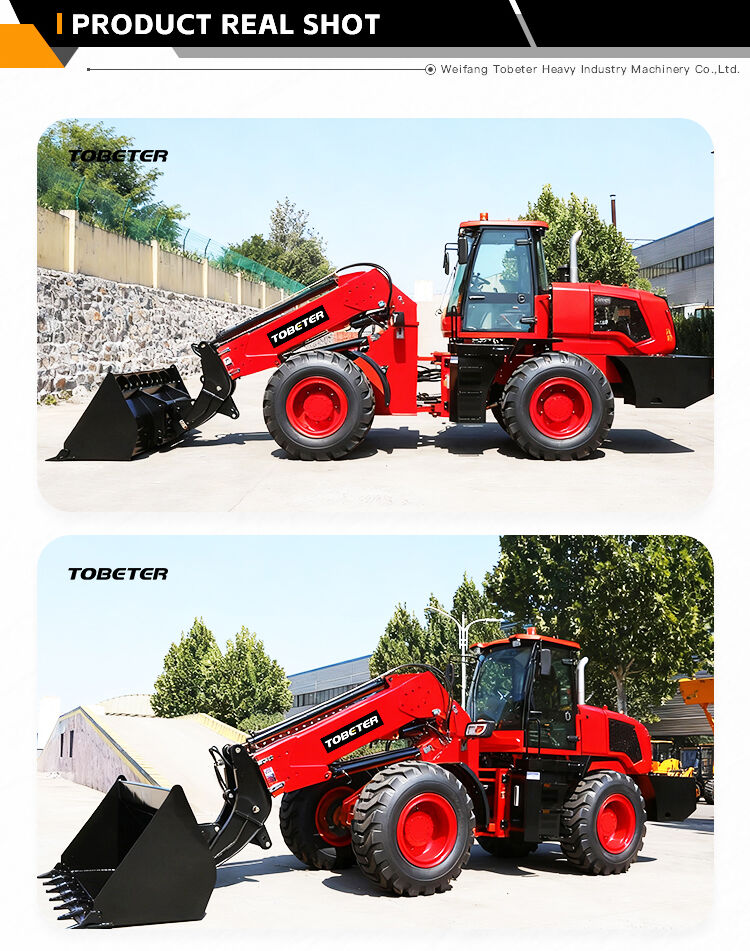

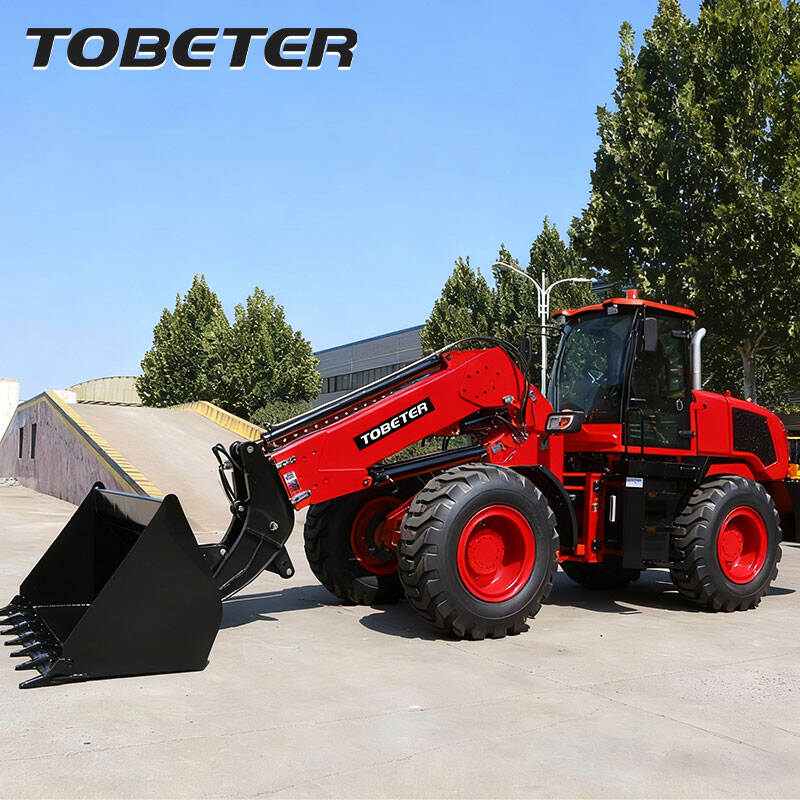

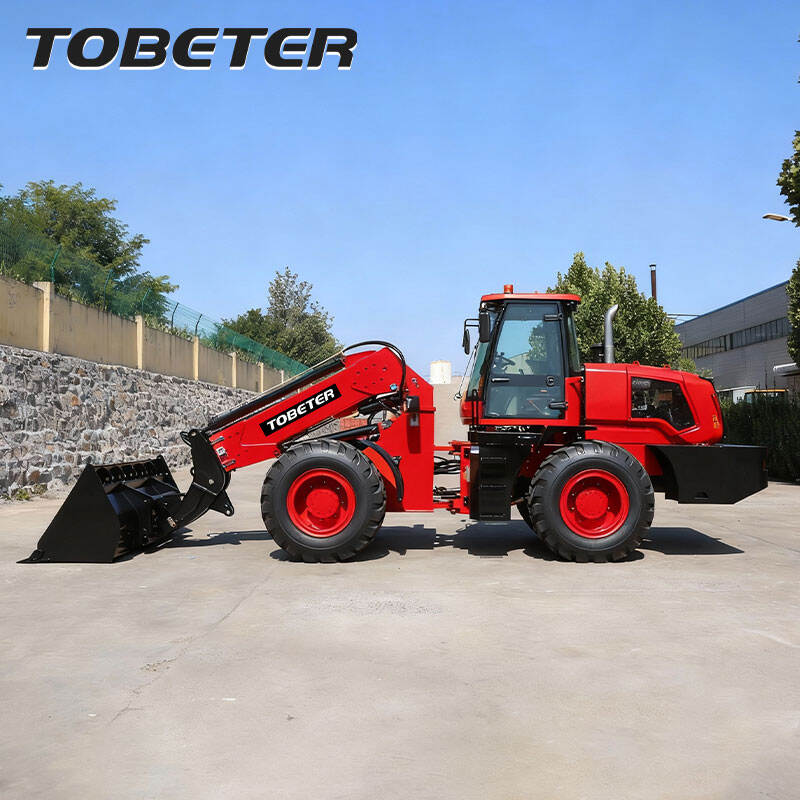

This telescopic wheel loader combines loading capacity, working height and flexibility. The overall structure is reinforced, and the telescopic arm has a wider working range, suitable for various complex working conditions such as sand and gravel yards, port storage areas, mine transportation, municipal engineering, and large-scale warehousing and logistics.
It is equipped with a high-performance engine, which has ample power reserve, stable output, and can easily handle high-load requirements such as full-load loading and excavation, climbing slopes, and continuous operations. While ensuring strong operational capabilities, it also achieves higher fuel economy and overall operational efficiency.

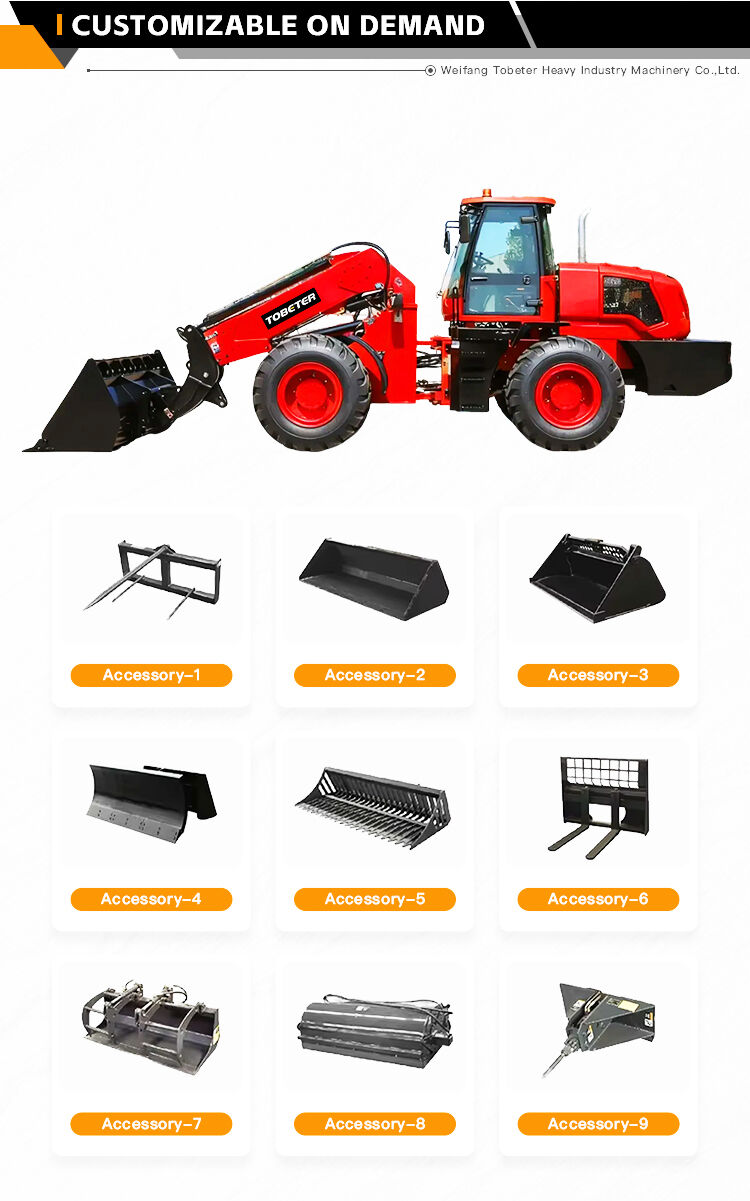

In addition, this telescopic wheel loader supports rapid replacement of various attachments. It can flexibly configure attachments such as buckets and forks according to the working conditions, meeting diverse needs such as loading, stacking, and transportation.
