1. 3.5-ton capacity with 7 m lift height for heavy loads and a wide working range.
2. Multiple steering modes (front/four-wheel/crawl) with 4WD for versatile terrain handling.
1. High lift and wide load range, ideal for elevated operations.
2. Optional multi-emission standard engines (including EURO5/EP4), adaptable to different regional regulations.
| Max. load | 3500kg | Engine brand | YUNNEI YN38GBZ |
| Max. lift height | 7000mm | Engine rate power | 76KW |
| Reach at max. lift height | 450mm | Optional engine | China II standard: Cummins 4BT3.9-C100 |
| Max. forward reach | 3600mm | EURO3 standard: Cummins QSB3.9-C100 | |
| Weight unload | 7200kg | EURO5 standard: CHANGCHAI (55KW) | |
| Tyre | 16/70-24 | EPA4/EURO5 standard:KOHLER KDI2504TCR(55KW) | |
| Outside turn radius(over tyre) | 4250mm | EPA4 standard: Cummins QSF2.8(55KW) | |
| Carriage roll back angle(degrees) | 42.6 | EPA4/EURO5 standard:FPT F36(75KW) | |
| Carriage dump angle(degrees) | 37.5 | Transmission type | Gearbox + Hydraulic converter + Drive shaft + Drive axle |
| Overall height | 2300mm | ||
| Overall width(over tyres) | 2150mm | Optional transmission type | Closed piston pump+walking pump/motor+gearbox+drive axle |
| Inside width of cab | 800mm | ||
| Front track | 1750mm | Steering type | Front Wheel Steering |
| Wheelbase | 2850mm | Crab Steering | |
| Overall length to front tyres | 4200mm | Four Wheel Steering | |
| Overall length to front carriage | 4650mm | Drive type | 4 wheel drive |
| Ground clearance | 350mm | Warranty time | 1 year or 1200 working hours whichever comes first |
| Pallet fork length | 1220mm | Package(1*20GP) | 1 unit |

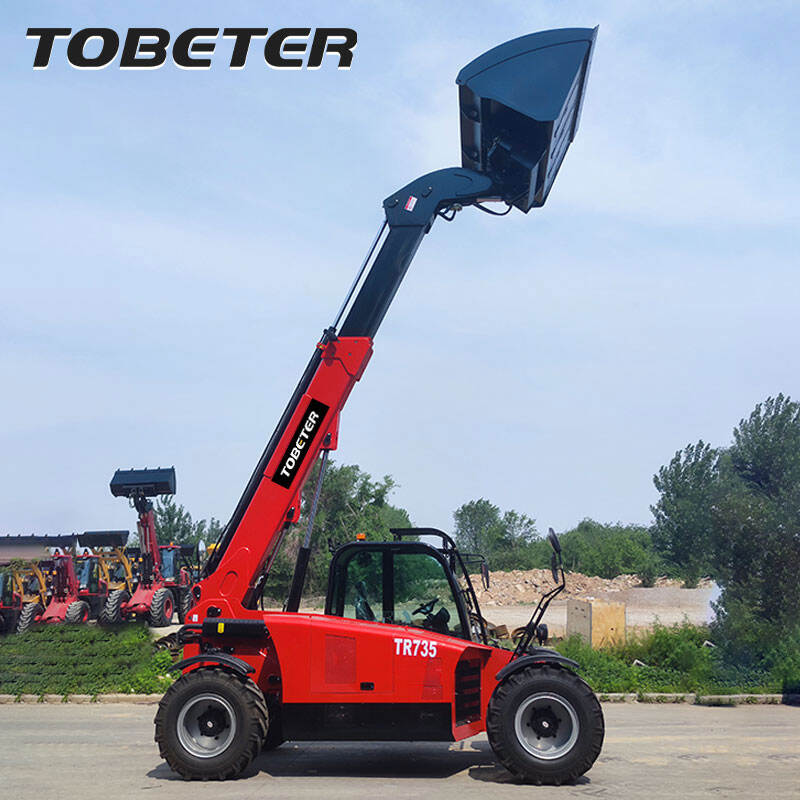

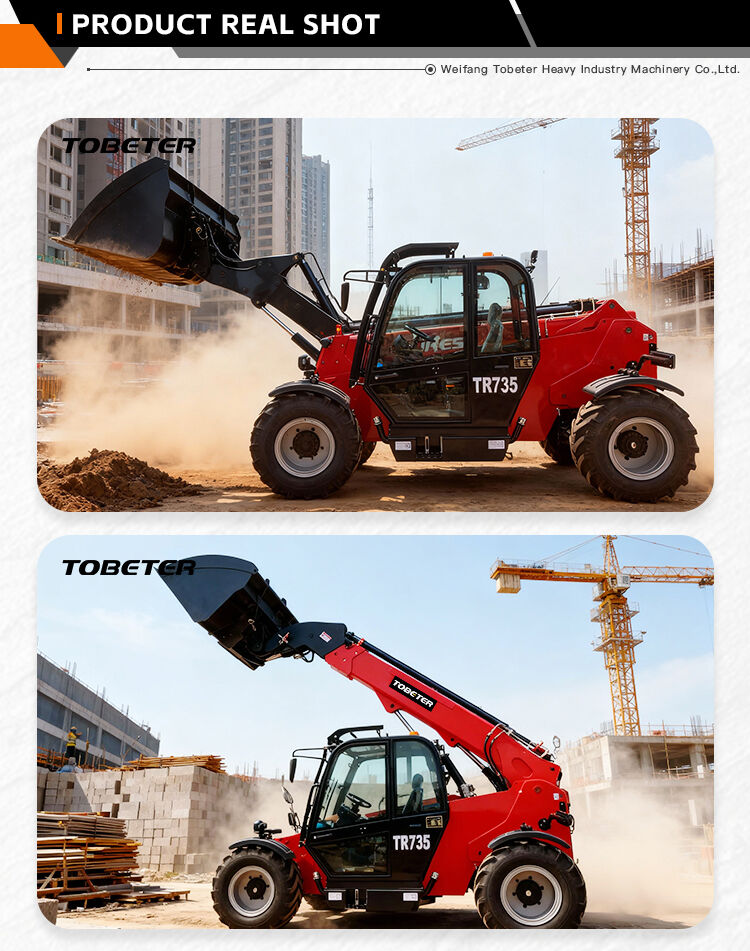

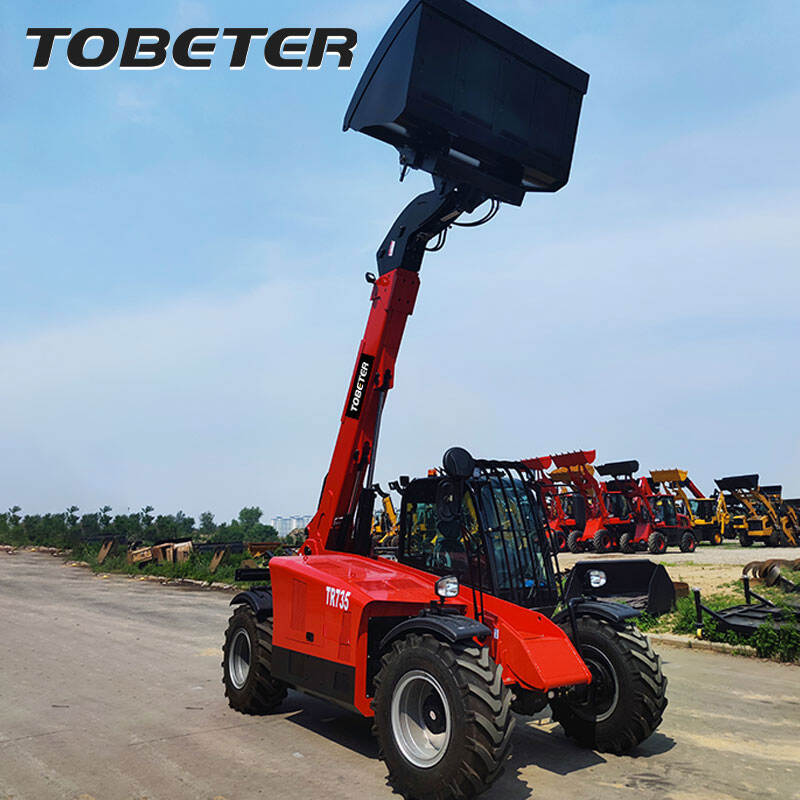

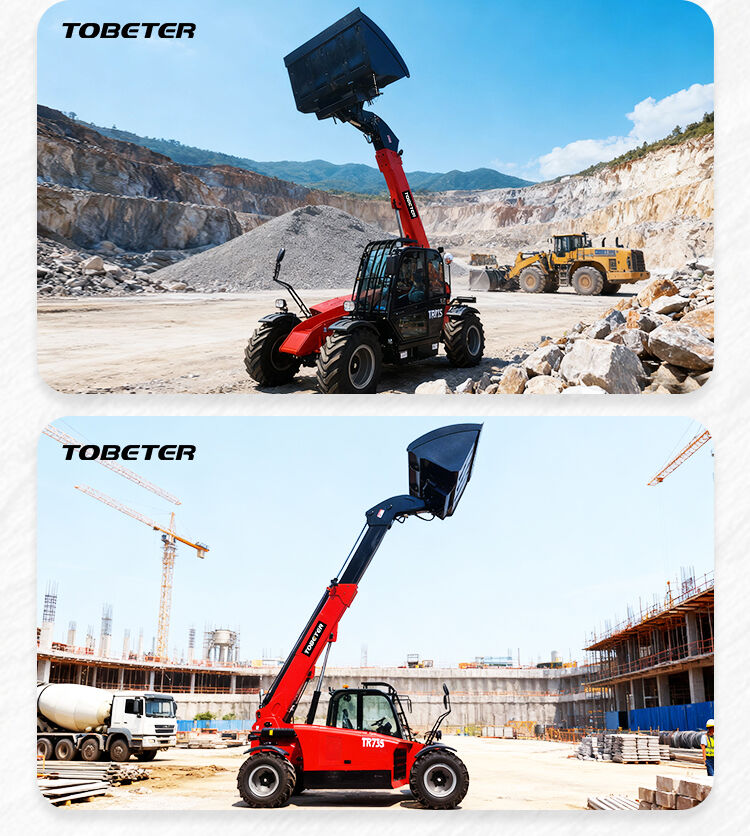

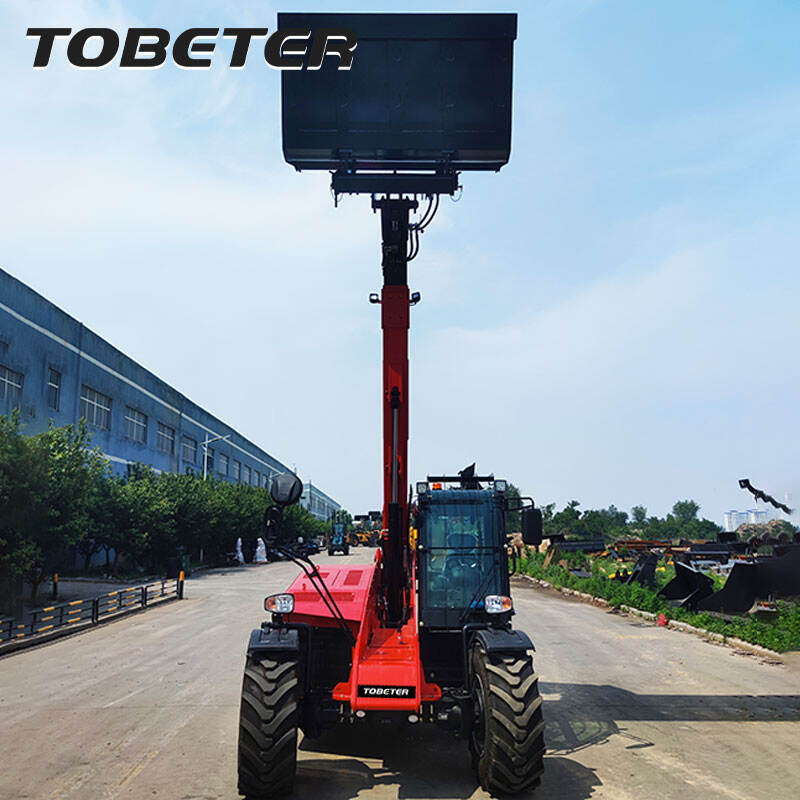

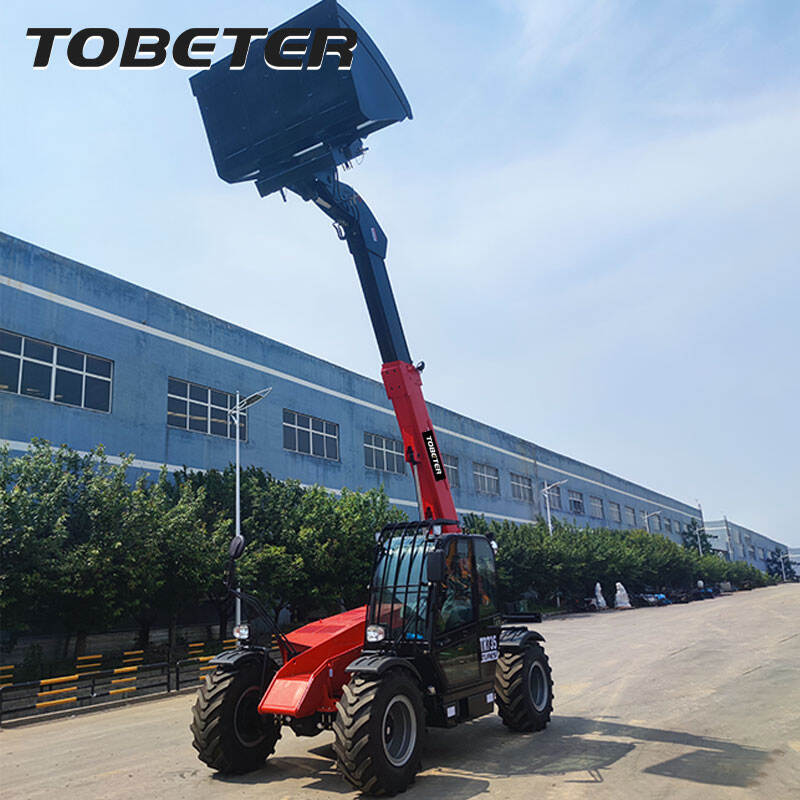

This telehandler forklift has a maximum load capacity of 3.5 tons, and with the longest telescopic arm reaching up to 7 meters, it can easily handle the transportation and stacking of heavy materials. Whether in construction sites, logistics warehouses, or on farms and ports, it can ensure high-efficiency operations with stable performance.
It has three steering modes: front-wheel steering, four-wheel steering and crab-like steering. Whether in narrow passages, muddy ground, or construction sites with significant slopes, this machine can ensure smooth vehicle movement and precise positioning, making it fully adaptable to various working environments.
In addition, the telehandler is equipped with a high-performance diesel engine, which is powerful and has low fuel consumption, ensuring efficient and reliable operation even during long periods of work.
