1. 7,000 mm max forward reach for extended working range.
2. Flexible load capacity for both near/far and high/low operations.
3. Up to 35 km/h travel speed for efficient site transfer.
1. Longer reach than conventional telehandlers, ideal for remote handling tasks.
2. More adaptable than single-purpose material handlers across varied applications.
| Max. load | 3500kg | Optional engine | China II standard: Cummins 4BT3.9-C125 |
| Lift capacity to full height | 2000kg | EURO3 standard: Cummins QSB3.9-C125 | |
| Lift capacity at full reach | 550kg | EURO5 standard:YUCHAI(92KW) | |
| Lift height | 9600mm | EPA4/EURO5 standard:FPT F36(90KW) | |
| Bucket lifting force | 6000KN | EPA4 standard:Cummins QSF3.8 | |
| Reach at maximum lift height | 450mm | Pallet fork length | 1200*125*45 |
| Maximum forward reach | 7000mm | Hydraulic oil tank | 135L |
| Weight unload | 8375kg | Diesel tank | 120L |
| Tyre | 16/70-24 | Transmission type | Gearbox + Hydraulic converter + Drive shaft + Drive axle |
| Outside turn radius(over tyre) | 4250mm | ||
| Overall height | 2300mm | Number of gears | F4/R4 |
| Overall width(over tyre) | 2150mm | Steering type | Front Wheel Steering |
| Inside width of cab | 980mm | Four Wheel Steering | |
| Front track | 1750mm | Crab Steering | |
| Wheelbase | 2850mm | Drive type | 4 wheel drive |
| Overall length to front carriage | 5092mm | Max. speed | 35KM/H |
| Ground clearance | 350mm | Warranty time | 1 year or 1200 working hours |
| Engine brand | YUCHAI YCD4J22T-115 | Delivery time | Within 60 working days after receipt of deposit |
| Engine rate power | 85KW | Package(1*40HQ) | 2 units |

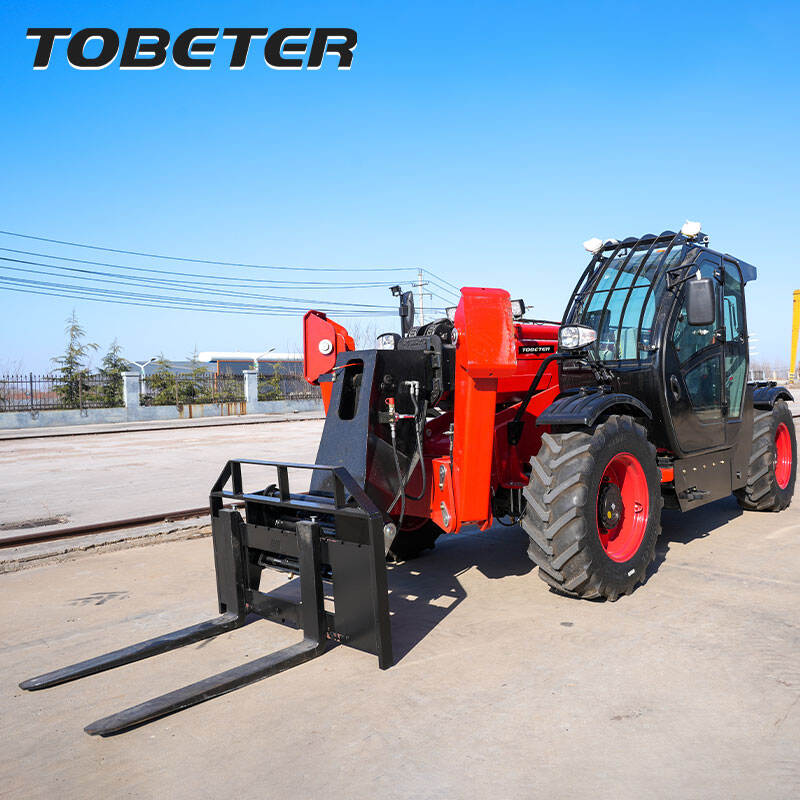

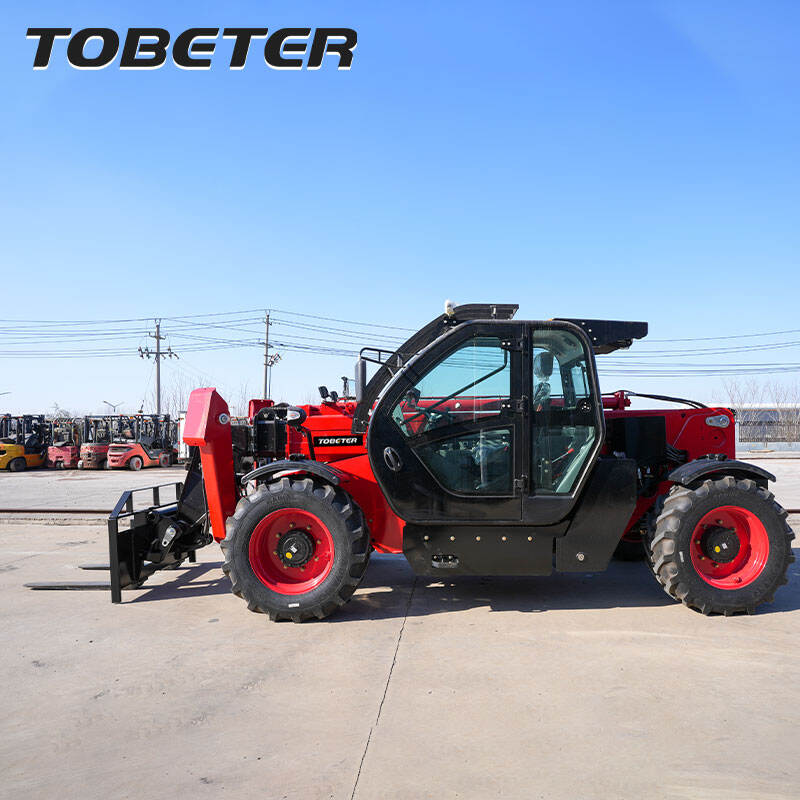

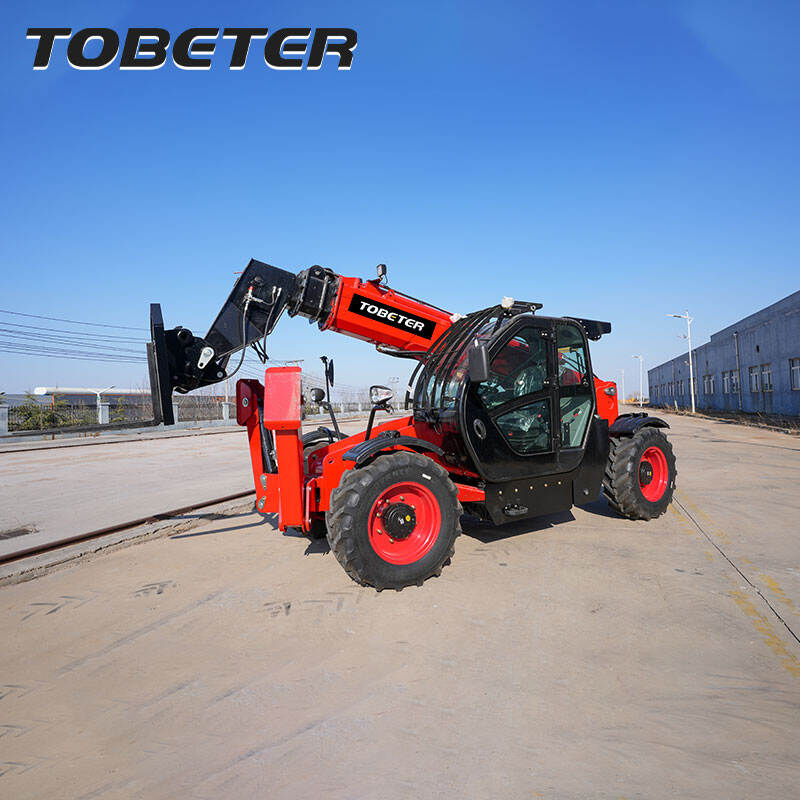

This telescopic boom forklift is specially designed for medium and heavy-duty material handling operations. It is equipped with a high-performance diesel engine, which provides abundant power output and sufficient torque reserve. It can still operate stably and efficiently even in complex working conditions and on rough roads.

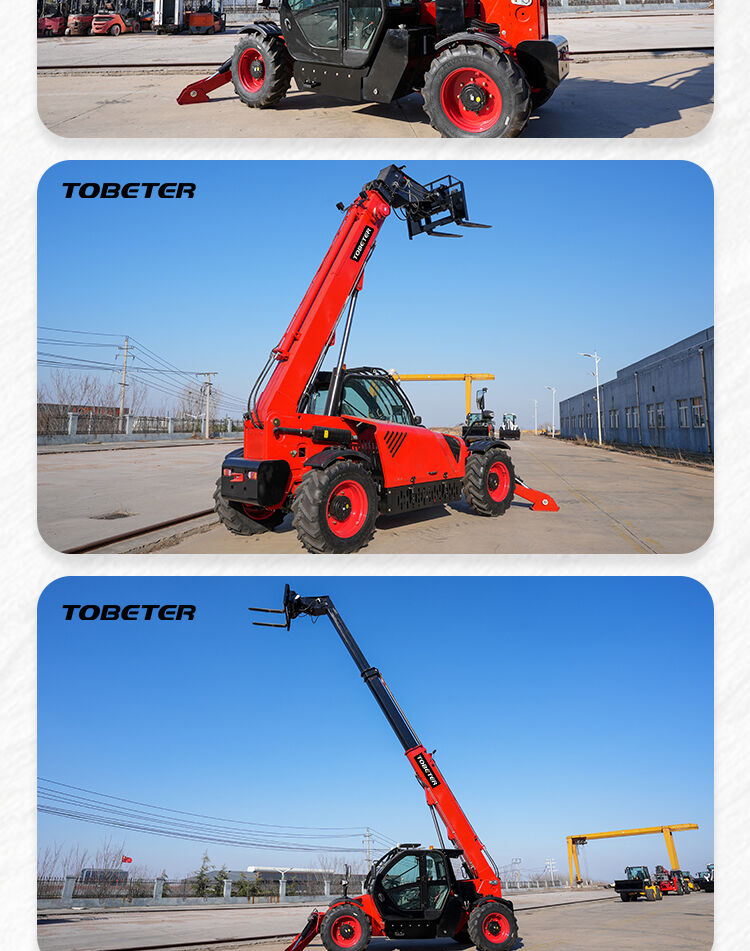

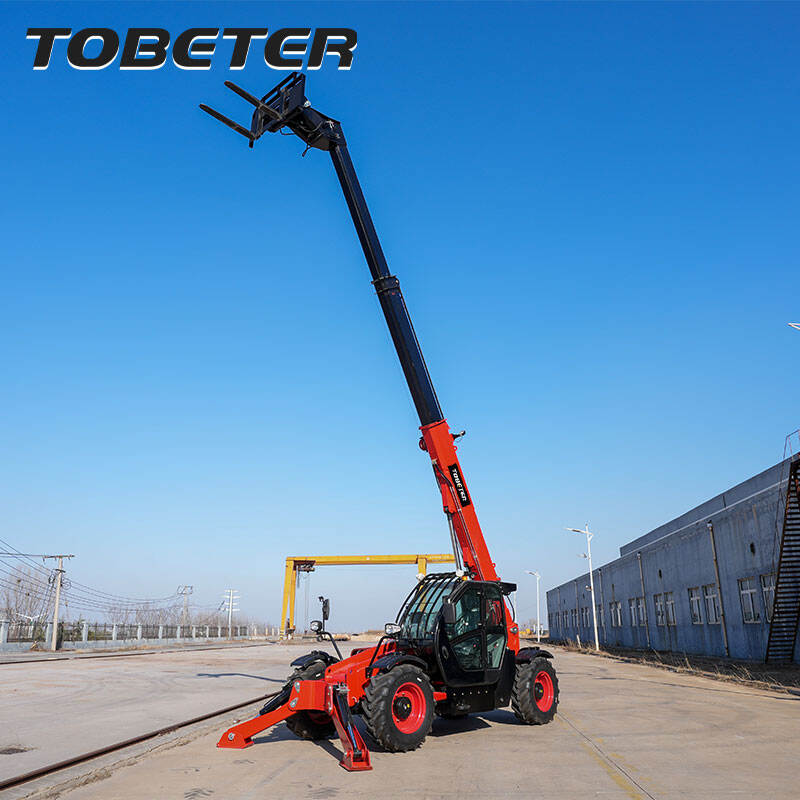

It adopts a long telescopic arm structure design, featuring excellent lifting height and forward extension distance. It can easily complete high-position stacking, long-distance retrieval and placement, and cross-obstacle loading/unloading operations.
The long reach telehandler is capable of quickly replacing various attachments, such as forks, buckets, hooks, working platforms and fixtures. It can be used for multiple purposes and meets diverse operational requirements. Moreover, the overall structure of the machine is robust, and key components are made of high-strength materials to ensure reliability under long-term heavy-load conditions.
