1. Front loading and rear digging functions enable a single machine to efficiently complete various operations.
2. The 3.5-ton capacity ensures strong performance and stability even in demanding construction tasks.
3. The adjustable rotating seat enhances the operator's comfort and improves the field of vision during operation.
1. Integrated loader and backhoe design reduces the need for multiple machines, lowering overall operating costs.
2. Robust structure and reliable components deliver long service life with minimal maintenance.
Technical Parameter
Overall Operating Weight |
3500KG |
Transport Dimension | |
L*W*H |
6800x1800x2800mm |
Min. Ground Clearance |
300mm |
Bucket Capacity |
0.6m³ |
Loading Lifting Capacity |
1000-1500KG |
Bucket Dumping Height |
2900mm |
Backhoe Capacity |
0.1m³ |
Max. Digging Depth |
2500mm |
Axle track |
2000mm |
Wheelbase |
1550mm |
Engine
Model |
YUNNEI YN25GB |
Type |
In Line，Direct injection，Four-Stroke，Water Cooling |
Rated Power |
37KW |
Optional engine |
4G33TC-60L 44.1KW |
EPA4/KDI1903TCR 42KW | |
EPA4 QSF2.8 45KW |
Steering System
Steering Angle |
±35° |
Min. turning radius |
4600mm |
Pressure of the system |
12Mpa |
Axle
Model |
Isuzu drive axle |
Drive type |
Four wheel drive |
Transmission System
Torque Converter | |
Model |
240 |
Cooling Method |
Oil-cooling Pressure Circulation |
Gearbox | |
Type |
Power Transmission |
Gears |
Four Gears Ahead, Four Gears Astern |
Max.Speed |
25Km/h |
Tyre
Model |
20.5/70-16 |
Brake System | |
Service Brake |
Drum brake |
Emergency Brake |
Operation Power Implementing brake |
Manual Operation Power Terminating Brake | |
Hydraulic System
Pressure of Hydraulic System: 22Mpa
Note: The parameters or configuration are subject to change without notice.

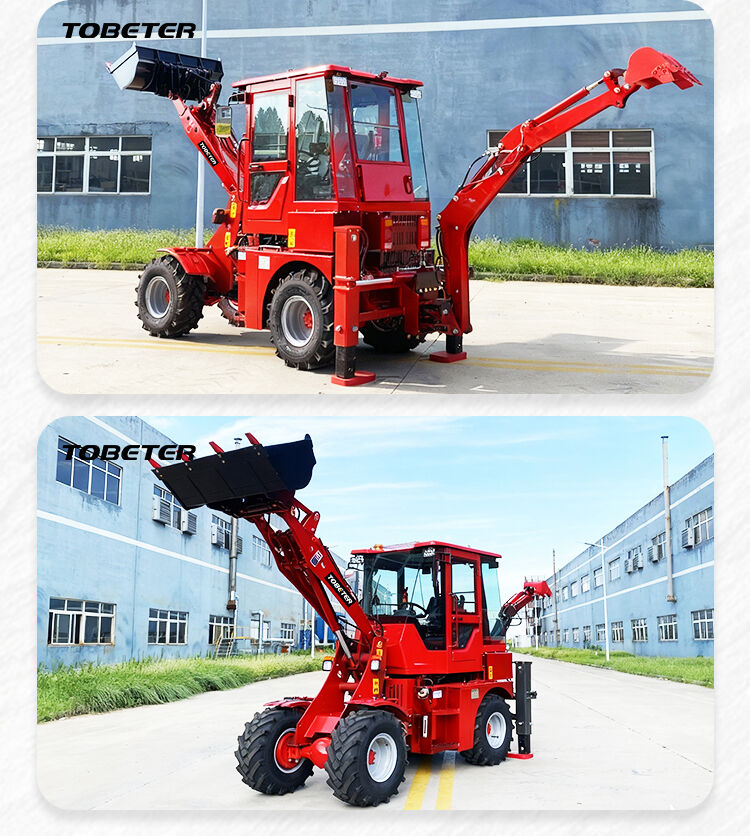

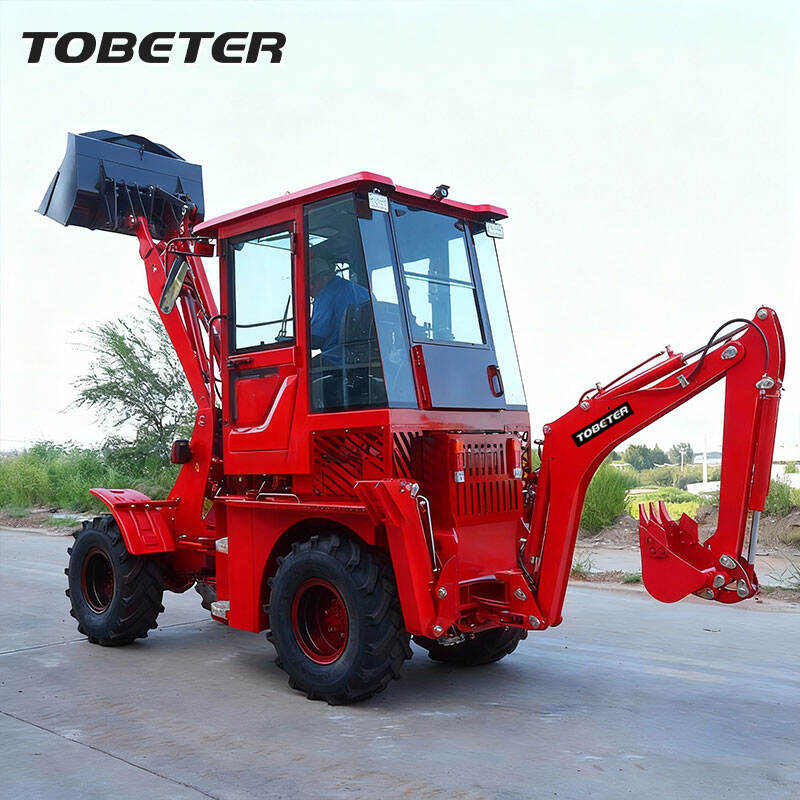

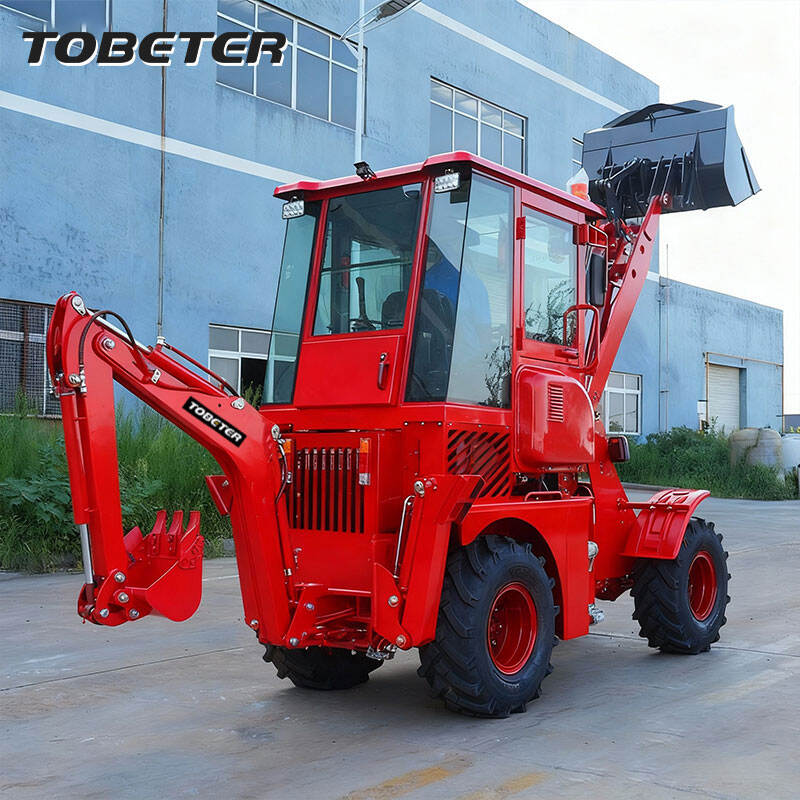

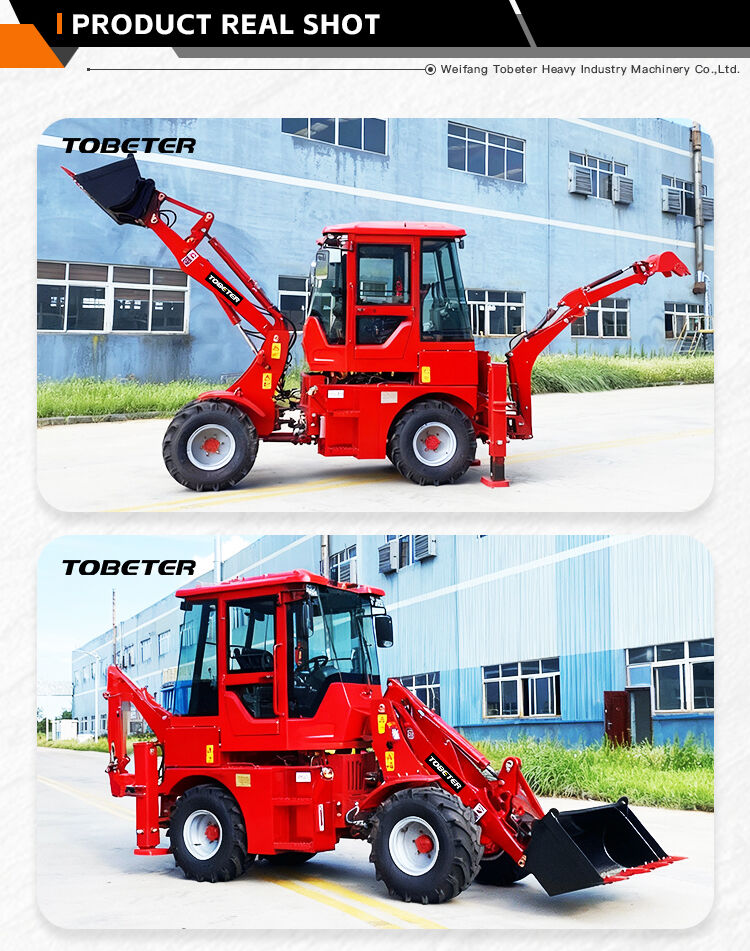

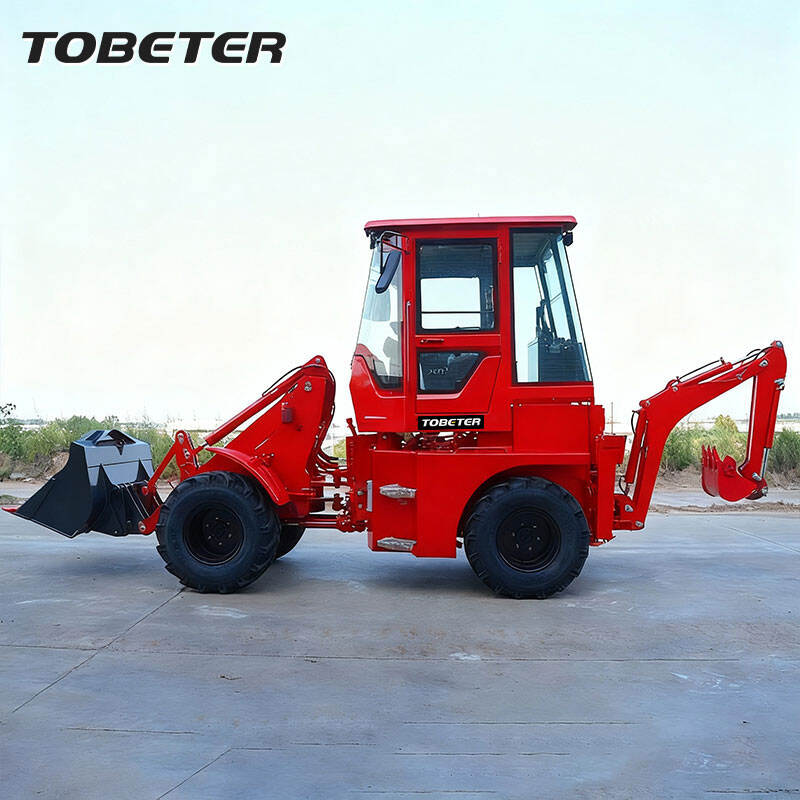

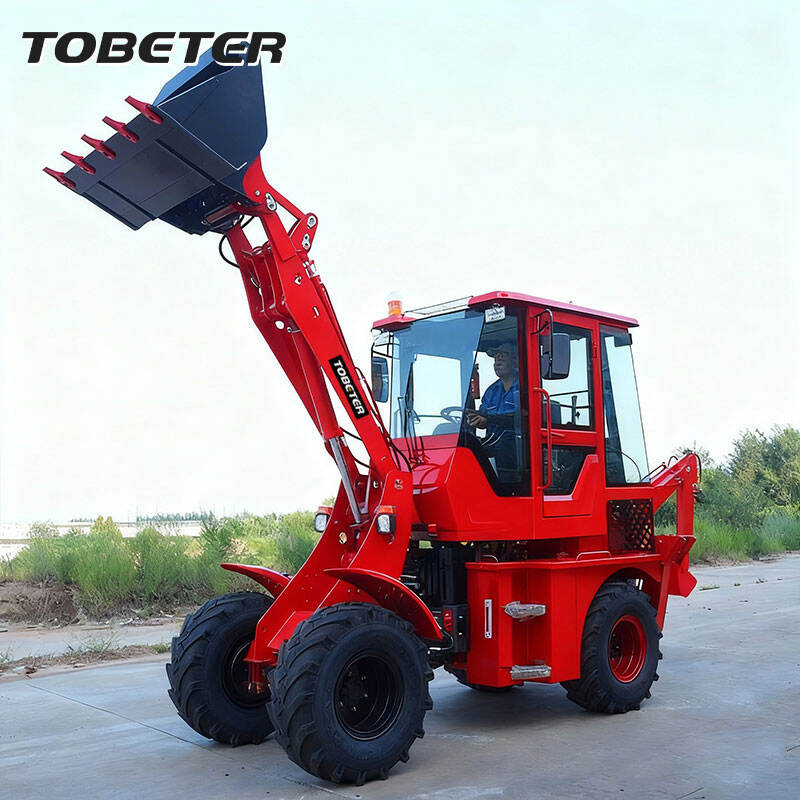

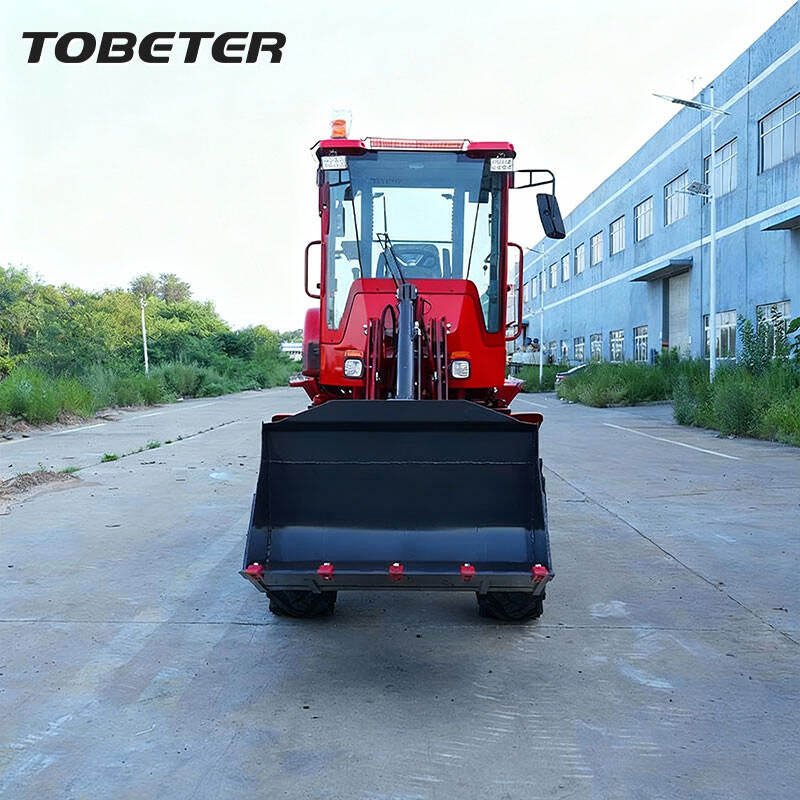

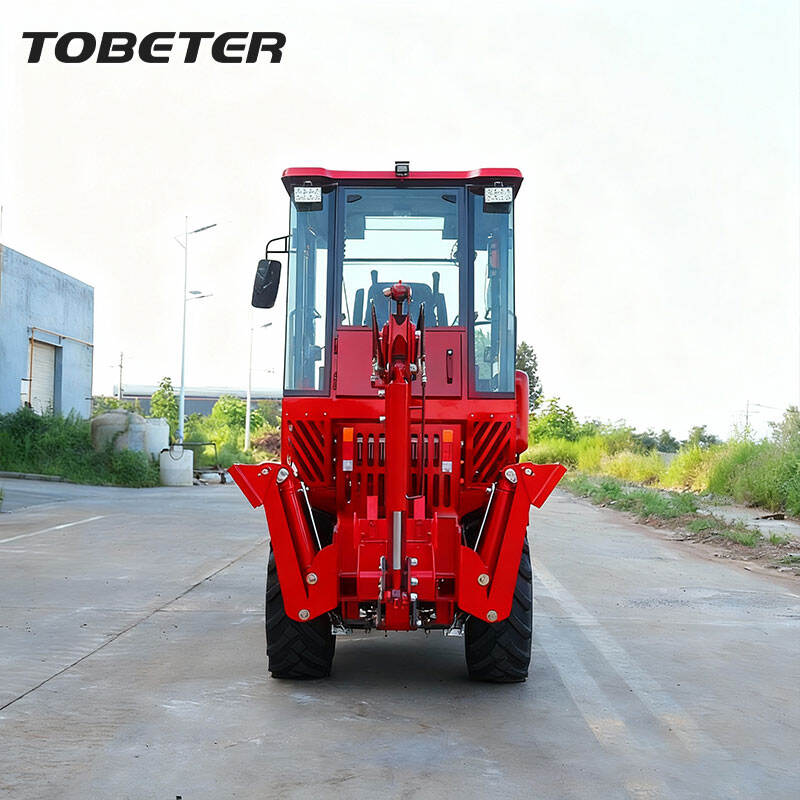

The WZ15-10 is a multi-functional construction machinery that combines both front loading and rear digging functions. It is widely applicable to various scenarios such as construction, municipal engineering, farm operations, garden construction, and pipeline laying. The multi-purpose design effectively reduces equipment investment and enhances construction efficiency, making it an ideal choice for small and medium-sized projects.
It is equipped with a reliable power system, which delivers powerful output and can easily handle high-intensity continuous operations. The 3.5-ton operating weight provides excellent stability and traction, and performs well in loading, excavation, and transportation tasks.

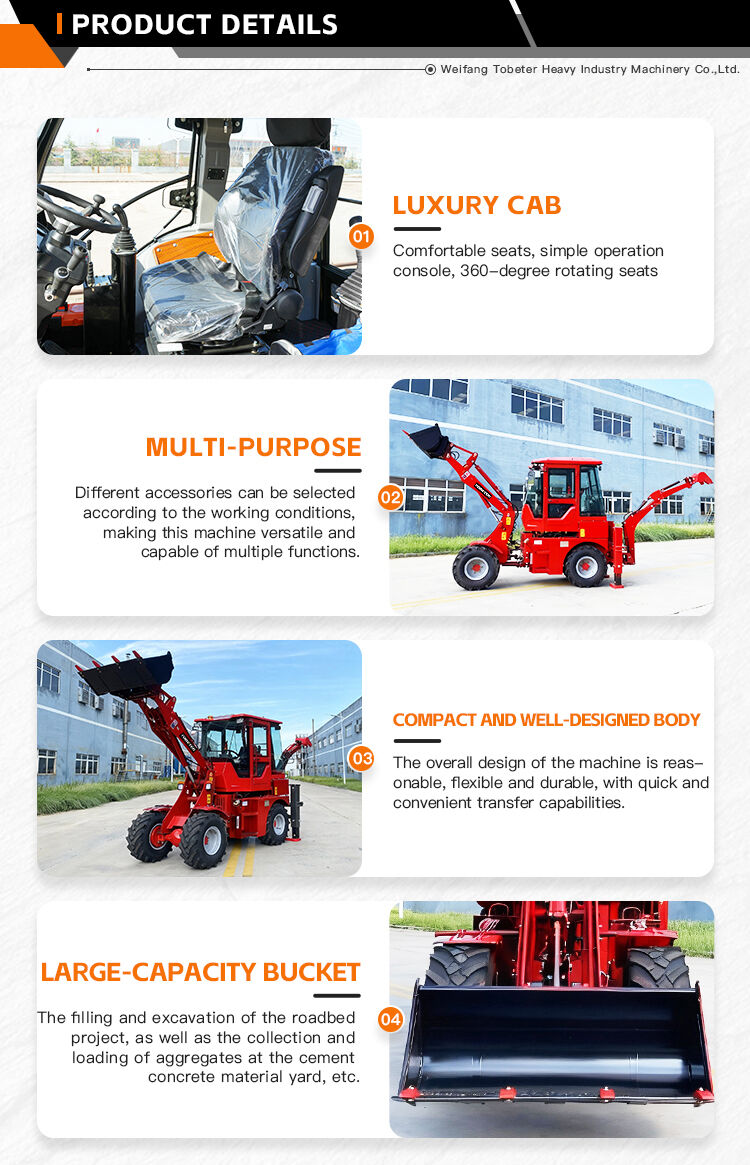

Meanwhile, the backhoe loader is equipped with a rotatable seat that can be adjusted. The operator can quickly switch between loading and digging modes, significantly reducing the labor intensity. The cab is well-arranged, with a wide field of vision. The control handle position is in line with ergonomic design, effectively enhancing comfort and safety during long-term operations.
