1. High-efficiency engine for powerful performance.
2. Telescopic boom with shock absorption for smooth operation.
3. Quick-change attachments.
1. Strong load capacity with stable maneuverability.
2. Optimized comfort and reduced vibration for operator efficiency.
Engine
| (1) Brand/Model: | YUNNEI YN38GBZ |
| (2) Type: | In-line arrangement, water-cooled, four cylinder, turbocharged diesel engine |
| (3) Rated Power: | 76KW |
| (4) Optional Engine: | CUMMINS 4BT3.9-C100 |
| EURO5 55KW CAHNGCHAI | |
| EURO5 74KW YUCHAI | |
| EPA4/EURO5 KOHLER | |
| EPA4 CUMMINS |
Overall Dimensions
| (1) Overall length: | 6500mm |
| (2) Overall width: | 2000mm |
| (3) Overall height: | 2860mm |
| (4) Max. Discharge height: | 4370mm |
| (5) Min. Discharge height: | 3350mm |
| (6)Max. Bucket hinge pin height: | 5150mm |
| (6)Max. Bucket lifting height: | 5940mm |
Transmission System：Gearbox + hydraulic converter + drive shaft + hub reduction axle
Bucket：
| (1) Capacity: | 1.2m³ |
| (2) Width: | 2100mm |
| (3) Type: | Heavy-duty bolt on teeth |
| (4) Max. load: | 2500kg including bucket or attachment |
Operating Specifications
| (1) Steering System: | Articulated hydraulic steering |
| (2) Driving System: | Four wheel drive |
| (3) Hydraulic quick release | Yes |
| (4) Mechanical pilot joystick | Yes |
| (5) Steady rise | Yes |
| Brake System | |
| (1) Service Brake: | Four wheel disc brake |
| (2) Parking Brake: | Disc brake |
| Tyre | |
| (1) Model: | 16/70-24 Herringbone tyre |
| (2) Size: | Width: 410mm |
| Diameter: 1175mm | |
| Wheel Base: 2550mm | |
| Track: 1600mm | |
| System Pressure: | 20Mpa |
| Weight: | 6000KG |

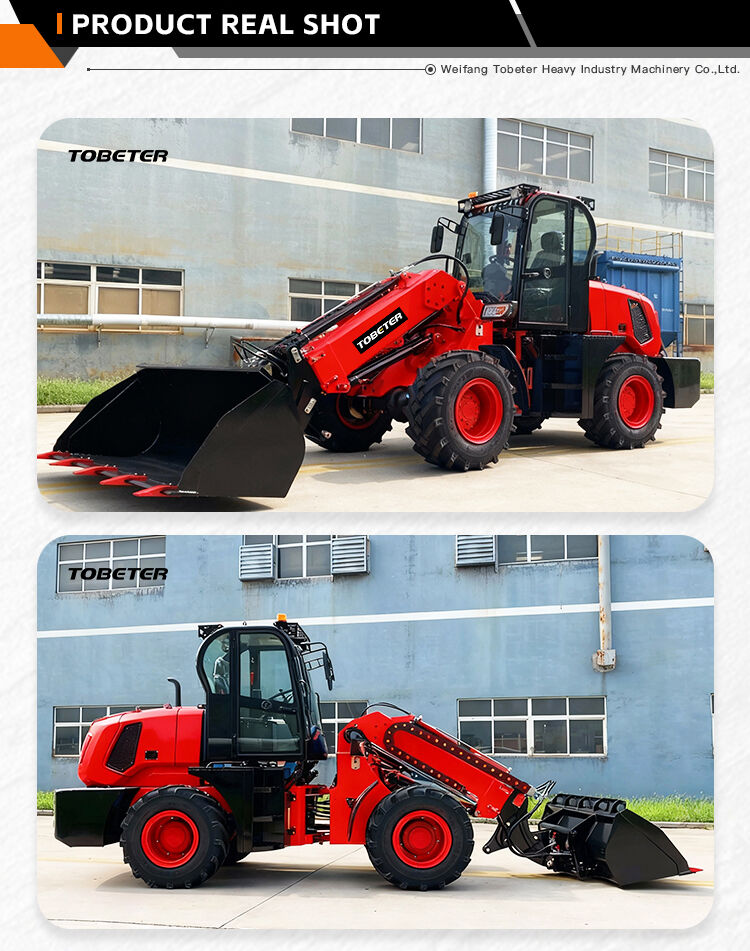

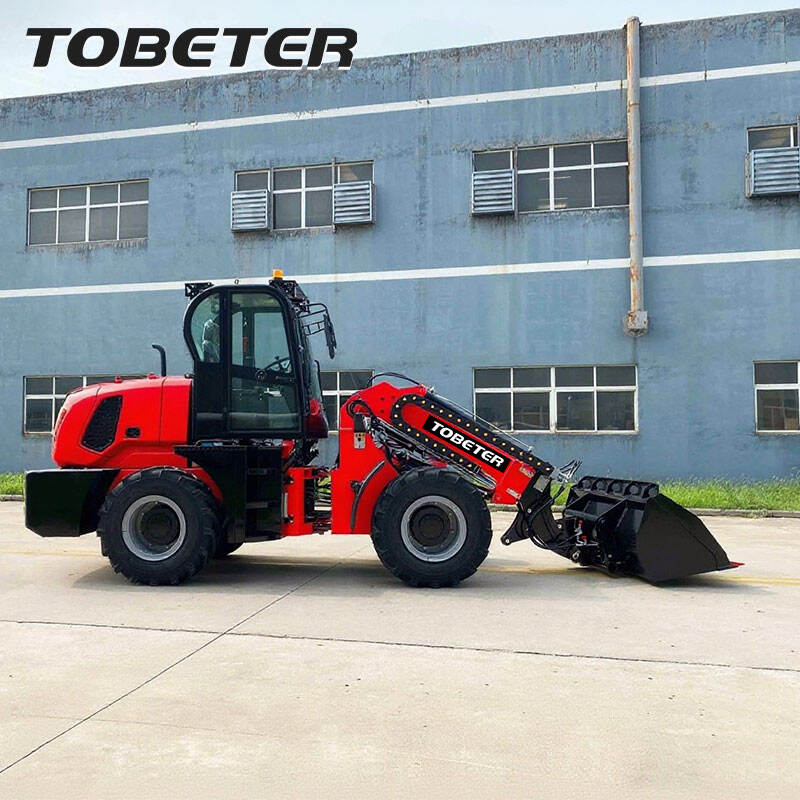

This telescopic wheel loader is equipped with an efficient engine, providing ample power and low fuel consumption. It can easily handle small and medium-sized construction sites, logistics areas, and short-distance mining transportation operations. Whether it is heavy-duty loading or rapid transportation, it can ensure stable and efficient working performance.

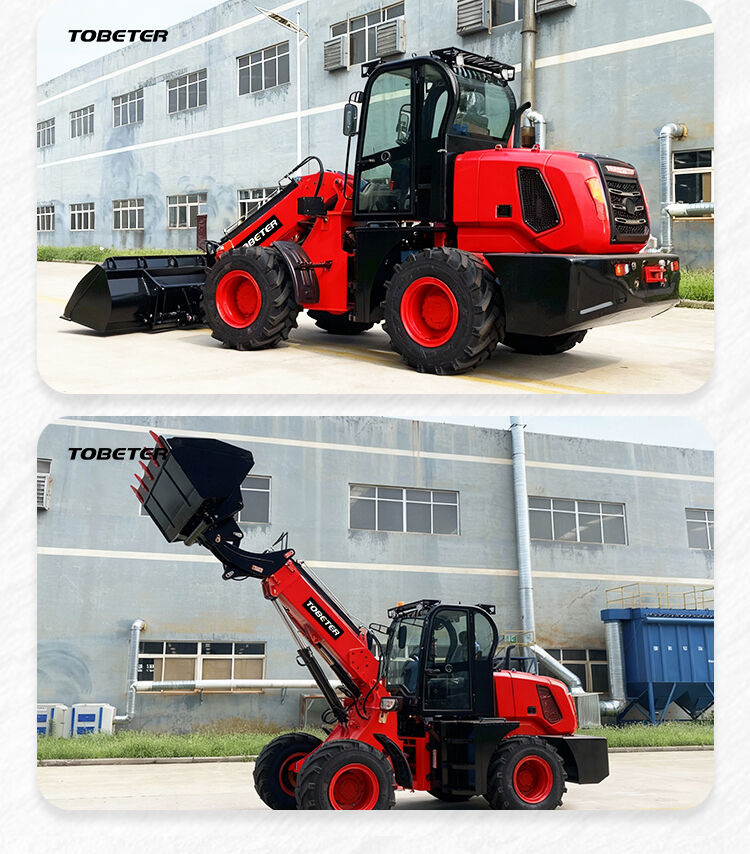

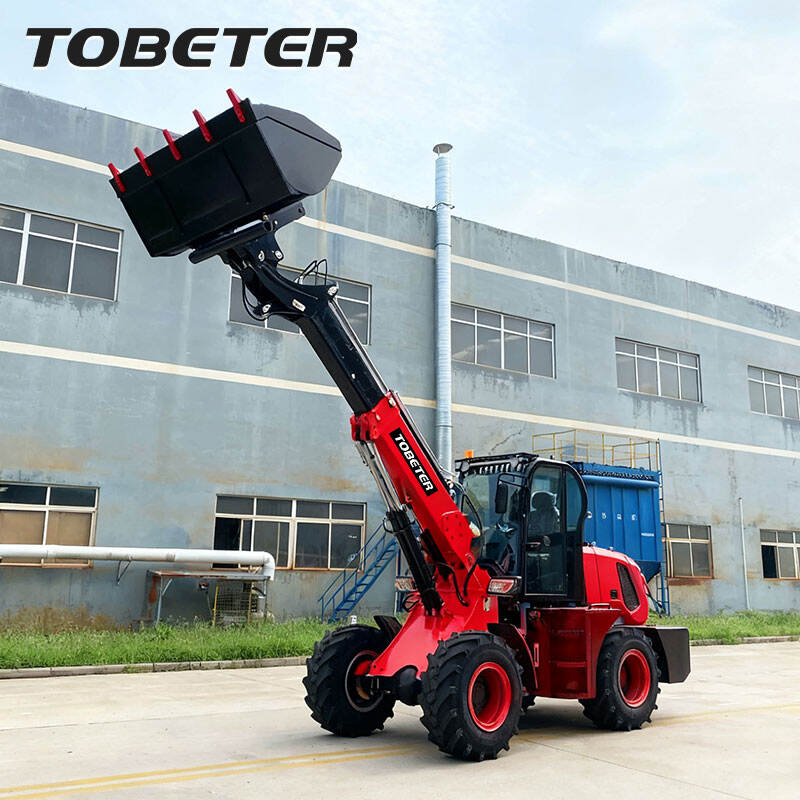

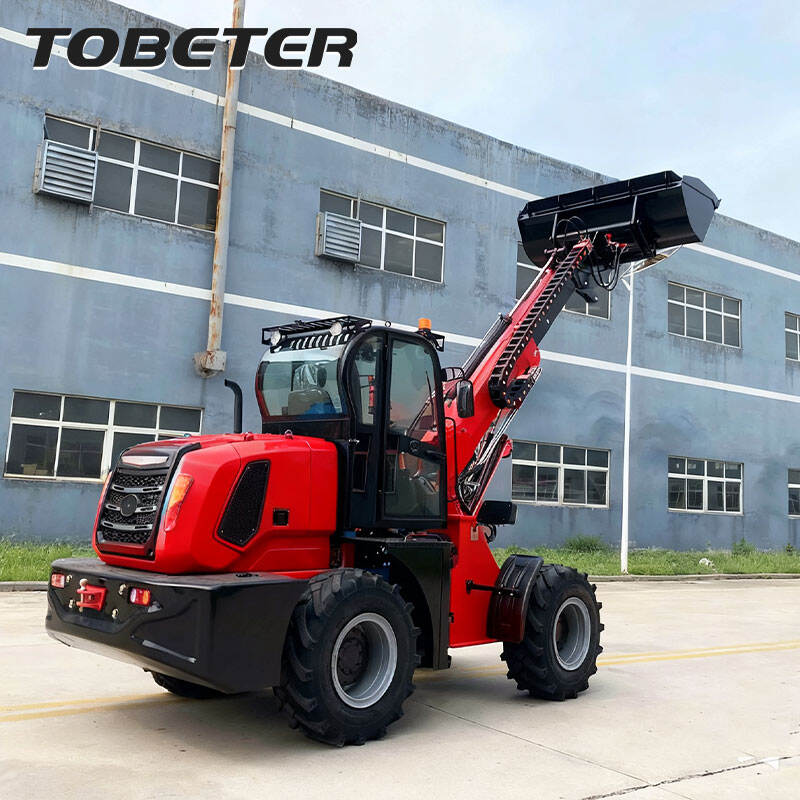

It adopts a telescopic arm structure, combined with a hydraulic buffering system, which effectively reduces vibrations during operation, improving the stability and accuracy of the work. The telescopic arm can flexibly adjust the working height and distance, enabling it to adapt to various scenarios such as loading and unloading goods, stacking operations, and pipeline construction.

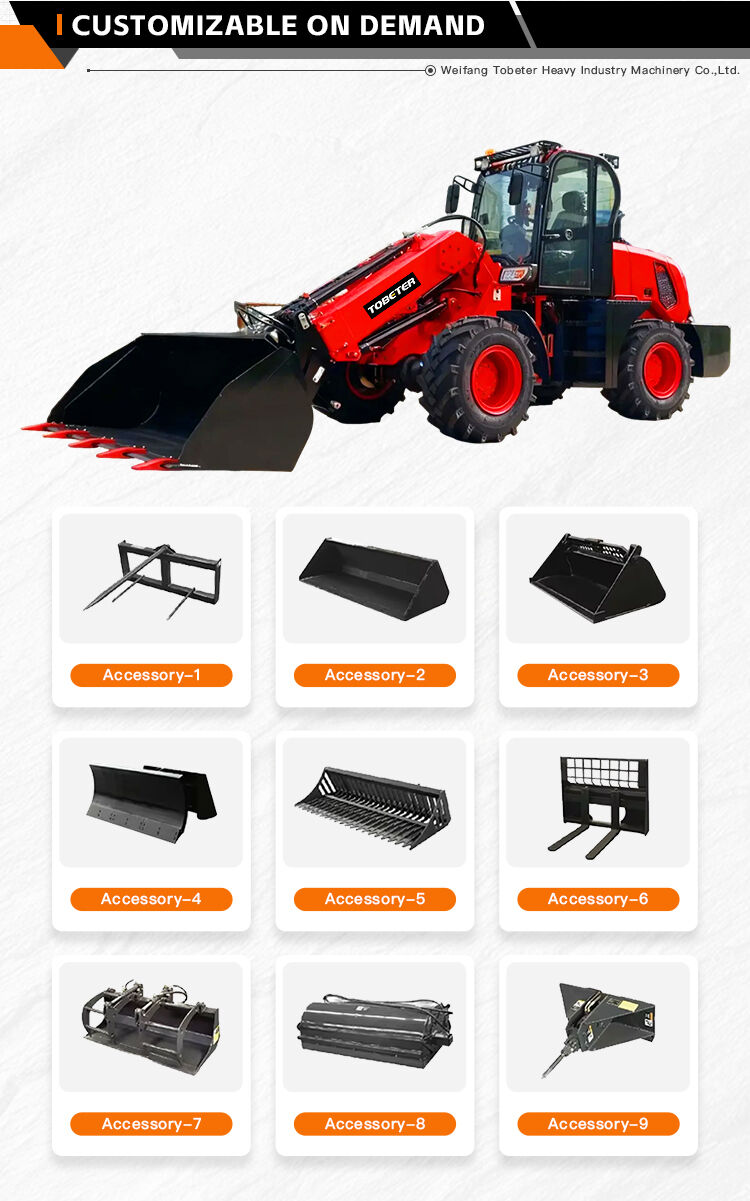

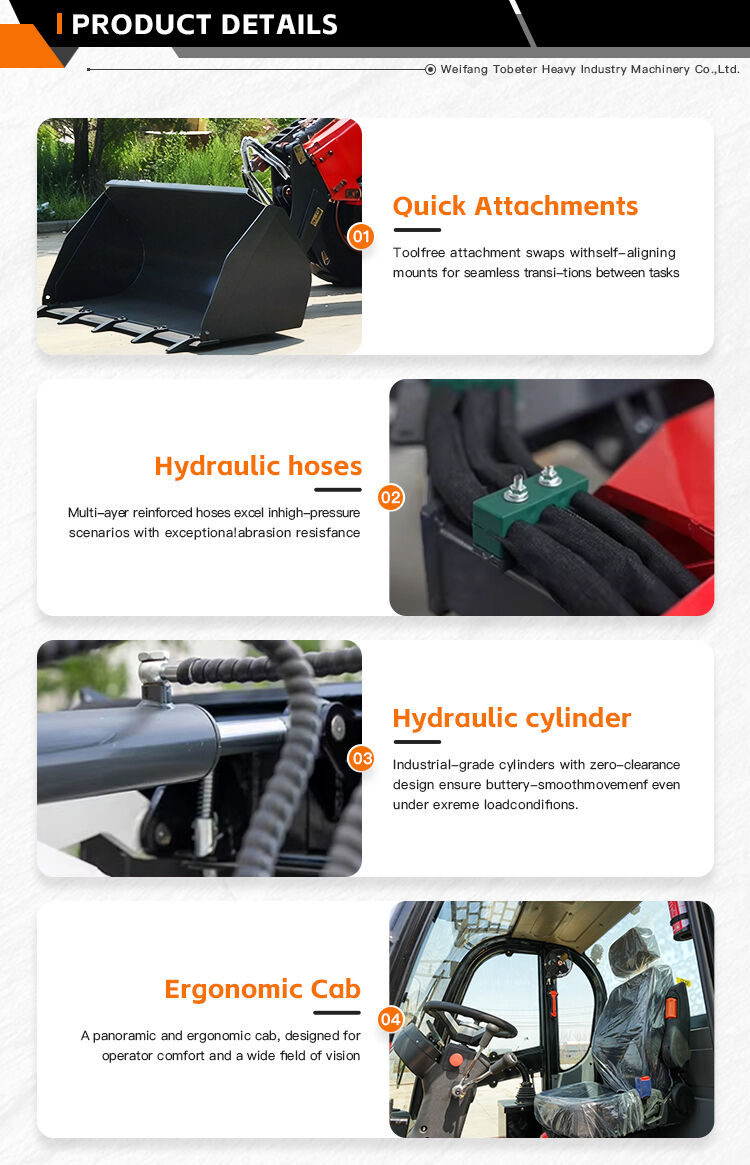

The wheel loader is equipped with a variety of quick-change attachments, such as buckets, forklift devices, grabbers, etc., which can meet various operational requirements. At the same time, the cab is spacious, and the seat and control system have been ergonomically designed to reduce operational fatigue and enhance operational stability.
