1. Maximum boom lifting height of 3600 mm, boom lifting time of only 4.8 seconds.
2. Smooth and precise telescopic operation for versatile work.
3. Compact design ensures easy maneuverability in tight spaces.
1. Strong lifting capacity with stable performance.
2. Low-maintenance and durable components reduce downtime.
3. Fuel-efficient engine for lower operating costs.
Specification
| Overall weight(kg) | 2500 |
| L×W×H(mm) | 4600X1600X2500mm |
| Rated bucket capacity(m3) | 0.5 |
| Max. load(kg) | 1000 |
| Small boom lifting height(mm) | 3600 |
| Main boom lifting height(mm) | 3000 |
| Small boom dump height(mm) | 2650 |
| Main boom dump height (mm) | 2100 |
| Max. speed(km/h) | 25 |
| Bucket indicator | Yes |
| Heater | Yes |
| Reverse image | Yes |
Engine
| Model | LAIDONG LL385BT(EURO5 emission) |
| Type | Vertical, In-line , Water cooling, four-stroke diesel engine |
| Rated power(kw) | 18.8kw |
| Optional engine | EURO5 YUNNEI DEF20NJF4 18.8KW |
| EPA4 KUBOTA D1703 18.5KW/V1505 18.5KW |
Transmission System
| Type | Plunger pump + motor + drive shaft + drive axle |
| Gear shift | 1 gears ahead,1 gear astern |
Hydraulic System
| Working pressure | 16Mpa |
| Boom lifting time | 4.8s |
| Fuel tank capacity | 60L |
| Hydraulic tank capacity | 60L |
Steering System
| Type | Hydraulic steering |
| Min. turning radius(mm) | 2800 |
Tires--Standard tires: 31*15.5-15
Specification
| Overall weight(kg) | 2500 |
| L×W×H(mm) | 4600X1600X2500mm |
| Rated bucket capacity(m3) | 0.4 |
| Max. load(kg) | 800 |
| Small boom lifting height(mm) | 3600 |
| Main boom lifting height(mm) | 3000 |
| Small boom dump height(mm) | 2650 |
| Main boom dump height (mm) | 2100 |
| Max. speed(km/h) | 25 |
| Bucket indicator | Yes |
| Heater | Yes |
| Reverse image | Yes |
Engine
| Model | LAIDONG LL385BT(EURO5 emission) |
| Type | Vertical, In-line , Water cooling, four-stroke diesel engine |
| Rated power(kw) | 18.8kw |
| Optional engine | EURO5 YUNNEI DEF20NJF4 18.8KW |
| EURO5 YUNNEI DEF20CDF4 29.5KW | |
| EPA4 KOHLER KDI1903TCR 42KW |
Transmission System
| Type | Torque converter + gearbox + drive shaft + drive axle |
| Gear shift | 2 gears ahead,2 gear astern |

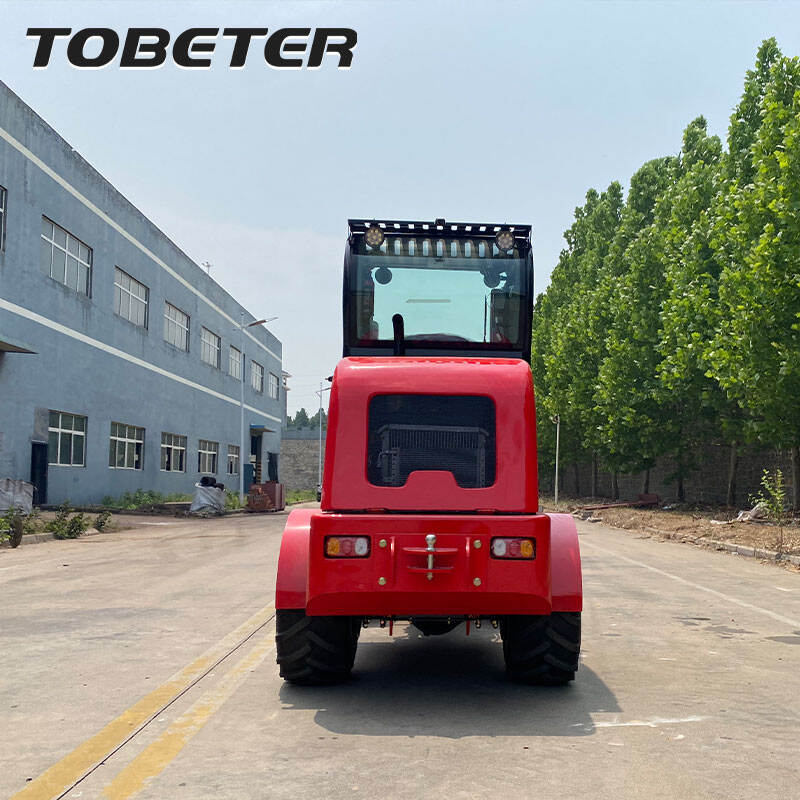

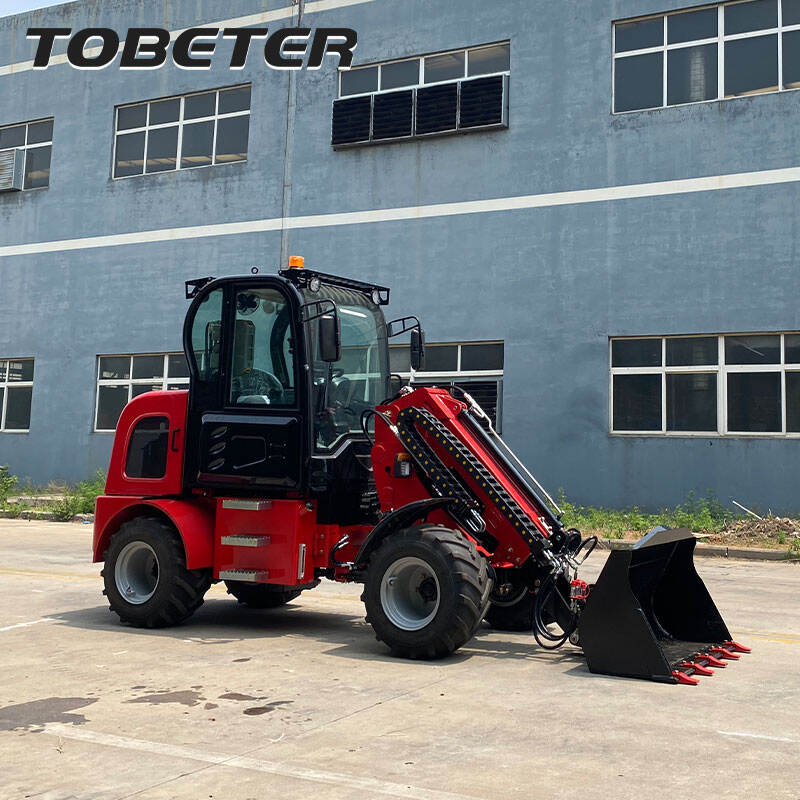

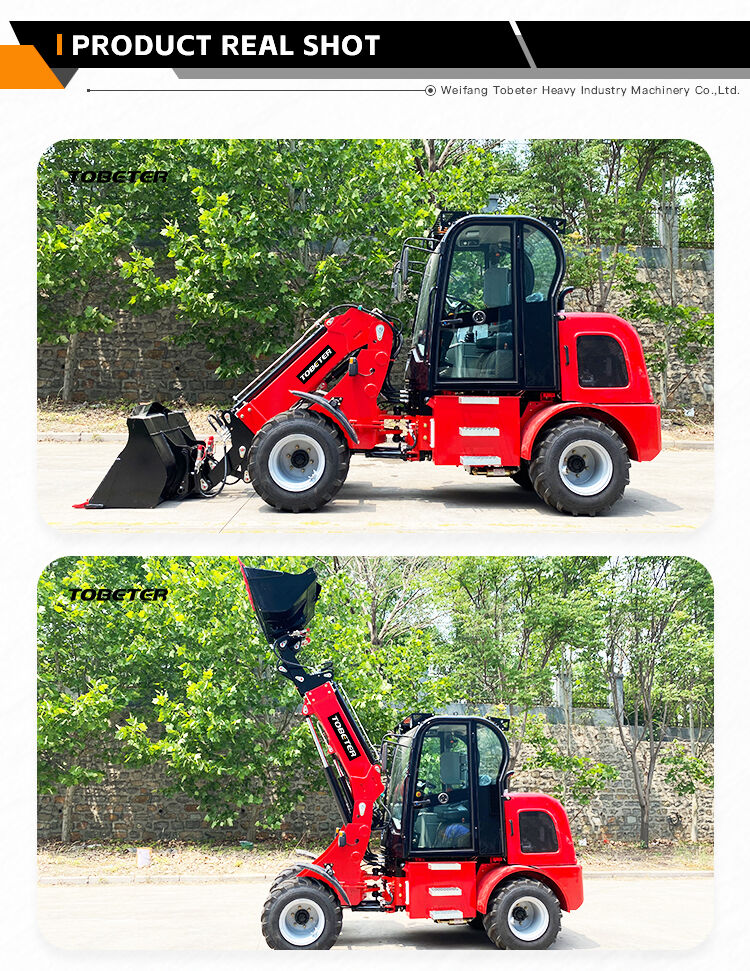

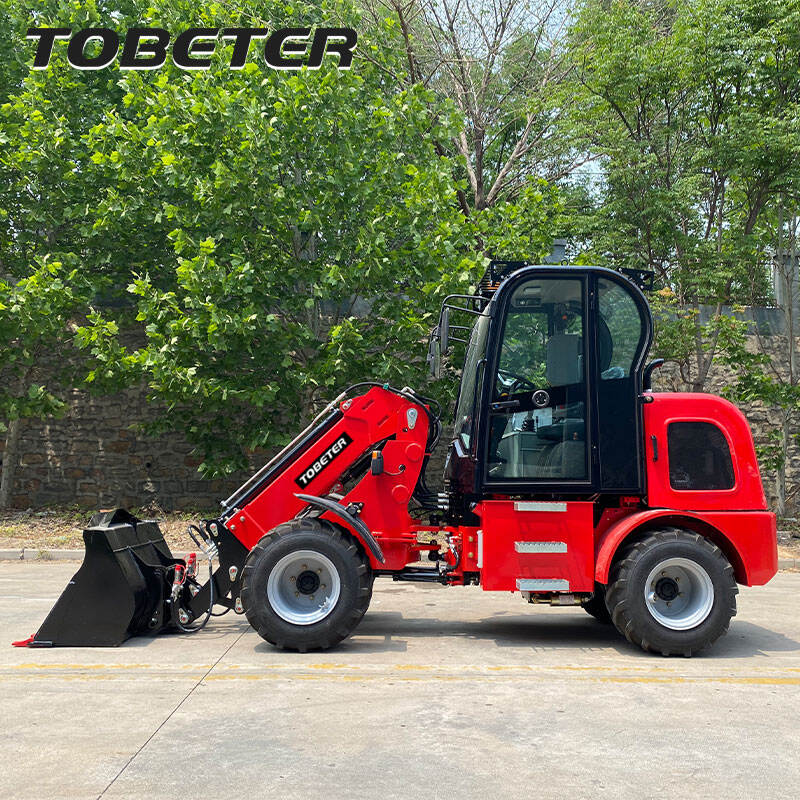

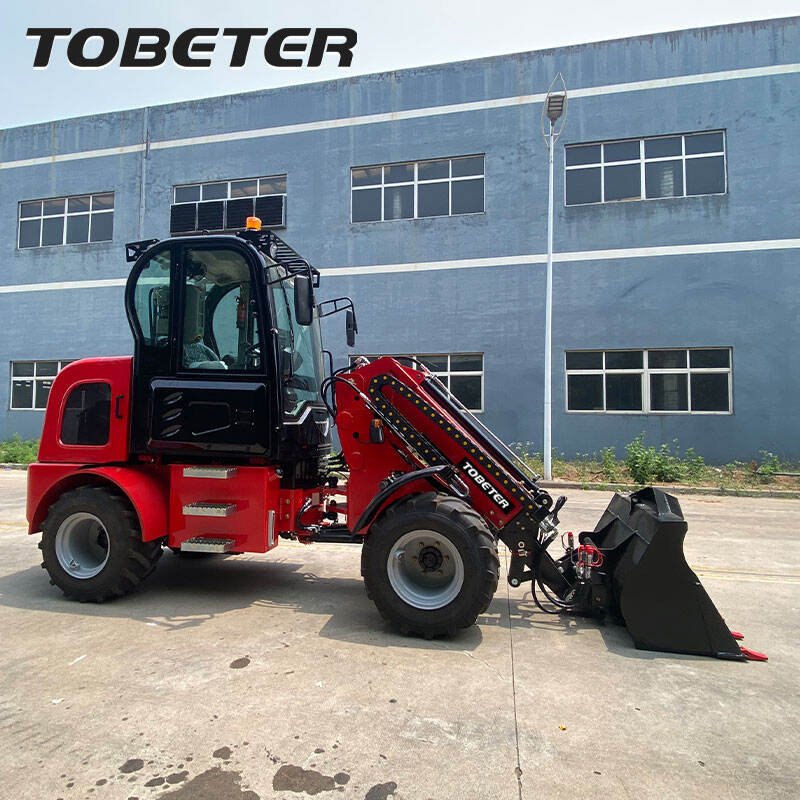

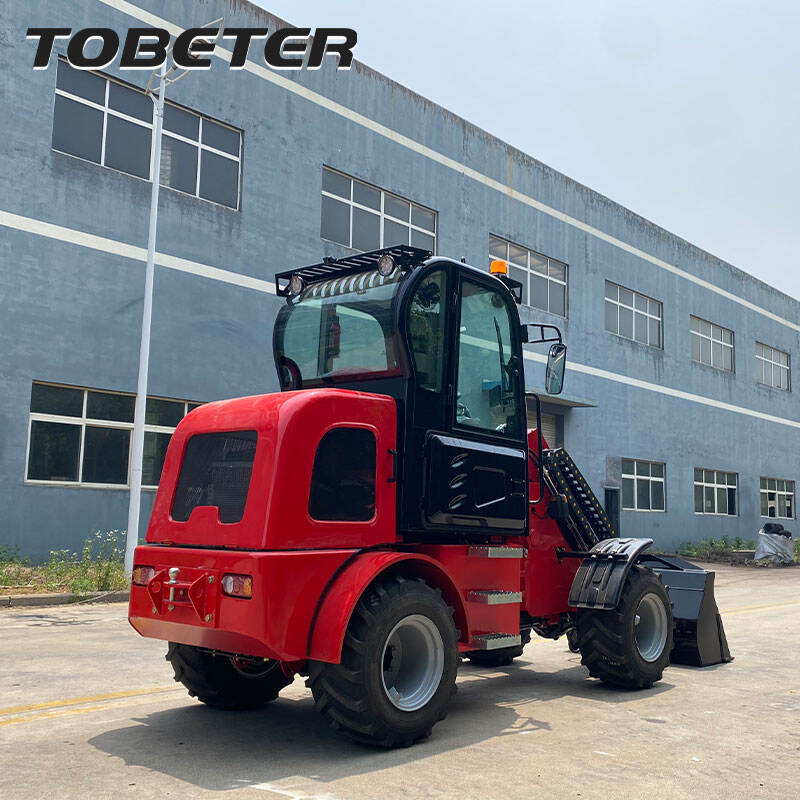

The H280T is a practical and efficient mechanical device, specially designed for small construction sites, agricultural operations and logistics storage. It can effortlessly handle material transportation, stacking and loading tasks, significantly enhancing work efficiency and making material handling in small-scale operation scenarios smoother and more convenient.

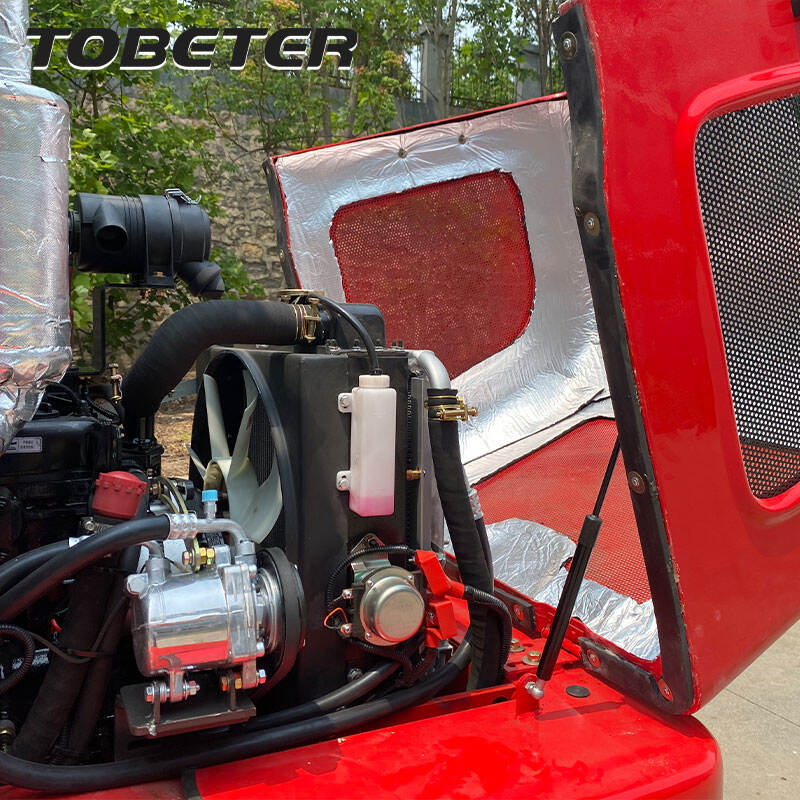

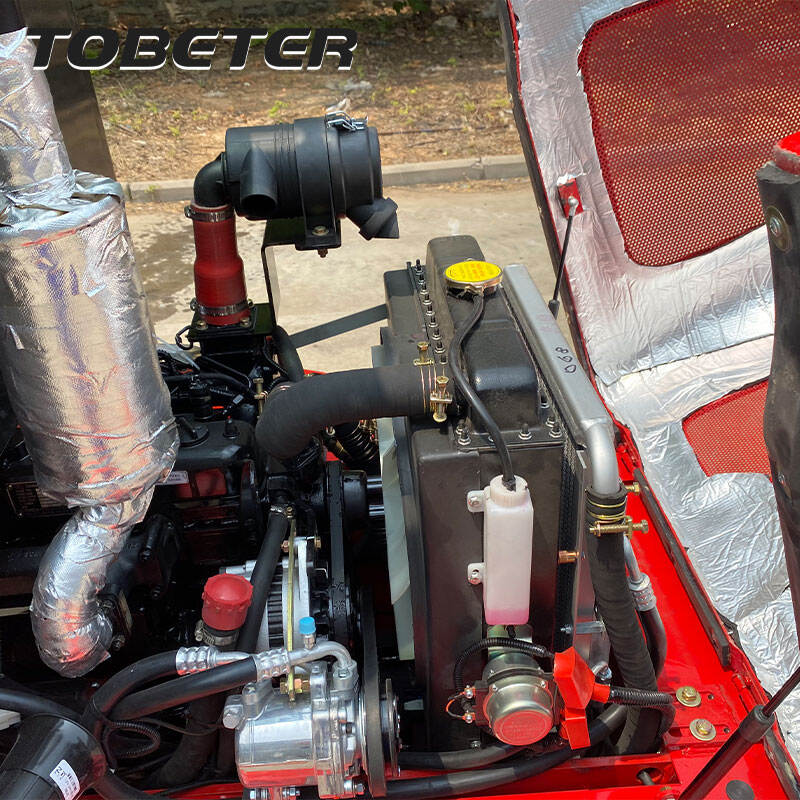

It is equipped with a high-performance engine, which is powerful and runs smoothly. It can handle various complex working environments. The engine is reliable and durable, with excellent fuel economy, effectively reducing operating costs while ensuring the continuous stability of long-term operations.

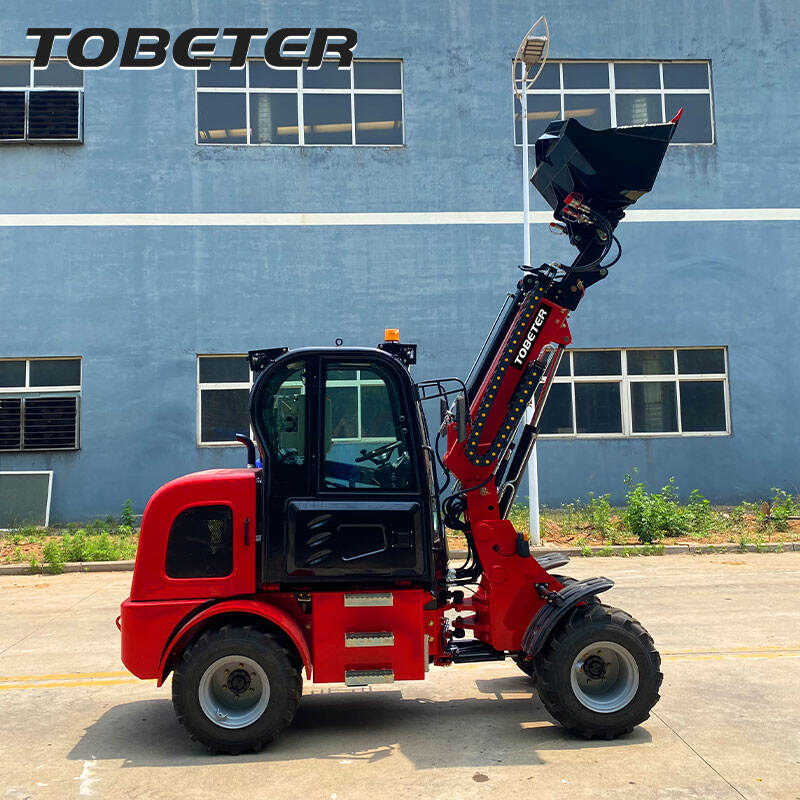

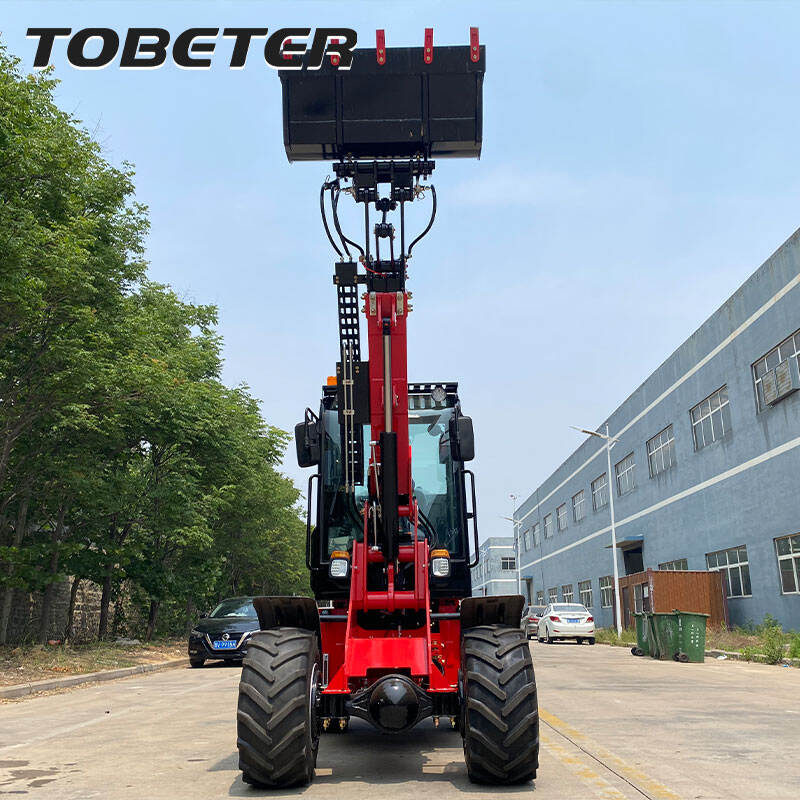

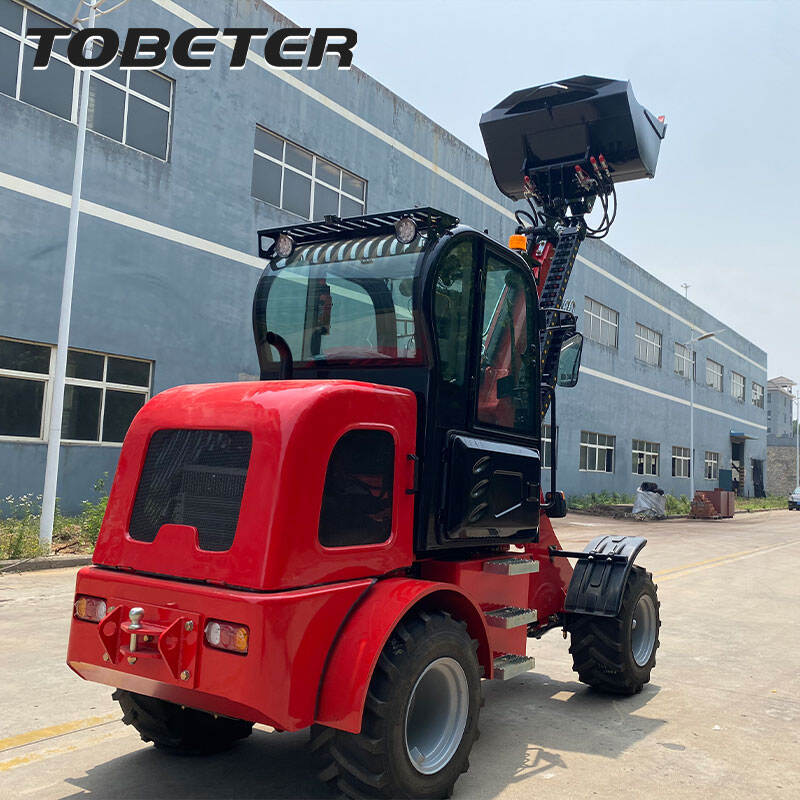

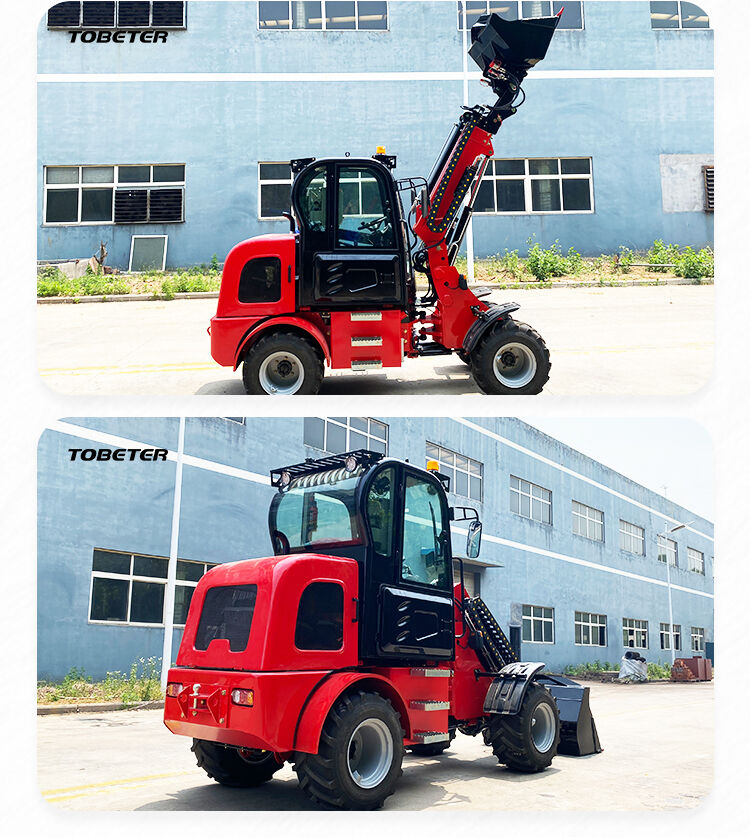

This wheel loader is equipped with a telescopic arm design. The maximum lifting height can reach 3600mm, and the lifting speed is only 4.8 seconds. At the same time, its compact body design enables it to operate smoothly even in narrow spaces.
