1. Lightweight & Efficient: The loader features a compact, lightweight structure that delivers high operating efficiency with low fuel consumption.
2. Narrow-Space Fit: Its small dimensions and short turning radius allow smooth operation in confined and narrow working environments.

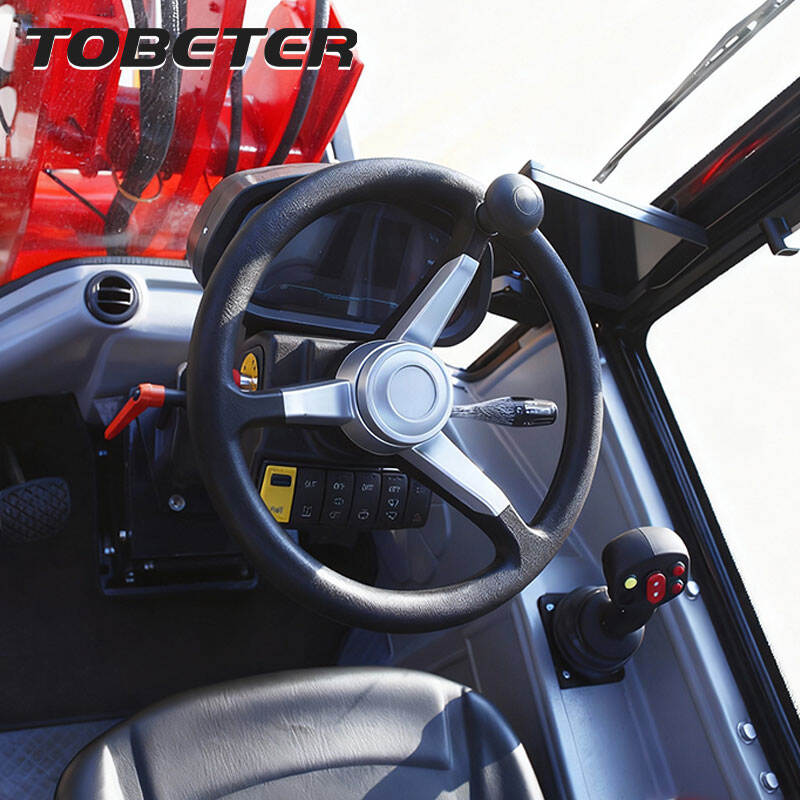

3. Easy Operation: Ergonomic controls and clear visibility make the machine easy to operate.
1. Cost-Effective Performance: Optimized power matching and simple maintenance design reduce overall operating and ownership costs.
2. Narrow-Space Advantage: Compared with similar models, it performs more flexibly and efficiently in tight spaces.
3. Reliable Quality: Key components are selected for durability, ensuring stable performance and long service life.
Specification
| Overall weight(kg) | 2500 |
| L×W×H(mm) | 4500X1600X2600 |
| Bucket capacity(m3) | 0.5 |
| Wheelbase(mm) | 1860/2240 |
| Track base(mm) | 1170 |
| Rated load(kg) | 1000 |
| Max. load(kg) | 1200 |
| Lifting height(mm) | 3500 |
| Max. dump height (mm) | 2200 |
| Min. turning radius(mm) | 2150 |
| Max. turning radius(mm) | 3850 |
| Max. speed(km/h) | 20 |
| Heater | Yes |
| Reverse image | Yes |
Engine
| Brand/Model | LAIDONG LL385BT(EURO5 emission) |
| Type | Vertical,In-line,Water cooling,3-cylinder diesel engine |
| Rated power(kw) | 18.8KW |
| Optional engine | KUBOTA D1703(EPA4/EURO5 emission,3-cylinder) |
Technical Parameter
| Transmission system | Type |
Hydrostatic(Piston pump+motor) Torque converter + gearbox + drive shaft + drive axle |
| Gear shift |
1 gears ahead,1 gear astern 2 gears ahead,2 gear astern |
|
| Hydraulic system | Working pressure | 16Mpa |
| Working flow | 32ml/r | |
| Walking flow | 16ml/r | |
| Tank capacity | Hydraulic tank capacity | 60L |
| Fuel tank capacity | 60L | |
| Steering system | Type | Hydraulic steering |
| Steering angle | 35° | |
| Tires | Standard tires | 31*15.5-15 |
| Optional tires | 400/60-15.5 | |
| Packing quantity | 2Units（1*20HQ） 5Units（1*40HC） | |

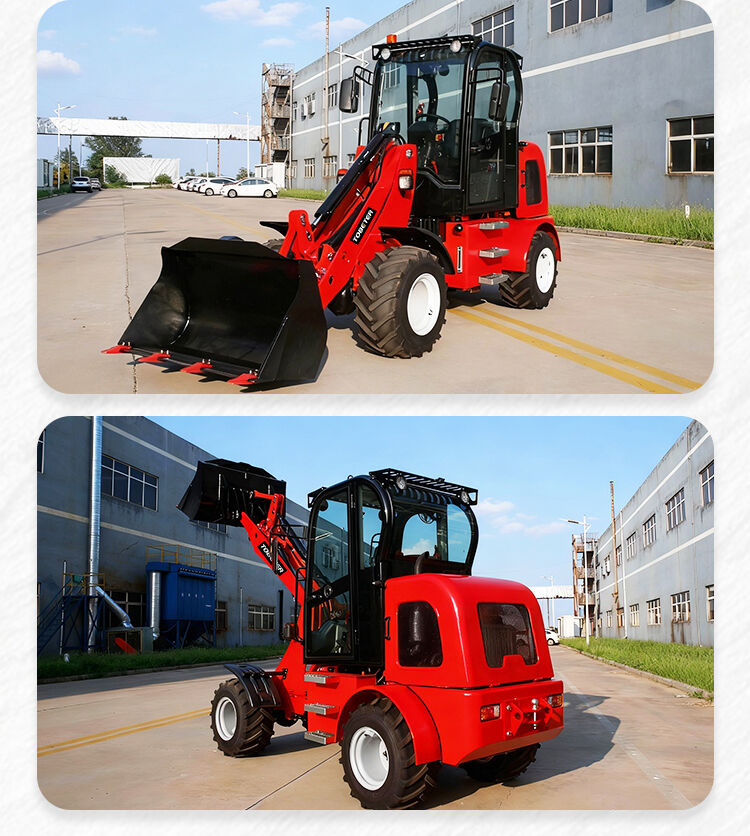

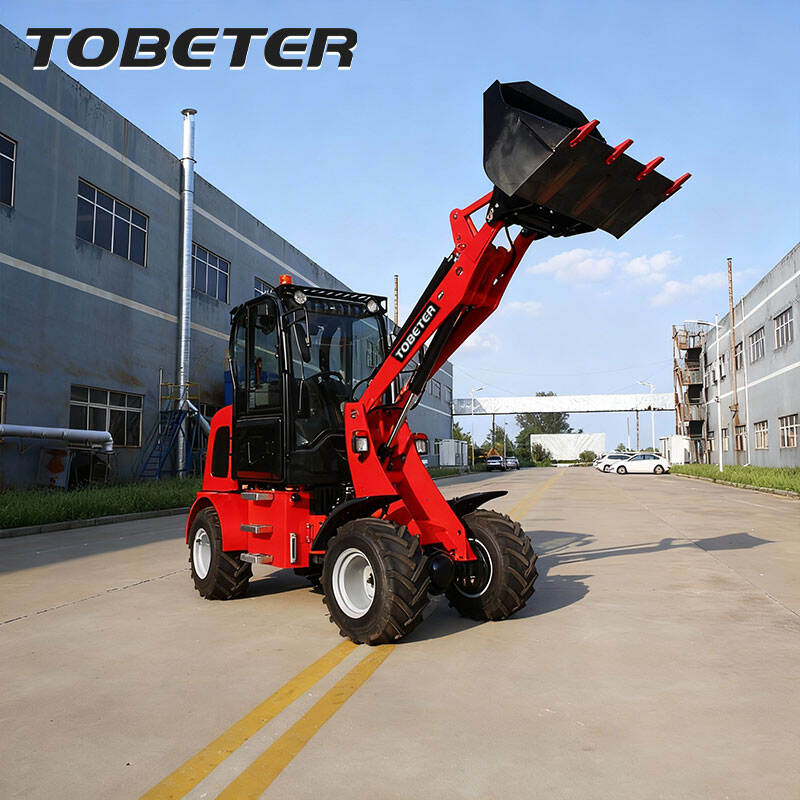

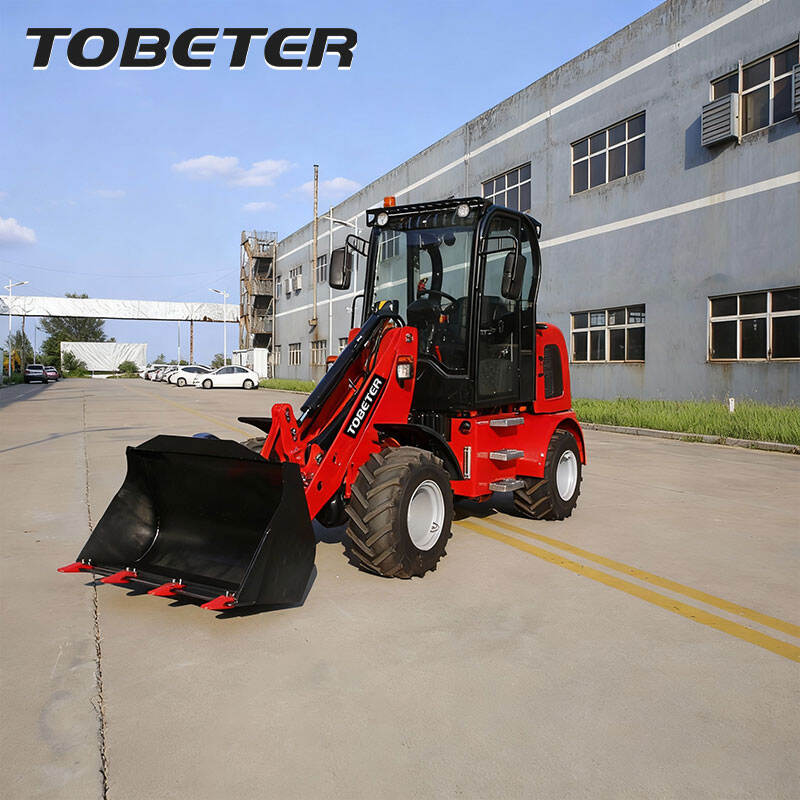

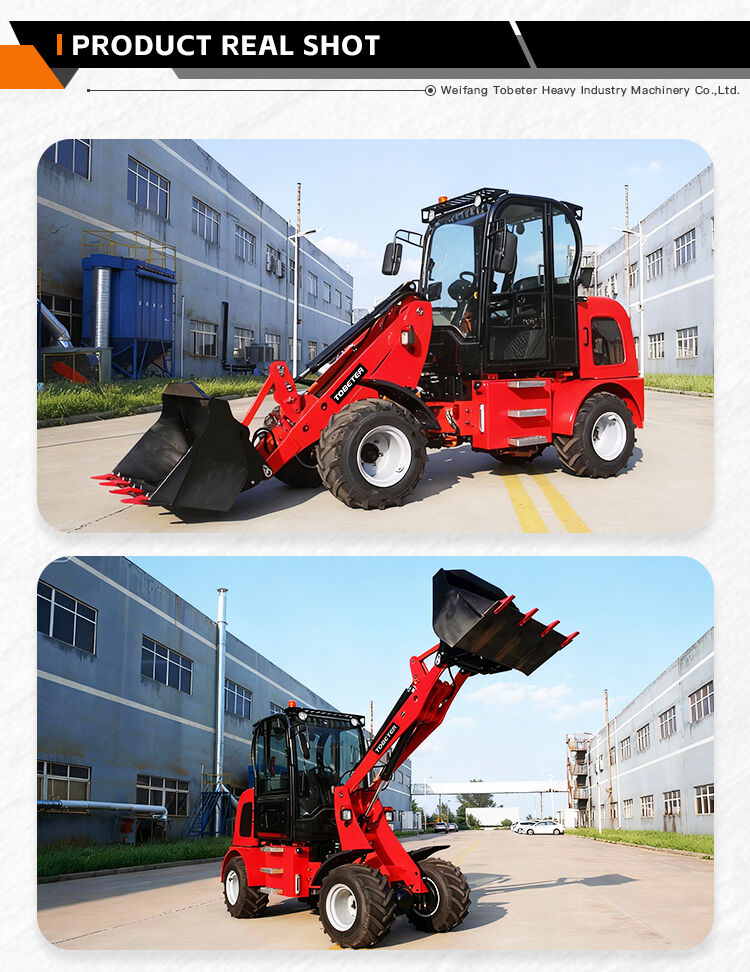

This loader is an efficient equipment specially designed for urban construction, agricultural operations, and narrow working conditions. The entire machine adopts a compact structure design, which not only ensures the operation capacity but also effectively controls the overall weight of the machine, making the transportation of the equipment more convenient and the entry and exit from the construction site more flexible.
It features a small turning radius and a flexible steering system design, enabling it to complete turning and operations within limited spaces, significantly enhancing work efficiency. The overall width and height of the machine have been optimized, allowing it to easily pass through areas with width and height restrictions, making it an ideal choice for small-scale projects and precise operations.
The small wheel loader is equipped with an efficient and reliable power system. The power output is well-matched with the hydraulic system, providing quick starting response and smooth operation. It can meet various operation requirements such as loading, transporting, and stacking materials.
