1. Versatile Lifting: 2.5 ton capacity with telescopic boom for easy material handling.
2. Compact Design: Small footprint and tight turning radius, ideal for confined spaces.
3. Attachment Flexibility: Supports forks, buckets, and more for multiple tasks.
1. Safe & Comfortable Operation: Spacious cab with excellent visibility for precise handling.
2. High Efficiency & Cost‑Effective: Compact yet powerful, reducing transport and maintenance costs.
Specification
| Load | 2500kg | Engine brand | YUNNEI/YN27GBZ |
| Lift capacity to full height | 2000kg | Engine rate power | 58KW |
| Lift capacity at full reach | 800kg | Optional engine | EURO5 standard: CHANGCHAI (55KW)/YUCHAI(55KW) |
| Lift height | 5900mm | EPA4/EURO5 standard:KOHLER KDI2504TCR(55KW) | |
| Bucket lifting force | 4205N | EPA4 standard: CUMMINS QSF2.8(55KW) | |
| Reach at maximum lift height | 450mm | Pallet fork length | 1220mm |
| Maximum forward reach | 3300mm | Hydraulic oil tank | 115L |
| Weight unload | 6600kg | Diesel tank | 63L |
| Tyre | 14-17.5 | Transmission type | Closed piston pump + walking pump/ motor + gearbox + drive axle |
| Outside turn radius(over tyre) | 4360mm | Steering type | Front Wheel Steering |
| Overall height | 2300mm | Four Wheel Steering | |
| Overall width(over tyre) | 2129mm | Crab Steering | |
| Inside width of cab | 800mm | Drive type | 4 wheel drive |
| Front track | 2100mm | Warranty time | 1 year or 1200 working hours |
| Wheelbase | 2297mm | Delivery time | Within 60 working days after receipt of deposit |
| Overall length(with fork) | 5200mm | Price validity | 1 year |
| Ground clearance | 380mm | Package(1*20GP) | 1 unit |

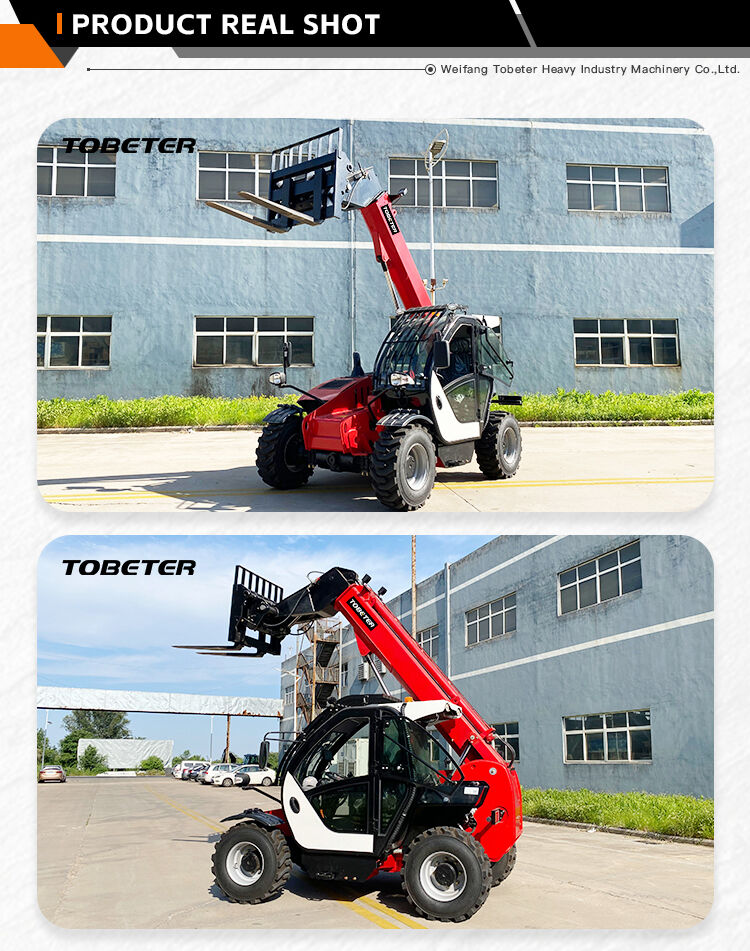

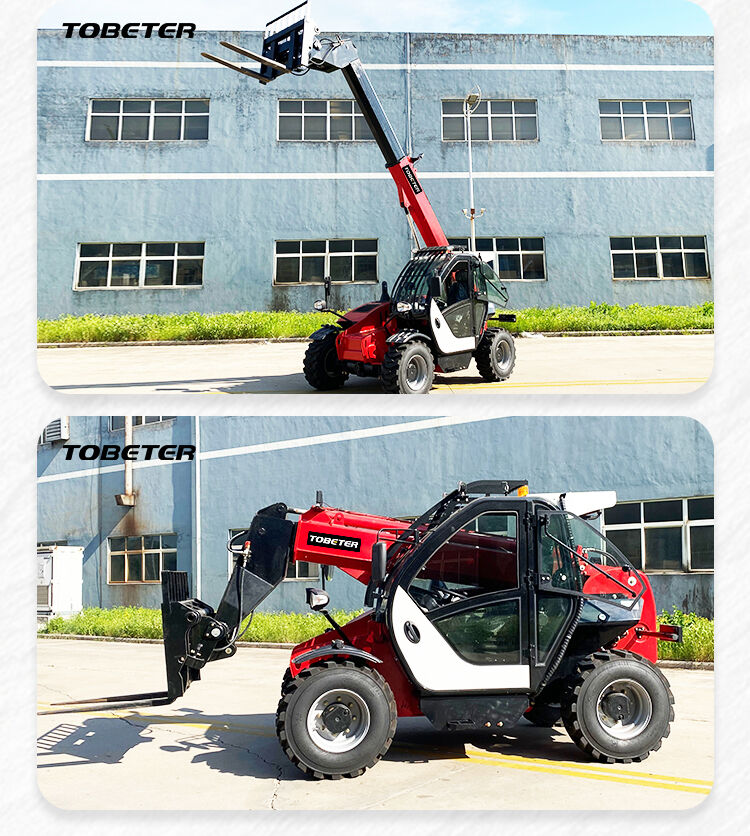

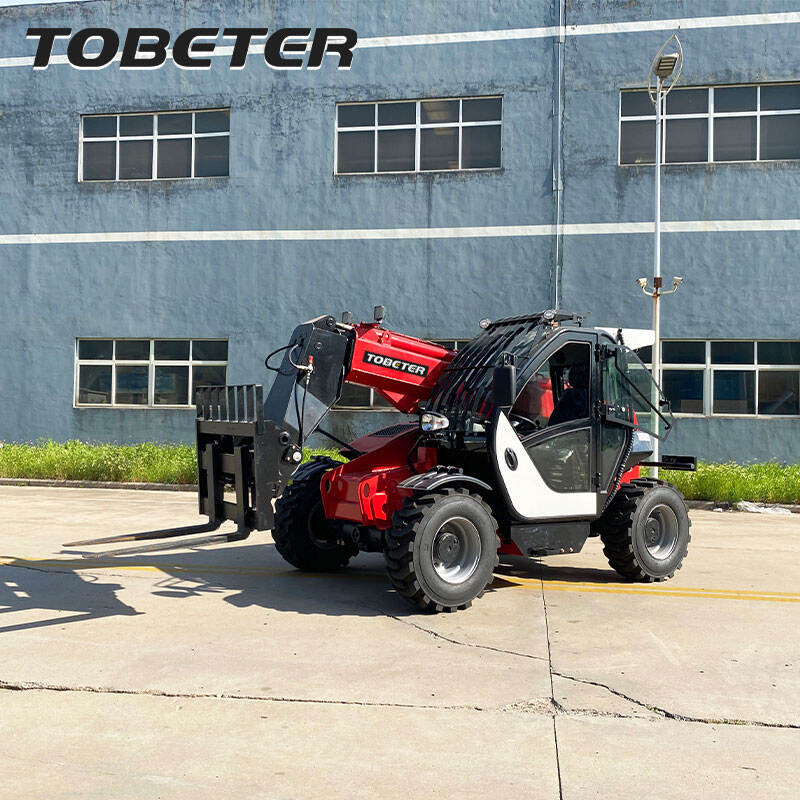

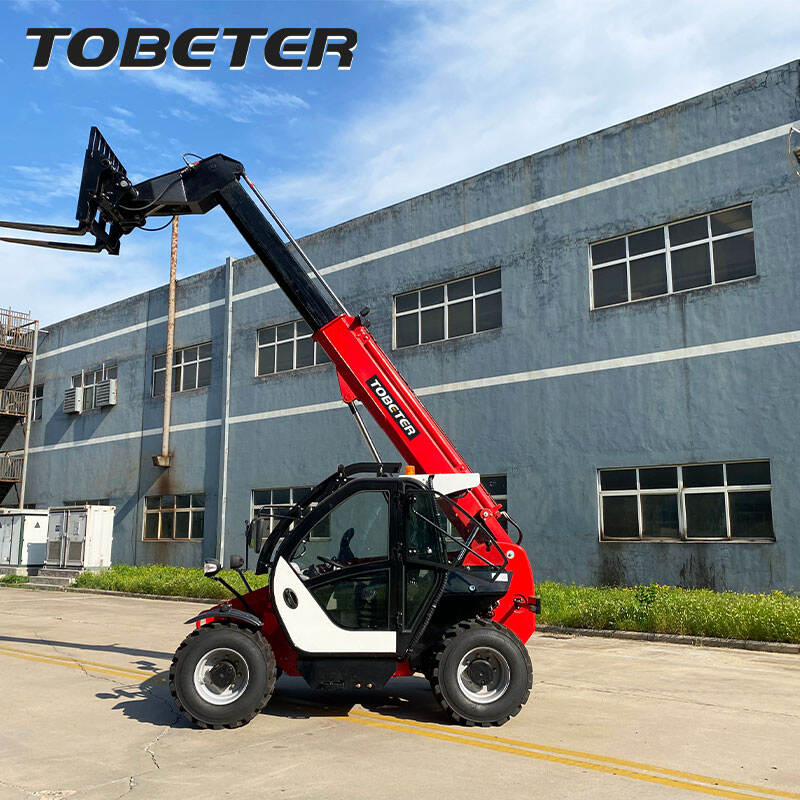

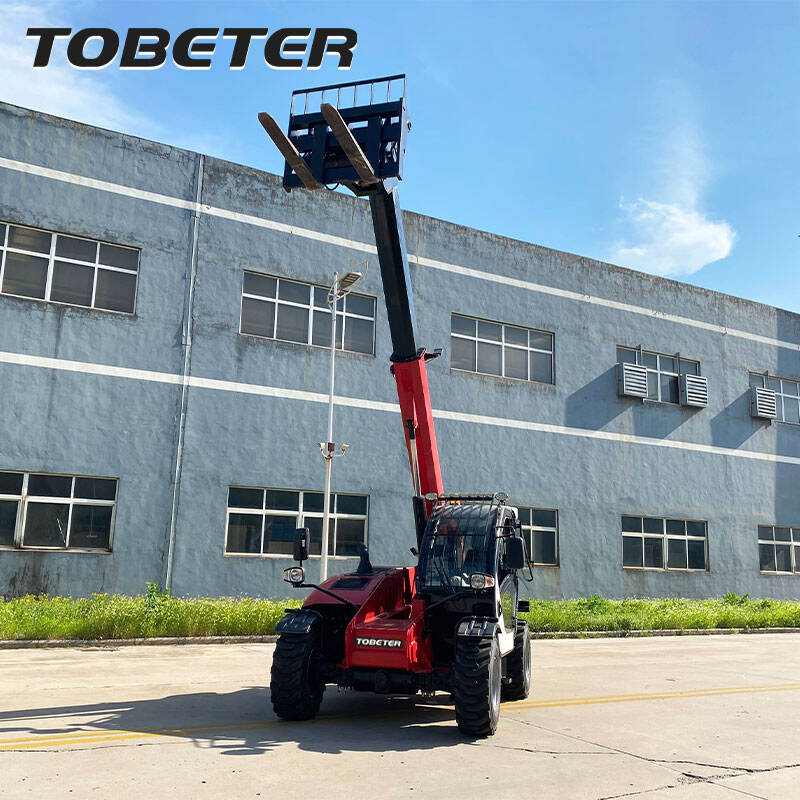

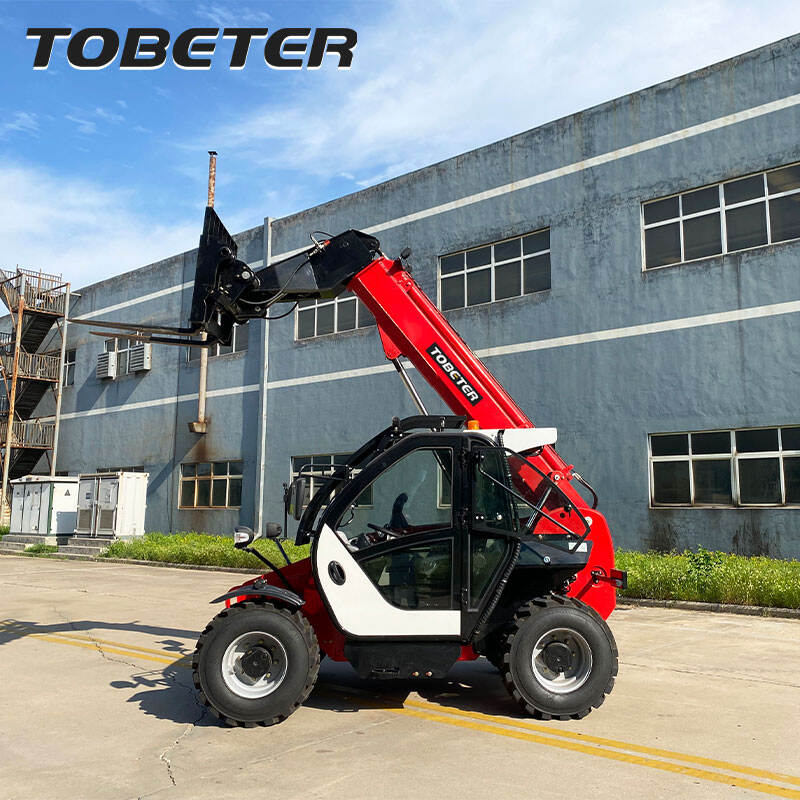

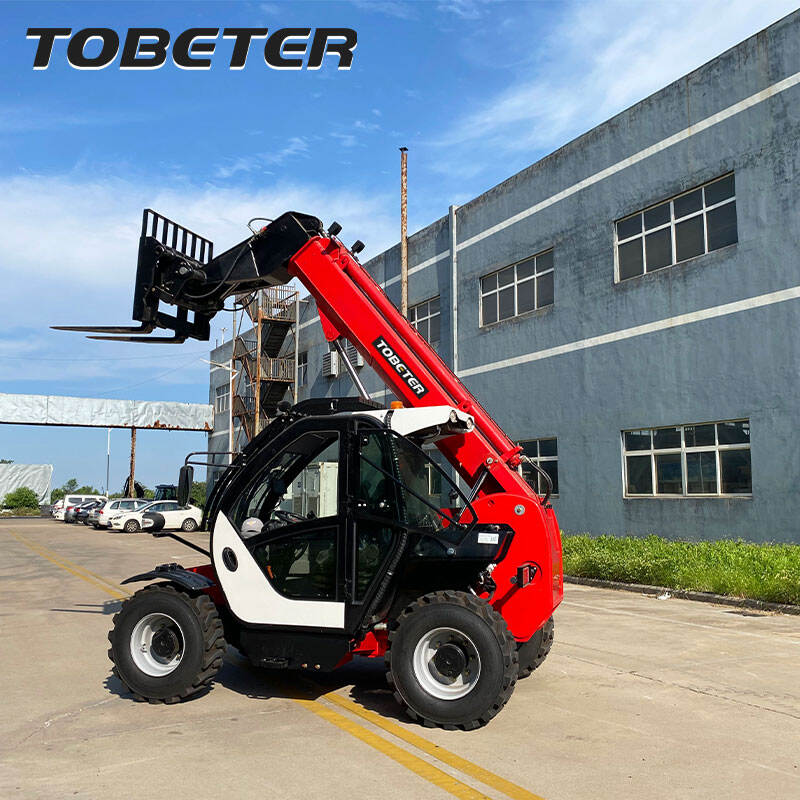

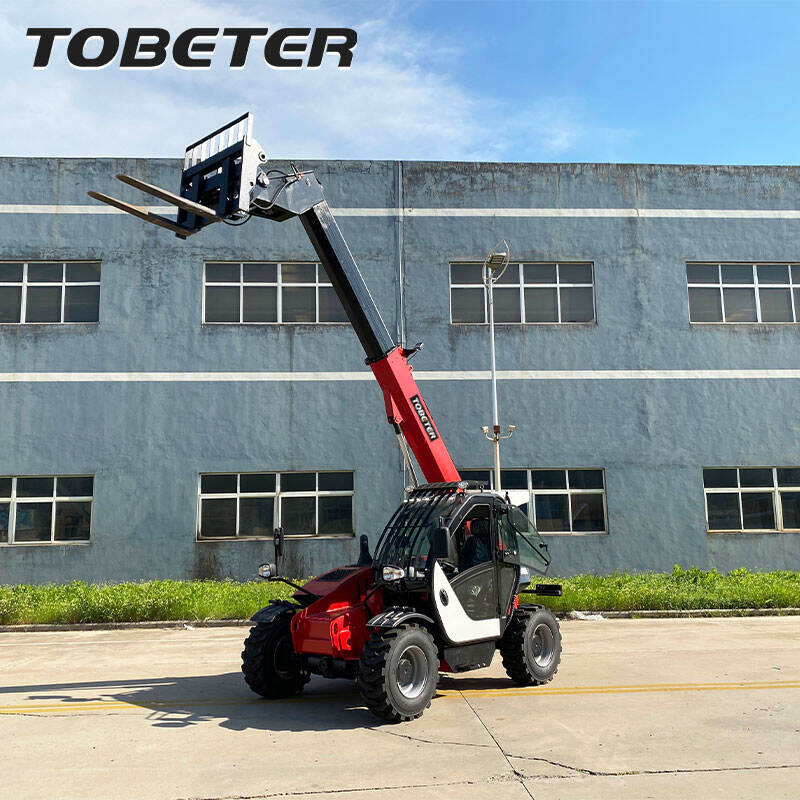

This compact telehandler has a rated load capacity of 2.5 tons and can easily meet the heavy-load requirements in various working scenarios such as construction sites, farms, and industrial warehouses. Its compact design enables it to operate flexibly even in confined spaces.
It is equipped with multiple driving modes and a four-wheel drive system, enabling it to move steadily in complex terrains and slippery environments. Combined with the telescopic arm design and the multi-functional quick mounting connector, the telehandler not only can lift goods but also can easily install attachments such as buckets and hoists, achieving multi-functional use for loading, unloading, stacking and loading in one machine.
In addition, the telehandler is equipped with an efficient diesel engine, which provides ample power and excellent fuel economy. It also complies with the latest emission standards, reducing its impact on the environment. Its reliability and low maintenance costs make the telehandler an ideal choice for small and medium-sized construction and logistics operations.
