1. Compact and Versatile Design: Integrates loading and excavation functions into one unit, with a compact structure, making it an ideal choice for small construction sites and urban projects.
2. High Maneuverability: The short wheelbase and flexible steering system enable it to operate efficiently in narrow spaces and restricted working areas.
3. Reliable Performance: Equipped with a stable power system and reinforced structure, ensuring stable and reliable performance.
1. Cost-Effective Operation: Lower fuel consumption and simplified maintenance help reduce operating costs.
2. Easy Operation and Maintenance: User-friendly controls and accessible service points ensure easy operation and fast maintenance.
Performance
| Rated load | 600kg |
| Operation weight | 2250kg |
| Shovel width | 1060mm |
| Bucket capacity | 0.4cbm |
| Max. grade ability | 30° |
| Min. ground clearance | 200mm |
| Wheelbase | 1780mm |
| Steering angle | 46° |
| Max. dump height | 2286mm |
| Max.lifting height | 3536mm |
| Hinge pin height | 2900mm |
| Dump distance | 390mm |
| Overall dimension (L*W*H) | 5300x1300x2500mm |
| Min. turning radius over tyre | 3000mm |
| Track base | 1030mm |
| Dumping angle | 45° |
| Function of leveling automatic | Yes |
| Digging depth | 2116mm |
| Digging height | 2927mm |
| Digging Radius | 3000mm |
| Digging bucket capacity | 0.1cbm |
Engine
| Brand/Model | COPY YANMAR |
| Type | Vertical, in-line, water cooling, 3-cylinder |
| Rated power | 19KW |
Transmission system
| Type | Closed Hydrostatic (pump + motor) |
| Pump type | Variable displacement piston |
| Drive type | Four wheel drive |
| Max. speed | 20km/h |
Hydraulic system
| Pump maximum flow | 42L/min |
| Pump maximum pressure | 200bar |
Electric system
| System Voltage | 24V |
| Alternator | 65Ah |
| Battery | 60Ah |
Tyre
| Tyre model | 26x12.00-12 |
| Optional Tyre | 31x15.5x15 |
Filling capacity
| Hydraulic oil tank | 45L |
| Fuel tank | 45L |
| Engine oil | 7.1L |

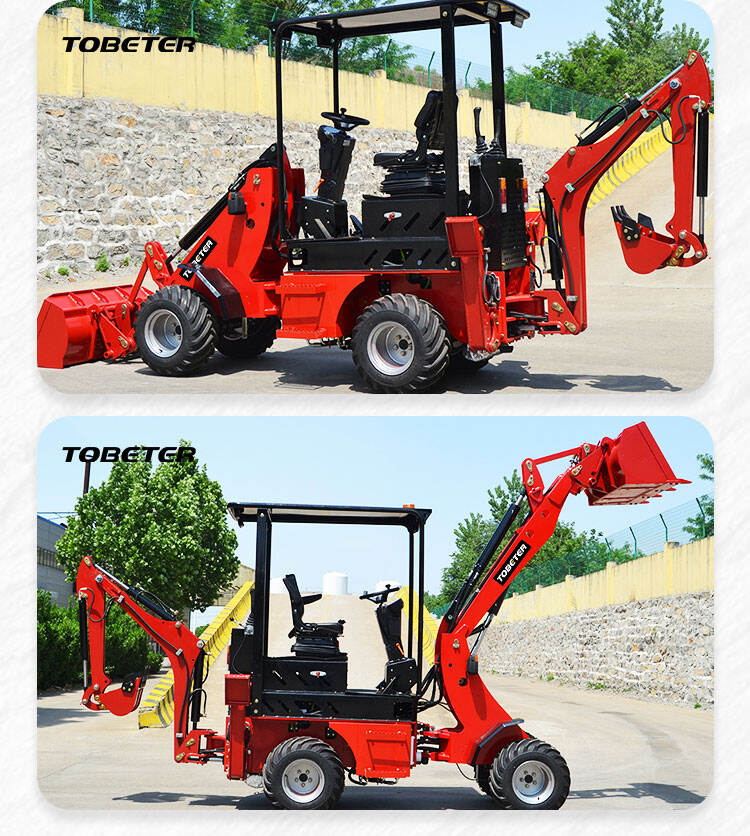

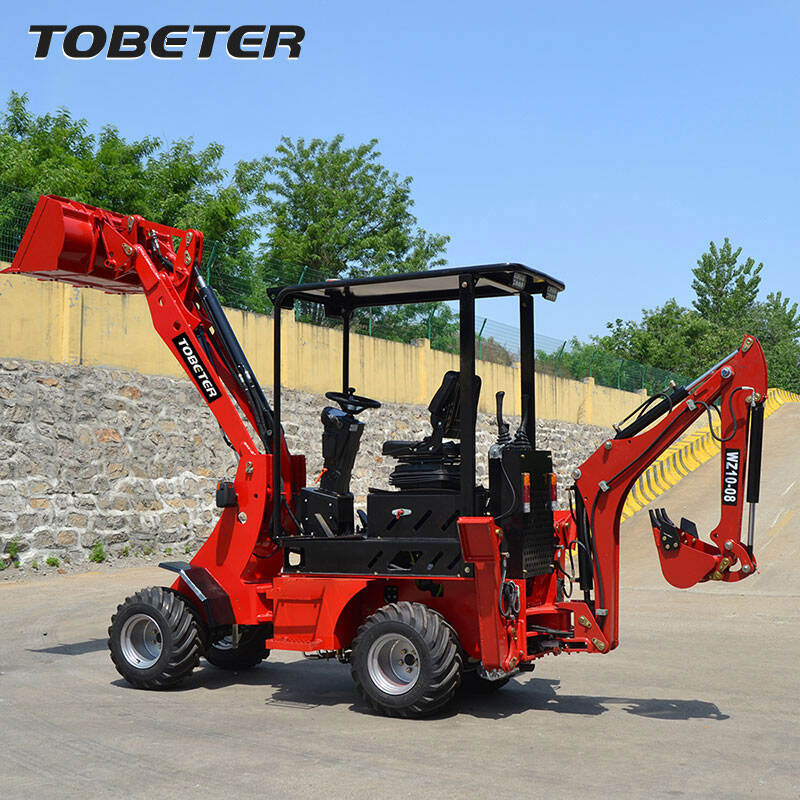

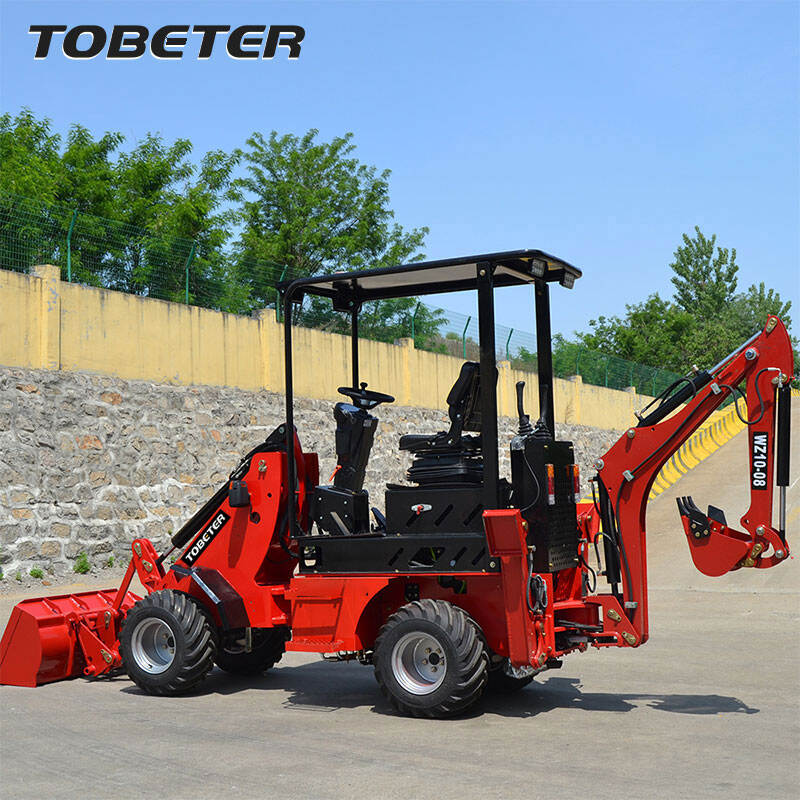

This small backhoe loader is specifically designed for applications such as small-scale construction, municipal maintenance and rural development. The overall structure is compact and the size is small. While ensuring the operational capabilities, it significantly enhances the maneuverability and flexibility, making it particularly suitable for operations in narrow spaces and complex conditions.
It is equipped with a stable and reliable power system with smooth power output. It can meet various operational needs such as daily loading, trench digging, backfilling, and leveling. The front loader is suitable for material handling and stacking operations, while the rear digging device can efficiently complete tasks like trench excavation and foundation construction. This one machine with multiple functions significantly enhances construction efficiency.
In addition, this backhoe loader features a well-designed structure and key components that are robust and durable, ensuring excellent stability and durability. At the same time, the user-friendly operation layout reduces the labor intensity of operators and maintains a high level of comfort and safety even during long-term operation.
