1. Compact design for easy maneuverability in tight spaces.
2. Powerful engine ensures efficient loading and lifting.

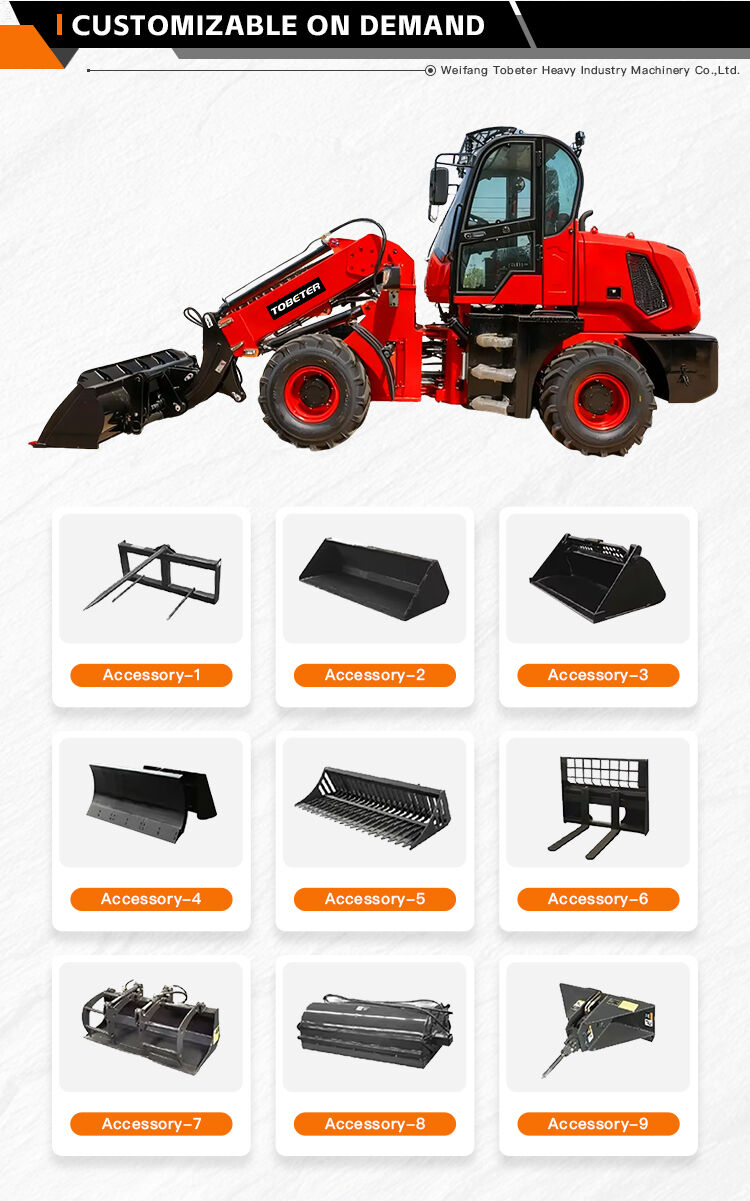

3. Versatile attachments for multiple applications.
1. Durable build with low maintenance requirements.
2. Excellent cost-performance ratio for small to medium projects.

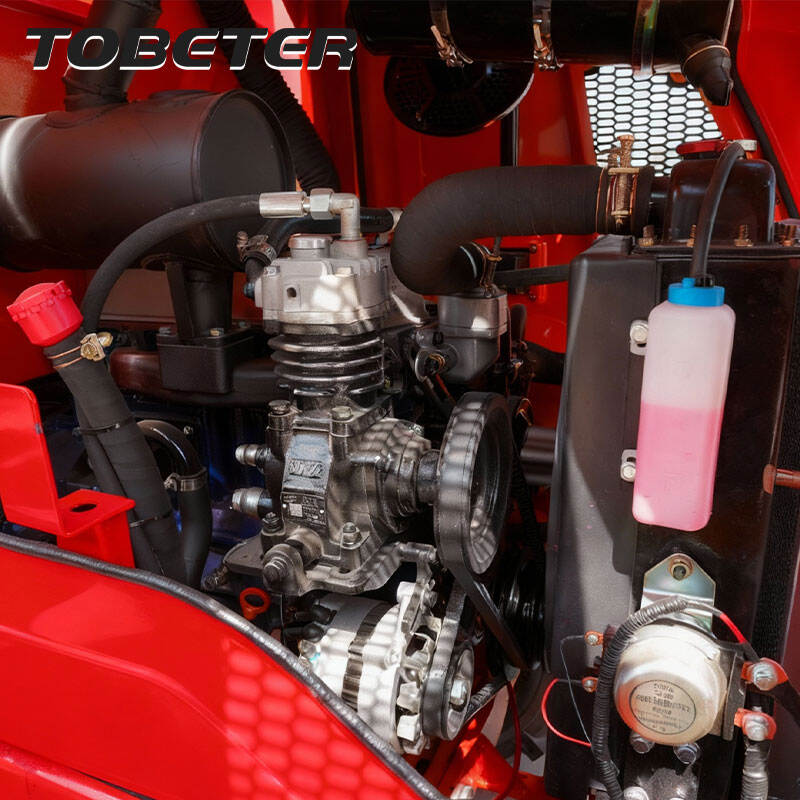

Engine
| (1) Brand/Model: | Yunnei YN27GB | |
| (2) Type: | In-line arrangement, water-cooled, four cylinder, diesel engine | |
| (3) Rated Power: | 42KW | |
| (4) Optional engine： | EURO5 CHANGCHAI/YUNNEI | |
| EPA4/EURO5 KOHLER | ||
| EPA4 CUMMINS | ||
Overall Dimensions
| (1) Overall Length: | 5800mm | |
| (2) Overall Width: | 1900mm | |
| (3) Overall Height: | 2680mm | |
| (4) Max. Discharge height: | 4400mm | |
| (5) Min. Discharge height: | 3400mm | |
Transmission System：Gearbox + Hydraulic converter + Drive shaft + Hub reduction axle(Disc brake)

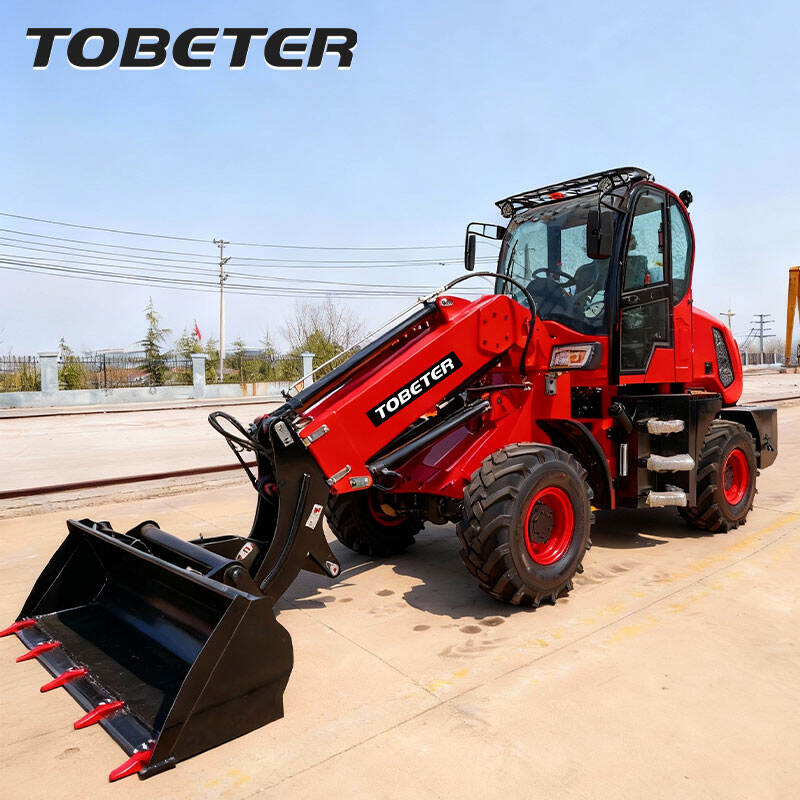

Bucket：
| (1) Capacity: | 0.75 m³ | |
| (2) Type: | Heavy-duty bolt on teeth | |
| (3) Max. Load: | 1800kg including bucket or attachment | |
Operating Specifications
| (1) Steering System: | Articulated hydraulic steering | |
| (2) Driving System: | Four wheel drive | |
| (3) Hydraulic quick release | Yes | |

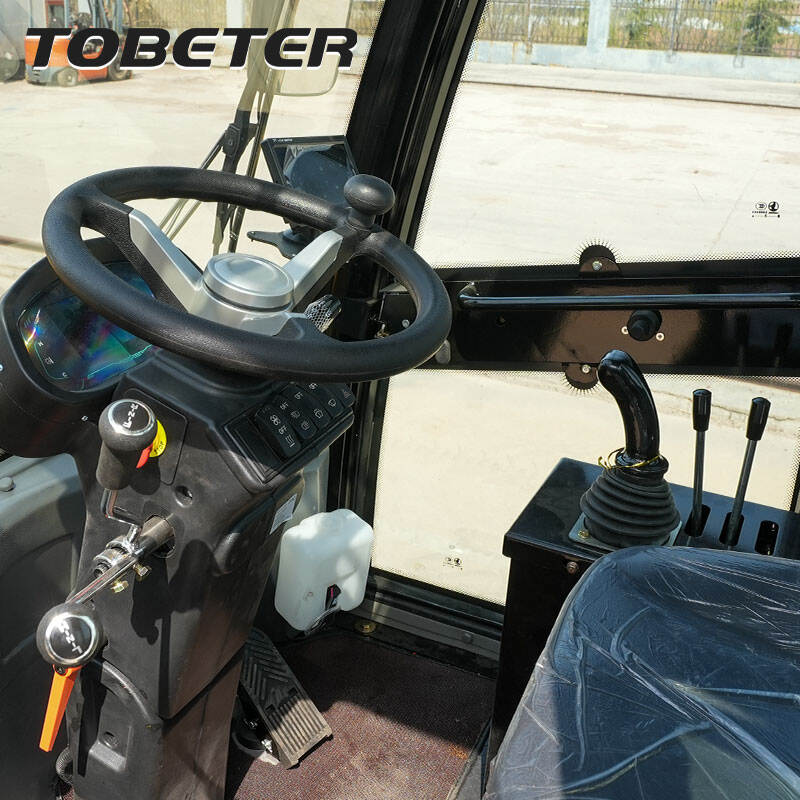

| (4) Mechanical pilot joystick | Yes | |
| (5) Steady rise | Yes | |
| Brake System | ||
| (1) Service Brake: | Four wheel disc brake | |
| (2) Parking Brake: | Disc brake | |
| Tyre | ||
| (1) Model: | 23.5/70-16 | |
| (2) Size: | Width: 330mm | |
| Diameter: 920mm | ||
| (3)Optional model: | 14-17.5 tubeless tires | |
| Wheel base: 2500mm | ||
| Track: 1550mm | ||
| System pressure: | 16Mpa | |
| Weight: | 4500KG | |

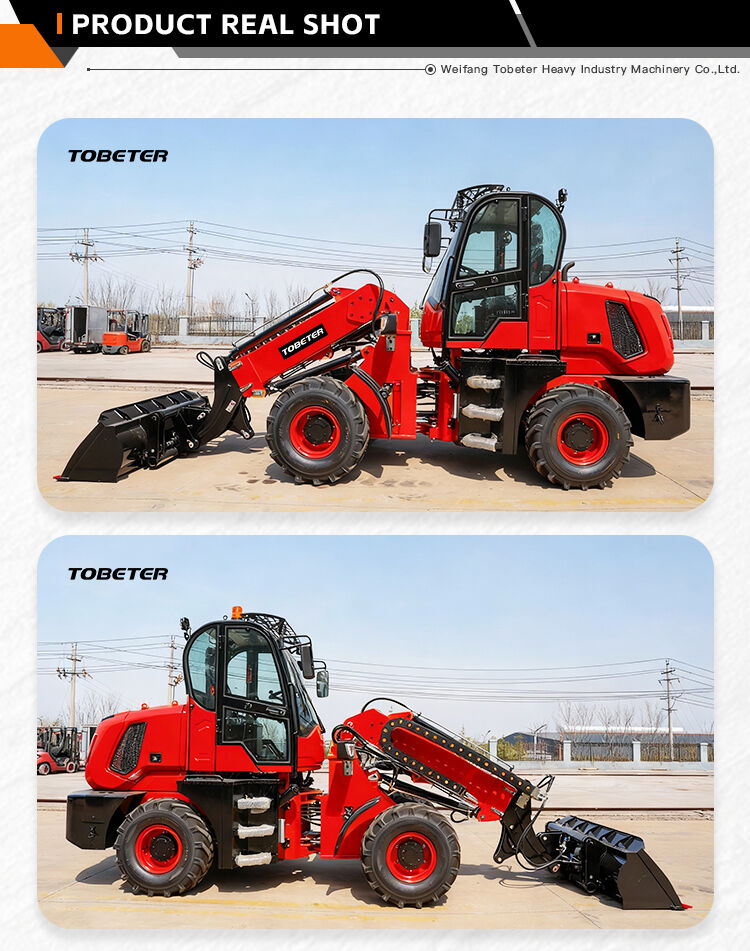

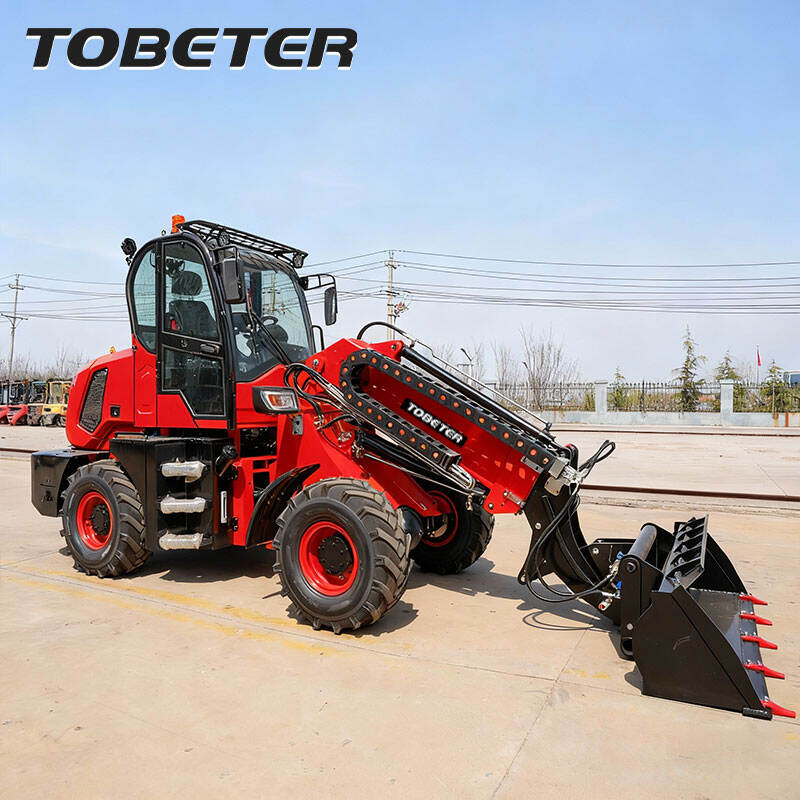

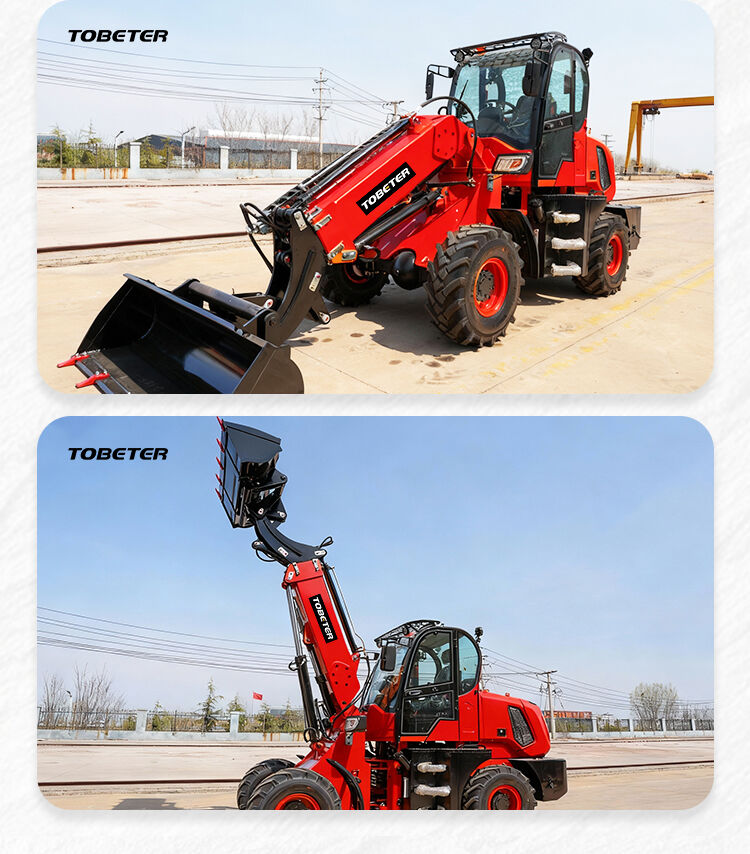

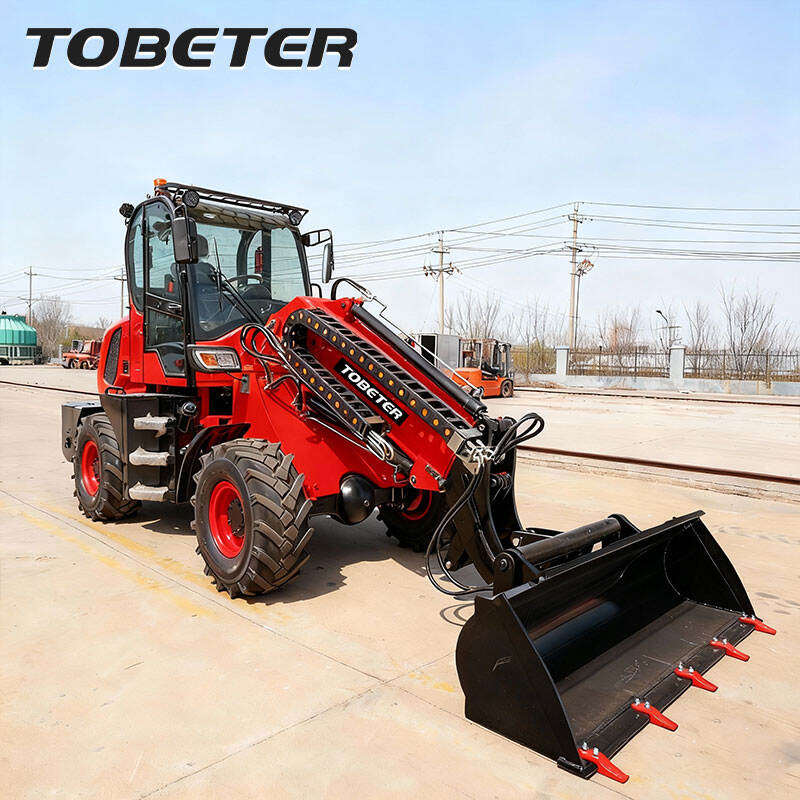

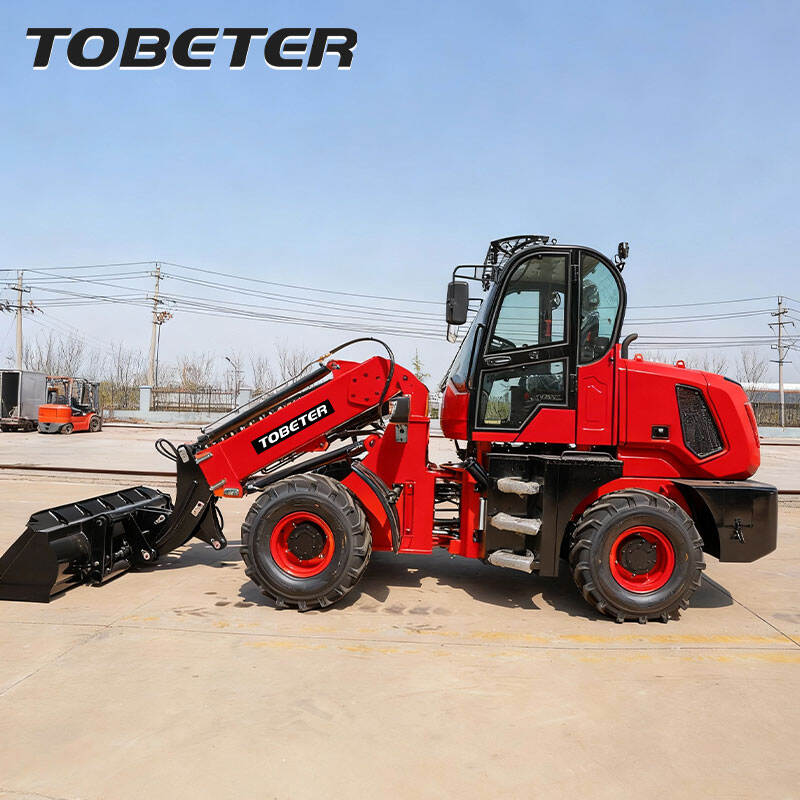

The telescopic loader is equipped with a high-performance engine, providing abundant power. It has high lifting and loading efficiency. Whether it is transporting earthwork, sand and gravel, or loading goods, it can complete the tasks stably and significantly enhance the efficiency of construction and production.

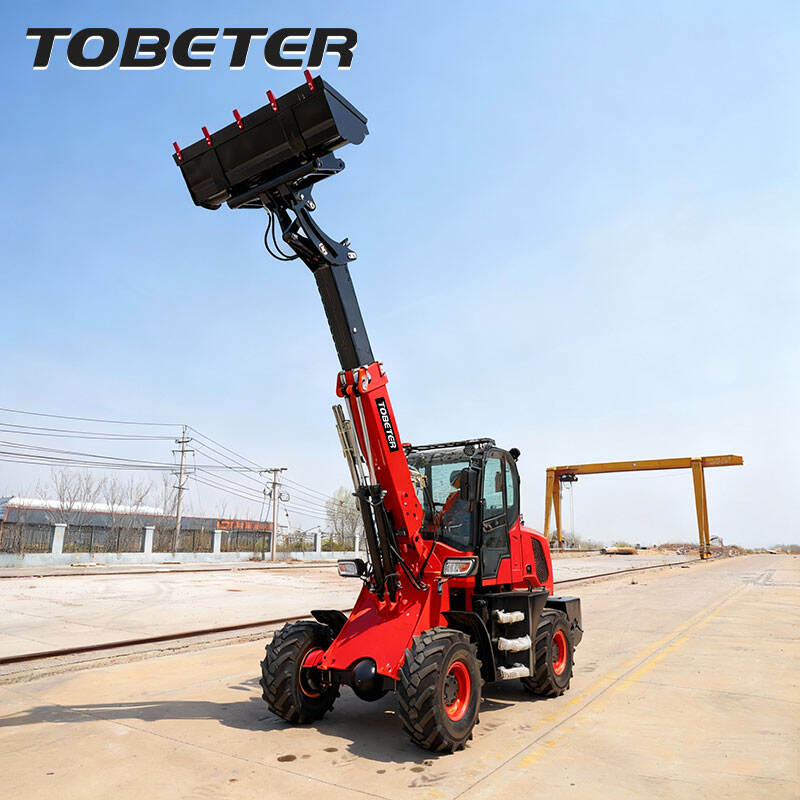

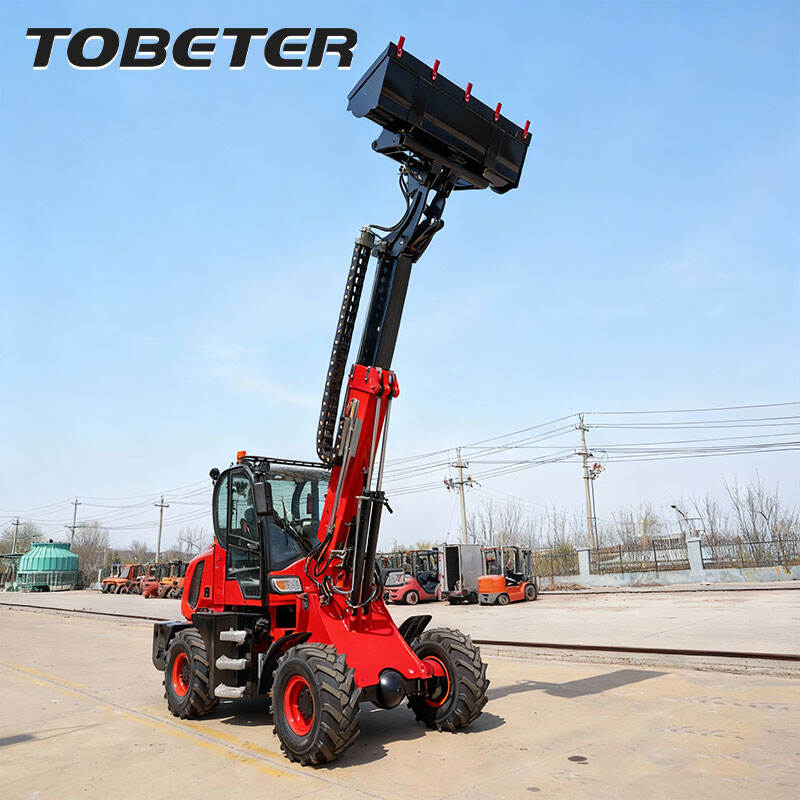

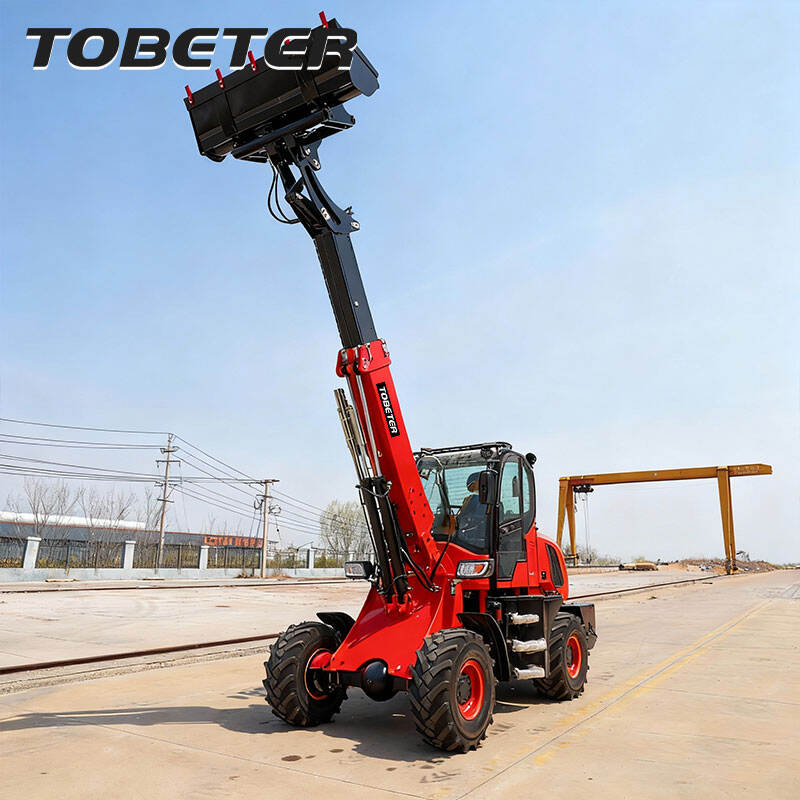

It is compactly designed with a small turning radius, enabling it to operate freely in environments with narrow roads, small factory areas, or complex orchard terrain. Additionally, its telescopic arm design makes the operation more flexible, allowing it to adapt to different working heights and space requirements, thereby enhancing construction flexibility.
