1. Easy to Operate: Single-lever with mechanical pilot control allows beginners to get started in about 1 hour, reducing training time and cost.
2. Full-Scenario Adaptation: 220V preheating for reliable cold starts, plus LED lights and cab heating for day/night and winter/summer operation.
3. Comprehensive Safety Configuration: Equipped with hammer, fire extinguisher, and large rearview image to improve on-site safety.
1. The loader features a full hydraulic + four-wheel drive system, offering 20% faster power response than mechanical transmission competitors.

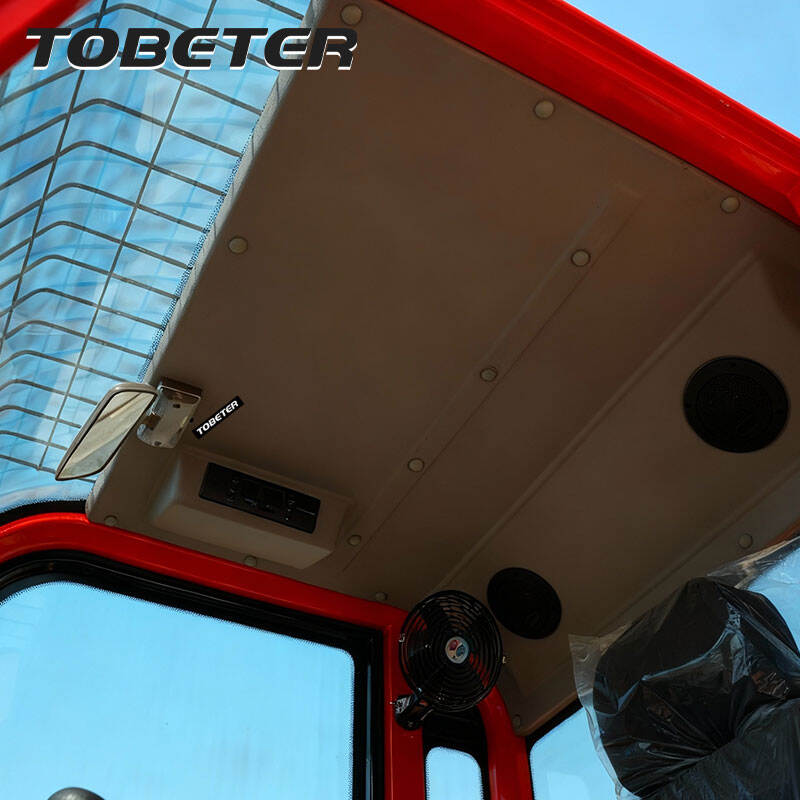

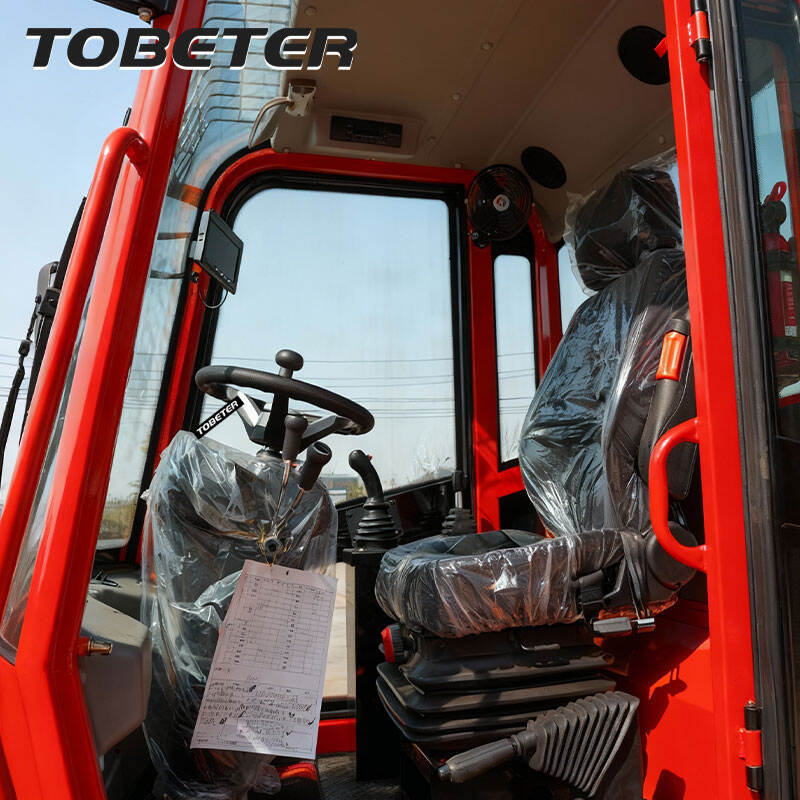

2. Most competitors offer basic seats; the TL1500 includes adjustable armrests, timer, and heating/cooling functions for a more comfortable operating experience.
| Engine | Operating Specifications | ||||
| (1) Brand/Model: | Tobeter TL1500 telescopic loader | (1) Steering System: | Articulated hydraulic steering | ||

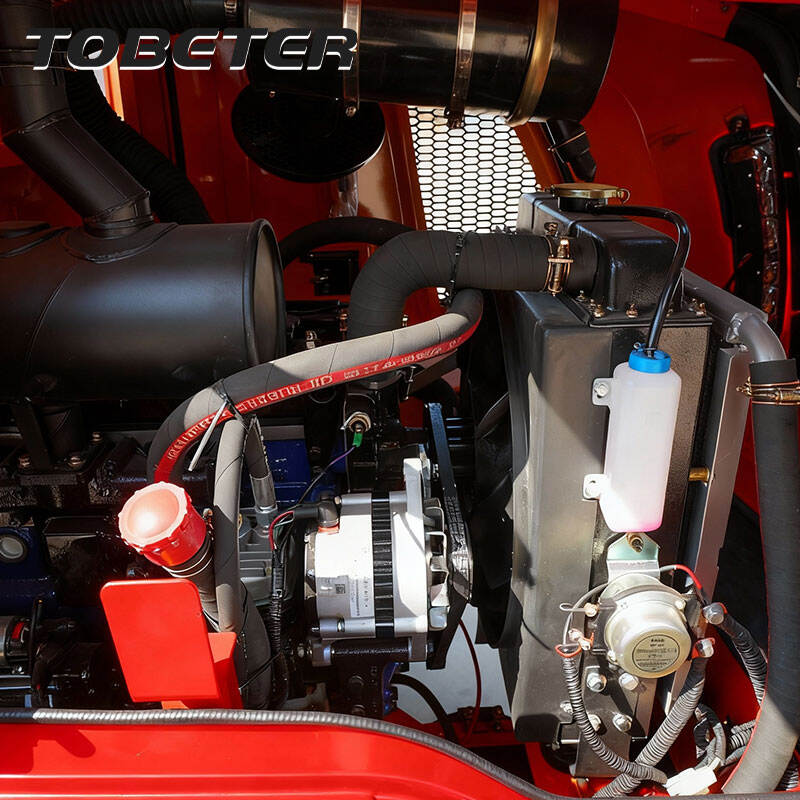

| (2) Type: | In-line arrangement, water-cooled, four cylinder, diesel engine | (2) Driving System: | Four wheel drive | ||
| (3) Rated Power: | 37KW | (3) Hydraulic quick release | Yes | ||
| (4) Optional engine: | EURO5 LAIDONG/CHANGCHAI/YUNNEI | (4) Mechanical pilot joystick | Yes | ||
| EPA4 KOHLER/CUMMINS | (5) Steady rise | Yes | |||
| Overall Dimensions | Brake System | ||||
| (1) Overall Length: | 5800mm | (1) Service Brake: | Four wheel disc brake | ||
| (2) Overall Width: | 1800mm | (2) Parking Brake: | Disc brake | ||
| (3) Overall Height: | 2700mm | Tyre | |||
| (4) Max. Discharge height: | 4400mm | (1) Model: | 20.5/70-16 | ||
| (5) Min. Discharge height: | 3400mm | (2) Size: | Width: 300mm Diameter: 920mm |
||
| Transmission System： | (3) Optional Model: | 31*15.5-15 tubeless tires | |||
| Gearbox + Hydraulic converter + Drive shaft + Isuzu axle | Wheel base: 2500mm | ||||
| Bucket： | Track: 1500mm | ||||
| (1) Capacity: | 0.65 m³ | System pressure: | 16Mpa | ||
| (2) Type: | Heavy-duty bolt on teeth | ||||
| (3) Max. Load: | 1500kg including bucket or attachment | Weight: | 4200KG | ||

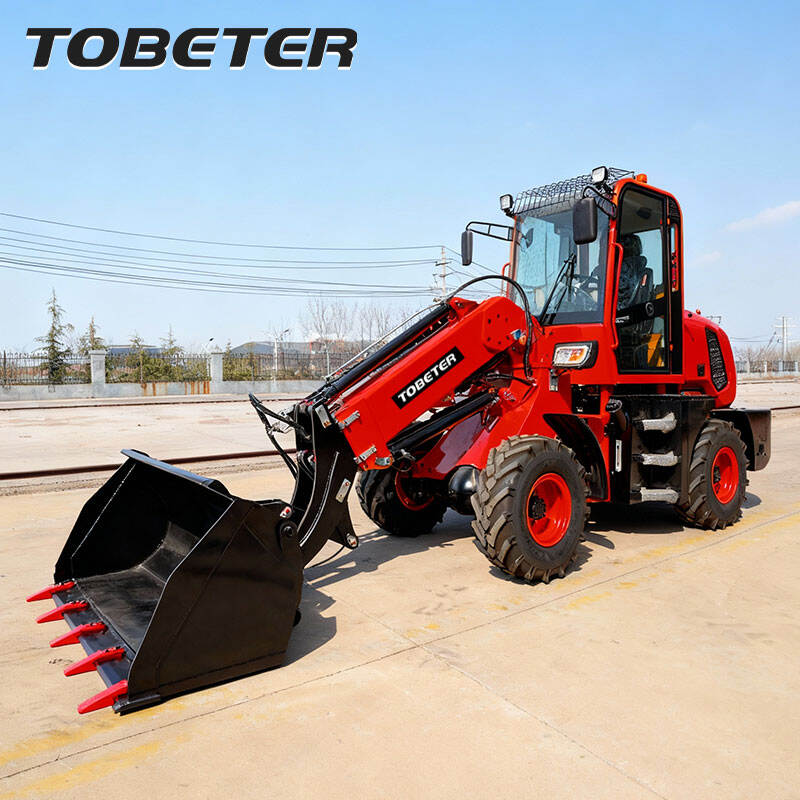

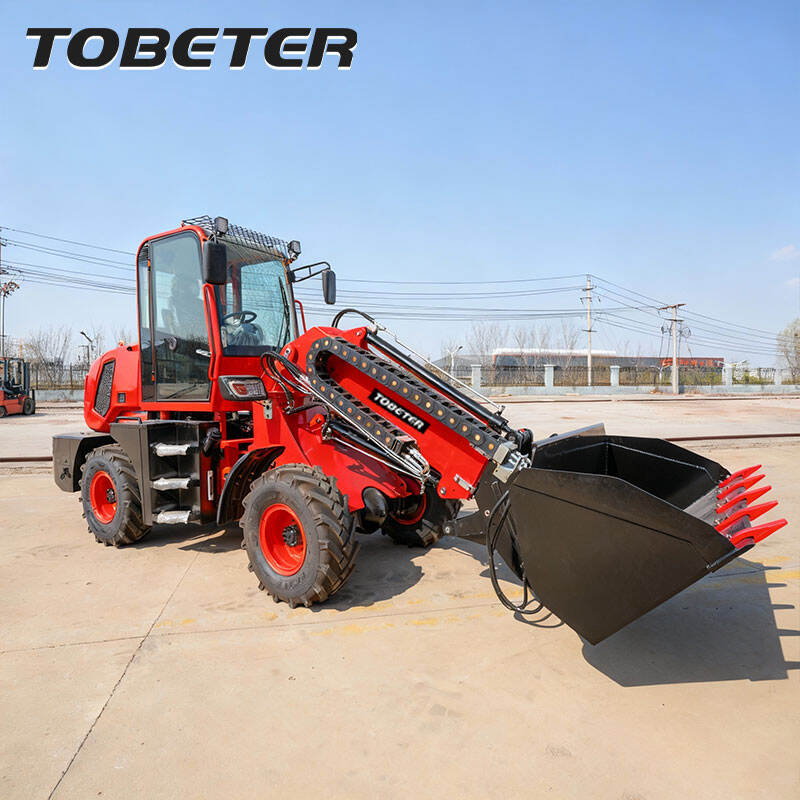

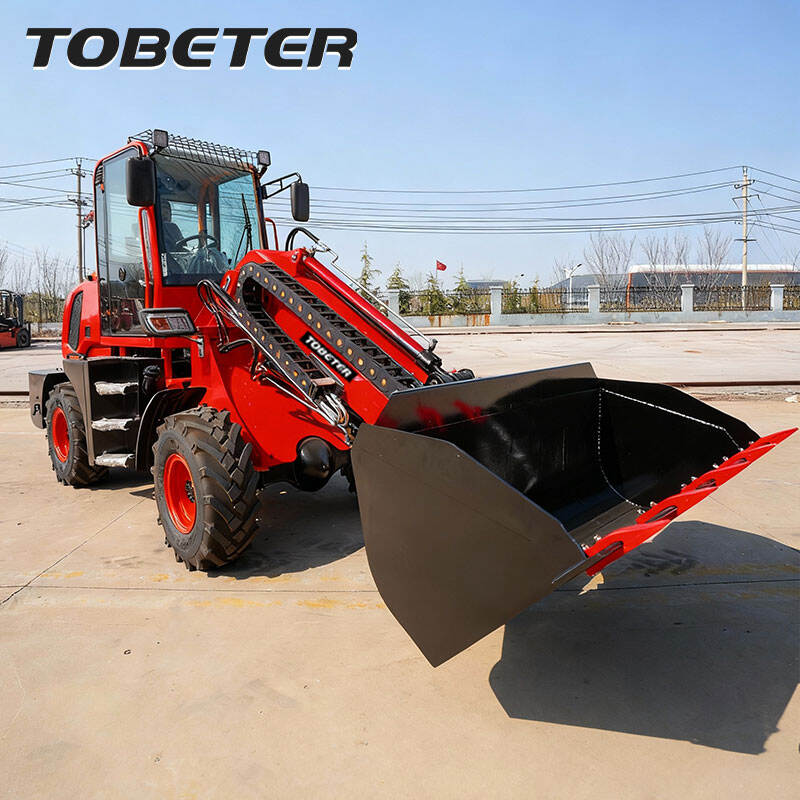

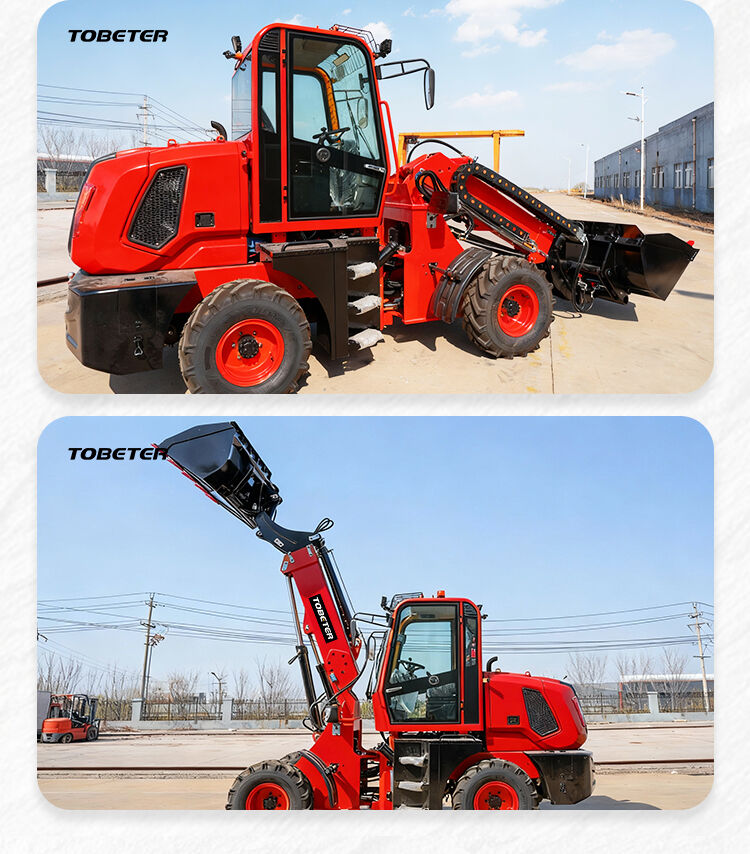

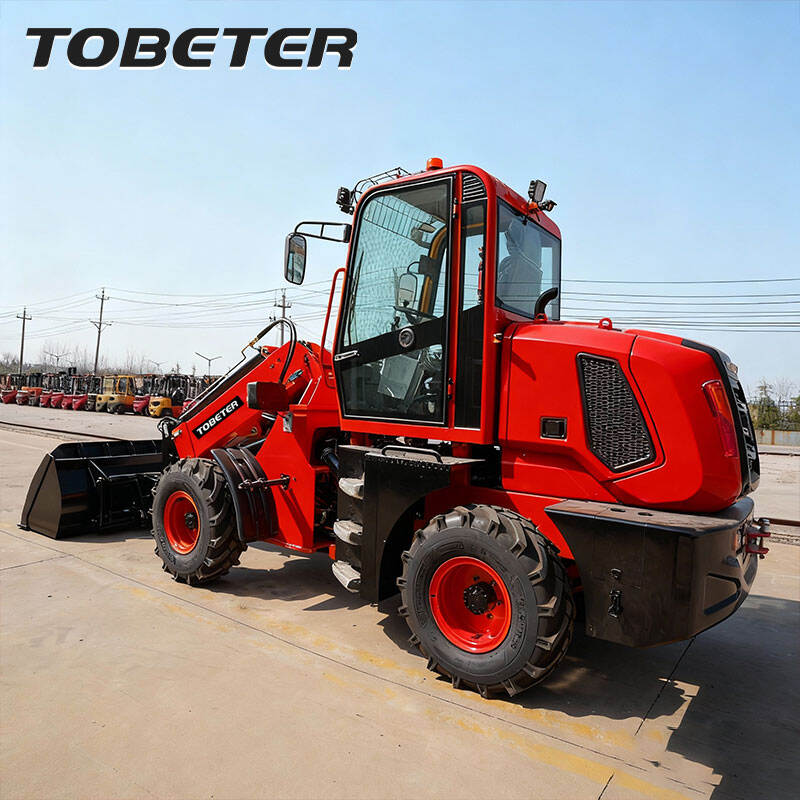

The TL1500 is an economical and efficient telescopic loader with a compact structure and a small body. It is specifically designed for light to medium-sized operations such as municipal minor maintenance, rural infrastructure construction, and small farm dredging.
It adopts a four-wheel drive system, which ensures stable traction and excellent passability even on muddy, soft, or uneven roads. Whether it is a rural road after rain, a municipal maintenance site, or complex terrains such as farmlands and ditches, the telescopic loader can operate reliably.

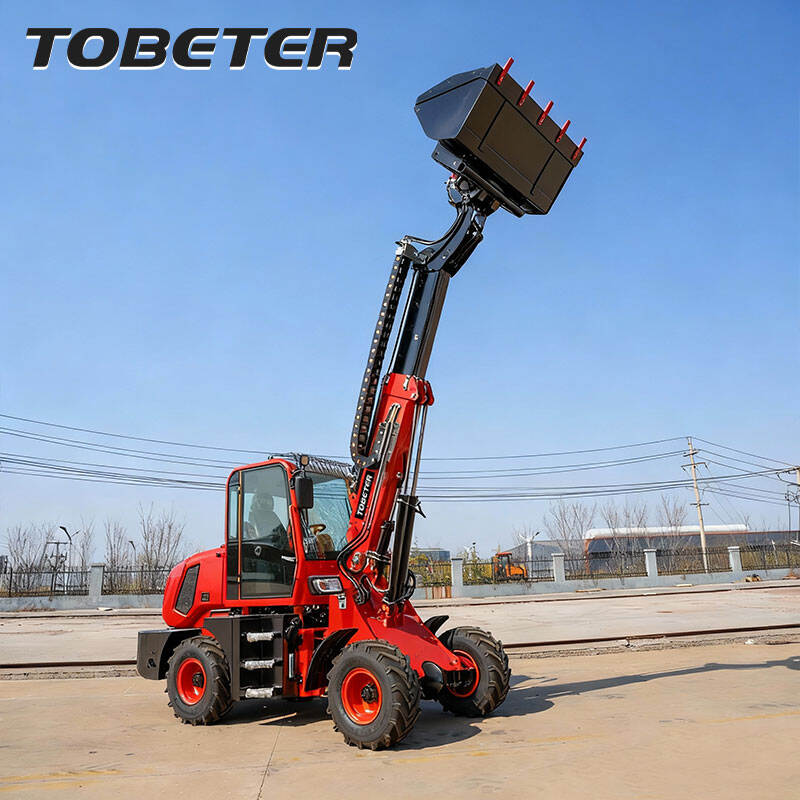

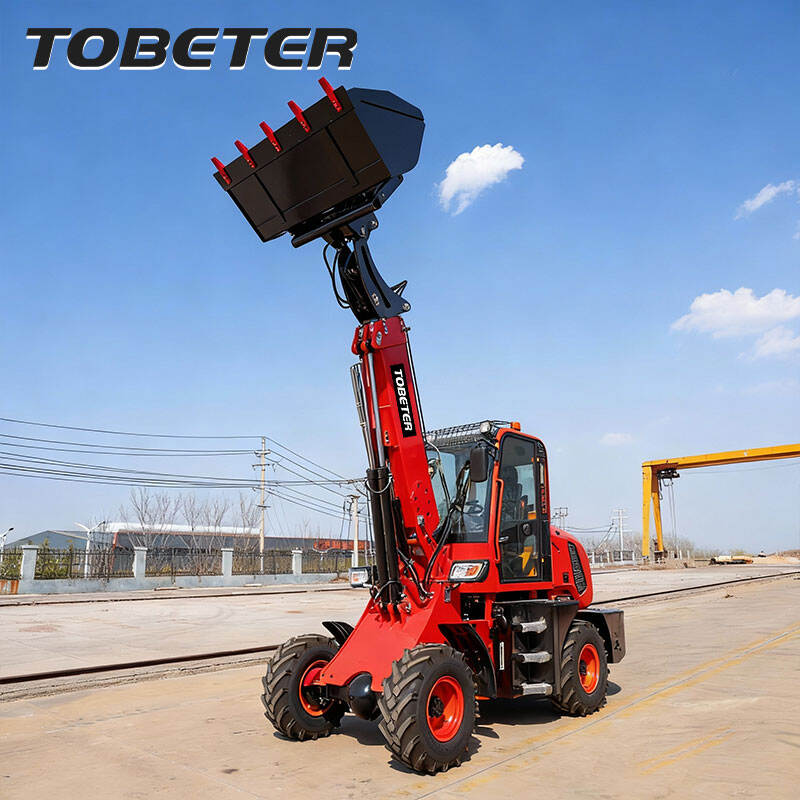

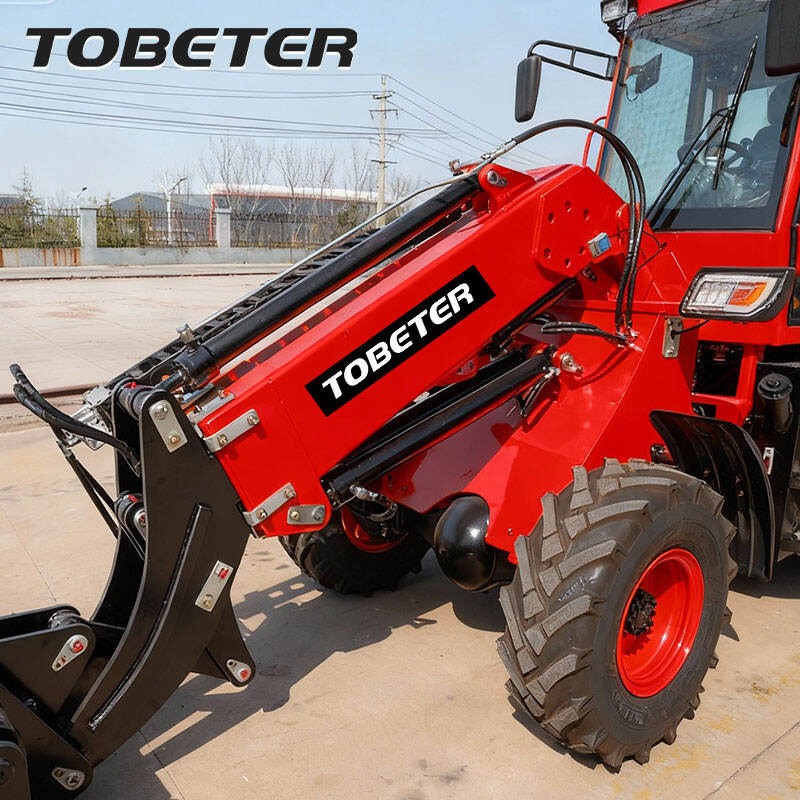

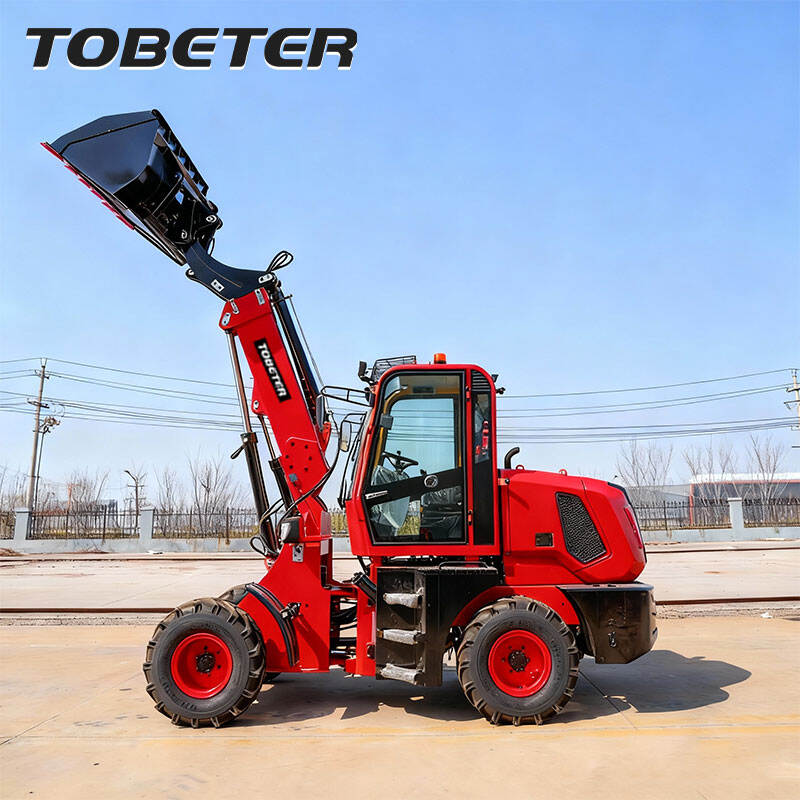

The telescopic loader is equipped with an extendable arm structure, which significantly expands the working range and flexibility compared to traditional small loaders. The extendable function enables effortless loading and unloading of materials at high positions, clearing of trenches, and stacking operations. This small telescopic loader, with its stable and reliable performance, wide applicability, and excellent cost-effectiveness, has become an ideal choice for small-scale engineering and daily operations.
