1. Flexible boom and arm operation for precise handling.
2. Strong terrain adaptability for various working conditions.
3. Efficient and stable powertrain performance.
1. Superior maneuverability in confined spaces.
2. High versatility with multiple attachments for agriculture, small-scale construction, and material handling.
Technical Parameter
Operation weight |
2200kg |
Bucket Capacity |
0.3m³ |
Lifting Height of main boom |
3000mm |
Dumping Height of main boom( dumping angle 45°) |
2100mm |
Dumping reach of main boom |
587mm |
Max. Loading capacity of main boom |
800kg |
Lifting height of small boom |
3600mm |
Dumping height of small boom (dumping angle 45°) |
2800mm |
Dumping reach of small boom |
1085mm |
Max. Loading capacity of small boom |
600kg |
Max. Speed(F1/R1) |
12km/h |
Max. Traction force |
16.66KN |
Max. Breakout Force |
15KN |
Max. Gradeability |
25° |
Max. Turning angle |
35° |
Dimension
Overall length (bucket on ground position) |
3820mm |
Overall width |
1260mm |
Overall Height |
2310mm |
Wheel base |
1507mm |
Tread |
890mm |
Min. Ground clearance |
220mm |
Engine
Engine brand/model |
LAIDONG LL385BT |
Type |
Water cooled |
Rated Power |
18.8kw |
Rated Speed |
2400r/min |
Number of cylinders |
3 |
Emission standard |
EURO5 |
Optional engine |
EPA4/EURO5 Perkins or Kubota or Yanmar engine |
Transmission
Type |
Closed Hydrostatic |
Pump type |
Variable displacement piston |
Pump Pressure |
28MPa |
Axle |
Bevel gear reduction |
Main drive reduction ratio |
3.75 |
Driving |
Four wheel drive |
Tire |
10.0/75-15.3 |
Optional tire |
31*15.5-15 |
Steering System
Type |
All hydraulic steering |
System Pressure |
16 |
Steering pump type |
Gear pump |
Steering diameter |
63 |
Stroke |
171 |
Quantity |
1 |
Braking System
1) Foot Brake type |
Disc brake |
2) Hand brake (parking brake) type |
Drum brake |
Working hydraulic system
Work pump type |
Plunger pump |
Oil flow |
13.8ml/r |
Working pressure |
16Mpa |
Voltage |
12V |
Starter Type |
Electric |
Packing quantity |
3 Units/1*20HQ 7Units/1*40HQ |

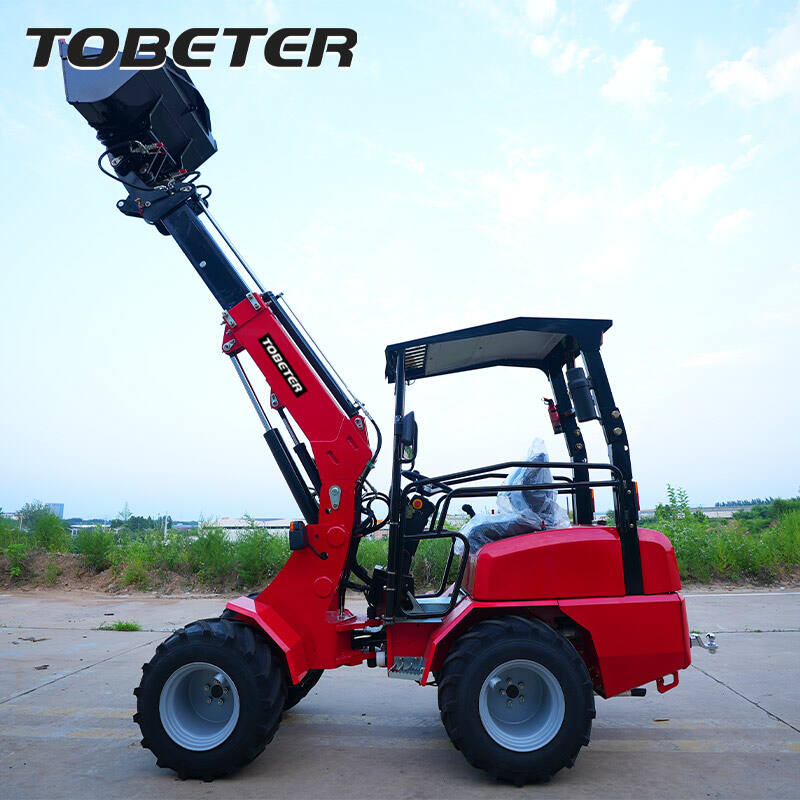

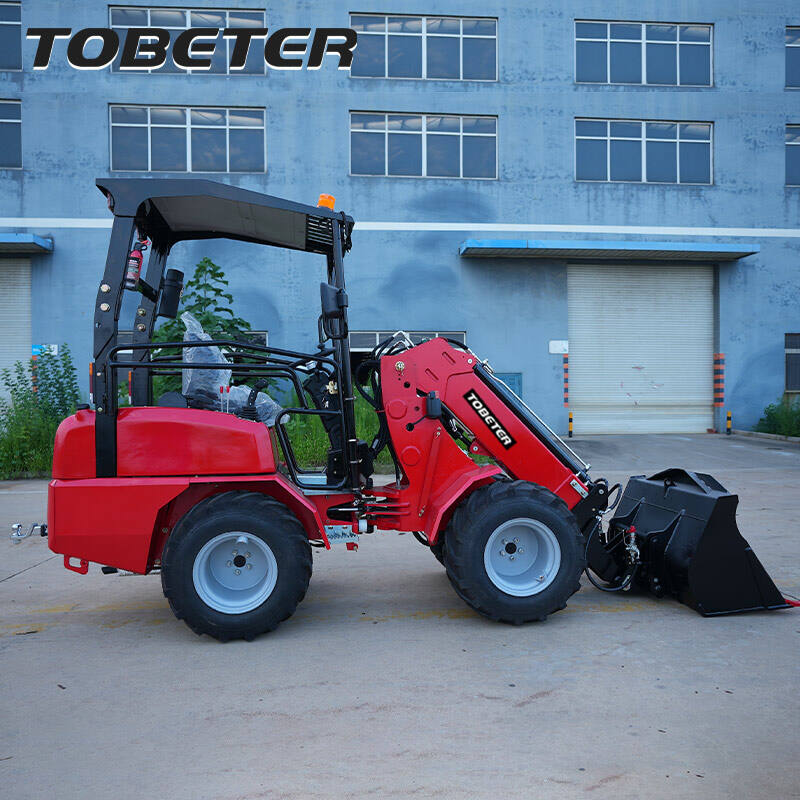

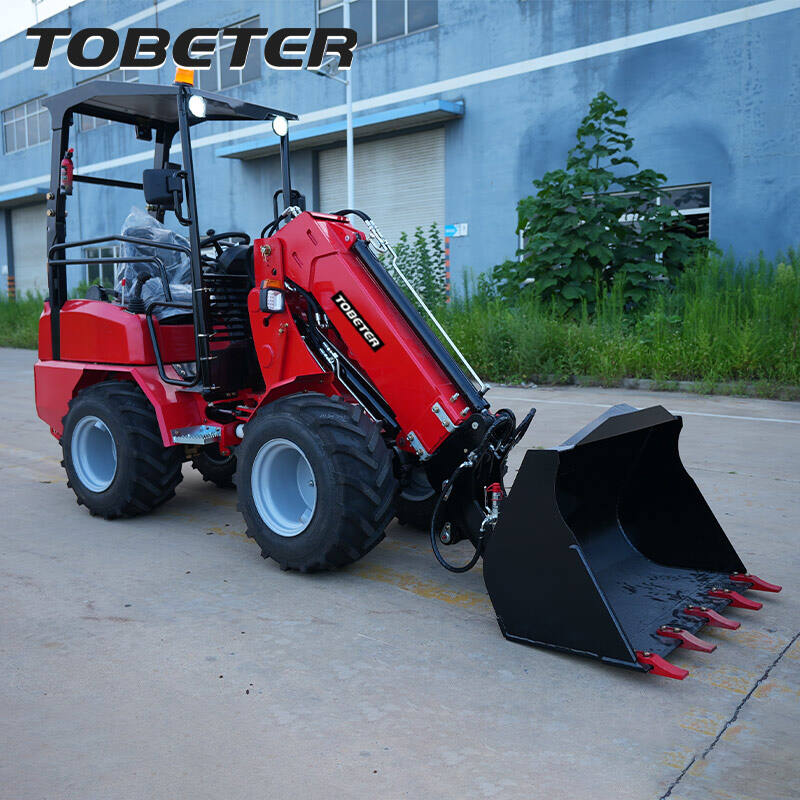

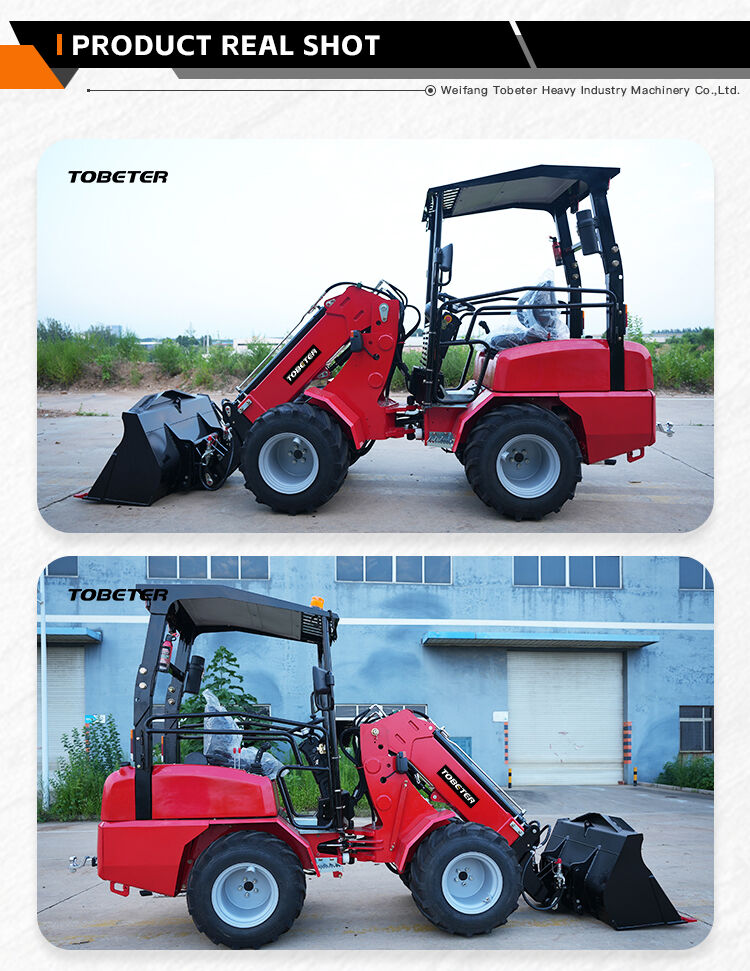

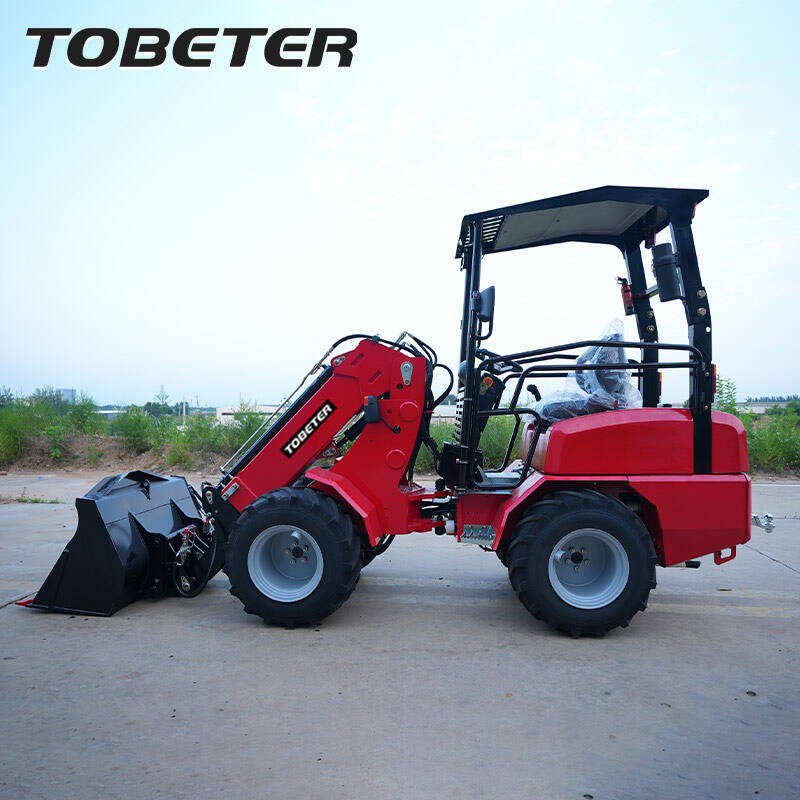

The H180T is an efficient construction machine specially designed for use in confined spaces and in various working conditions. It has a compact structure and is highly maneuverable. It can not only meet the daily requirements of material loading and transportation, but also has the ability to perform precise stacking and high-altitude operations. It is particularly suitable for applications such as agricultural breeding, garden maintenance, small construction sites, and warehousing and logistics.

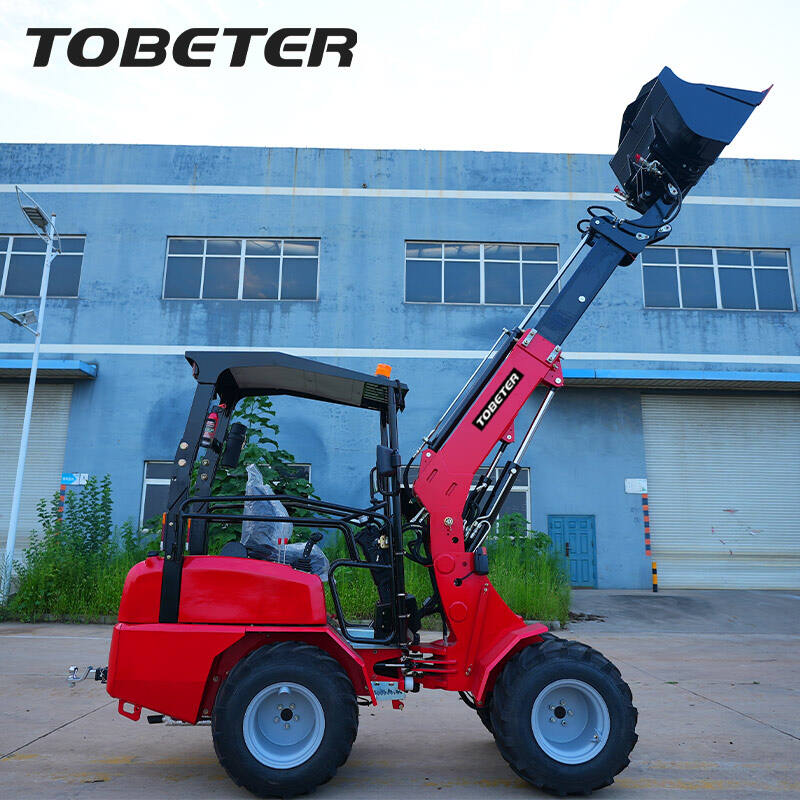

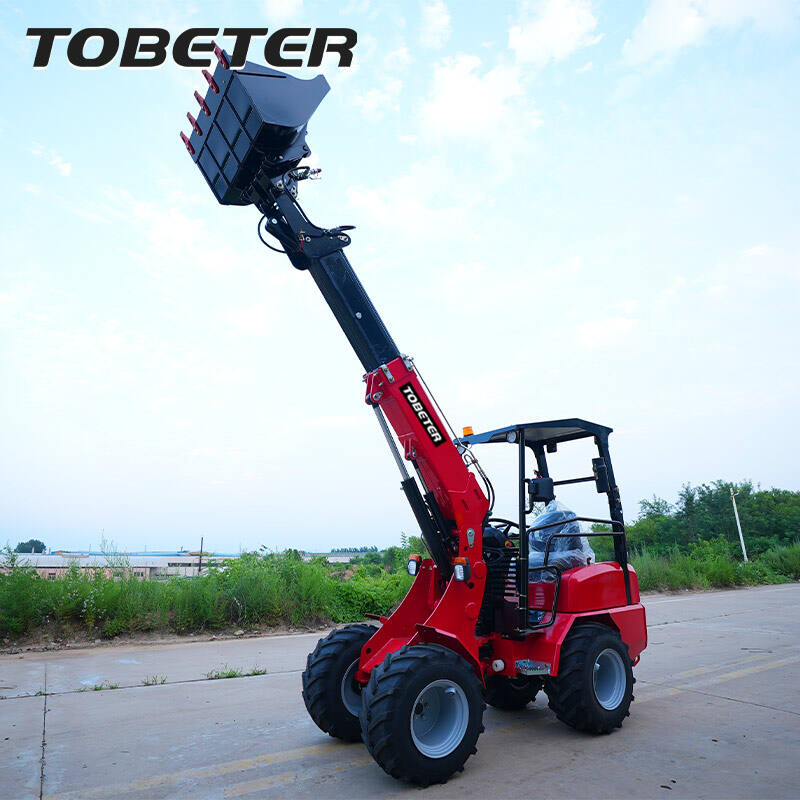

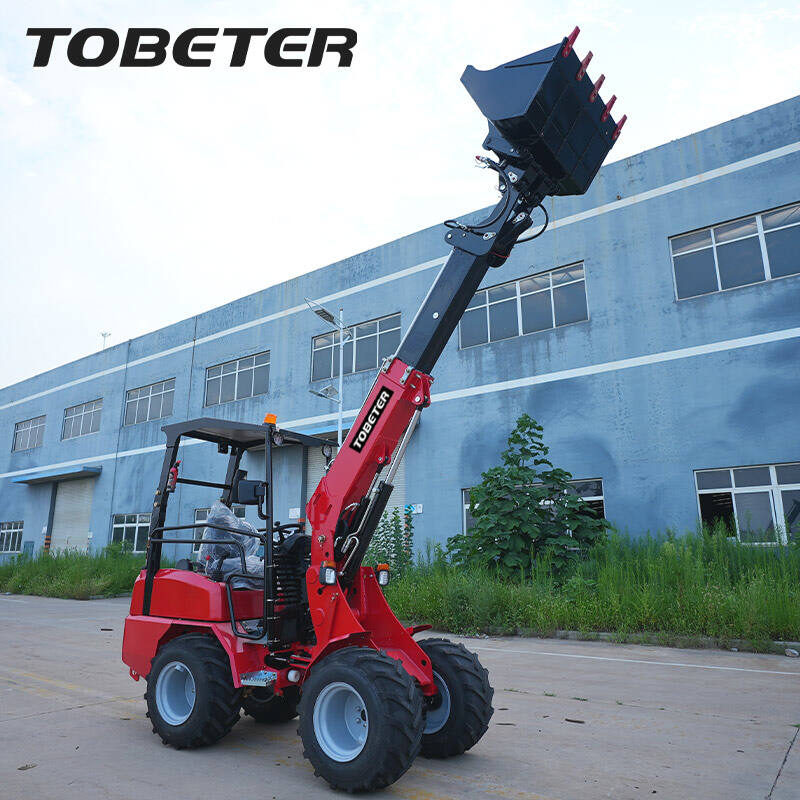

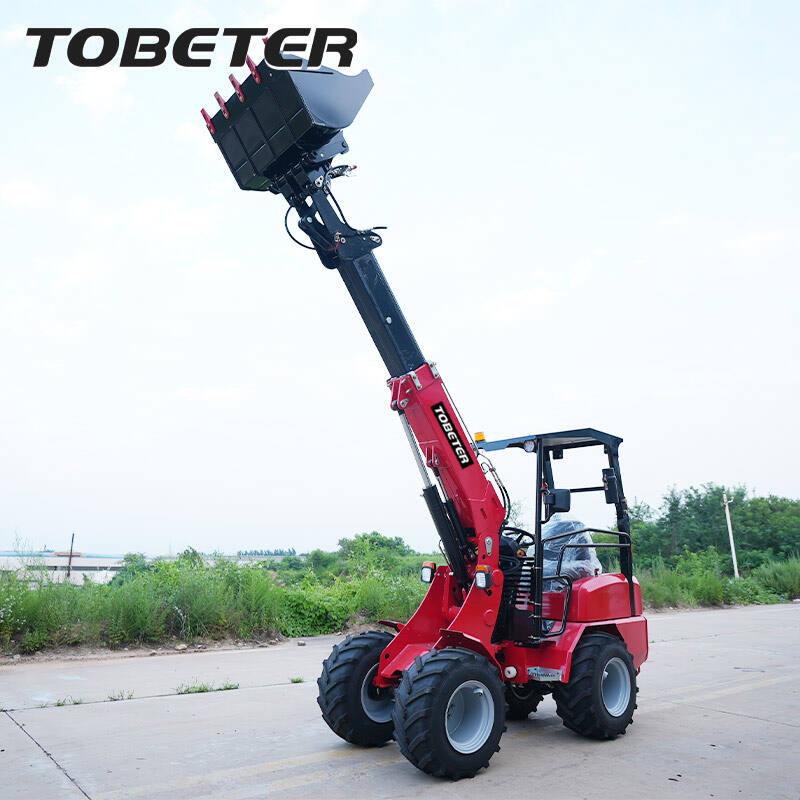

It adopts a telescopic arm structure design, allowing for flexible adjustment of the working radius and unloading height. This enables a wider operational range and significantly improves the operational efficiency.

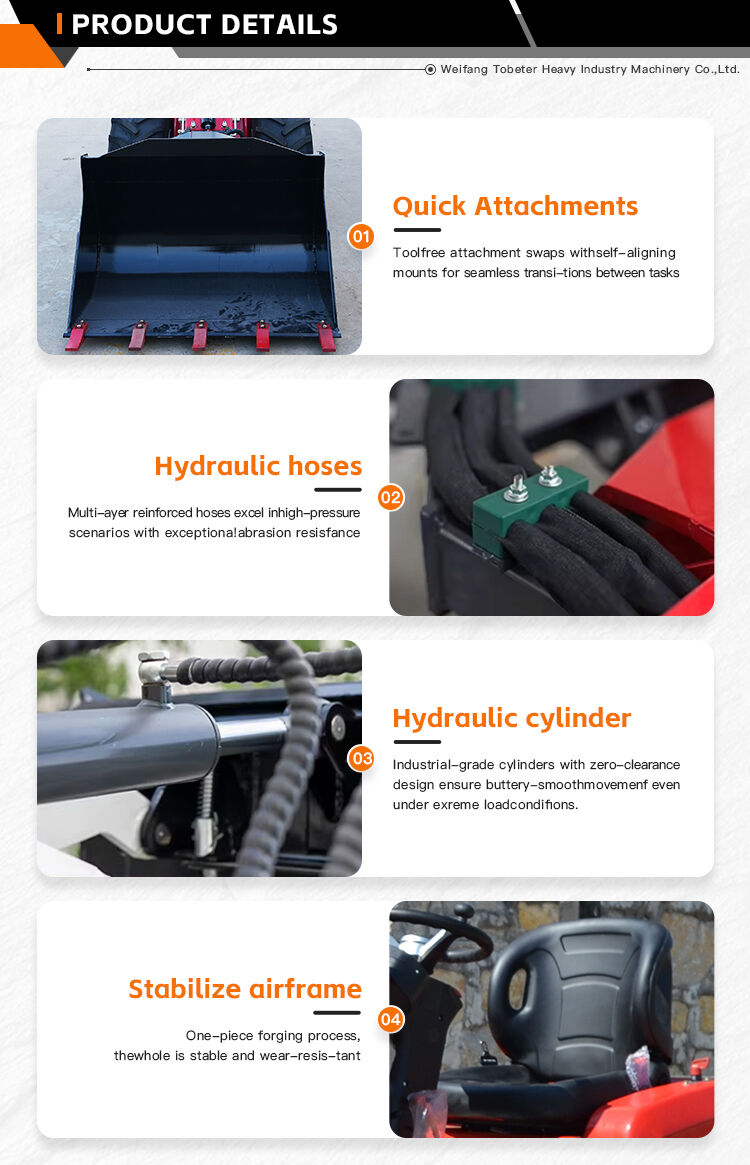

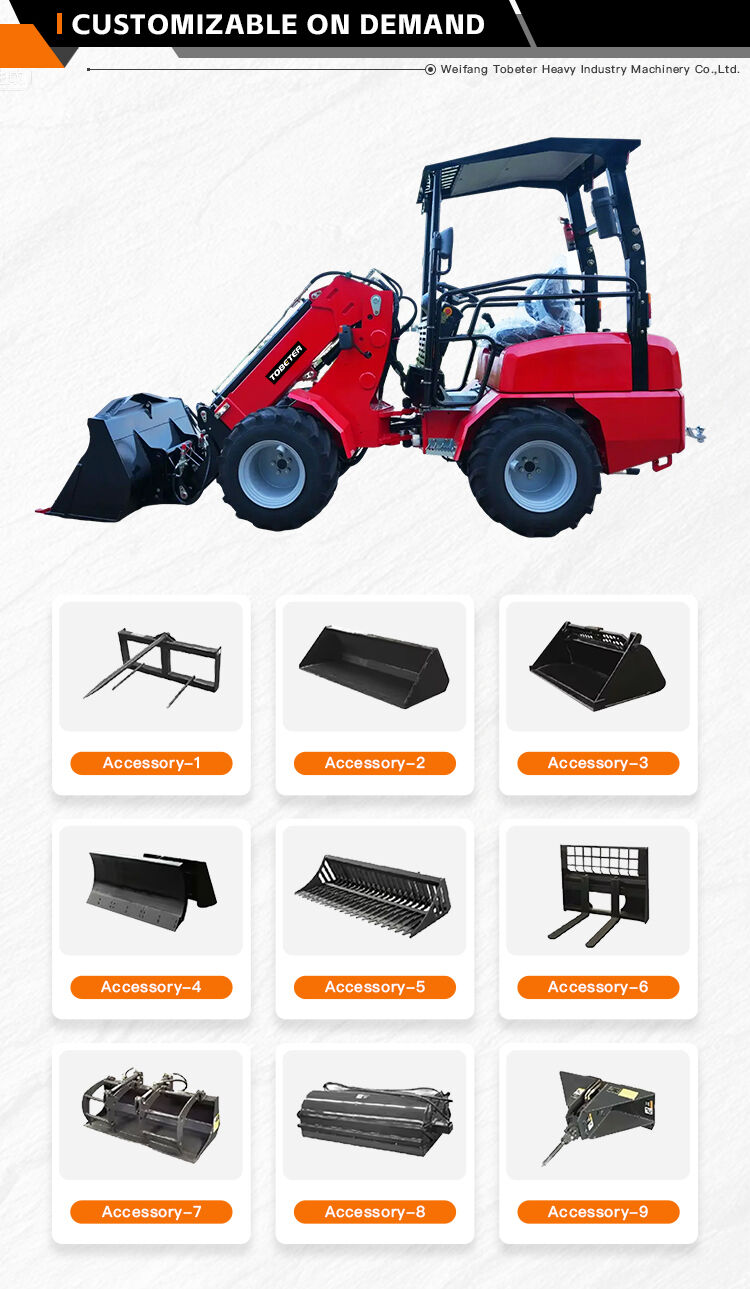

This mini telescopic loader has excellent terrain adaptability. It can maintain stable driving and operation performance on muddy ground, gravel roads and uneven surfaces, effectively reducing the impact of skidding and jolting. Moreover, it has outstanding multi-functional expansion capabilities, allowing for quick replacement of various attachments such as buckets, forks, grab tools, etc., making it versatile and suitable for different working scenarios.
